Seat Control Switch, 10-Way Driver Power Seat Without Memory

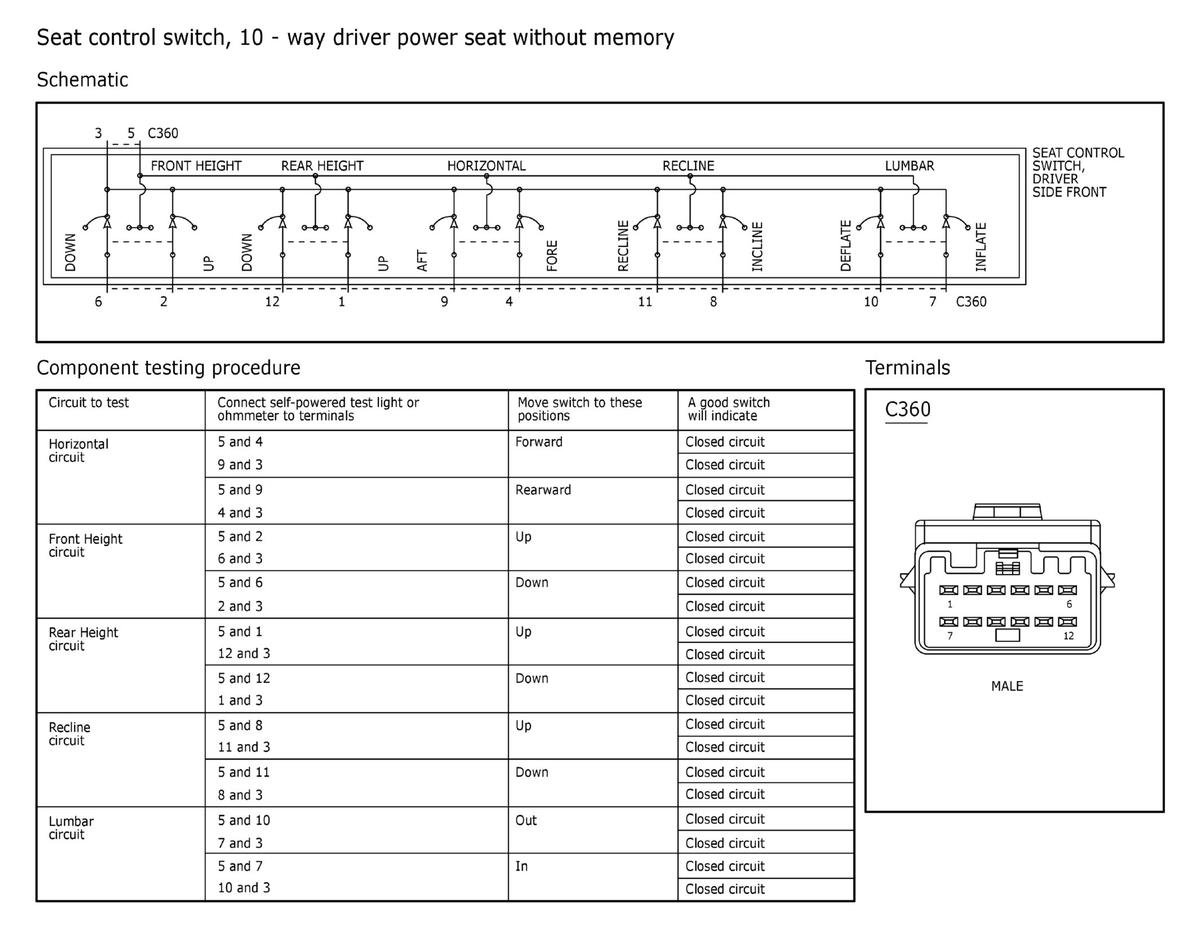

Fig 1: Seat Control Switch, 10-Way Driver Power Seat Without Memory
GFDW97540Courtesy of FORD MOTOR COMPANY
