Brake Shift Interlock Override Switch: Removal
For information on Ford Color Coded Illustrations refer toOEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Open the console door.
- Detach the console cover, disconnect the electrical connectors and remove the console cover.

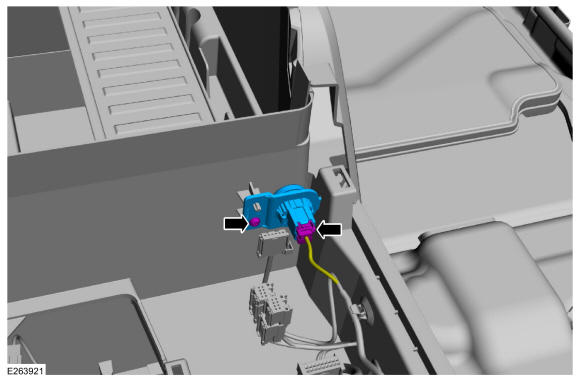

- Disconnect the electrical connector, and remove the screw and the brake shift interlock override switch.
