Selector Lever Assembly: Removal
For information on Ford Color Coded Illustrations refer toOEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .

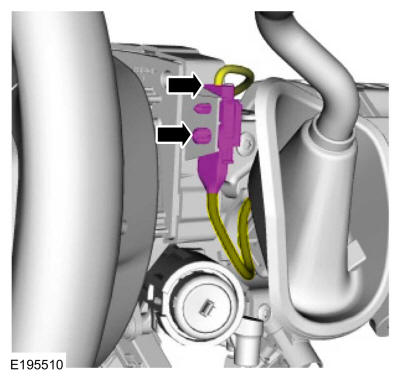

- Disconnect the selector lever assembly electrical connector.

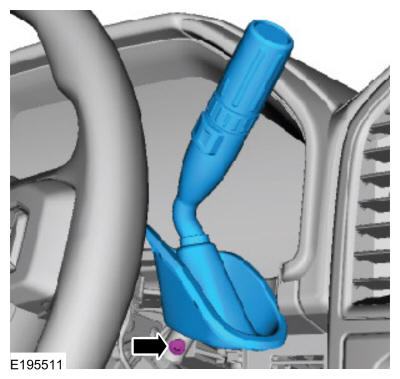

- Remove the bolt and the selector lever assembly.
Torque: 159 lb.in (18 Nm)
