Steering Column: Removal

All vehicles

1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
2. Remove the clockspring. Refer to: Clockspring .
3. Remove the bolts and the steering column reinforcement panel.

   Torque: 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles with selector lever

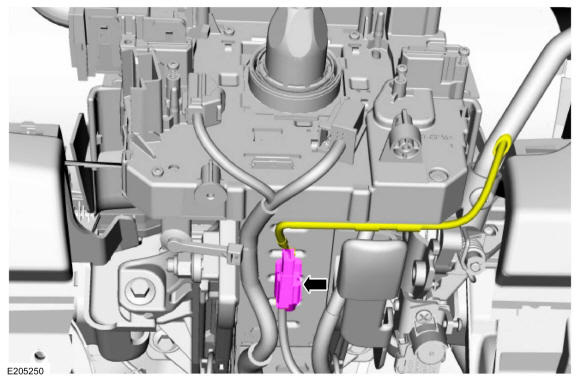

4. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

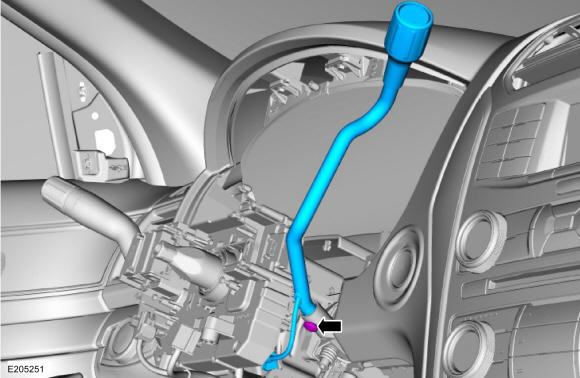

5. Remove the screw and the selector lever.

   Torque: 159 lb.in (18 Nm)

   Courtesy of FORD MOTOR COMPANY

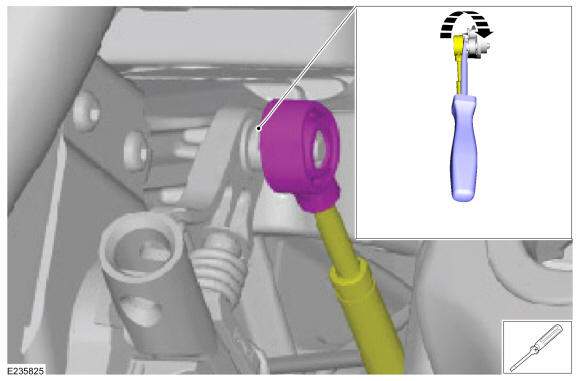

6. NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

   Using a screwdriver, pry the selector lever cable end from the selector lever mechanism.

   Courtesy of FORD MOTOR COMPANY

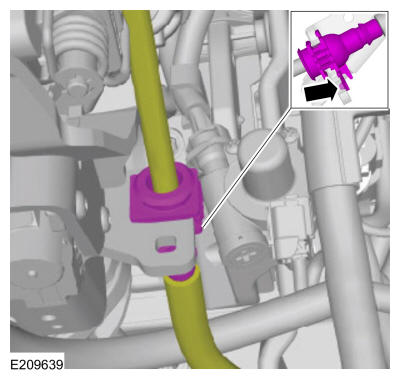

7. Release the selector lever cable retaining clip tabs and remove the selector lever cable from the bracket.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with power adjustable steering column

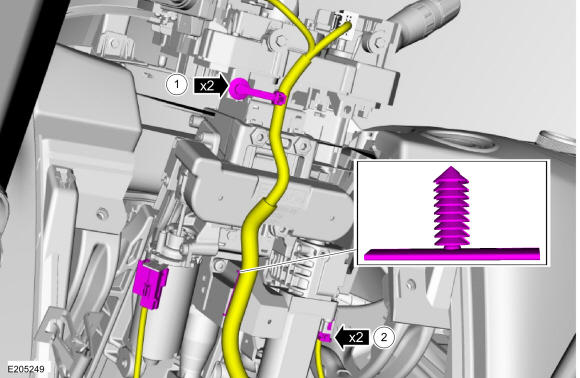

8. 1. Release the wiring harness retainers.
   2. Disconnect the steering column electrical connectors.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

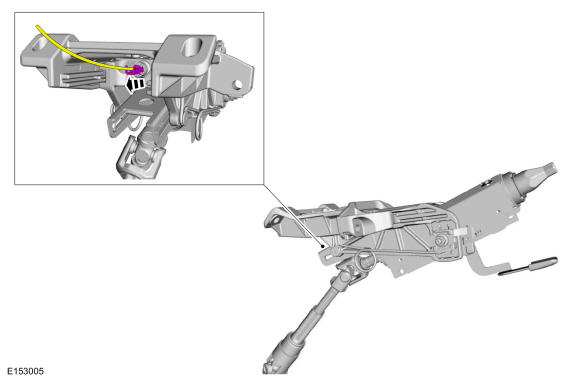

9. Depress the locking tabs and disconnect the collapsible steering column module electrical connector.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolt and disconnect the steering column shaft from the steering column.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

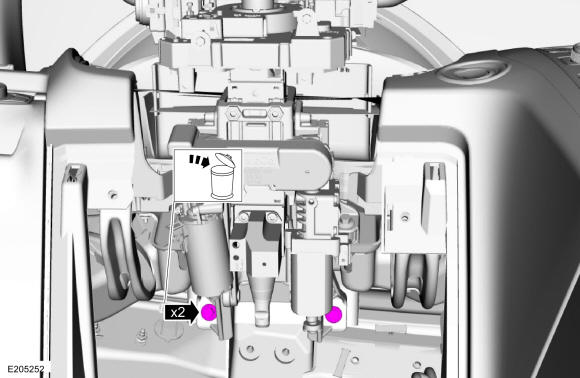

    Remove and discard the steering column bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

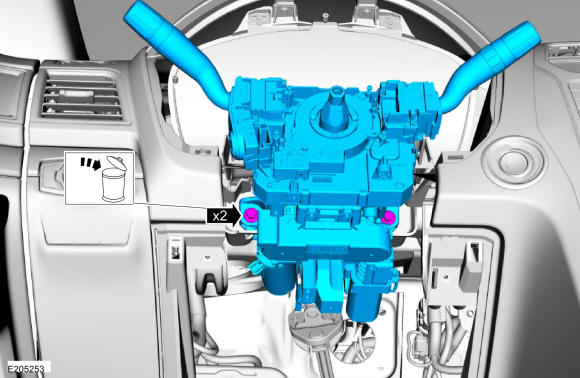

    Remove and discard the bolts and remove the steering column.

    Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
