Power Fold Seat Module (PFSM): Removal

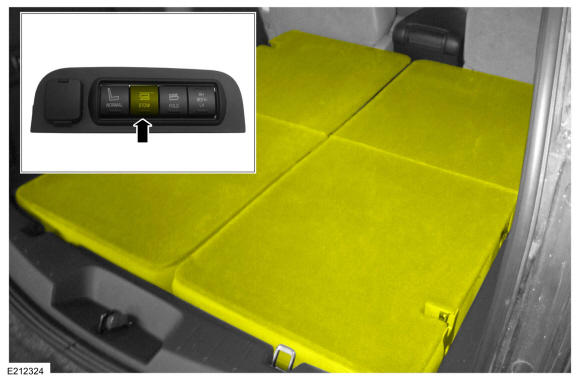

1. Place the third row seats in the stow position.
   • If equipped with inoperative power seat. Refer to: Third Row Folding Seat Manual Override .

   Courtesy of FORD MOTOR COMPANY

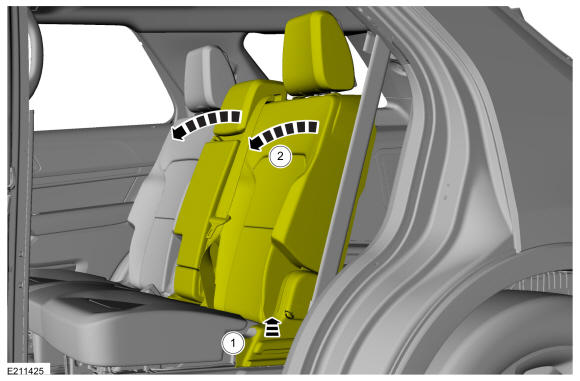

2. Place the seat backrest to the fold flat position.
   1. Lift the recliner handle to release the seat backrest.
   2. Fold the seat to the fold flat position.

   Courtesy of FORD MOTOR COMPANY

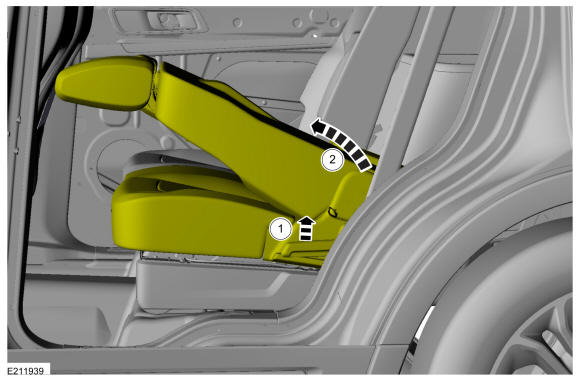

3. Place the seat in the easy entry position.
   1. Lift the recline handle to release the seat latches from the floor strikers.
   2. Flip the seat to the easy entry position.

   Courtesy of FORD MOTOR COMPANY

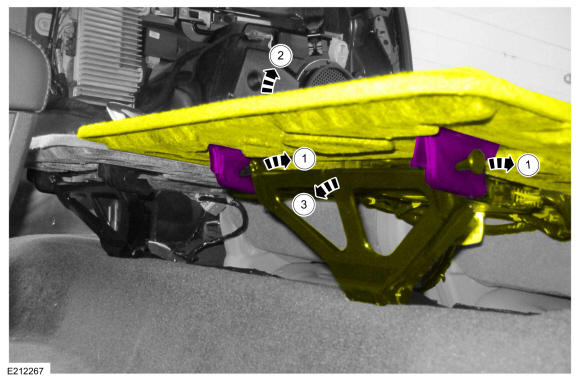

4. Detach the LH load floor support.
   1. Push the load floor support in to detach from the load floor.
   2. Slightly lift the load floor panel.
   3. Lower the load floor support.

   Courtesy of FORD MOTOR COMPANY

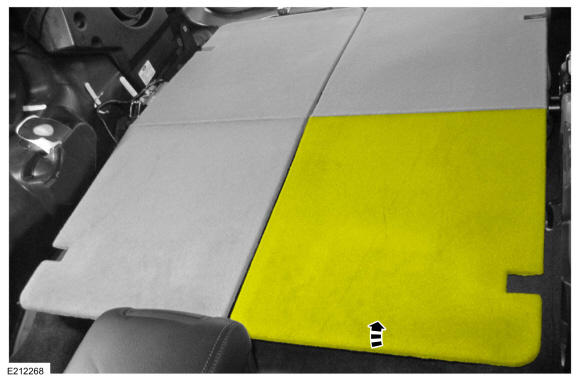

5. Lift the LH load floor panel.

   Courtesy of FORD MOTOR COMPANY

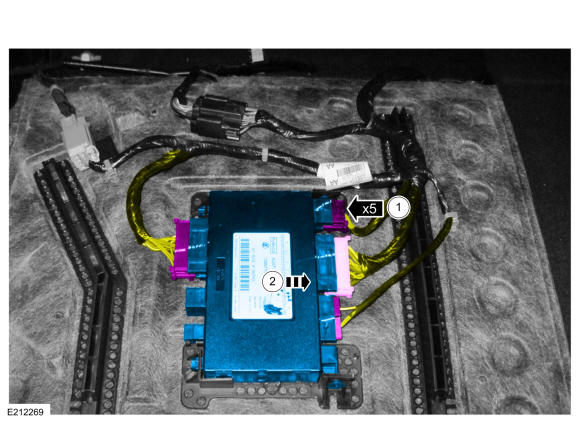

6. Remove the PFSM.
   1. Disconnect the electrical connectors.
   2. Slide the PFSM out of the bracket.

Courtesy of FORD MOTOR COMPANY
