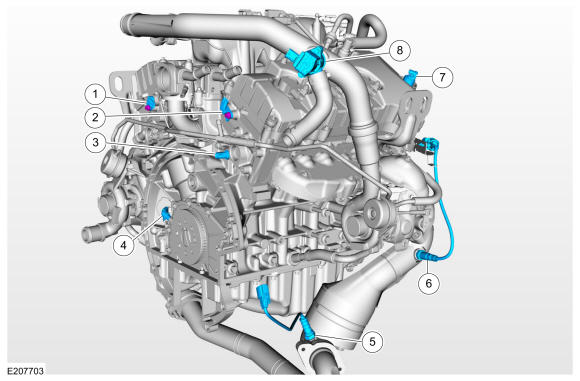

Electronic Engine Controls- RH

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Left hand CMP sensor
2	Right hand CMP sensor
3	CHT sensor
4	CKP sensor
5	Right hand catalyst monitor sensor
6	Right hand HO2S
7	Right hand VCT oil control solenoid
8	Turbocharger bypass valve
