Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced.

    Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

  2. NOTE: The PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.

    Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.

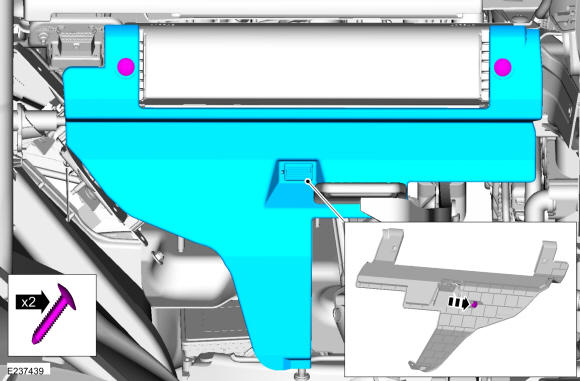

  3. Remove the push pins and remove the LH lower instrument panel insulation panel.

    • Disconnect the electrical connector.

    GFD238359Courtesy of FORD MOTOR COMPANY
  4. Remove the steering column. Refer to: Steering Column .

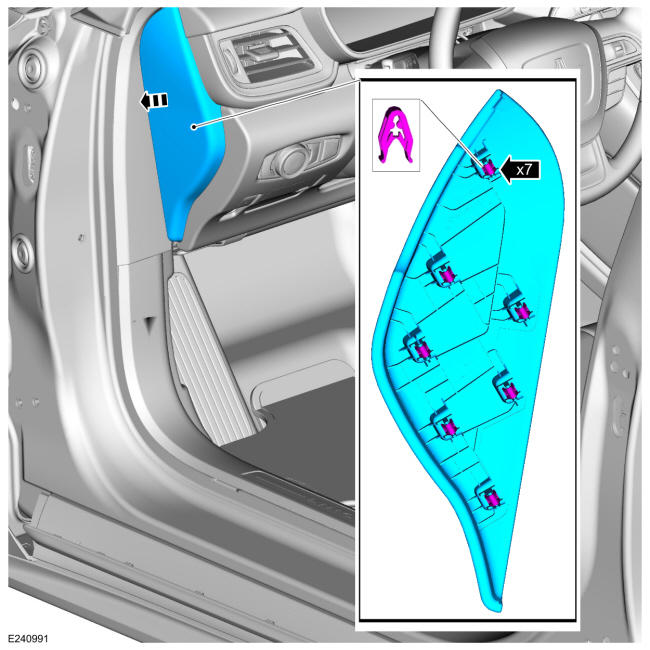

  5. Release the clips and remove the instrument panel side trim panel.
    GFD238458Courtesy of FORD MOTOR COMPANY

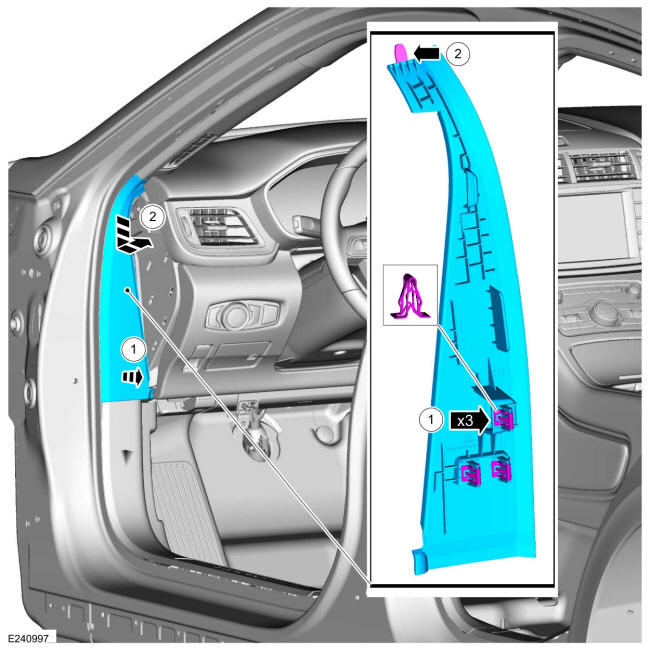

  6. Remove the cowl side trim panel.

    1. Release the lower clips.
    2. Release the upper tab.

    GFD238459Courtesy of FORD MOTOR COMPANY

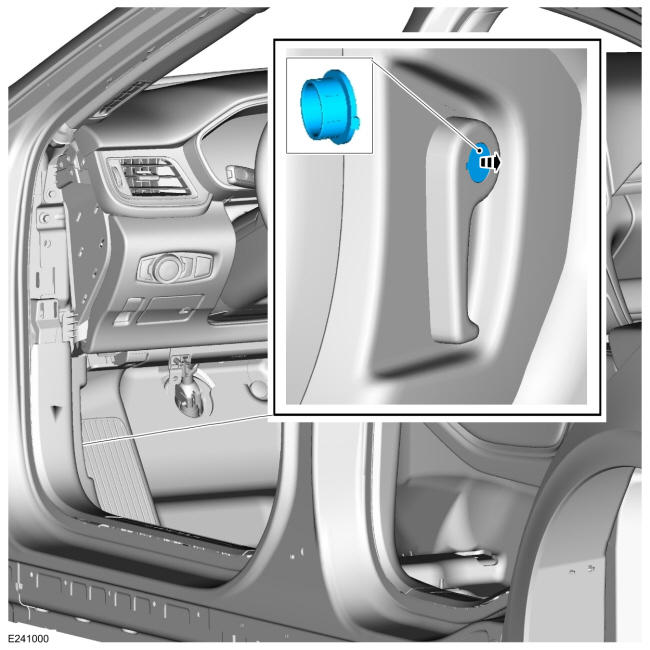

  7. Remove the hood latch release handle cover.
    GFD238460Courtesy of FORD MOTOR COMPANY

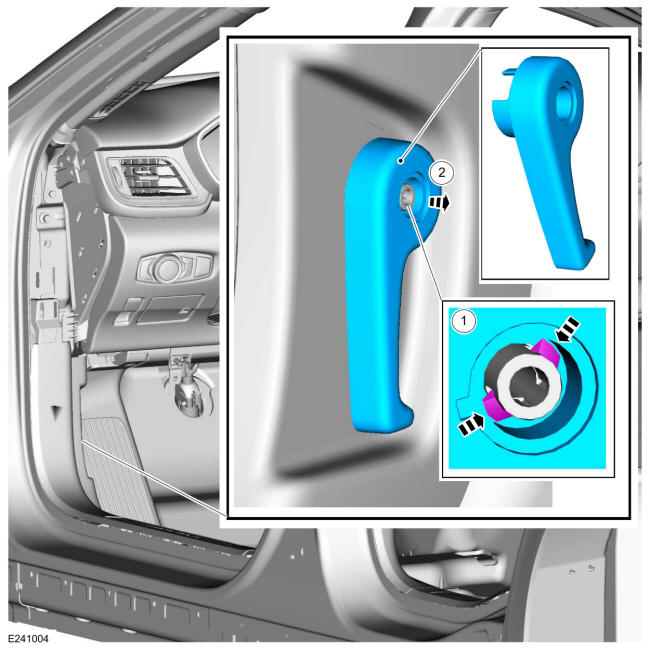

    1. NOTE: Insert a 10mm 1/4 inch drive socket to release the tabs.

      Release the hood latch release handle retaining tabs.

    2. Remove the hood latch release handle.
    GFD238461Courtesy of FORD MOTOR COMPANY

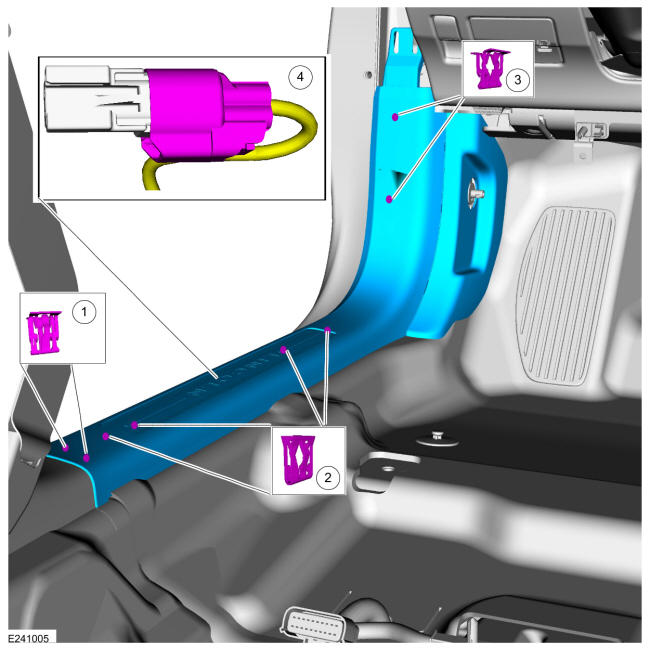

  8. Remove the front door scuffplate trim panel.

    1. Release the rear clips.
    2. Release the center clips.
    3. Release the front clips.
    4. If equipped. Disconnect the electrical connector.

    GFD238462Courtesy of FORD MOTOR COMPANY

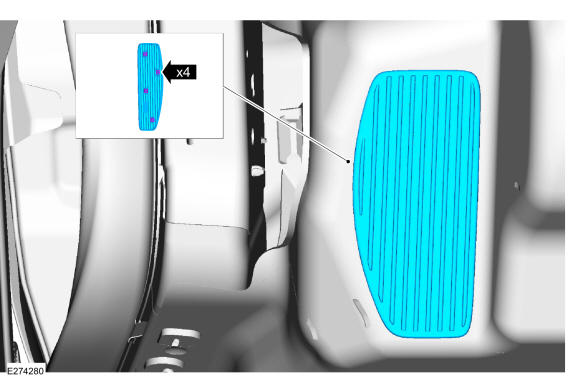

  9. Detach the clips and remove the foot rest from the floor.
    GFD238463Courtesy of FORD MOTOR COMPANY

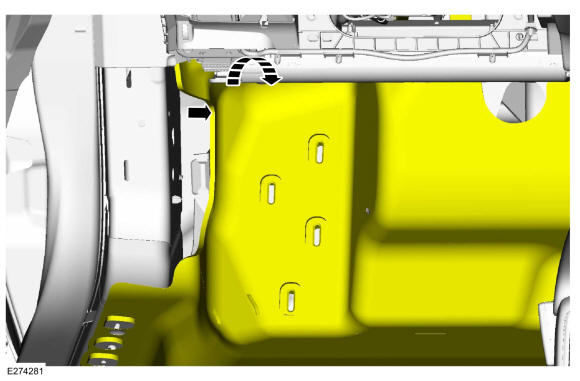

  10. Position back the carpet.
    GFD238464Courtesy of FORD MOTOR COMPANY

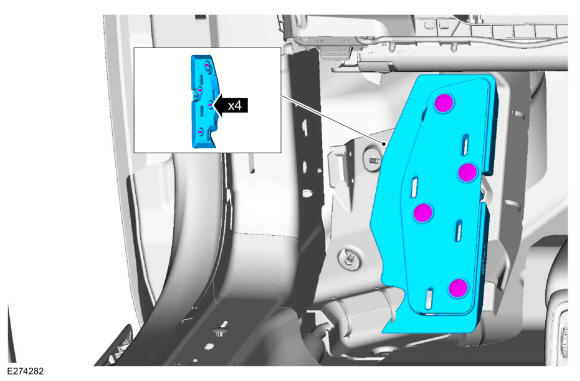

  11. Detach the push pin type retainers and remove foot rest pad from the floor.
    GFD238465Courtesy of FORD MOTOR COMPANY

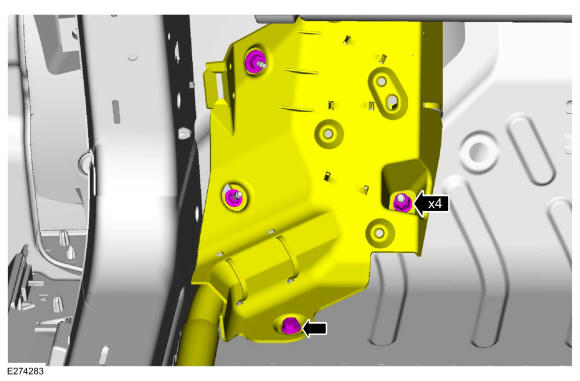

  12. Remove the nuts and the bolt and position aside the floor wiring harness shield.
    GFD238466Courtesy of FORD MOTOR COMPANY
  13. NOTE: If equipped.

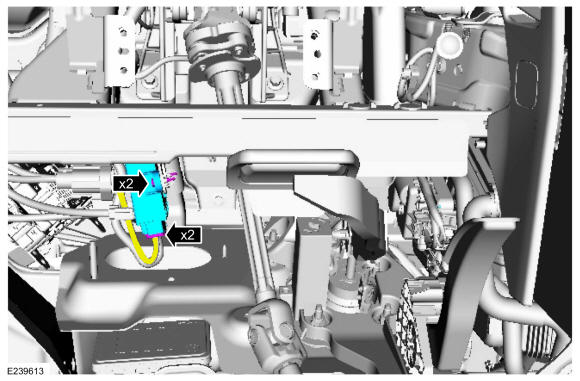

    Disconnect the electrical connectors, remove the screws and the column and pedal memory module.

    GFD238330Courtesy of FORD MOTOR COMPANY

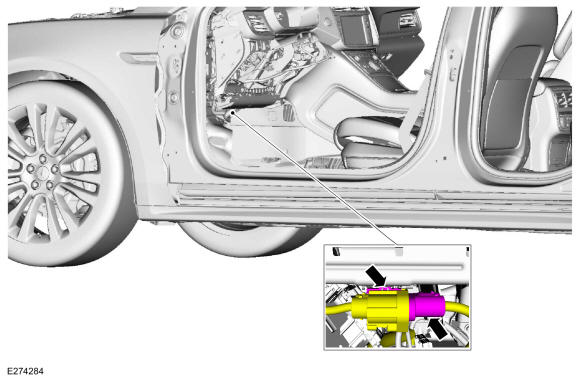

  14. Disconnect the electrical connector and detach it from the instrument panel.
    GFD238467Courtesy of FORD MOTOR COMPANY

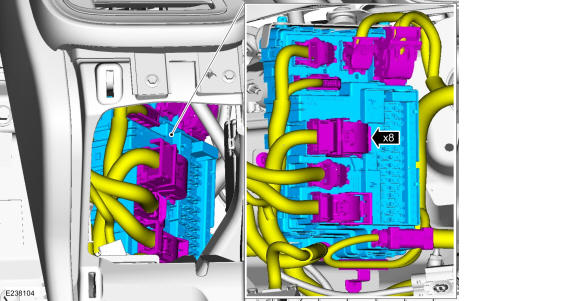

  15. NOTE: Electrical connectors can be accessed through the opening in the instrument panel and from under the instrument panel.

    Release the harness retains and disconnect the electrical connectors.

    GFD238468Courtesy of FORD MOTOR COMPANY

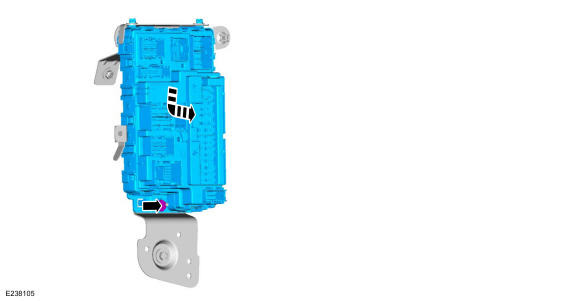

  16. NOTE: BCM bracket mounting shown.

    Remove the nut, and the BCM from the mounting bracket.

    Torque: 44 lb.in (5 Nm)
