Radio Transceiver Module (RTM): Removal
WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Carry out the PMI procedure for the RTM.
- Remove the parcel shelf. Refer to: Parcel Shelf - Vehicles With: 40/20/40 Split Second Row Seating . Refer to: Parcel Shelf - Vehicles With: 40/20/40 Split Second Row Seating .
-

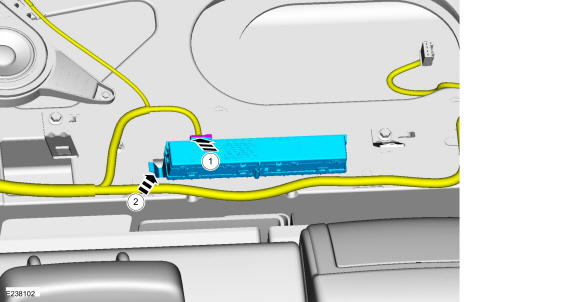

- Disconnect the electrical connector.
- Release the tab and rotate the RTM upwards to remove.
-
NOTE: This step is only required if replacing the RTM.

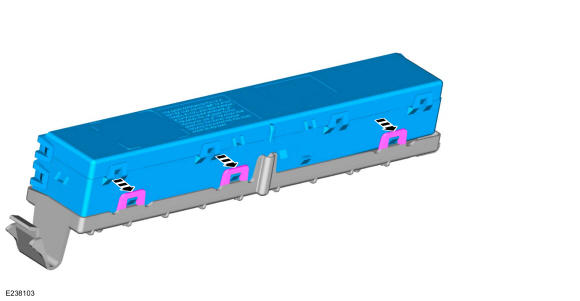

Release the tabs and separate the RTM from the bracket.
