OEM Ground Distribution: Grounds

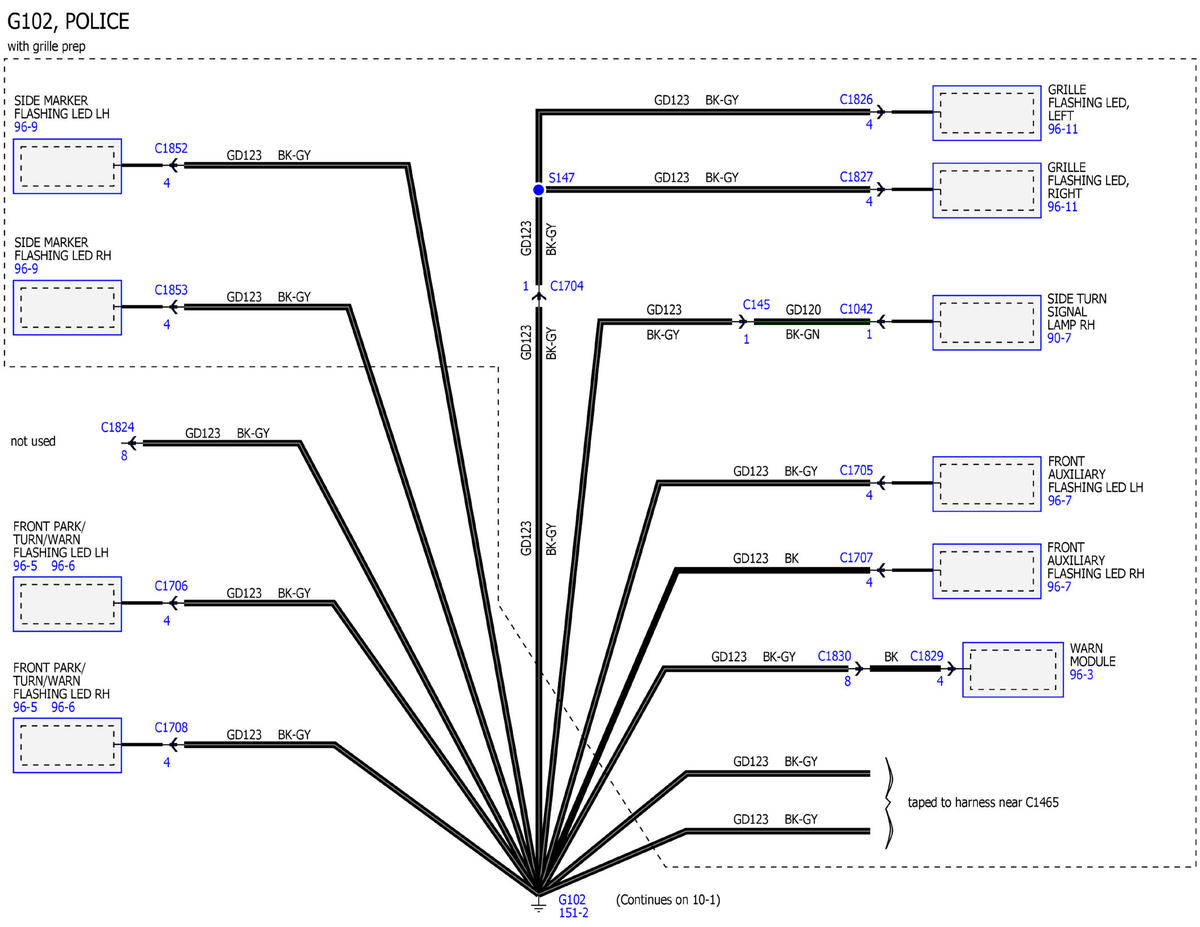

GFDWR28942Courtesy of FORD MOTOR COMPANY

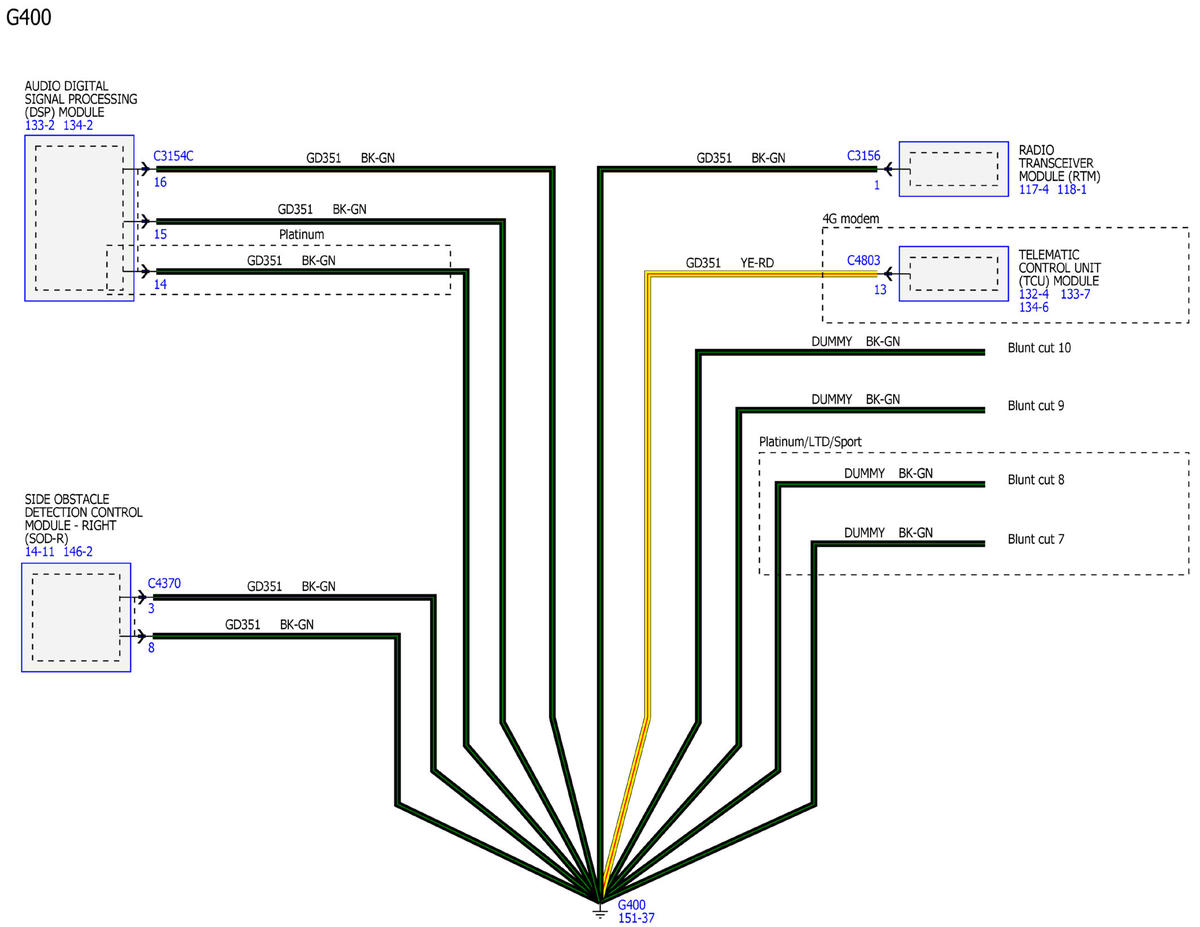

GFDWR28943Courtesy of FORD MOTOR COMPANY

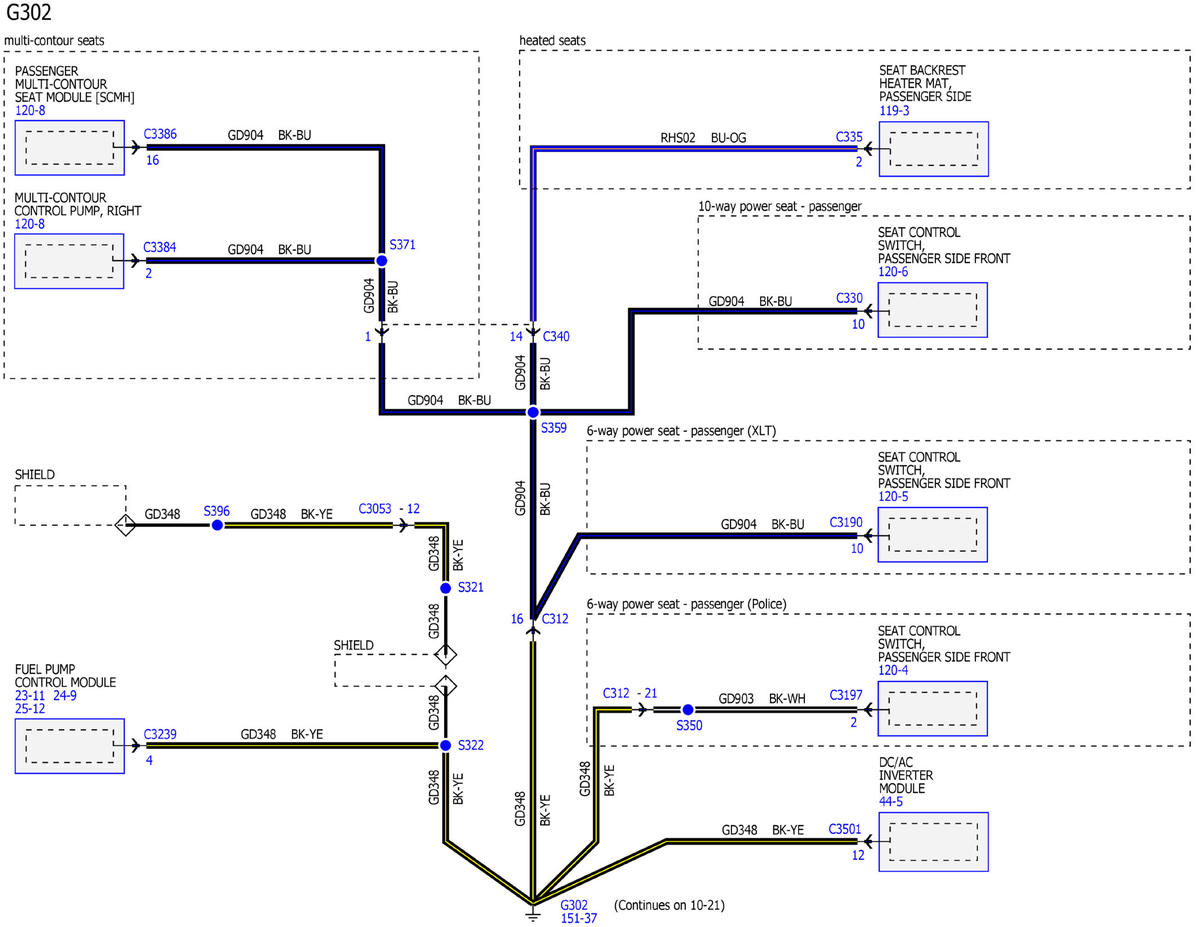

GFDWR28944Courtesy of FORD MOTOR COMPANY

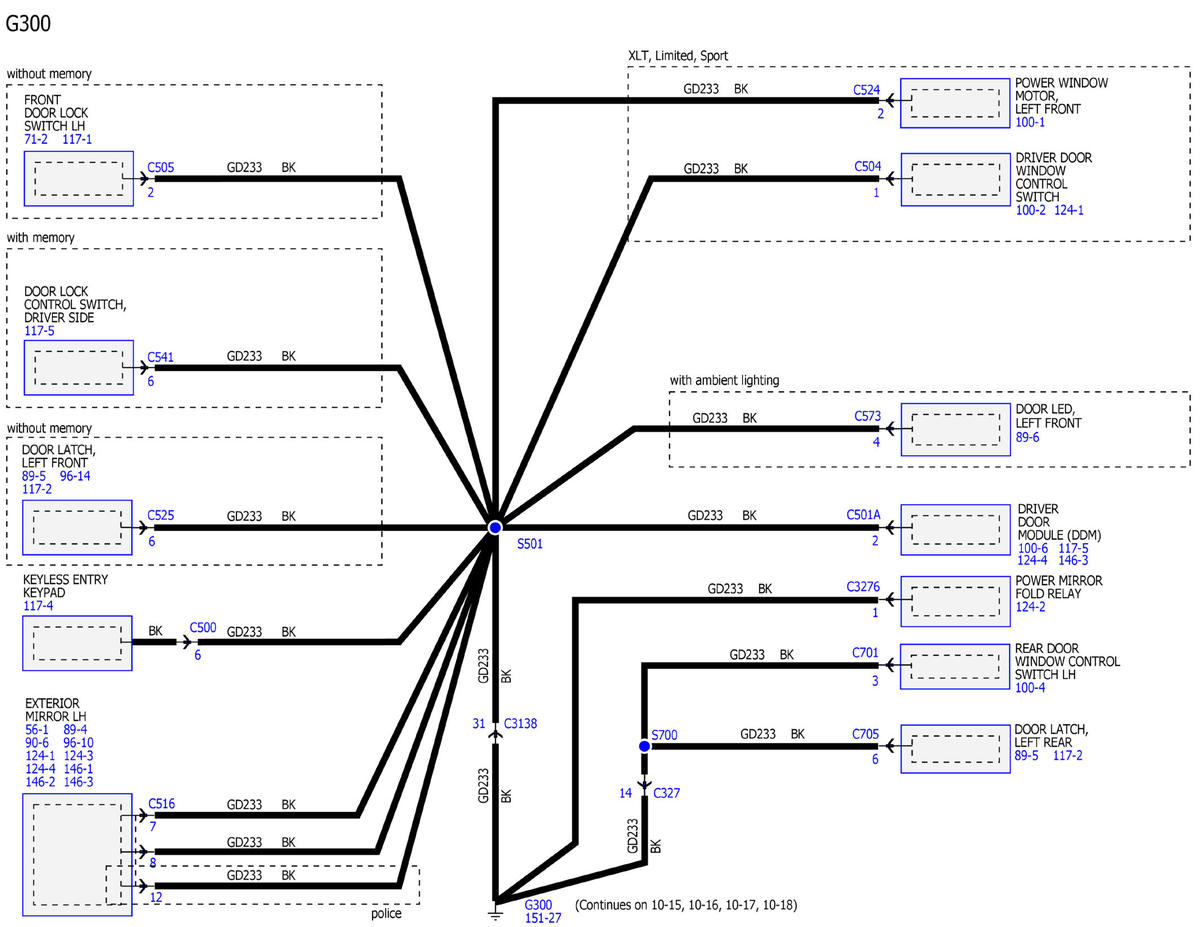

GFDWR28945Courtesy of FORD MOTOR COMPANY

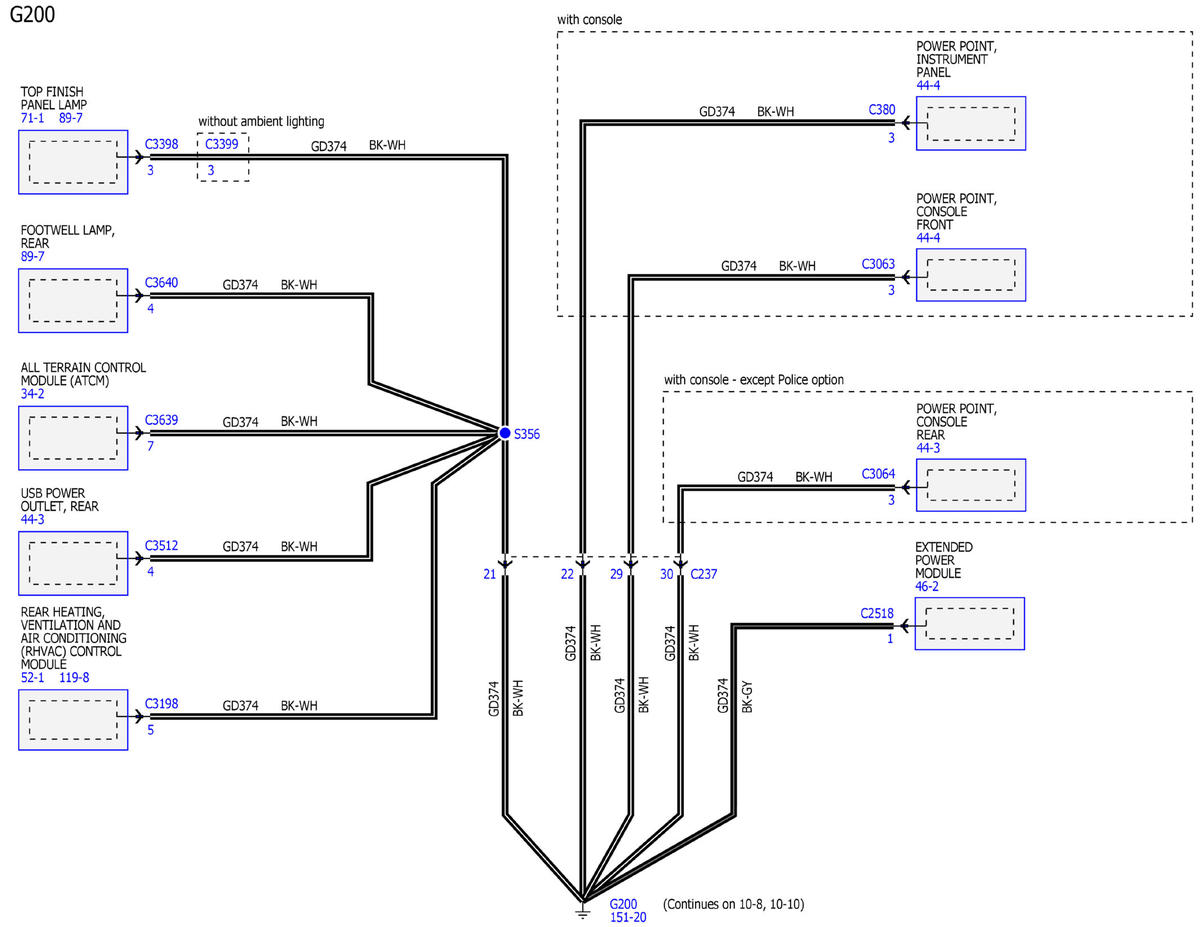

GFDWR28946Courtesy of FORD MOTOR COMPANY

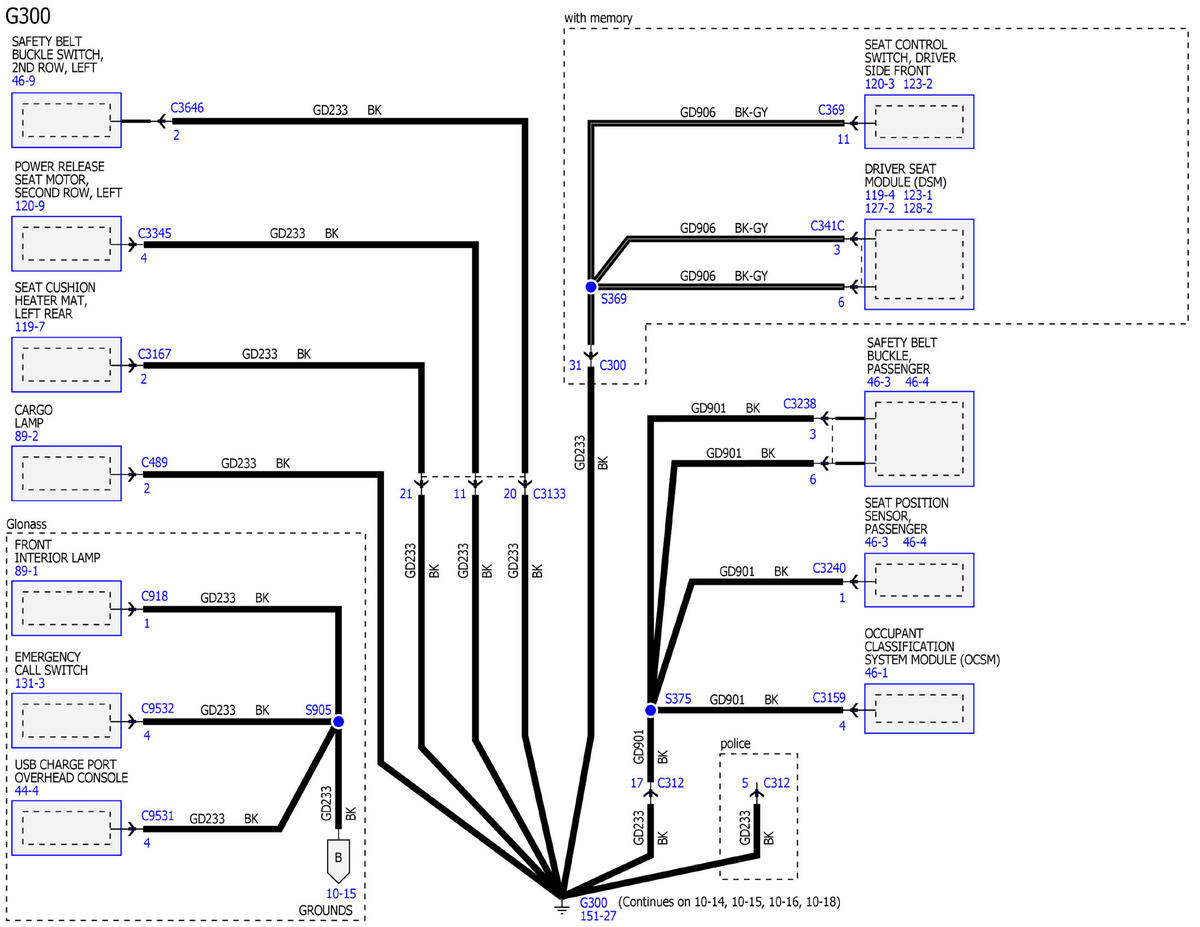

GFDWR28947Courtesy of FORD MOTOR COMPANY

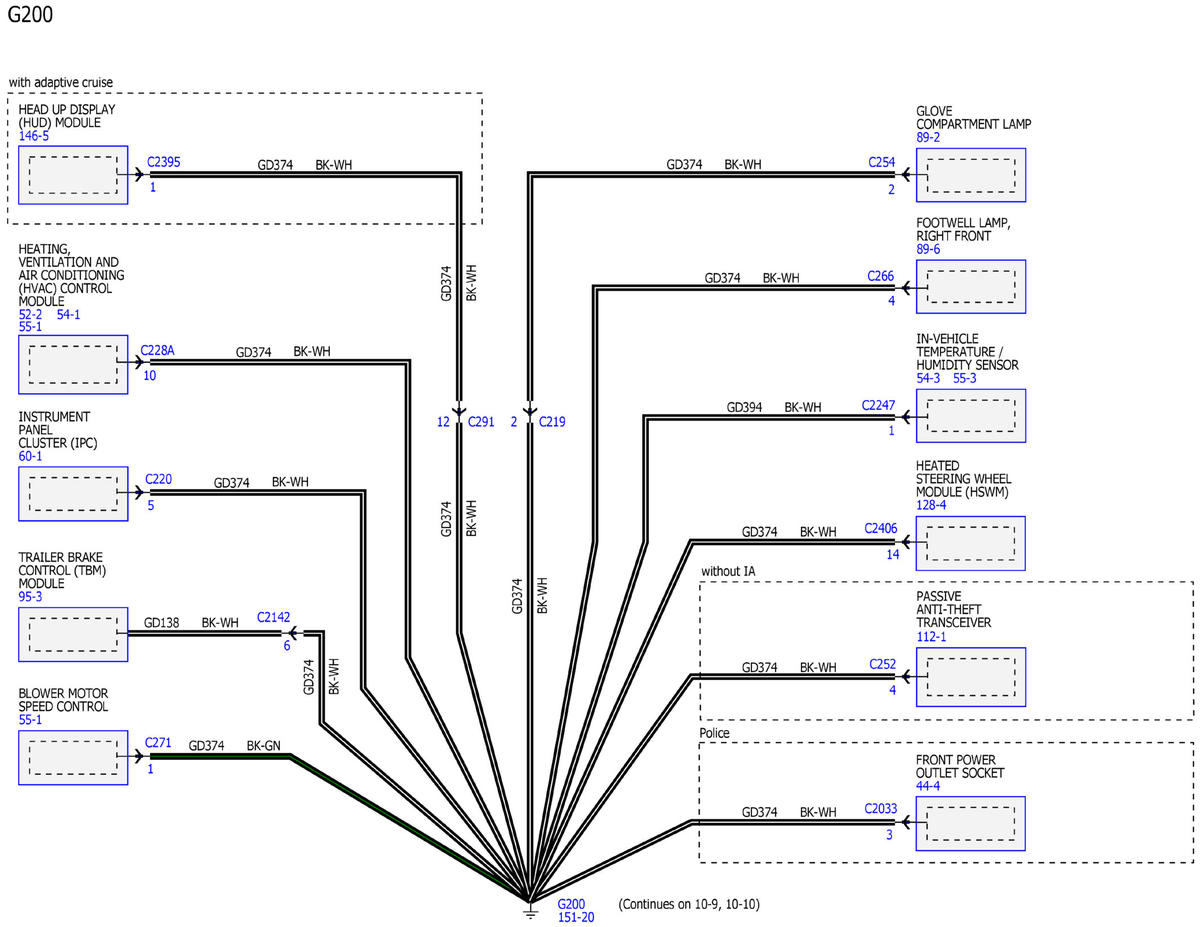

GFDWR28948Courtesy of FORD MOTOR COMPANY

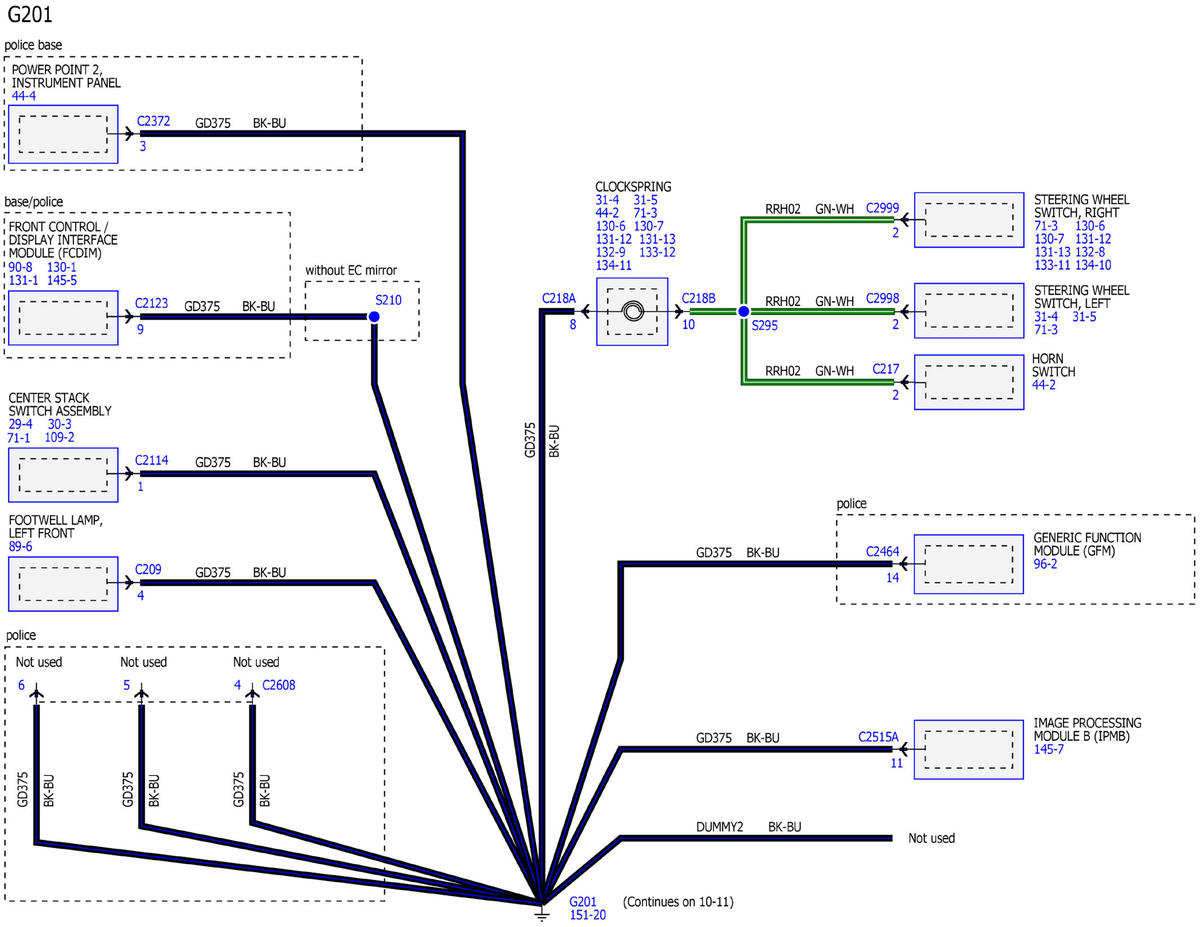

GFDWR28949Courtesy of FORD MOTOR COMPANY

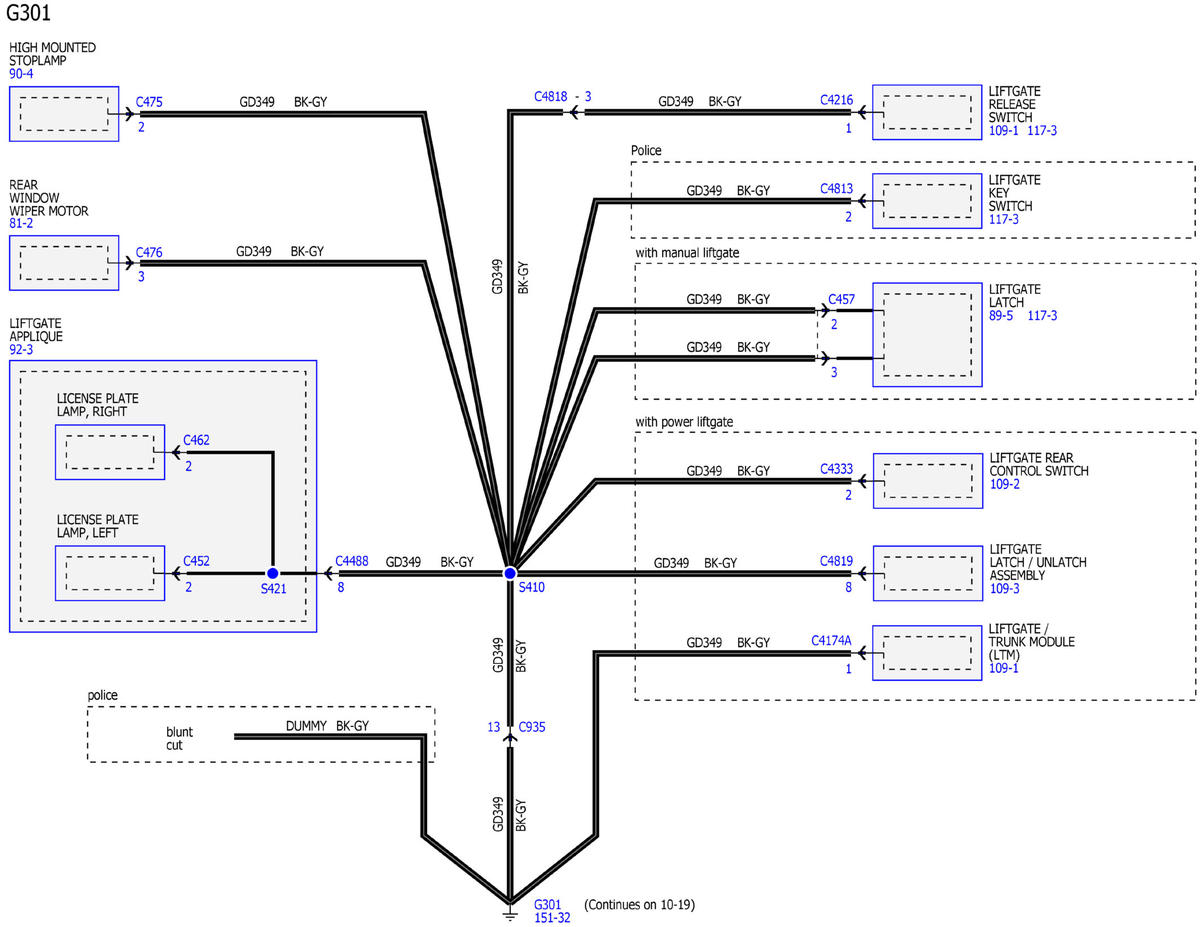

GFDWR28950Courtesy of FORD MOTOR COMPANY

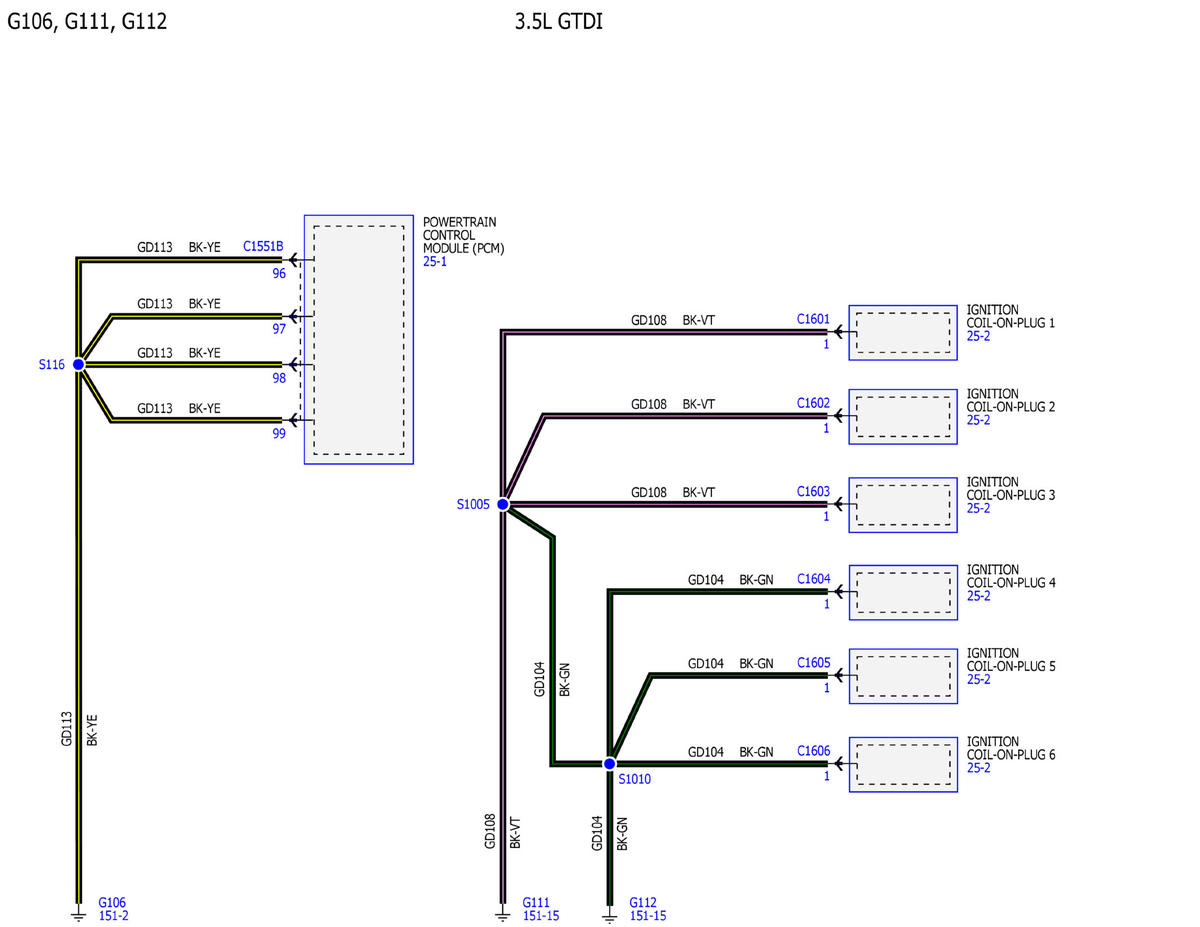

GFDWR28951Courtesy of FORD MOTOR COMPANY

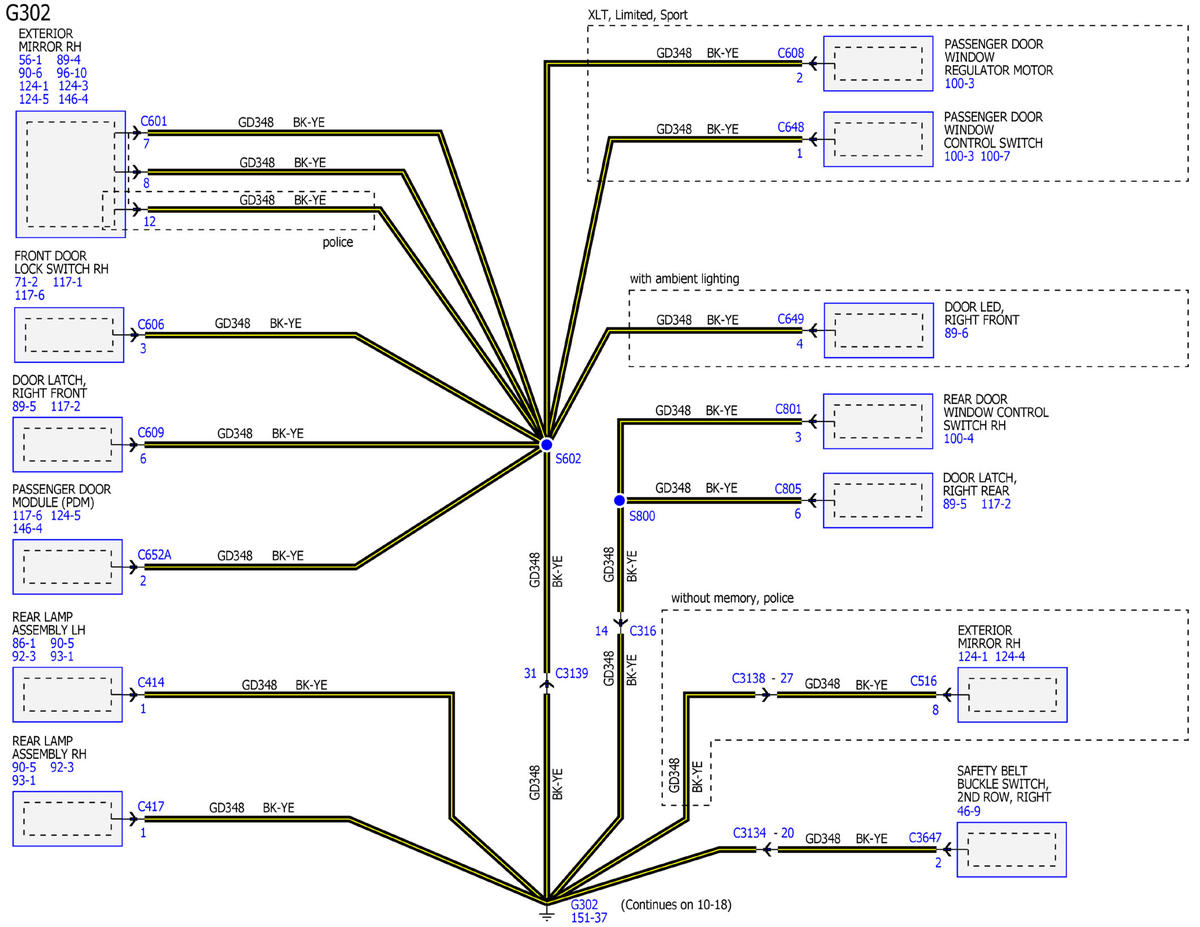

GFDWR28952Courtesy of FORD MOTOR COMPANY

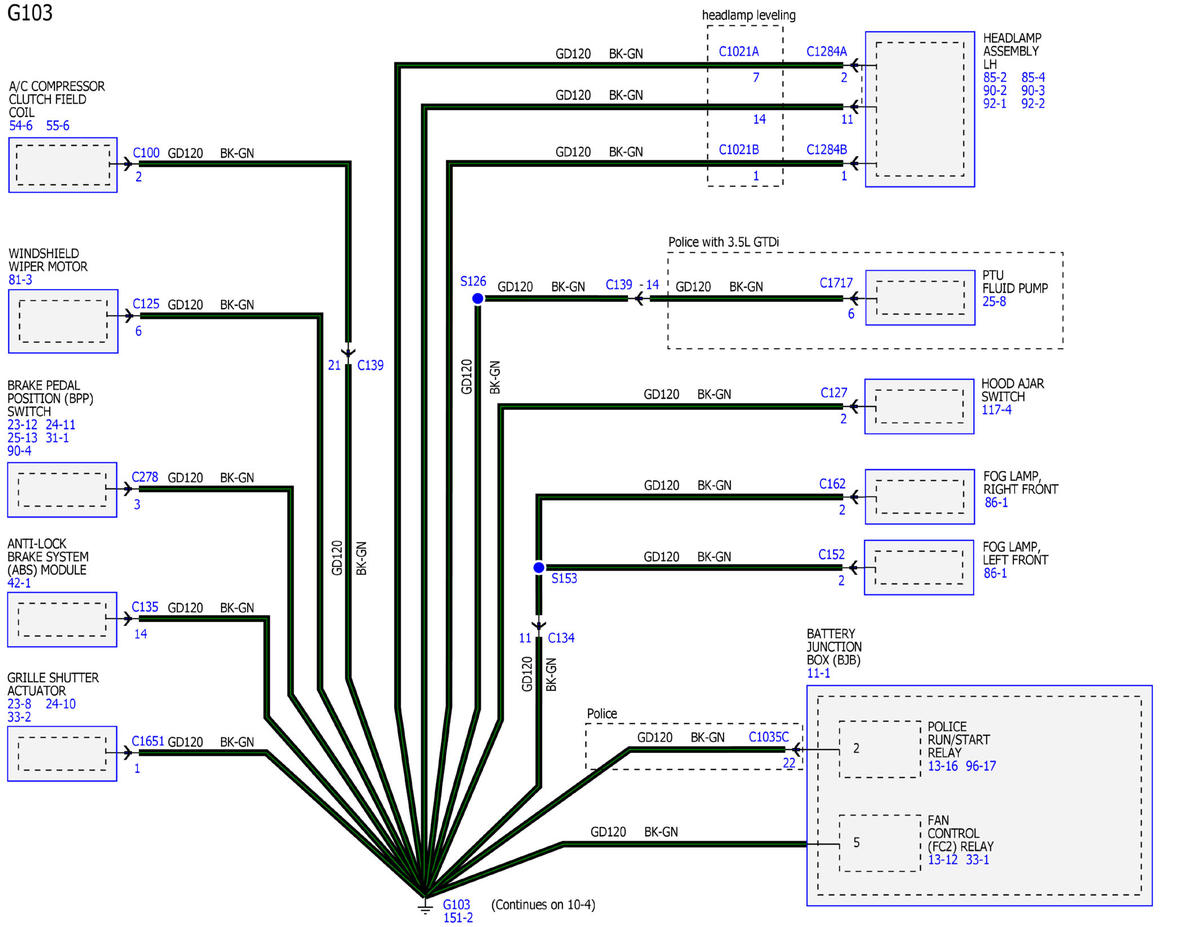

GFDWR28953Courtesy of FORD MOTOR COMPANY

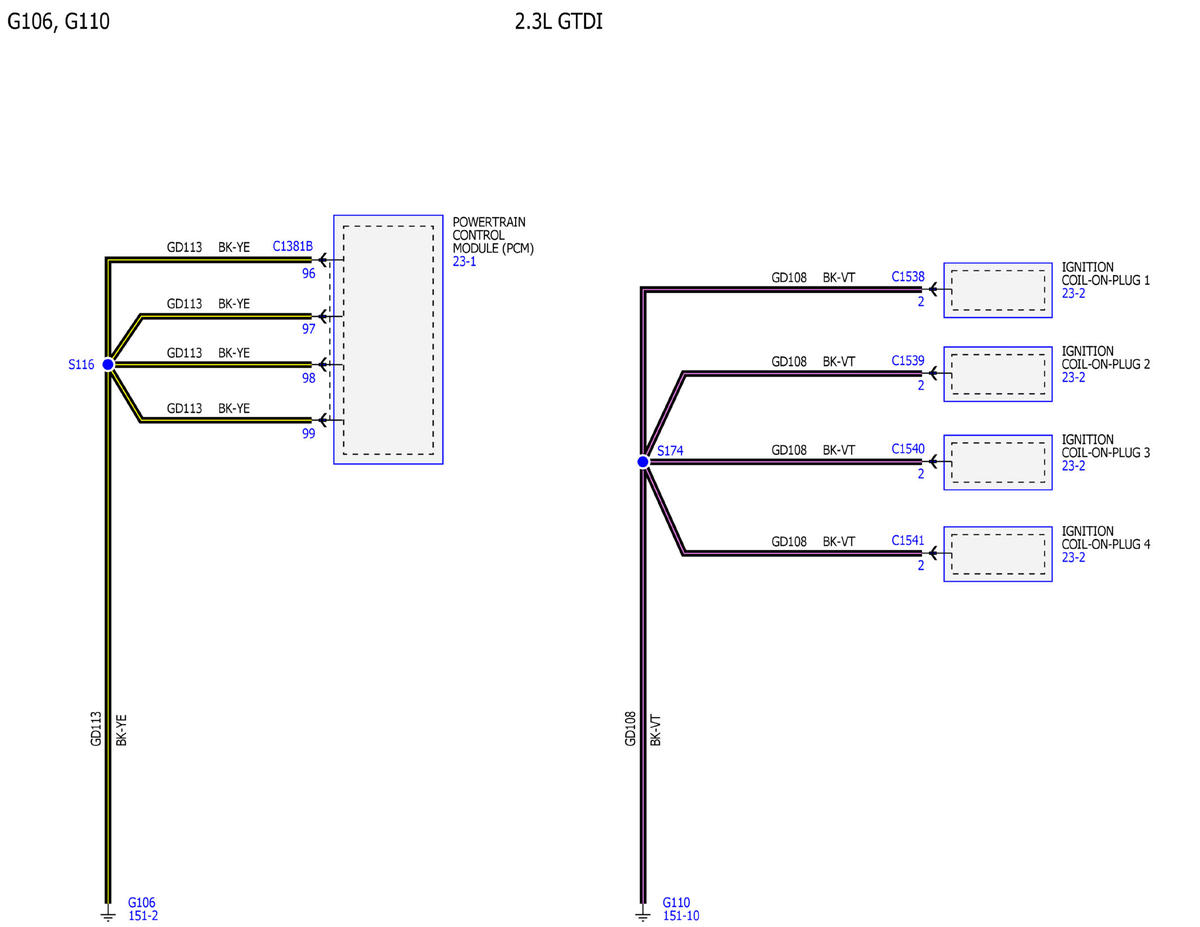

GFDWR28954Courtesy of FORD MOTOR COMPANY

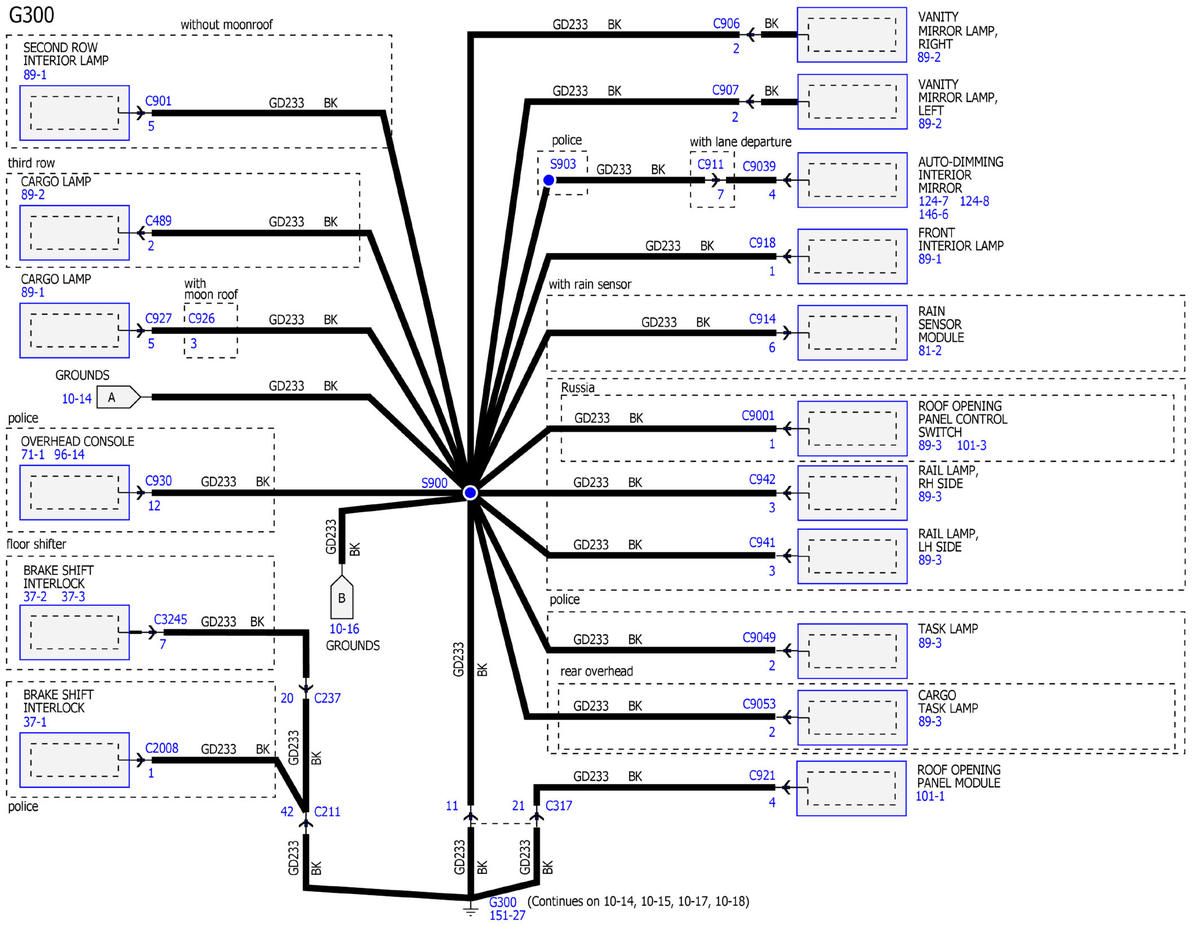

GFDWR28955Courtesy of FORD MOTOR COMPANY

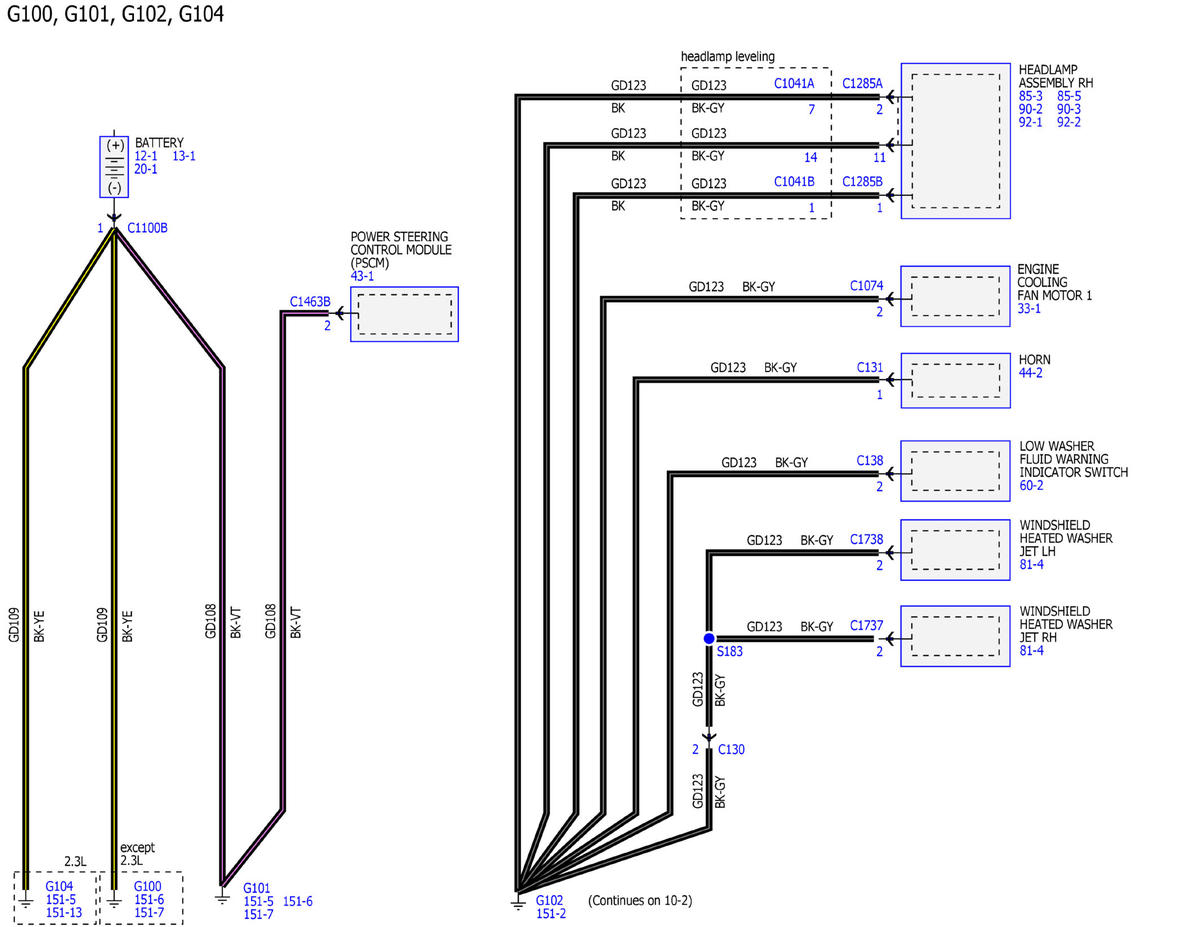

GFDWR28956Courtesy of FORD MOTOR COMPANY

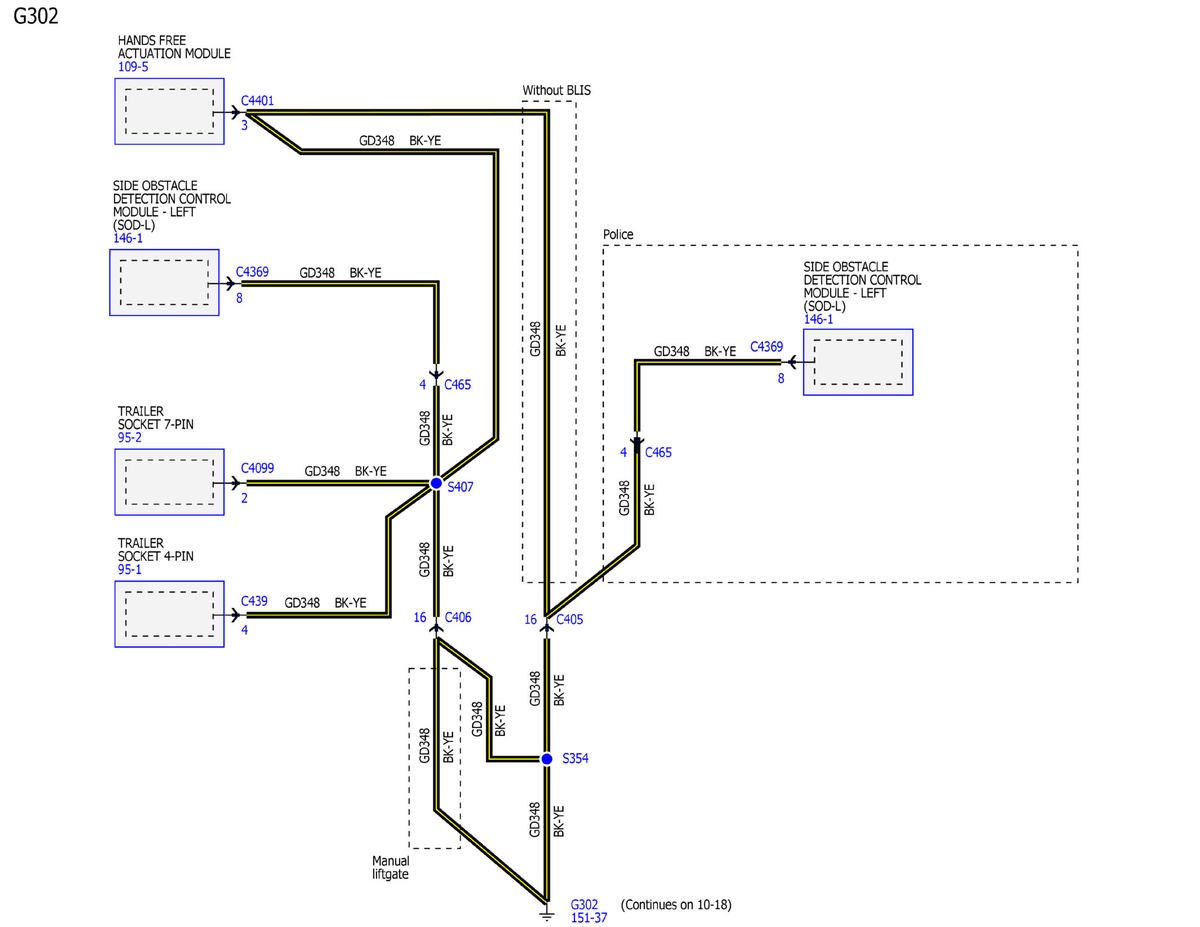

GFDWR28957Courtesy of FORD MOTOR COMPANY

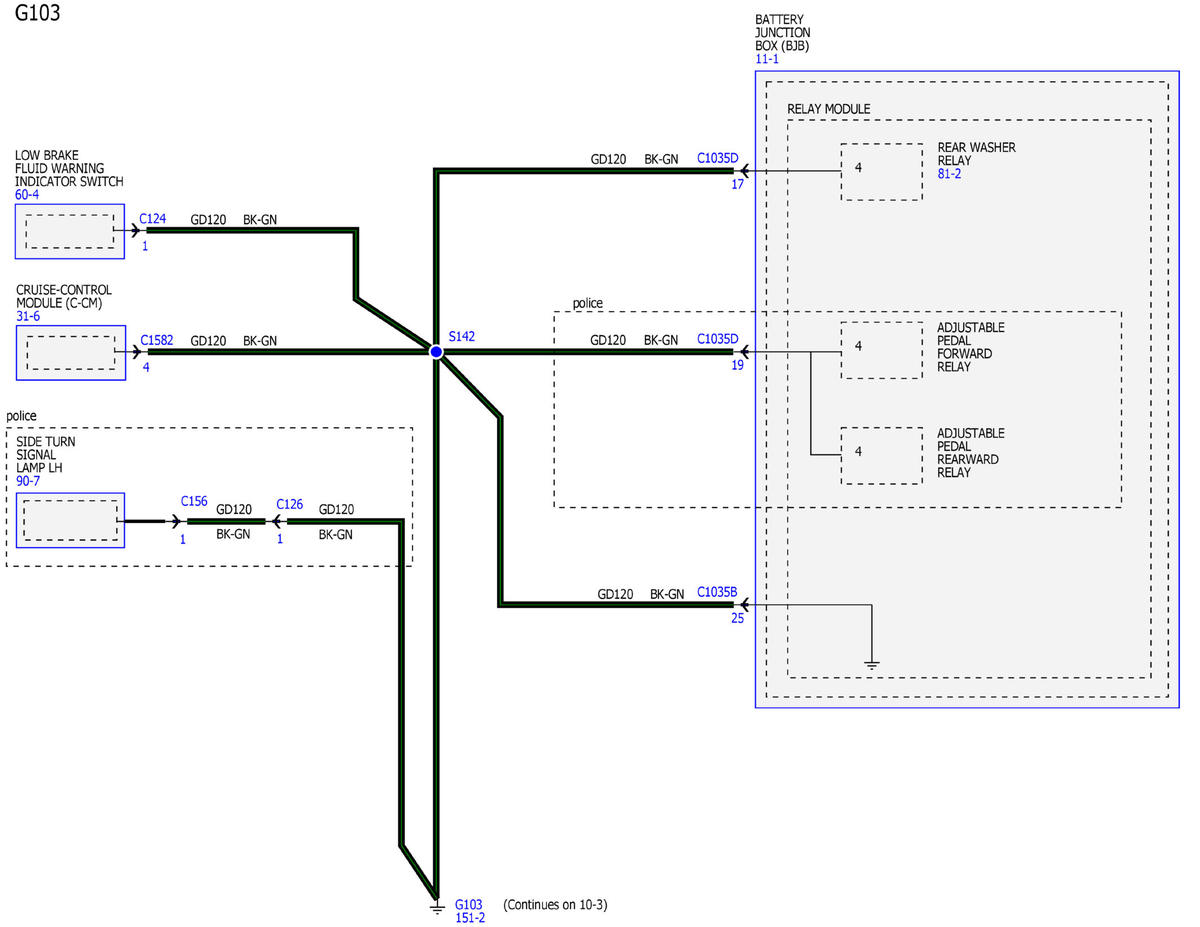

GFDWR28958Courtesy of FORD MOTOR COMPANY

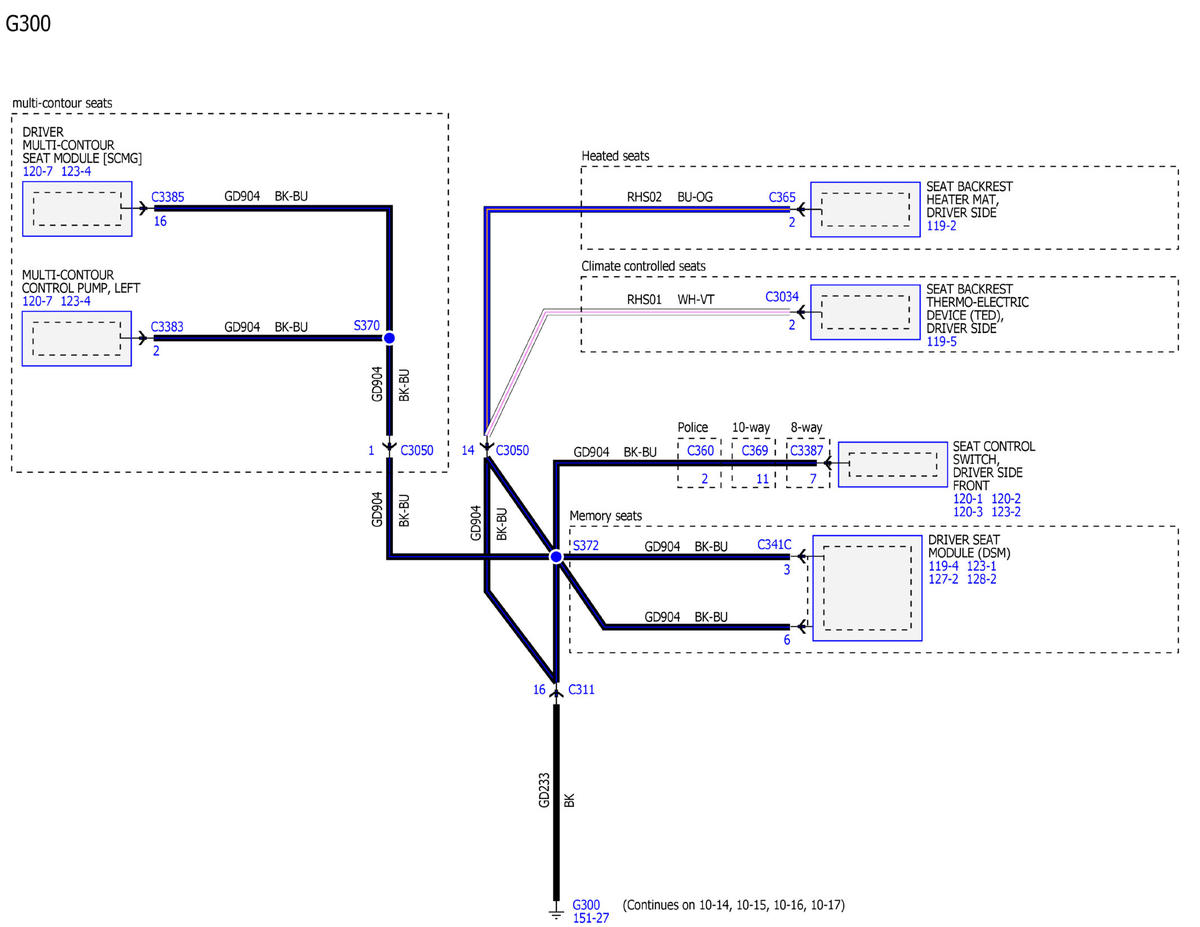

GFDWR28959Courtesy of FORD MOTOR COMPANY

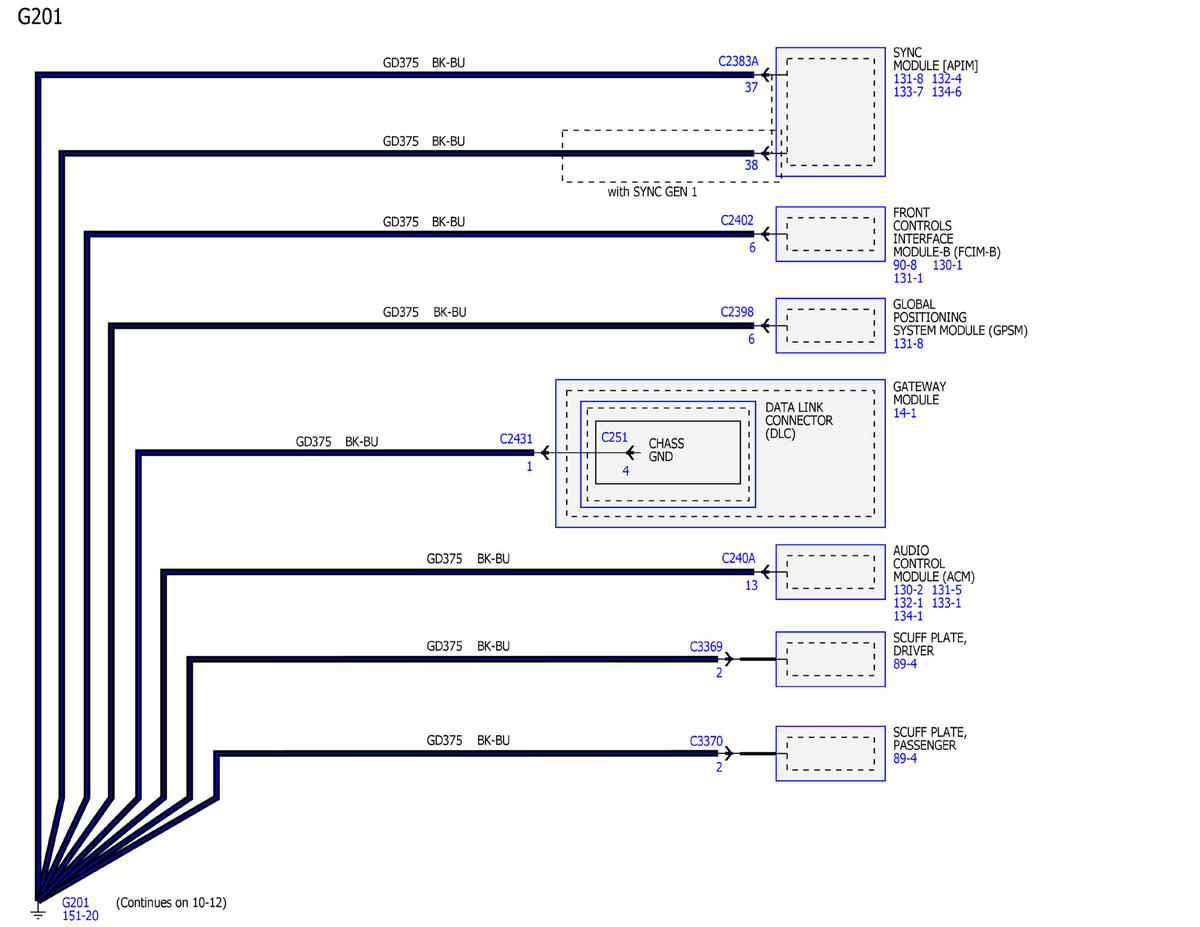

GFDWR28960Courtesy of FORD MOTOR COMPANY

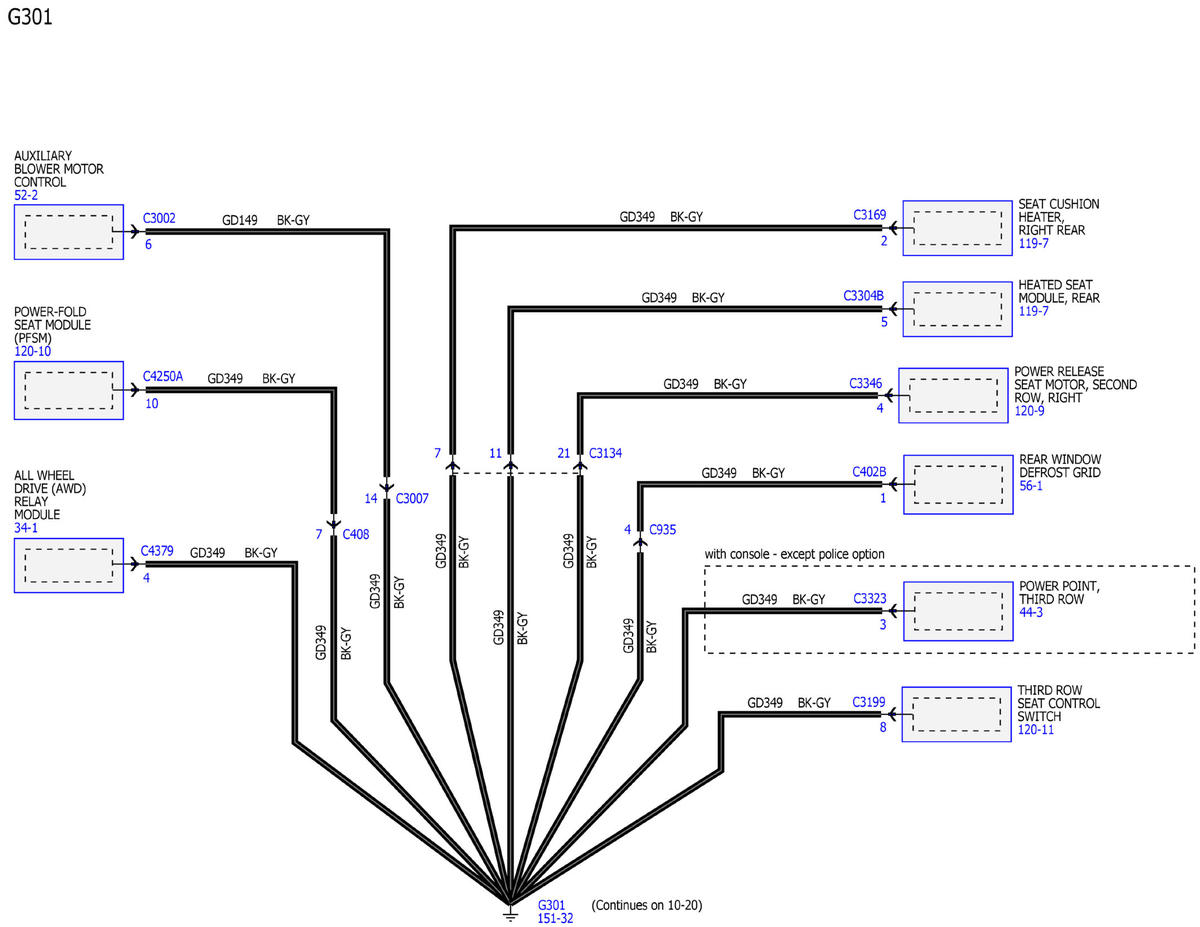

GFDWR28961Courtesy of FORD MOTOR COMPANY

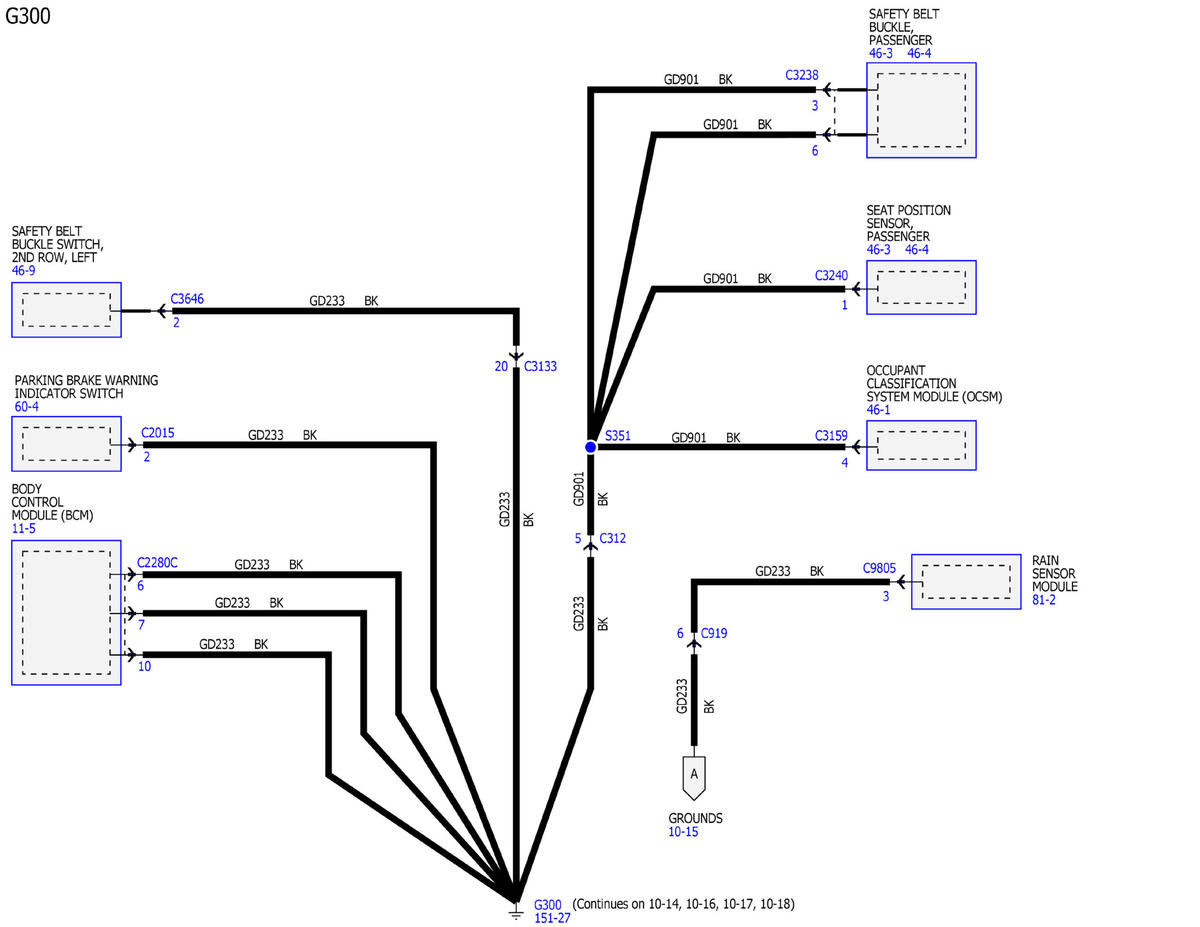

GFDWR28962Courtesy of FORD MOTOR COMPANY

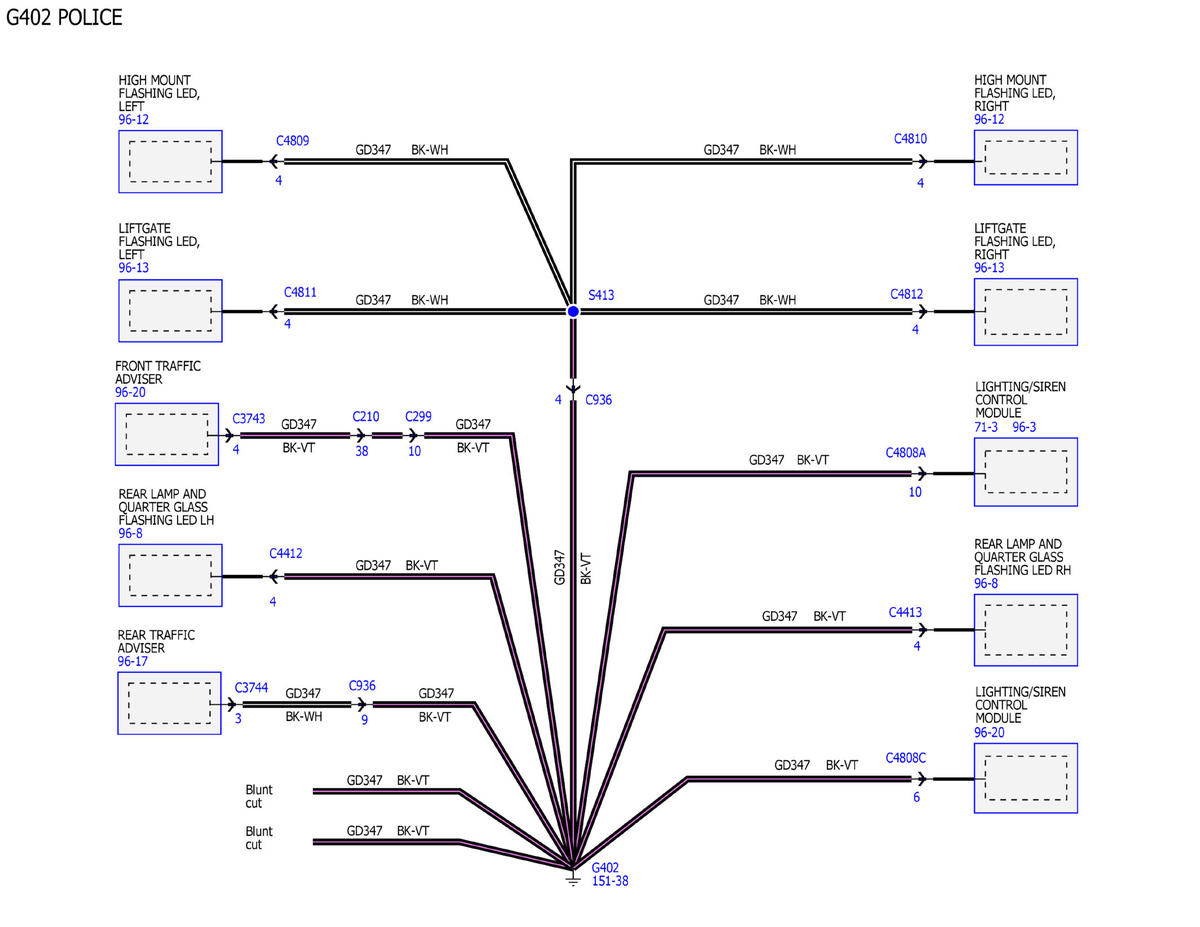

GFDWR28963Courtesy of FORD MOTOR COMPANY

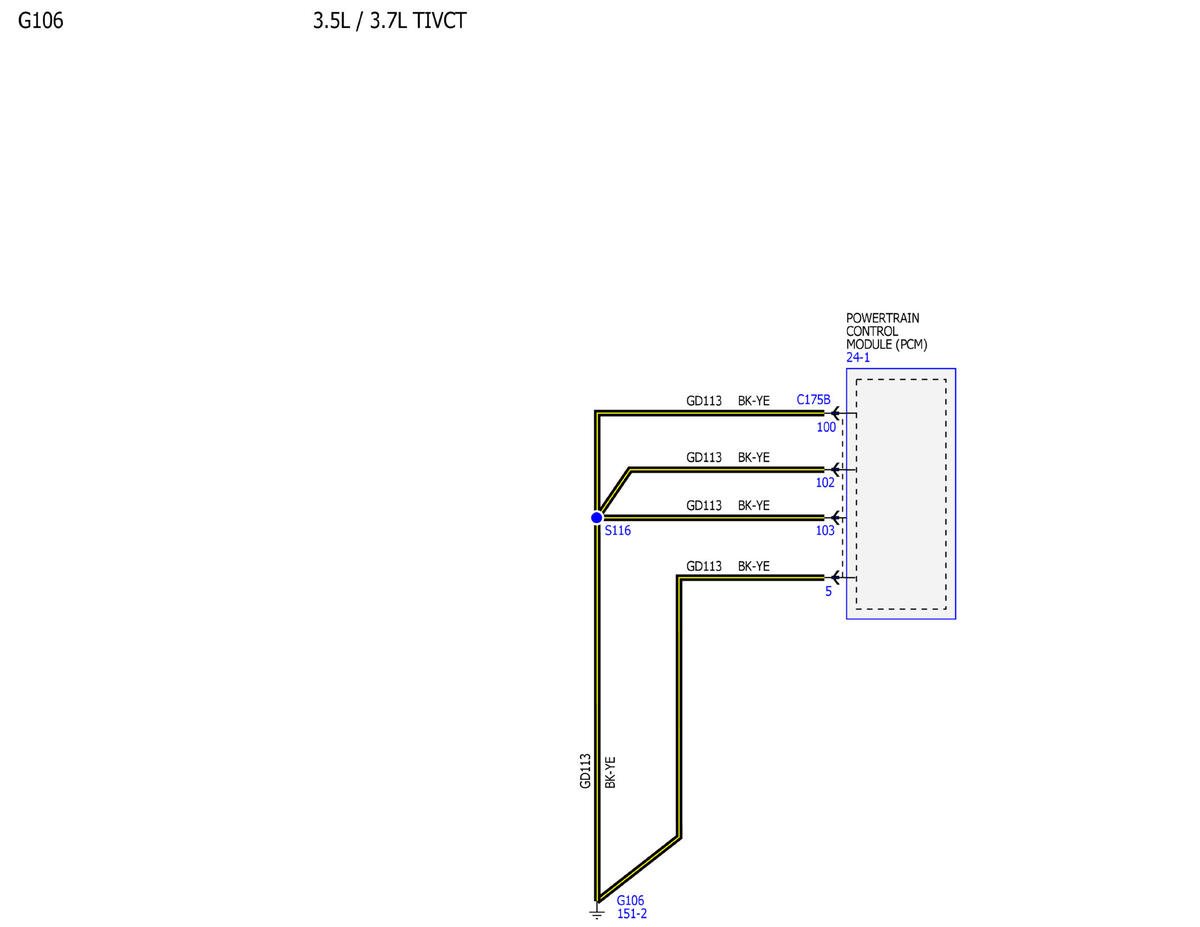

GFDWR28964Courtesy of FORD MOTOR COMPANY

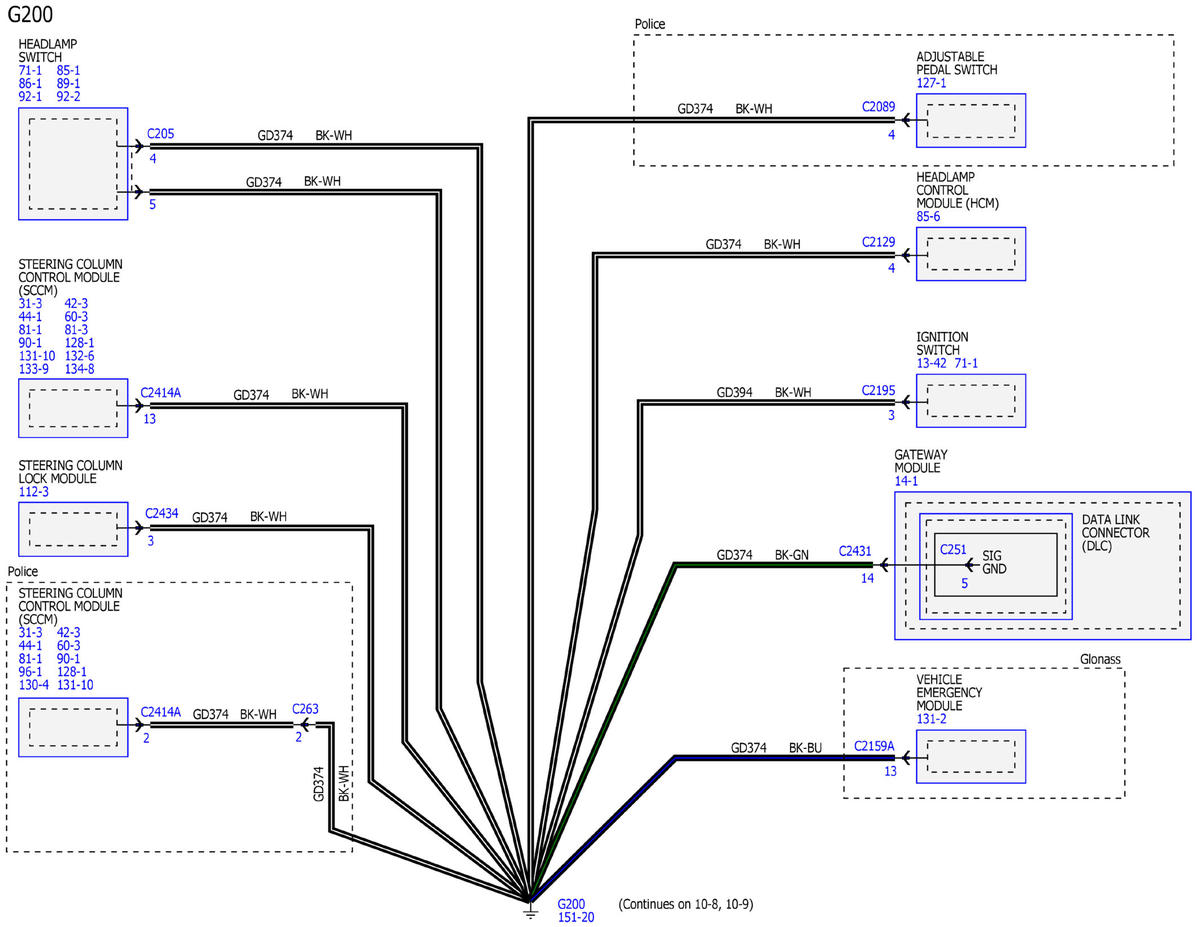

GFDWR28965Courtesy of FORD MOTOR COMPANY
