FixVault
Home
›
Ford
›
2018
›
Explorer Platinum
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission External Controls
›
Description And Operation
›

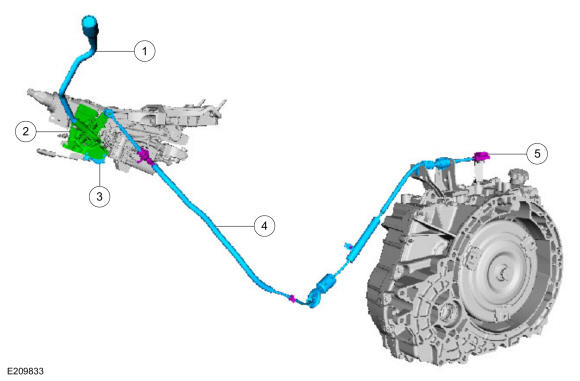

External Controls - Component Location
›
6F50/6F55 Column Shift
6F50/6F55 Column Shift
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Selector lever
2
Selector lever mechanism
3
Brake shift interlock actuator
4
Selector lever cable
5
Selector lever cable adjuster
Courtesy of FORD MOTOR COMPANY
