Power Transfer Unit Fluid Level Check

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Materials

Name	Specification
Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

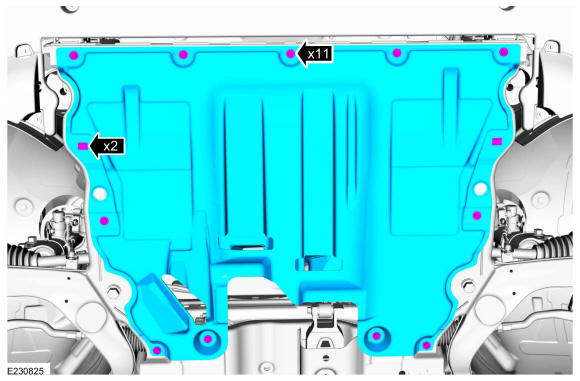

Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

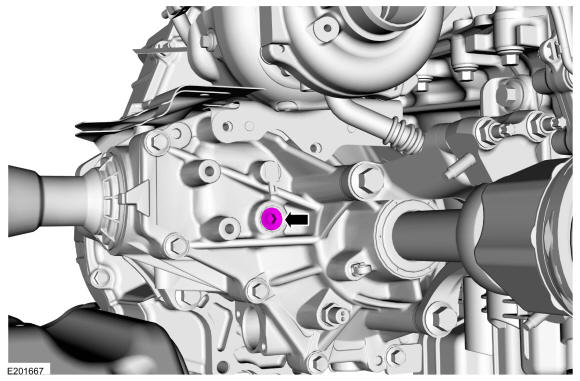

Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY
NOTE: The fill capacity of the PTU is 23 fl oz (700 ml).

Fill the PTU with clean fluid, level with the fill plug opening.

Material: Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
