Wheel Speed Sensor Ring: Installation

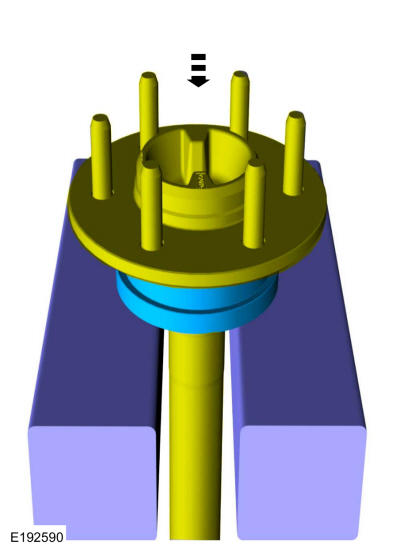

  1. Using a hydraulic press and wooden blocks, install the wheel speed sensor ring. Use the General Equipment: Hydraulic Press Use the General Equipment: Wooden Block
    GFD240795Courtesy of FORD MOTOR COMPANY
  2. Install the axle shaft. Refer to: Axle Shaft . Refer to: Axle Shaft .
