Powertrain Control Module (PCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.

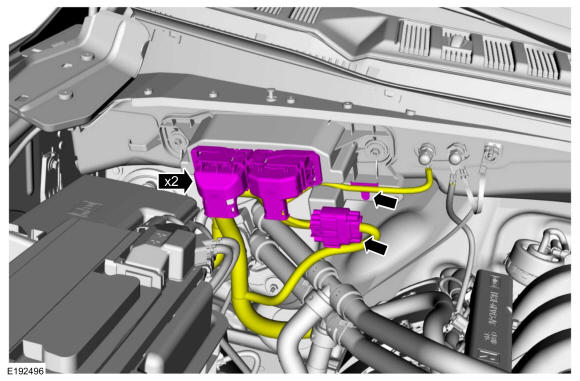

- Disconnect the PCM electrical connectors, release the harness retainers to position aside wire harness.
-

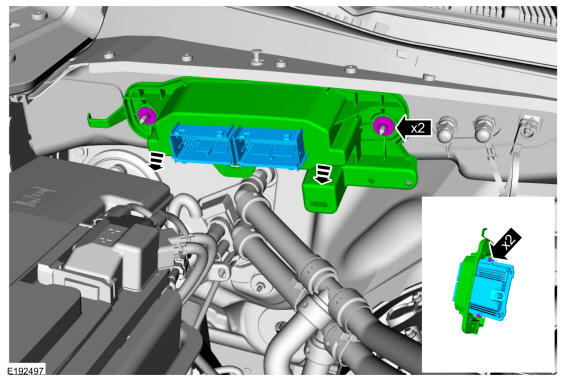

- Remove the 2 retainers and the PCM.
Torque: 53 lb.in (6 Nm)
- Remove the retainers and remove the PCM from the mounting frame.
Torque: 62 lb.in (7 Nm)
- Remove the 2 retainers and the PCM.
