Connector Repair Procedures

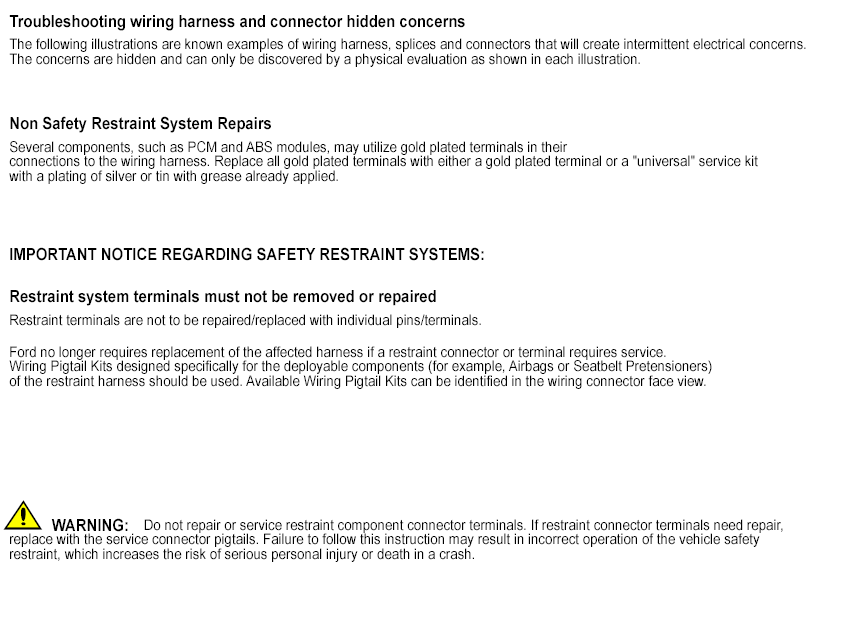

GFDW94391Courtesy of FORD MOTOR COMPANY

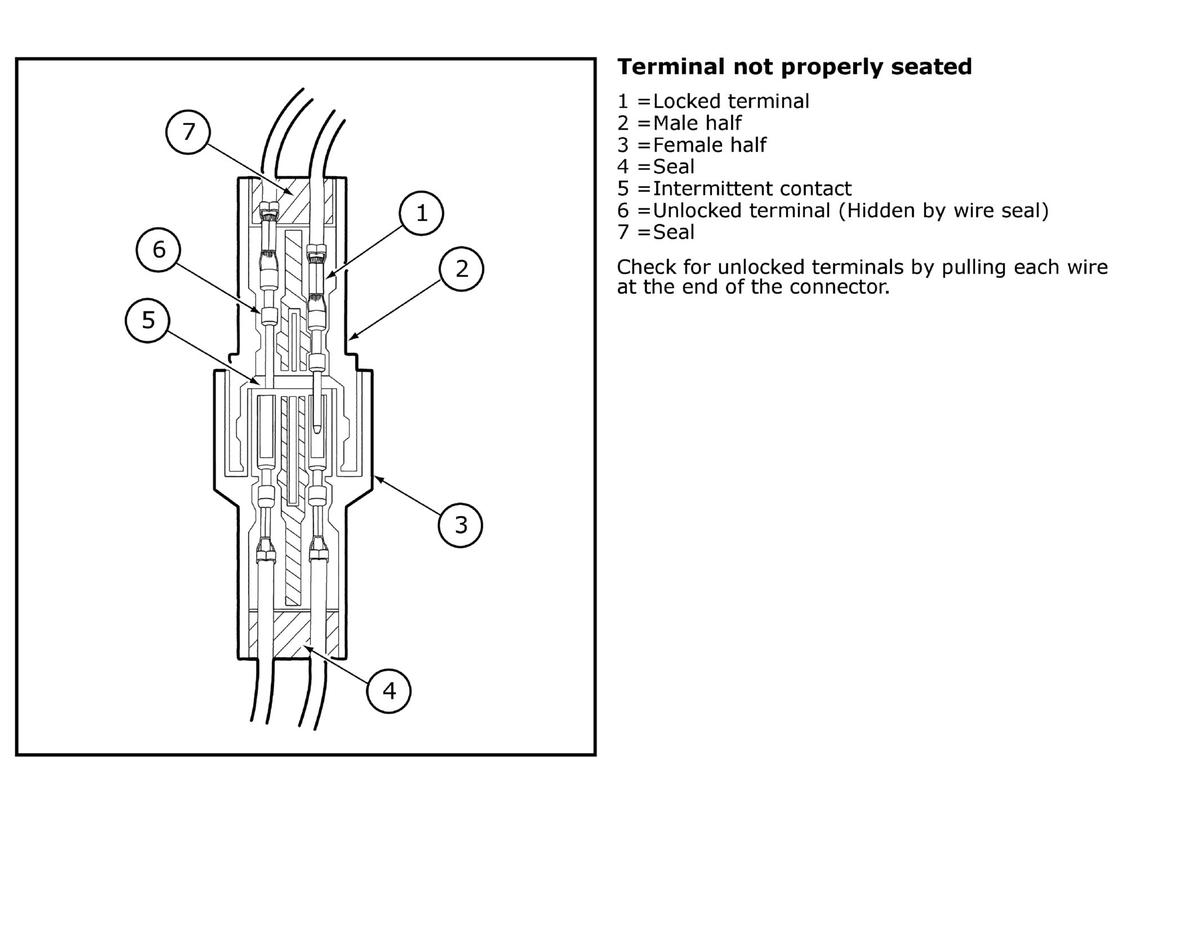

GFDW94392Courtesy of FORD MOTOR COMPANY

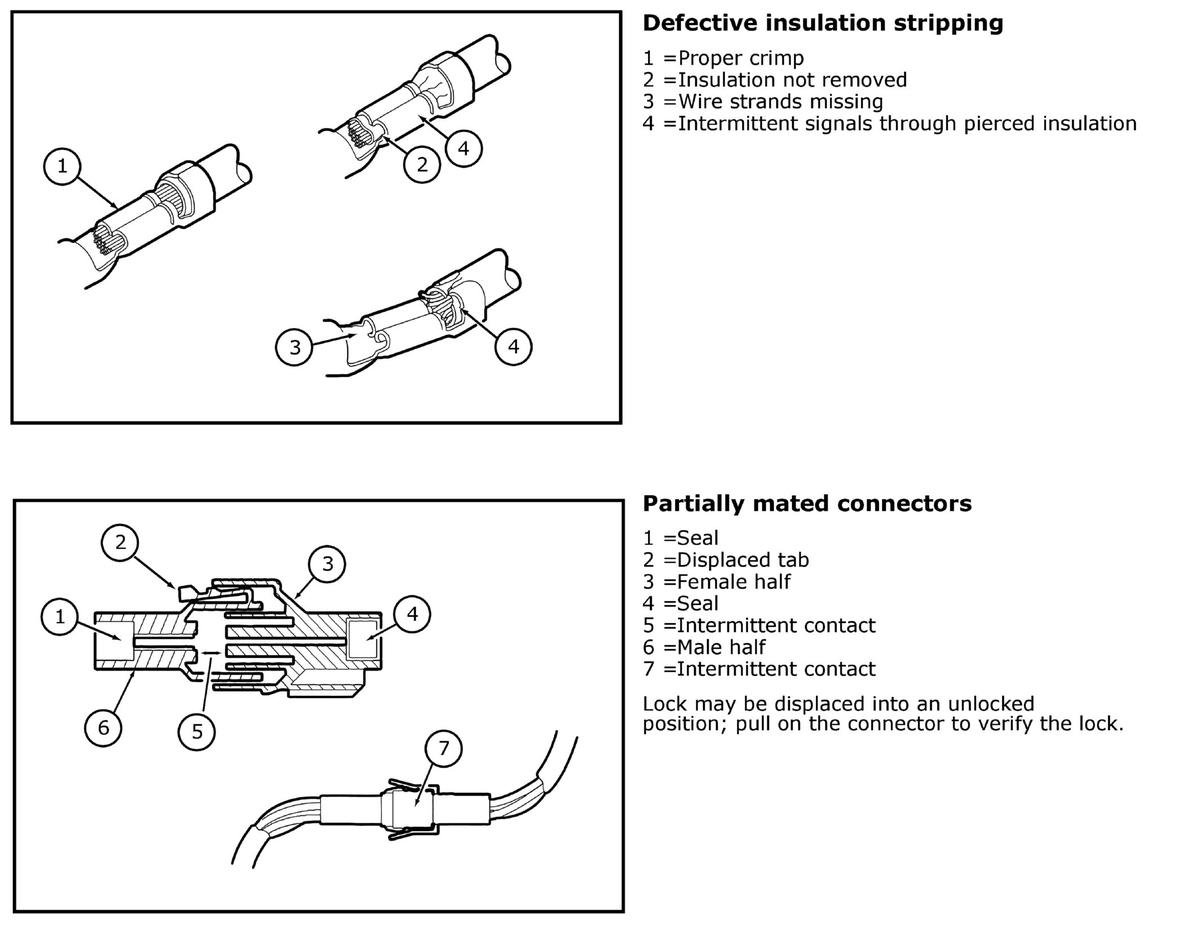

GFDW94393Courtesy of FORD MOTOR COMPANY

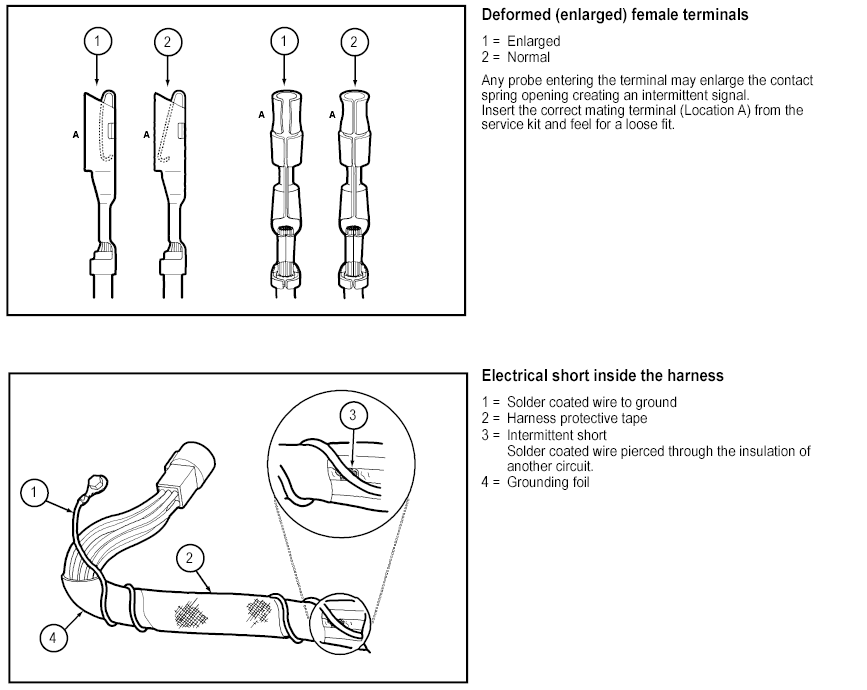

GFDW94394Courtesy of FORD MOTOR COMPANY
GFDW94395Courtesy of FORD MOTOR COMPANY

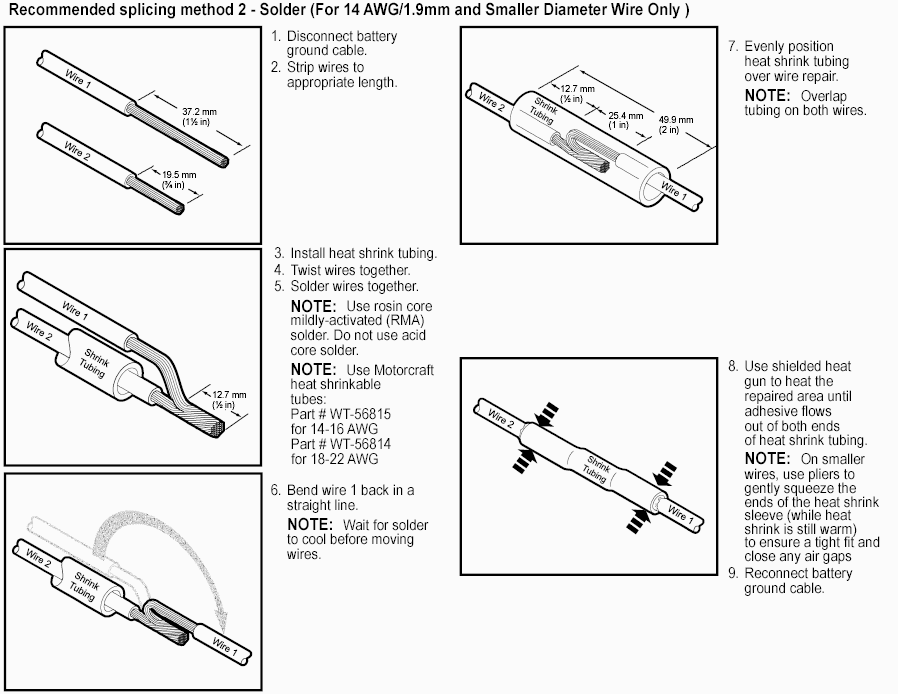

GFDW94396Courtesy of FORD MOTOR COMPANY

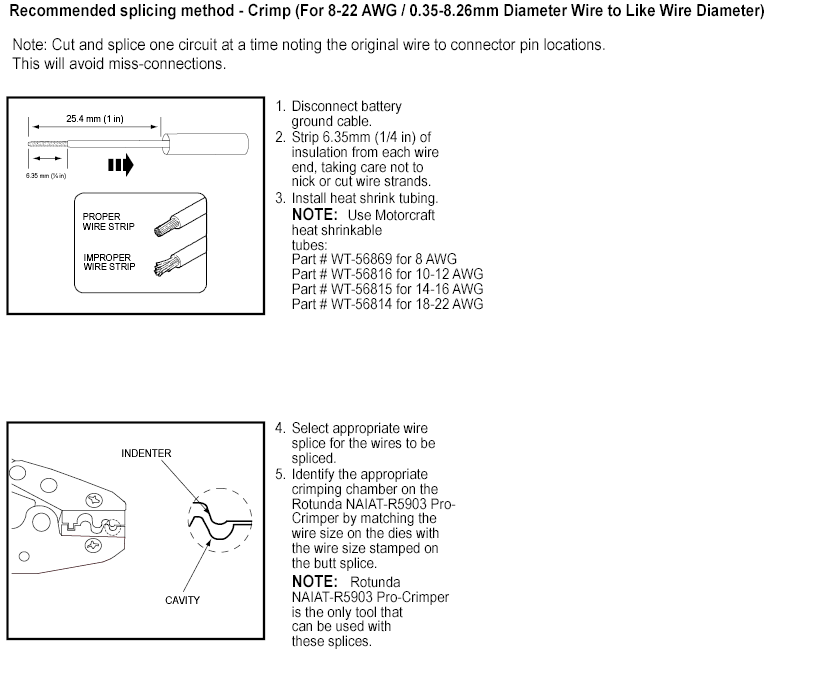

GFDW94397Courtesy of FORD MOTOR COMPANY

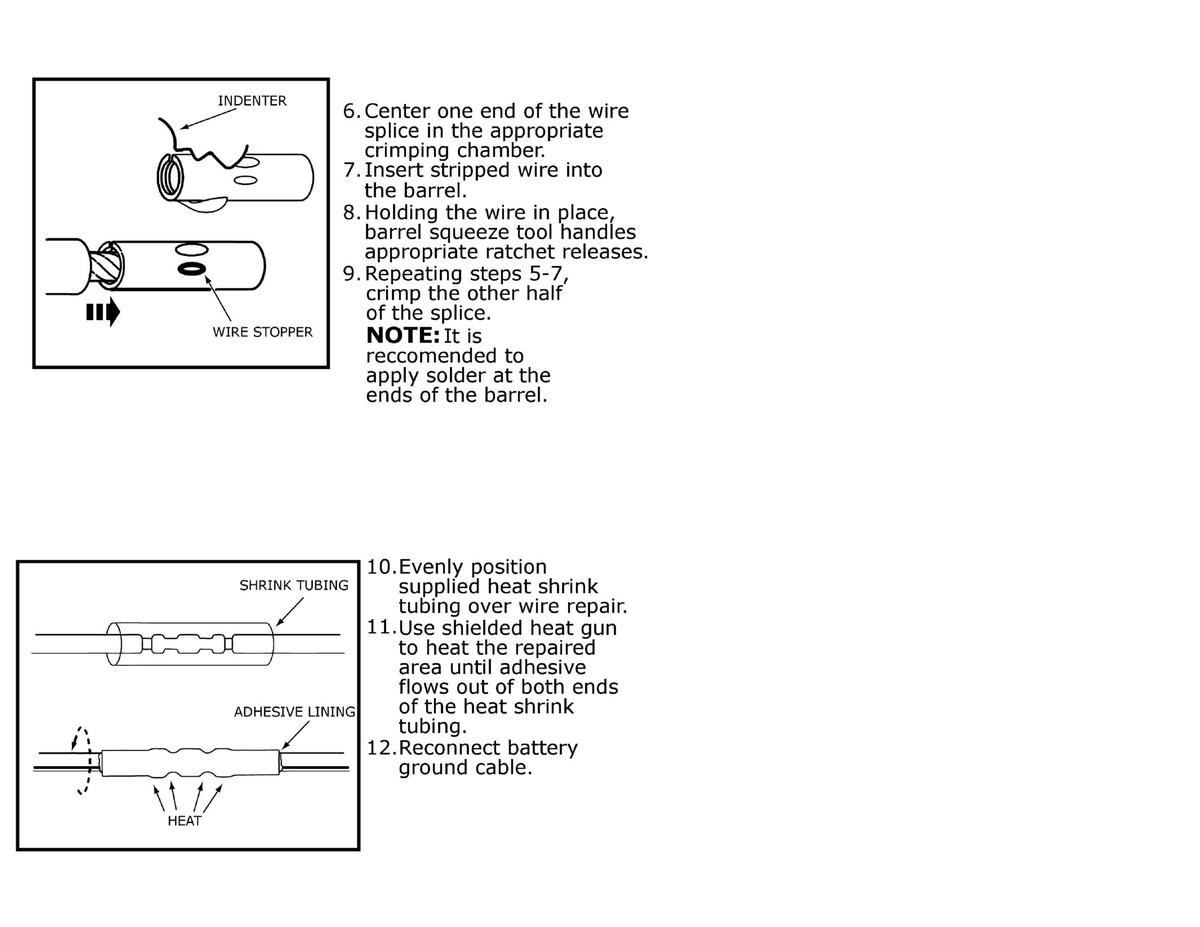

GFDW94398Courtesy of FORD MOTOR COMPANY

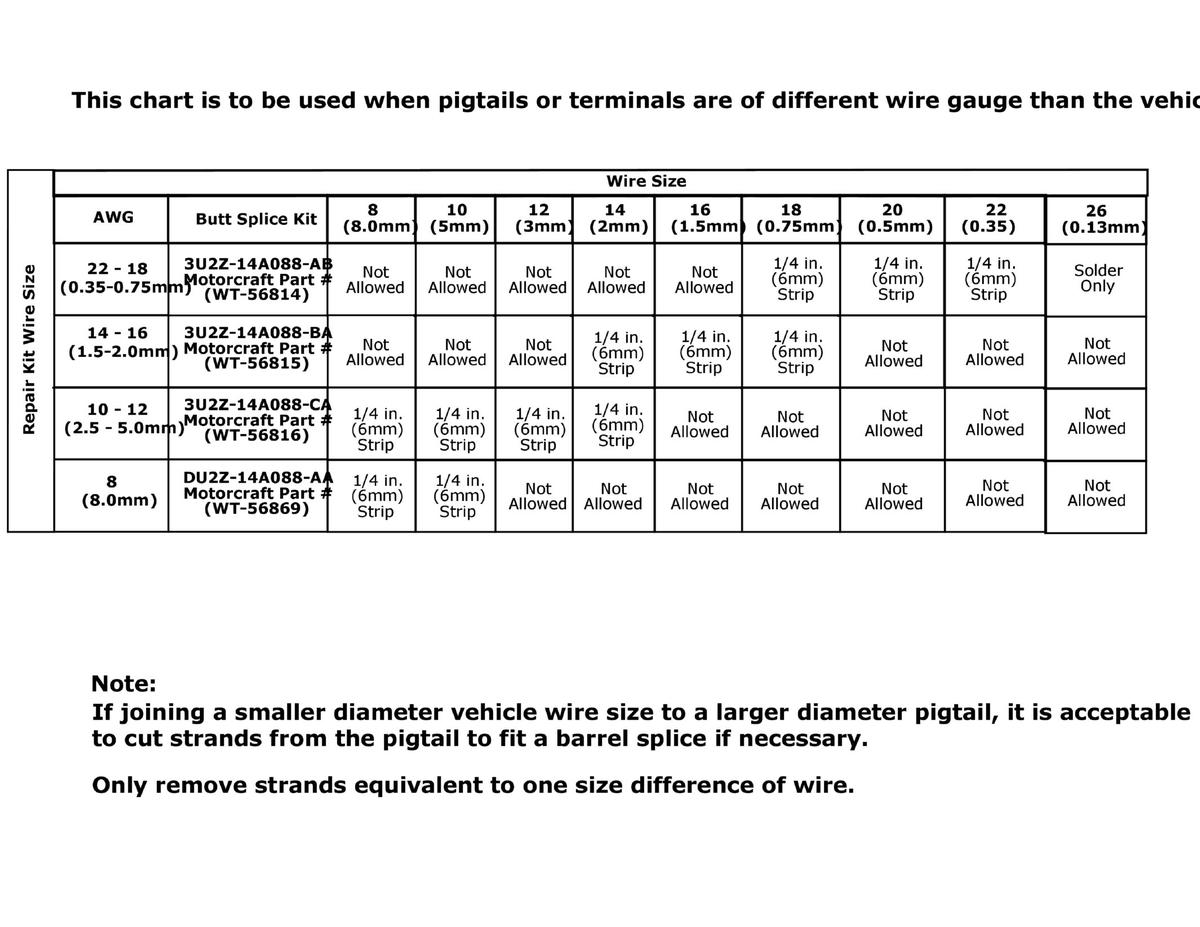

GFDW94399Courtesy of FORD MOTOR COMPANY
