Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .

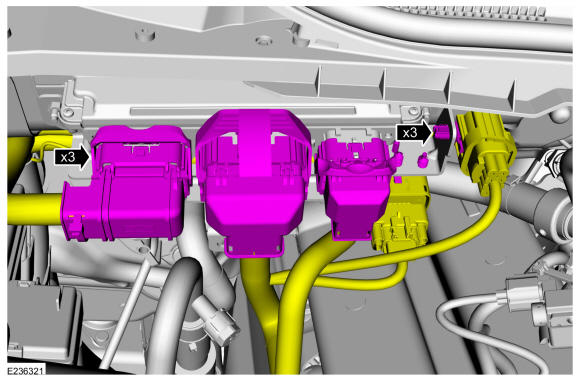

Disconnect the PCM electrical connectors and pushpin retainers from the bracket.

Courtesy of FORD MOTOR COMPANY

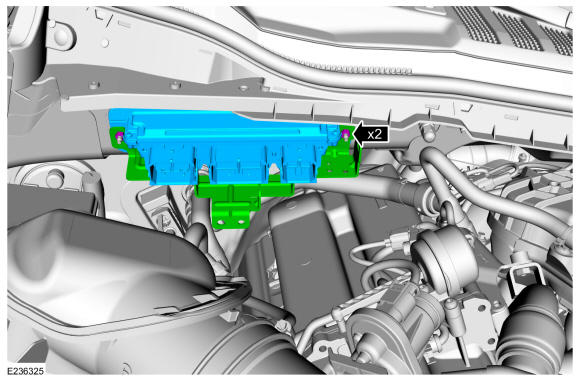

Remove the nuts and the PCM.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
