Component Location Views

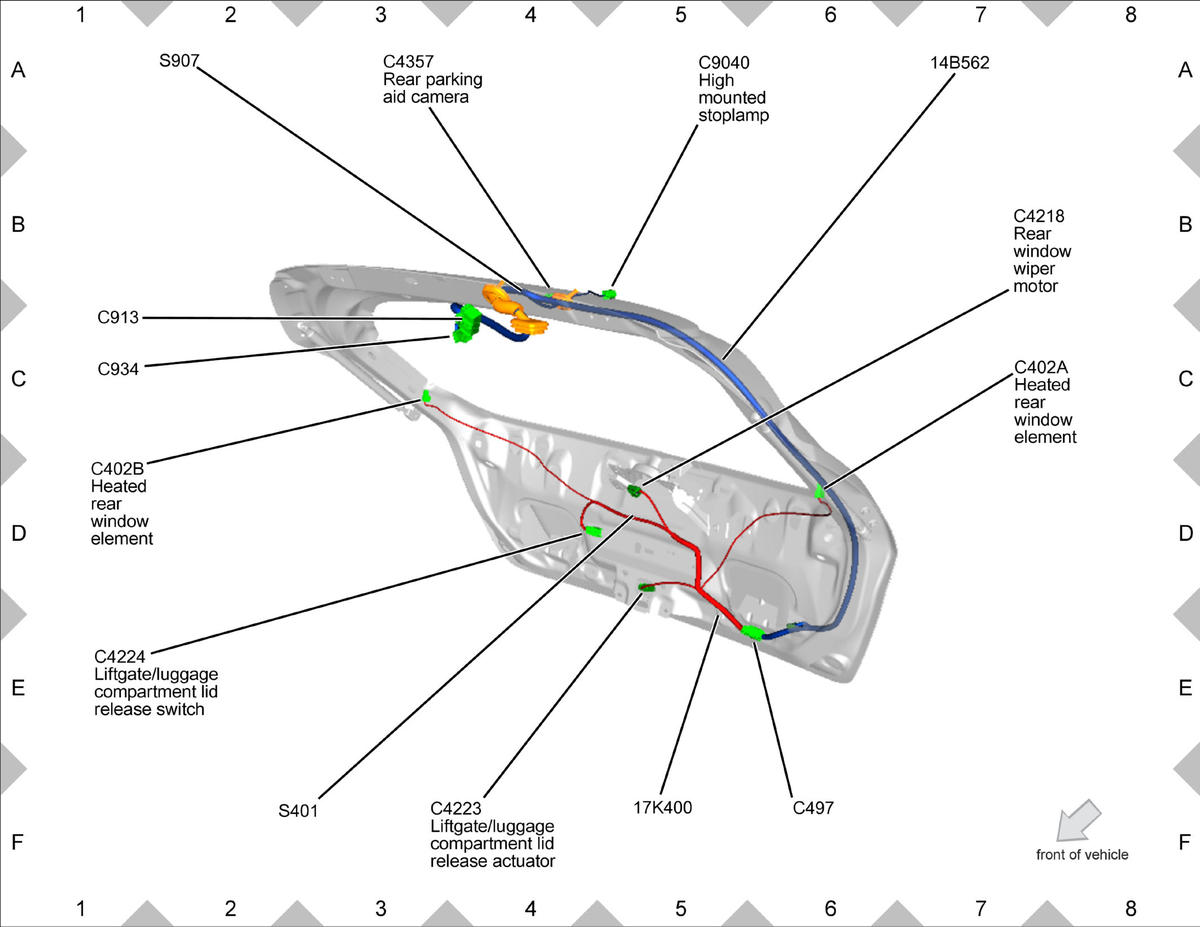

GFDWR17214Courtesy of FORD MOTOR COMPANY

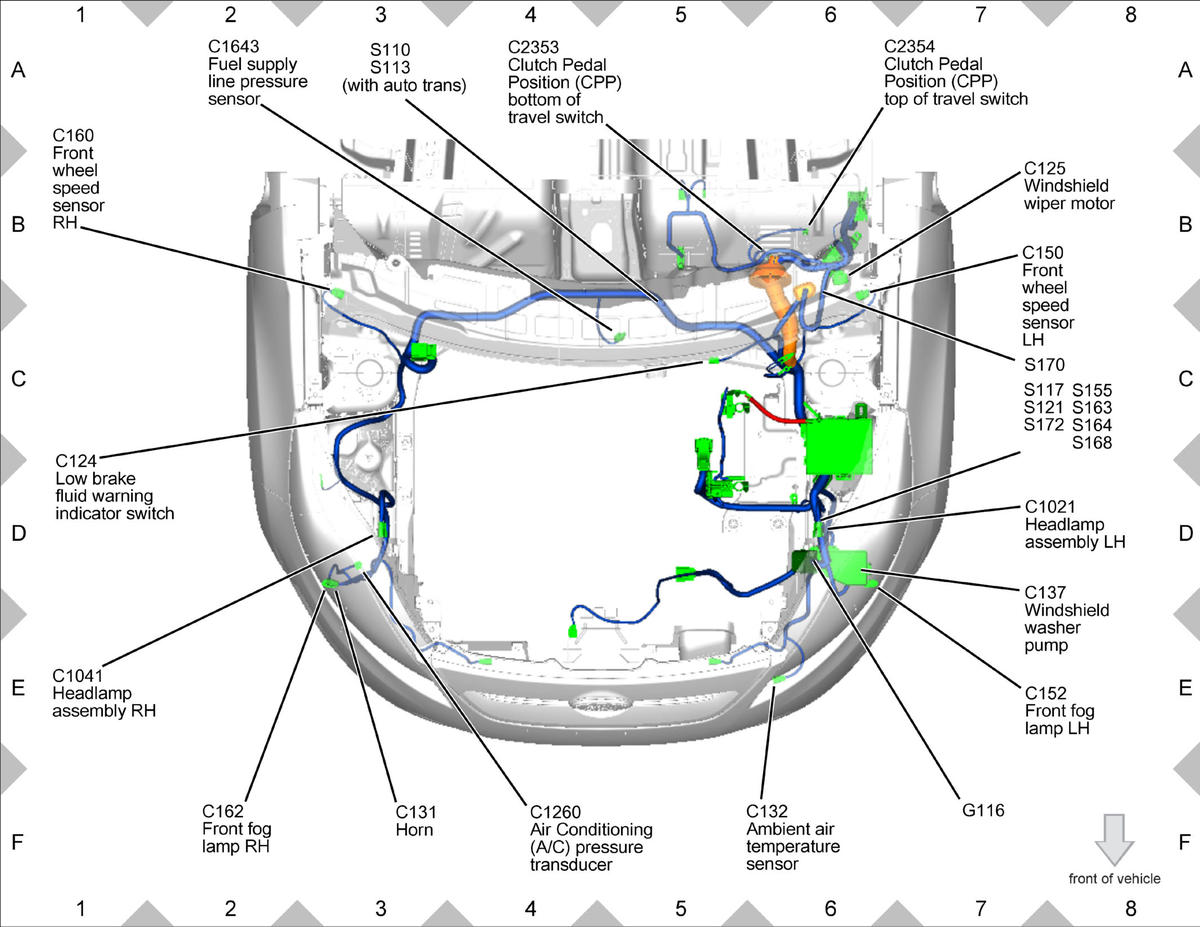

GFDWR17215Courtesy of FORD MOTOR COMPANY

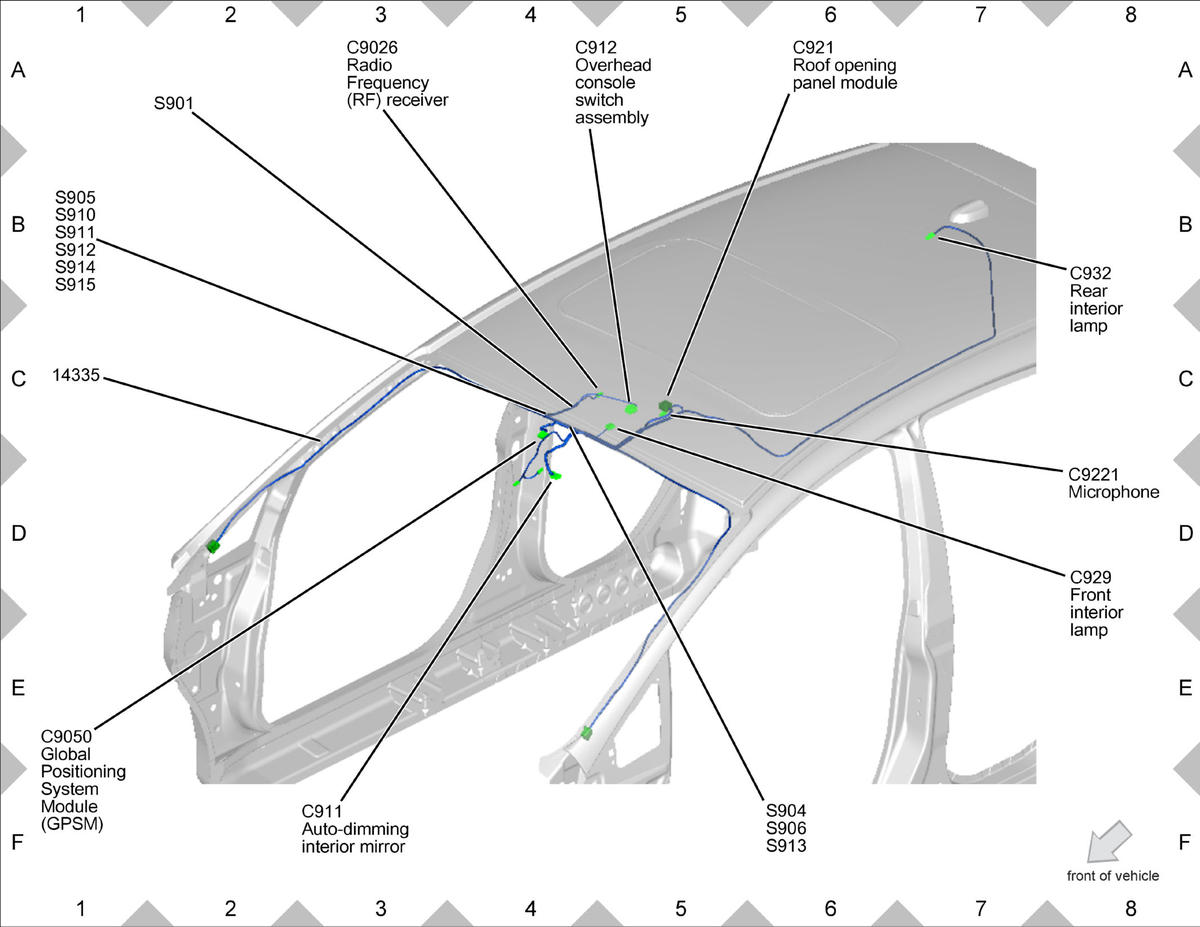

GFDWR17216Courtesy of FORD MOTOR COMPANY

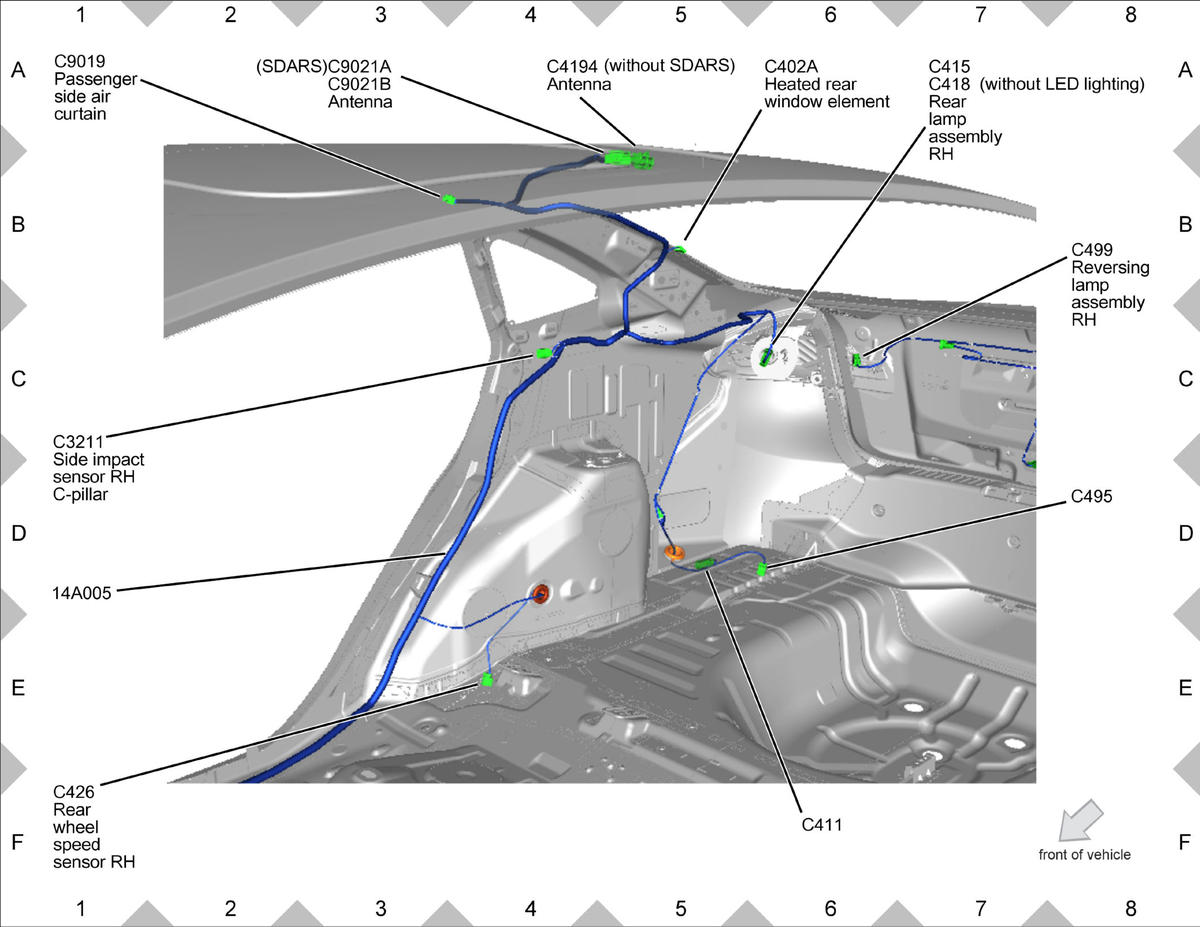

GFDWR17217Courtesy of FORD MOTOR COMPANY

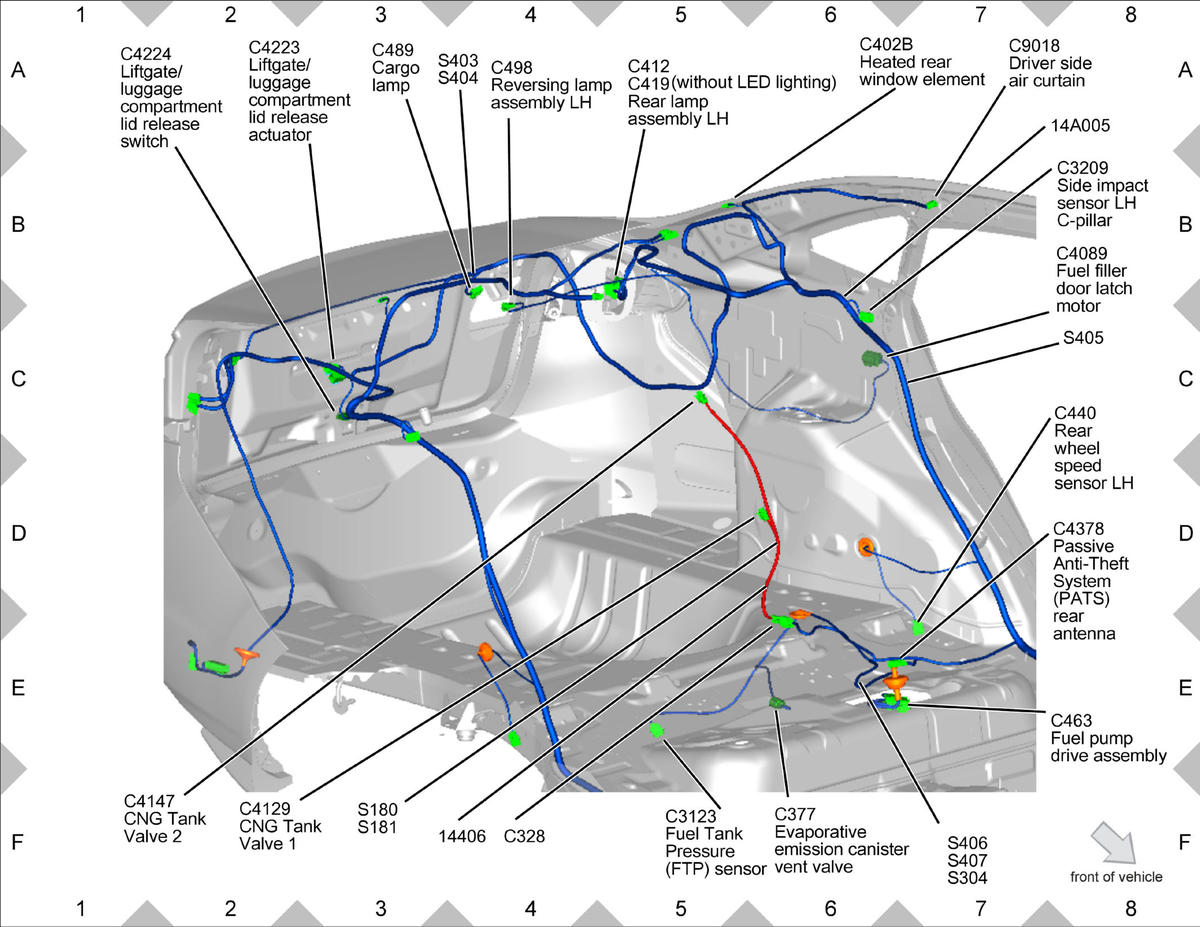

GFDWR17218Courtesy of FORD MOTOR COMPANY

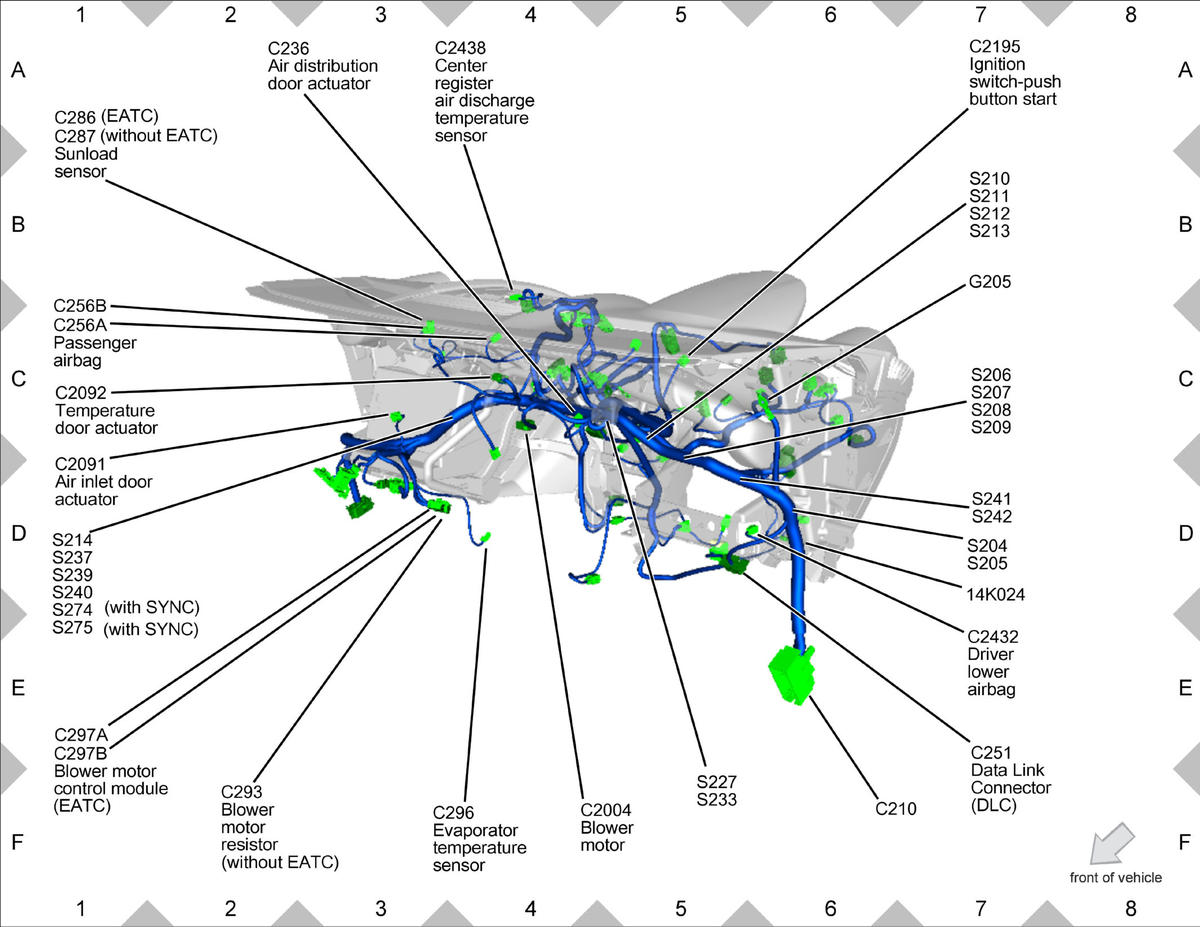

GFDWR17219Courtesy of FORD MOTOR COMPANY

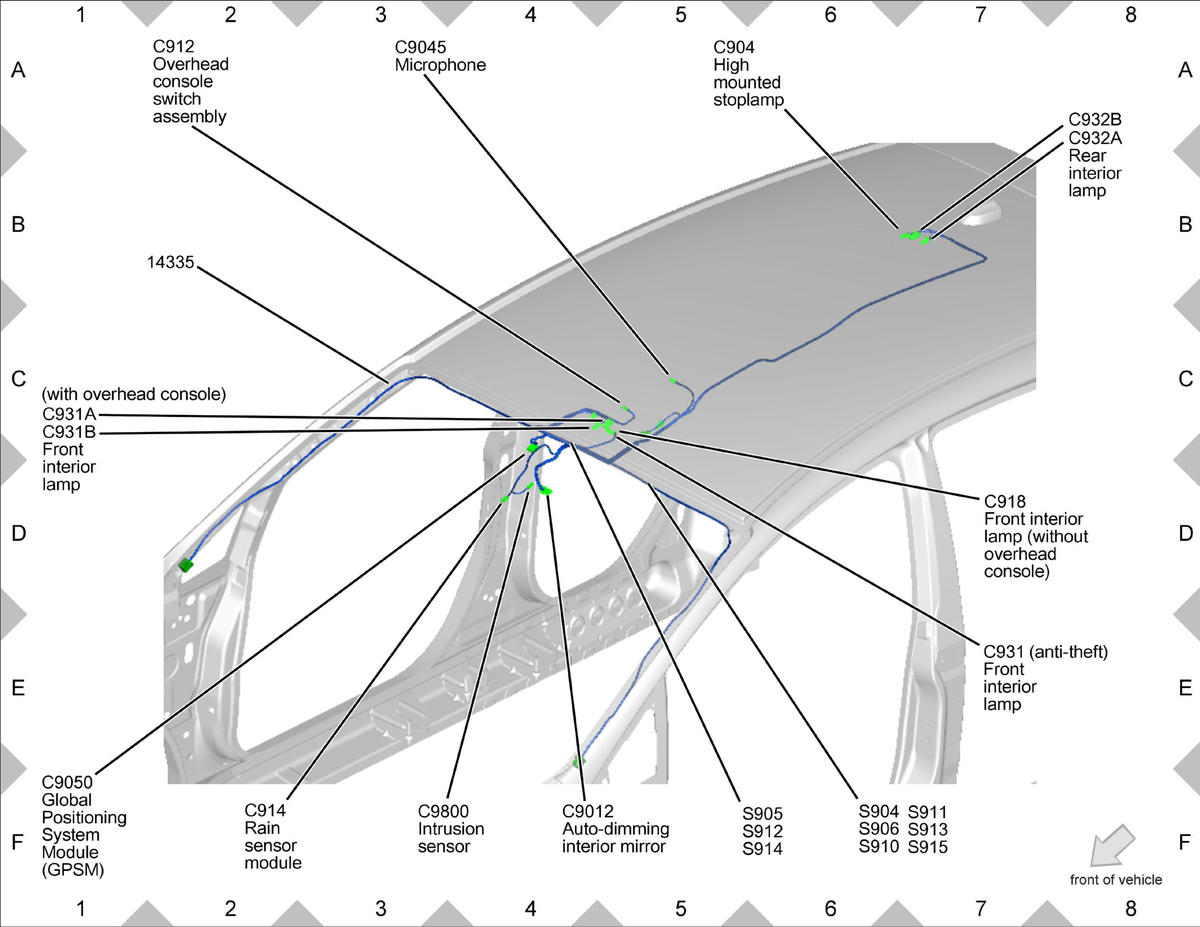

GFDWR17220Courtesy of FORD MOTOR COMPANY

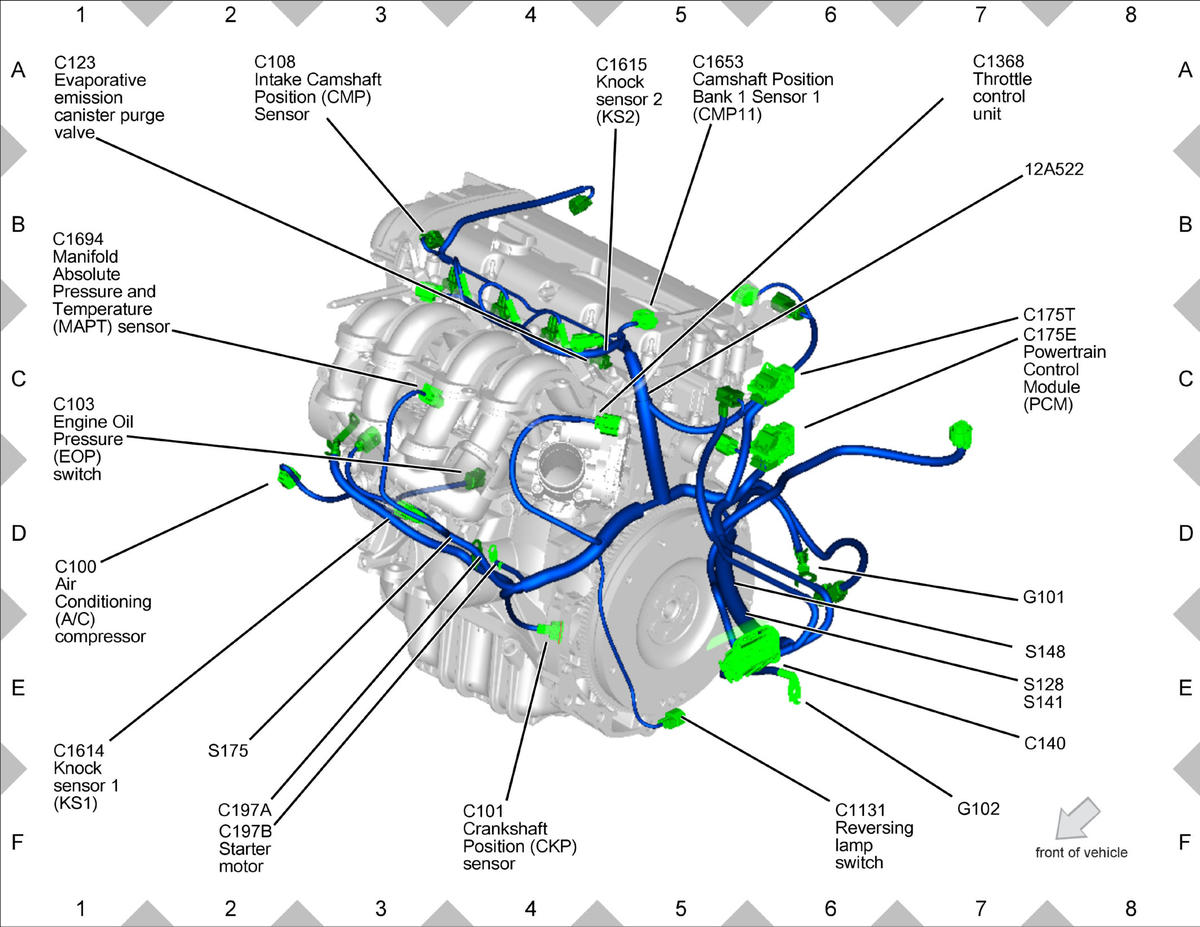

GFDWR17221Courtesy of FORD MOTOR COMPANY

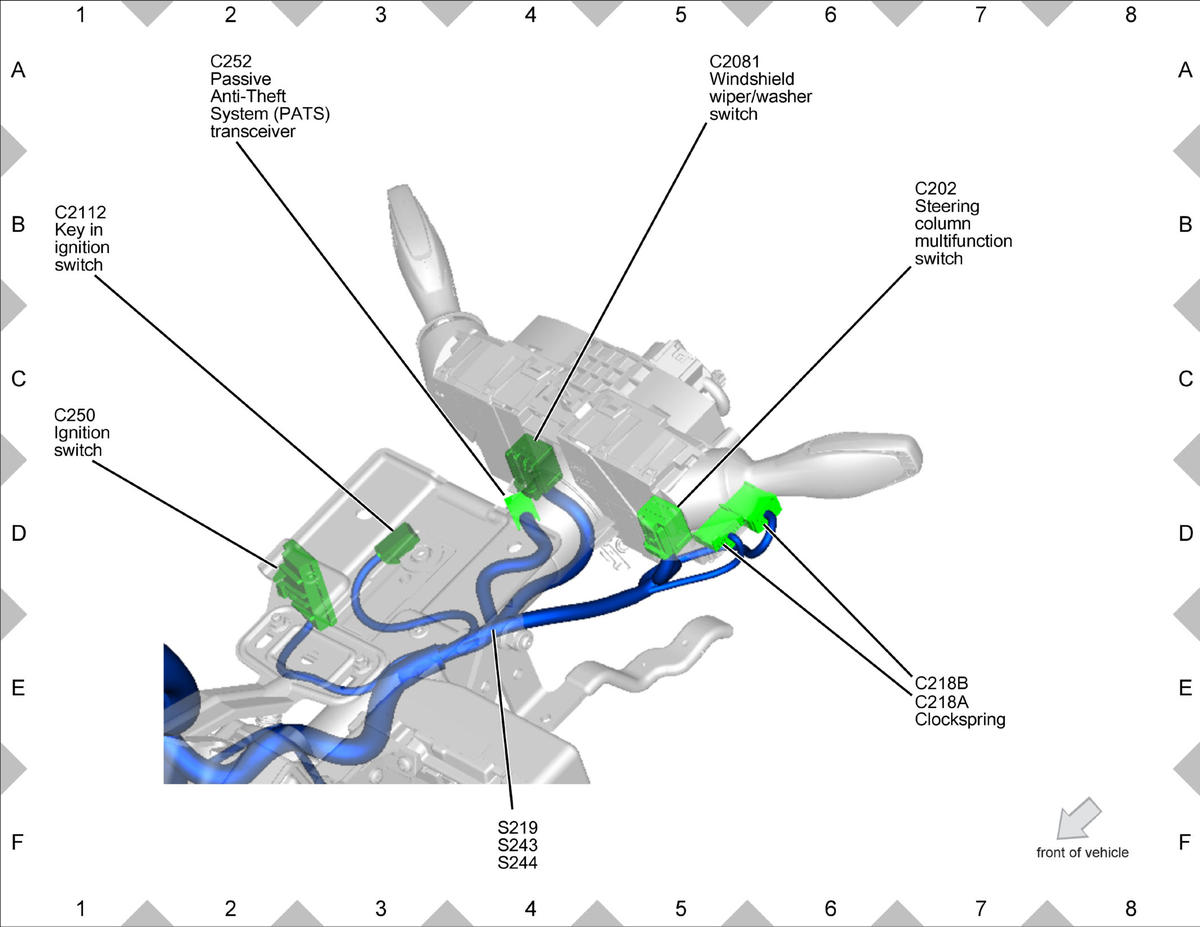

GFDWR17222Courtesy of FORD MOTOR COMPANY

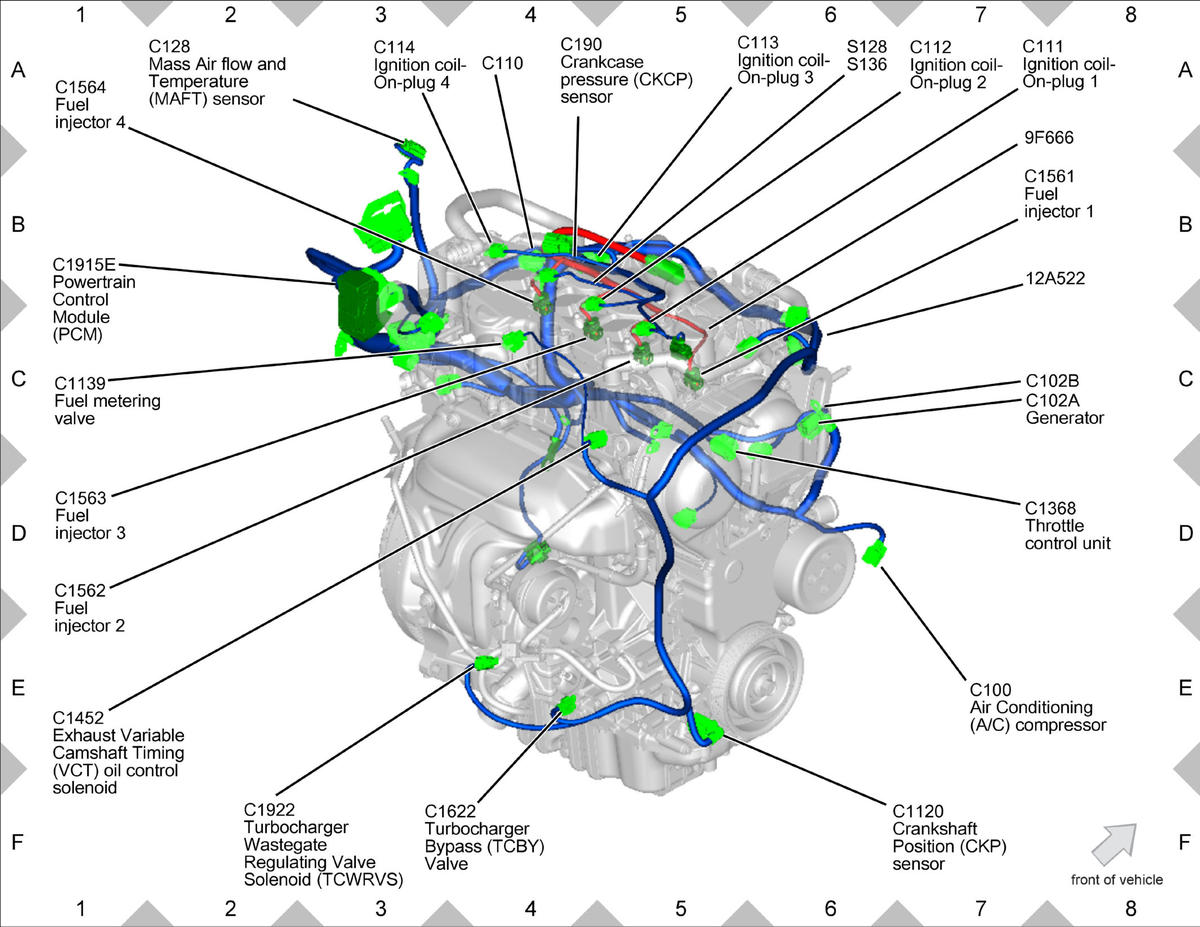

GFDWR17223Courtesy of FORD MOTOR COMPANY

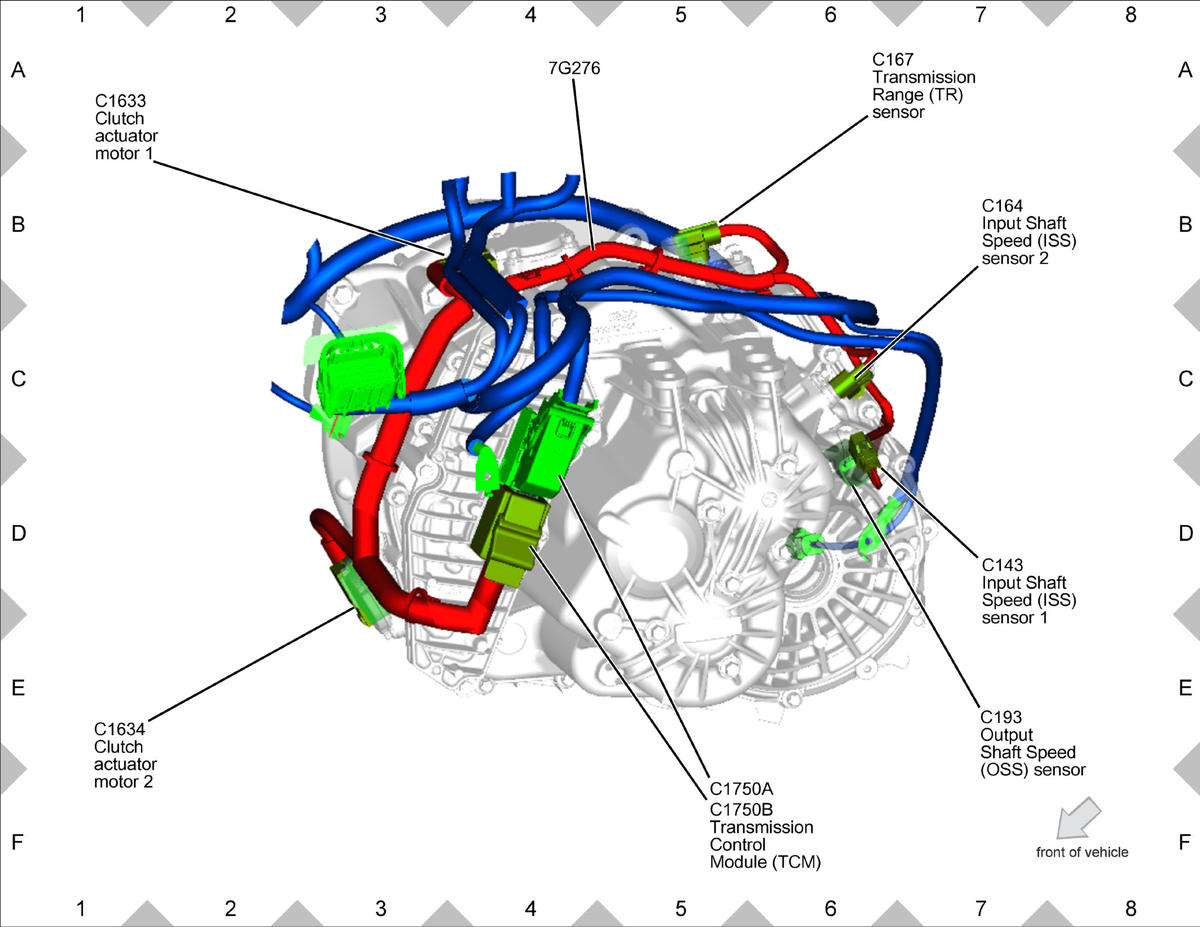

GFDWR17224Courtesy of FORD MOTOR COMPANY

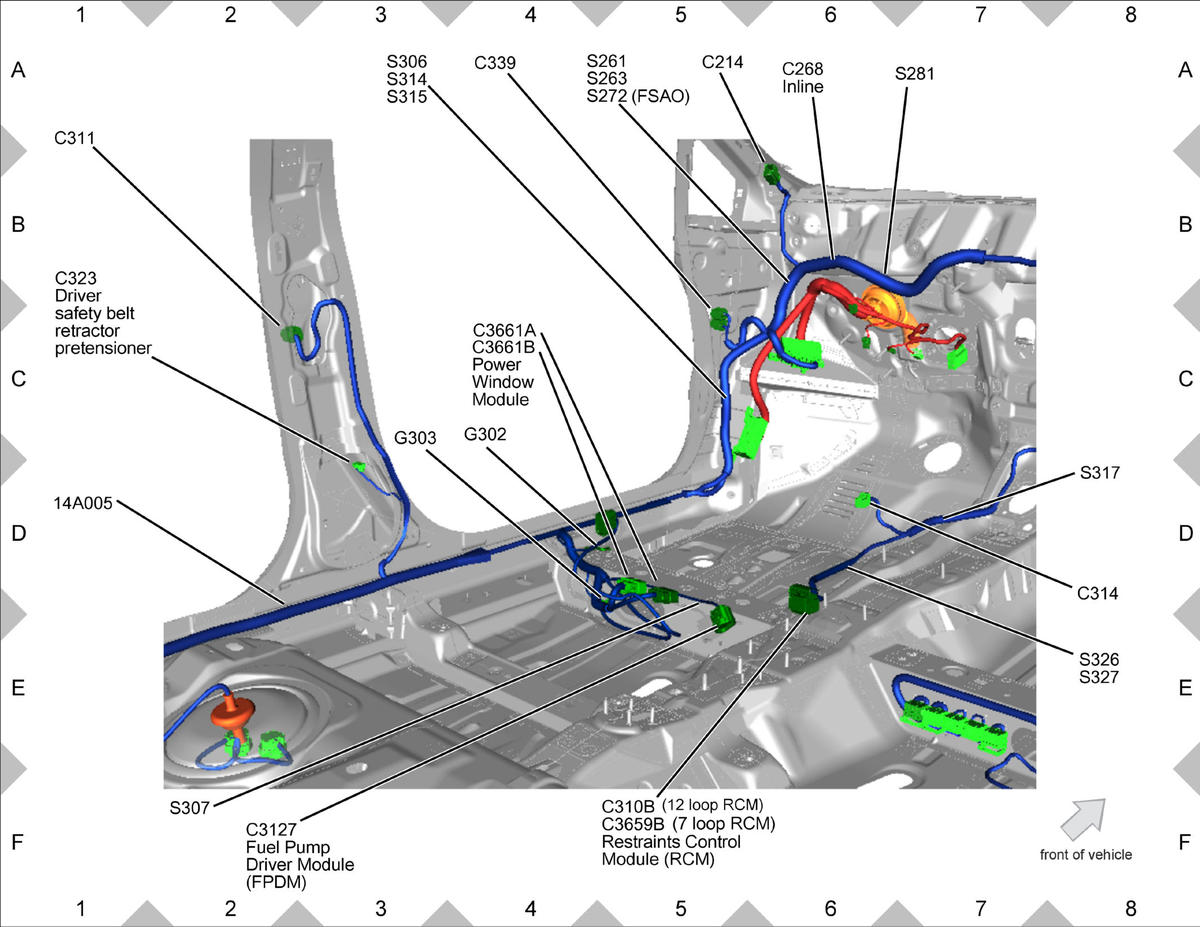

GFDWR17225Courtesy of FORD MOTOR COMPANY

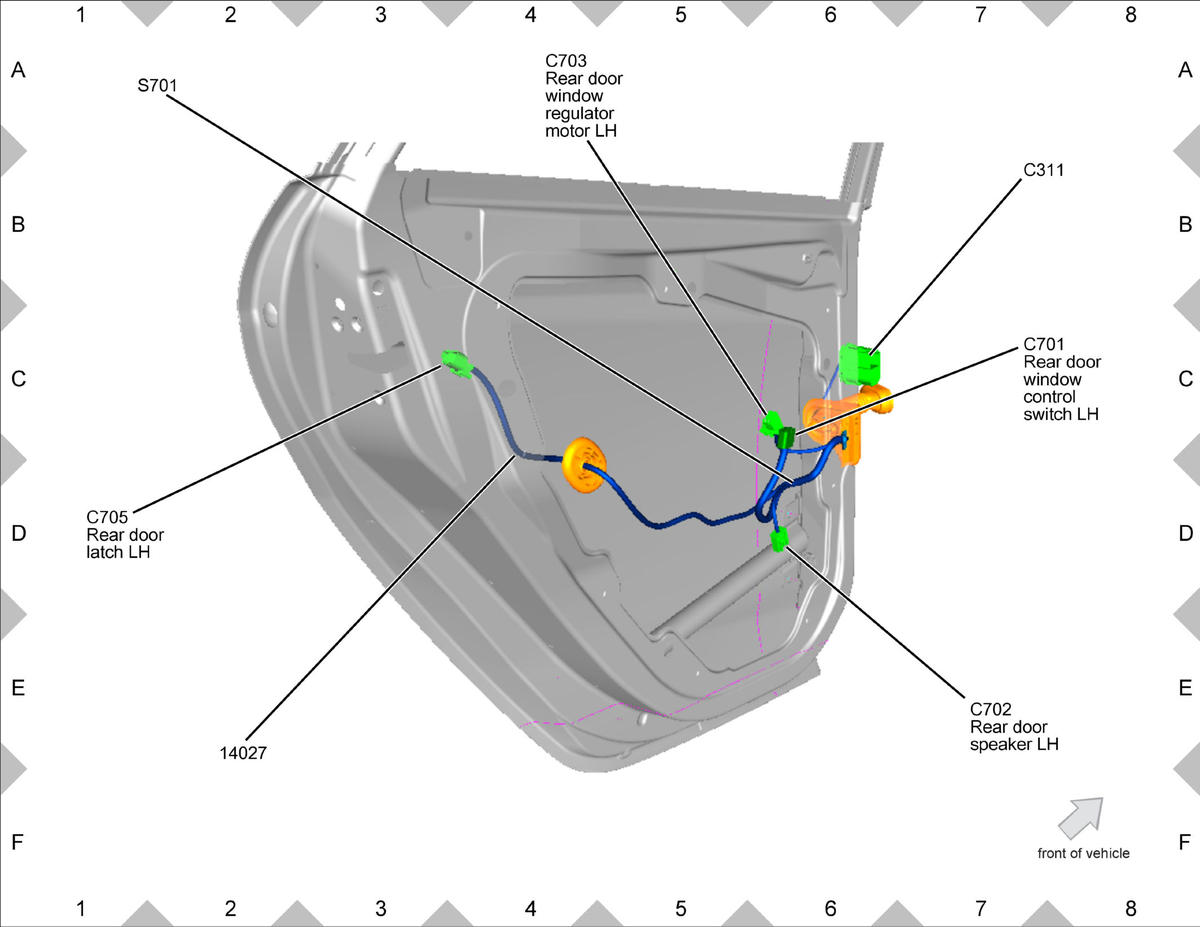

GFDWR17226Courtesy of FORD MOTOR COMPANY

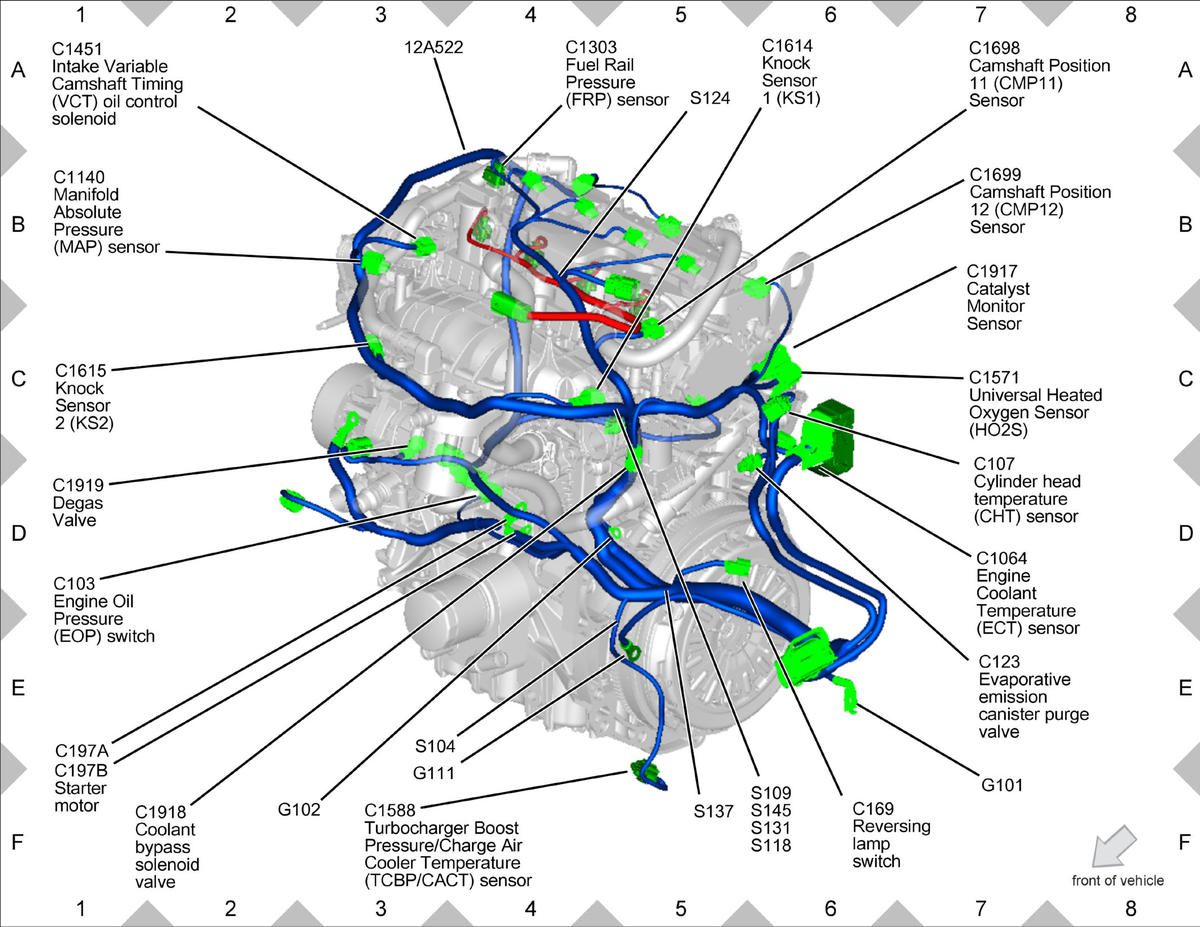

GFDWR17227Courtesy of FORD MOTOR COMPANY

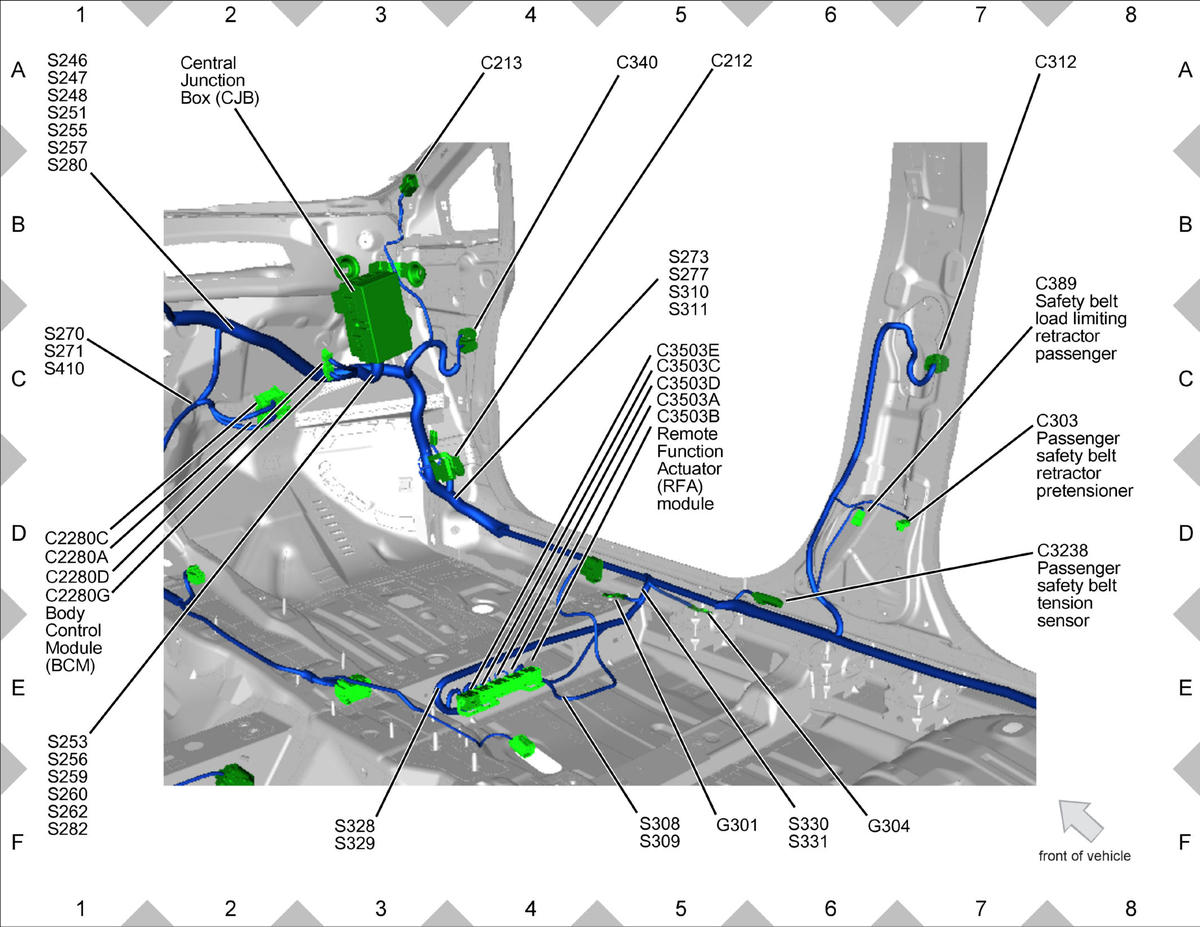

GFDWR17228Courtesy of FORD MOTOR COMPANY

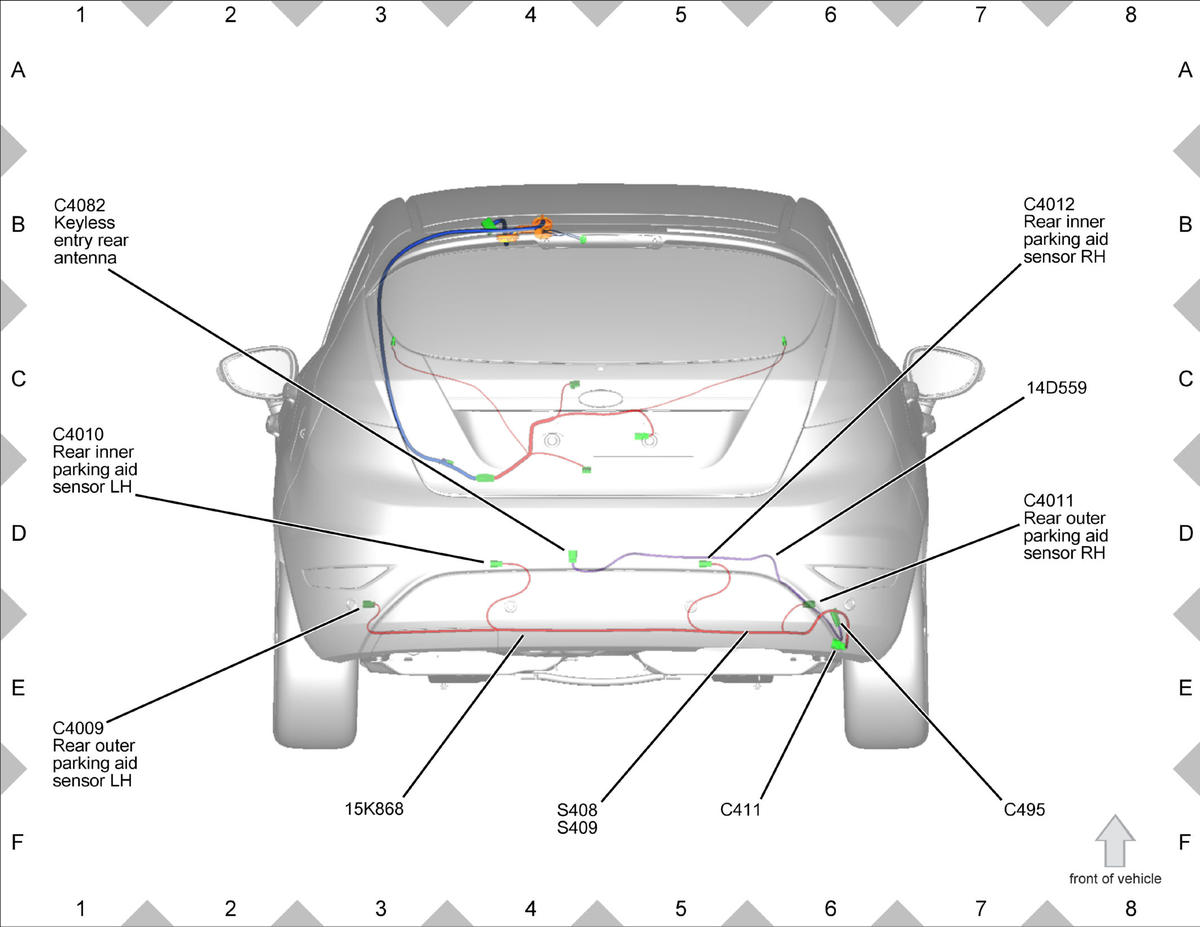

GFDWR17229Courtesy of FORD MOTOR COMPANY

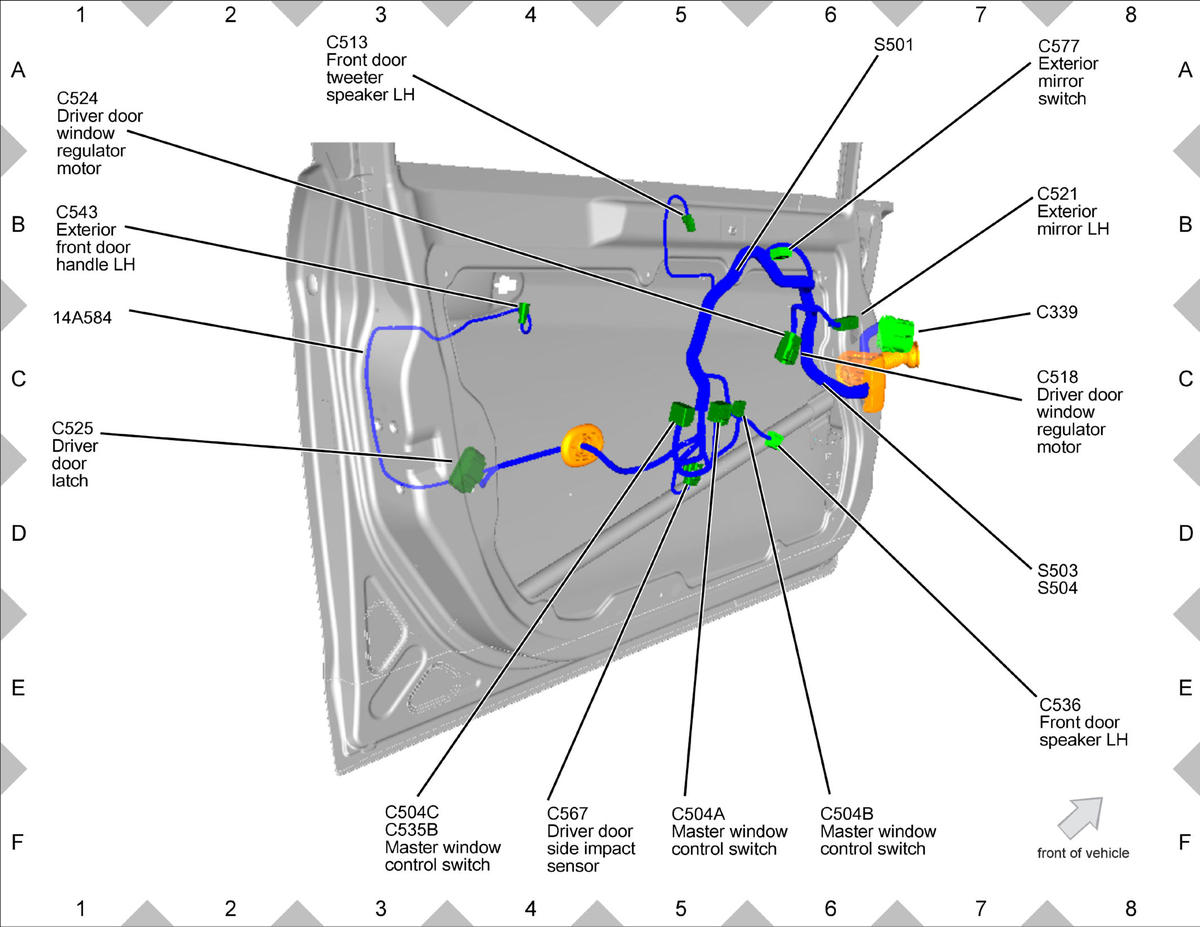

GFDWR17230Courtesy of FORD MOTOR COMPANY

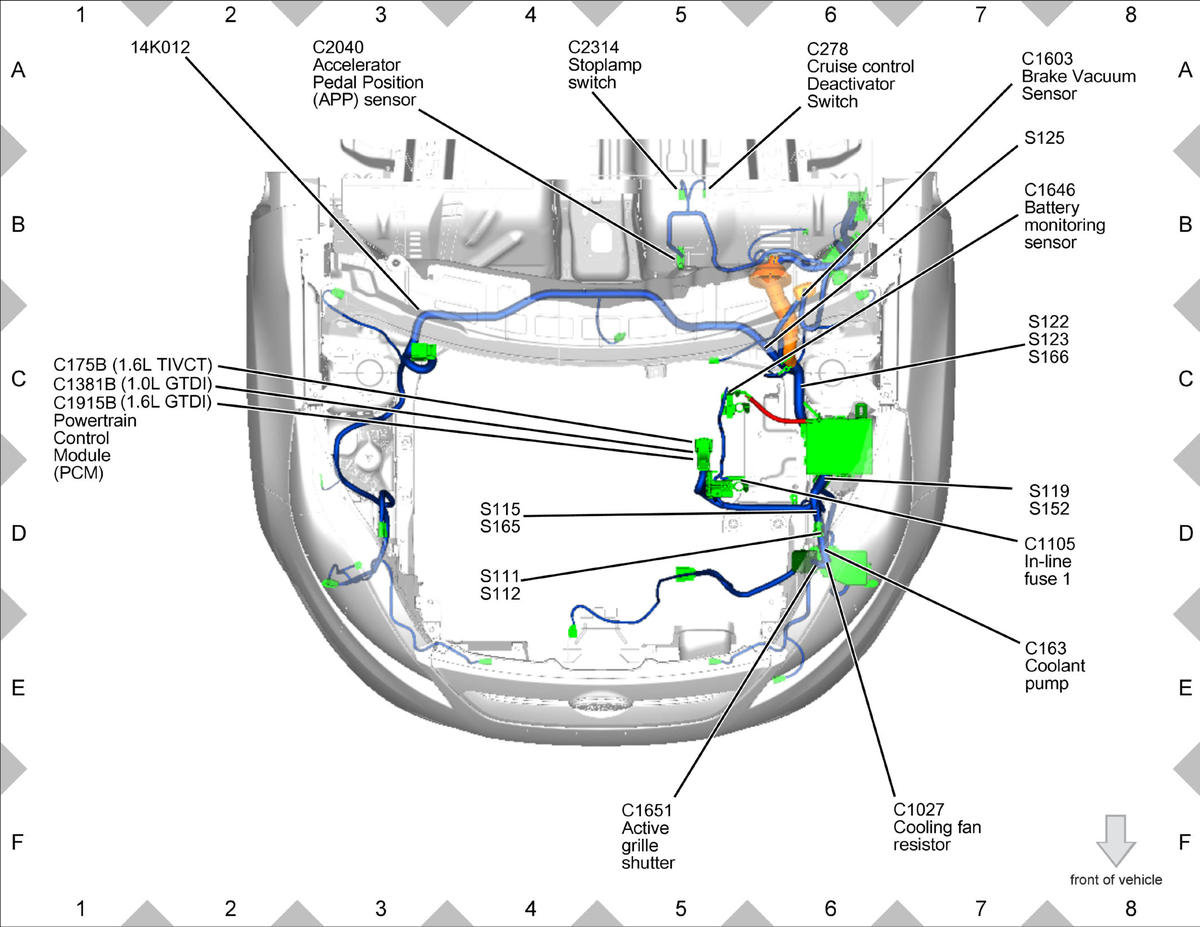

GFDWR17231Courtesy of FORD MOTOR COMPANY

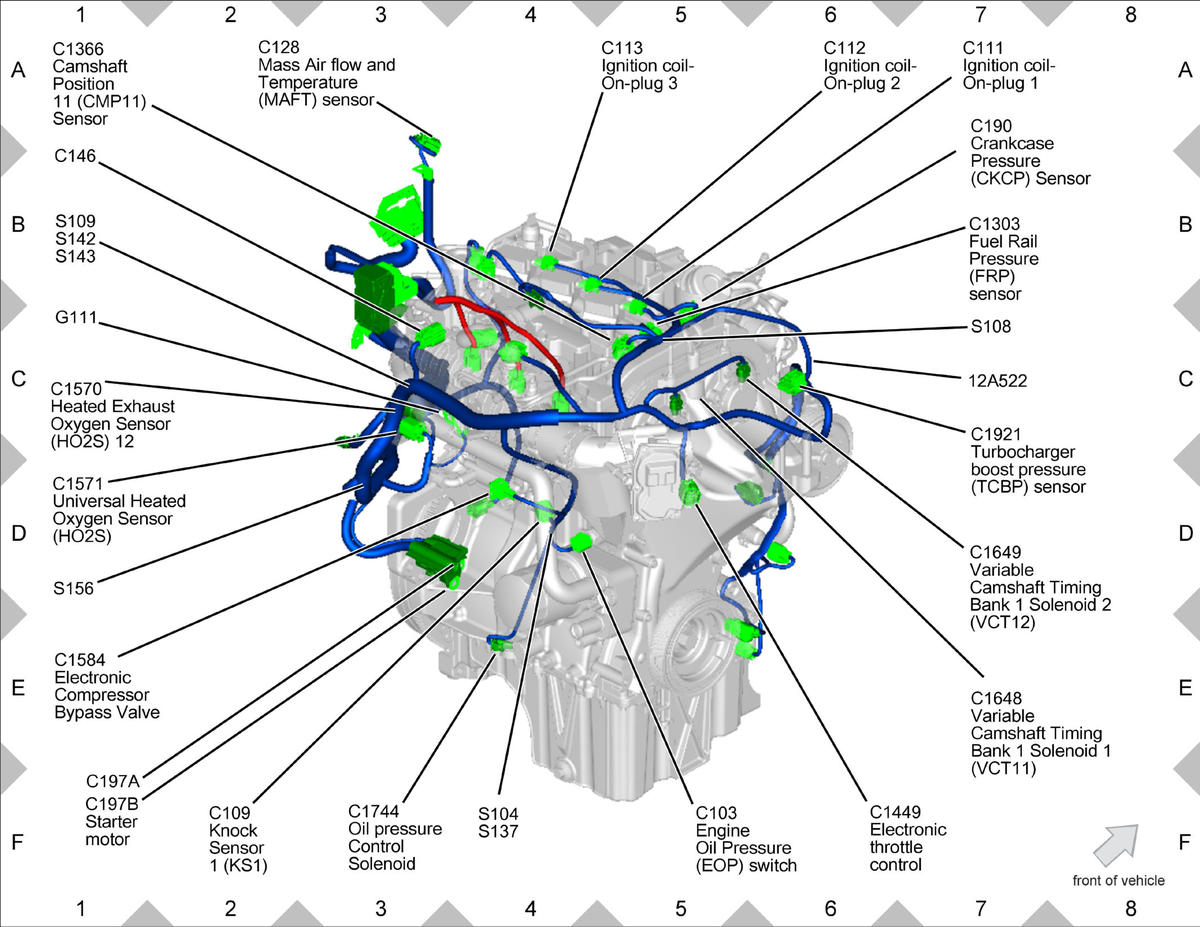

GFDWR17232Courtesy of FORD MOTOR COMPANY

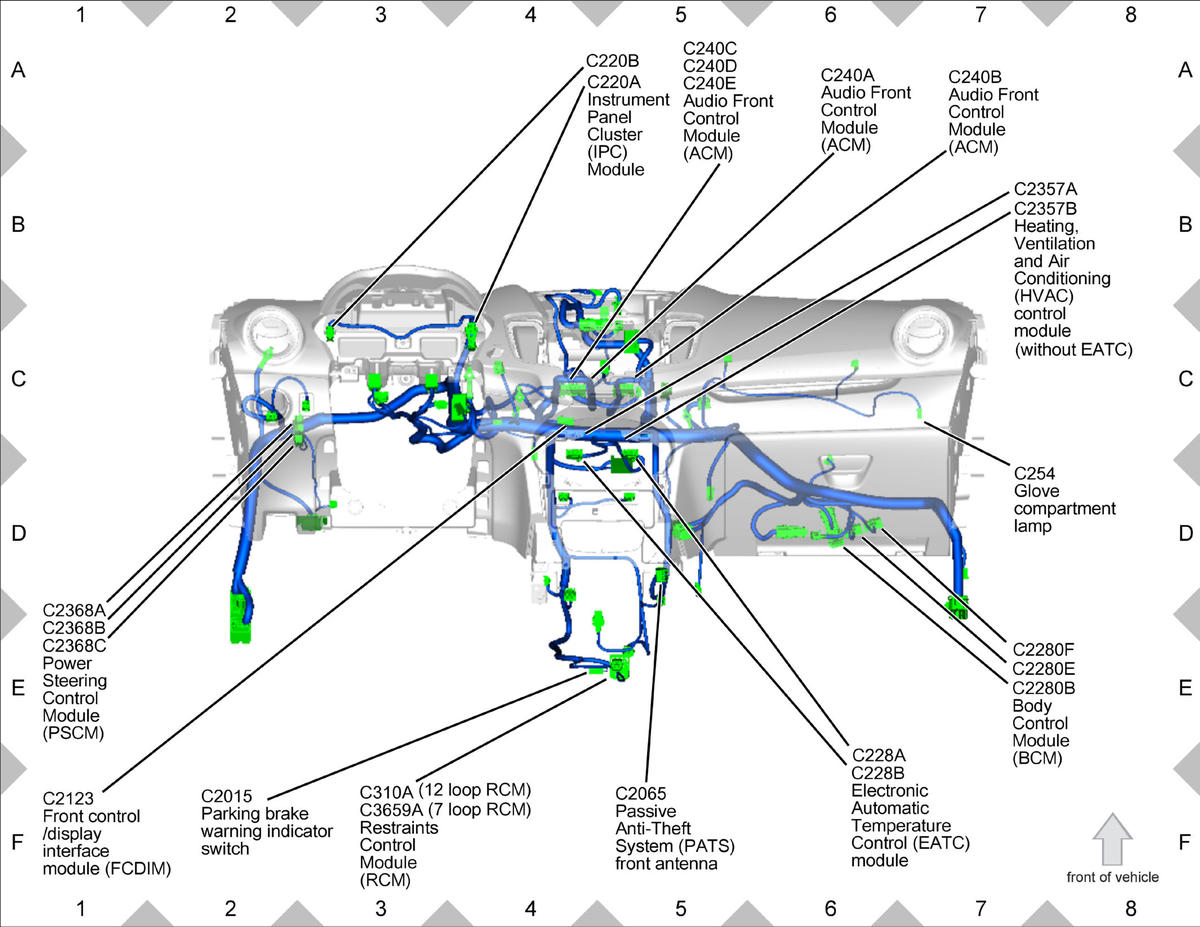

GFDWR17233Courtesy of FORD MOTOR COMPANY

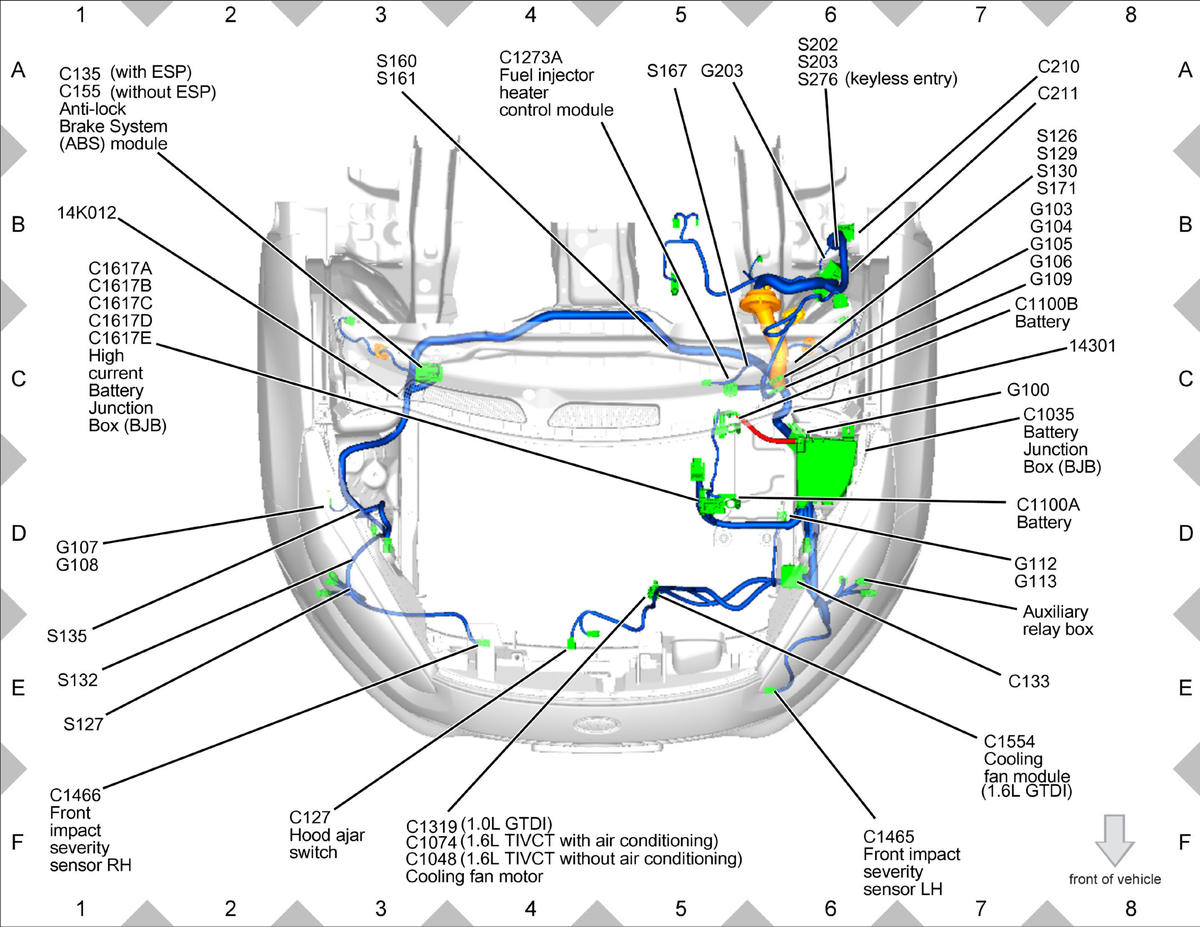

GFDWR17234Courtesy of FORD MOTOR COMPANY

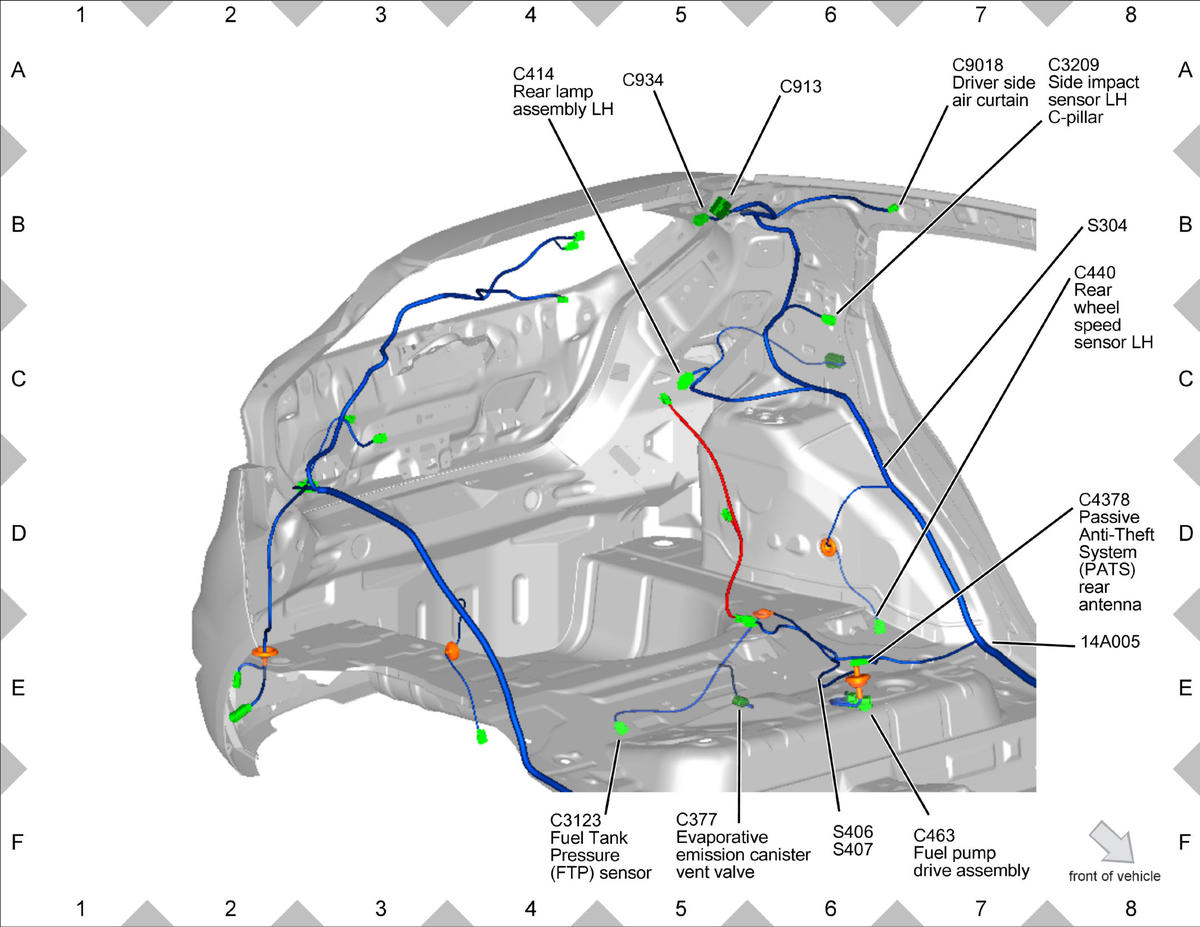

GFDWR17235Courtesy of FORD MOTOR COMPANY

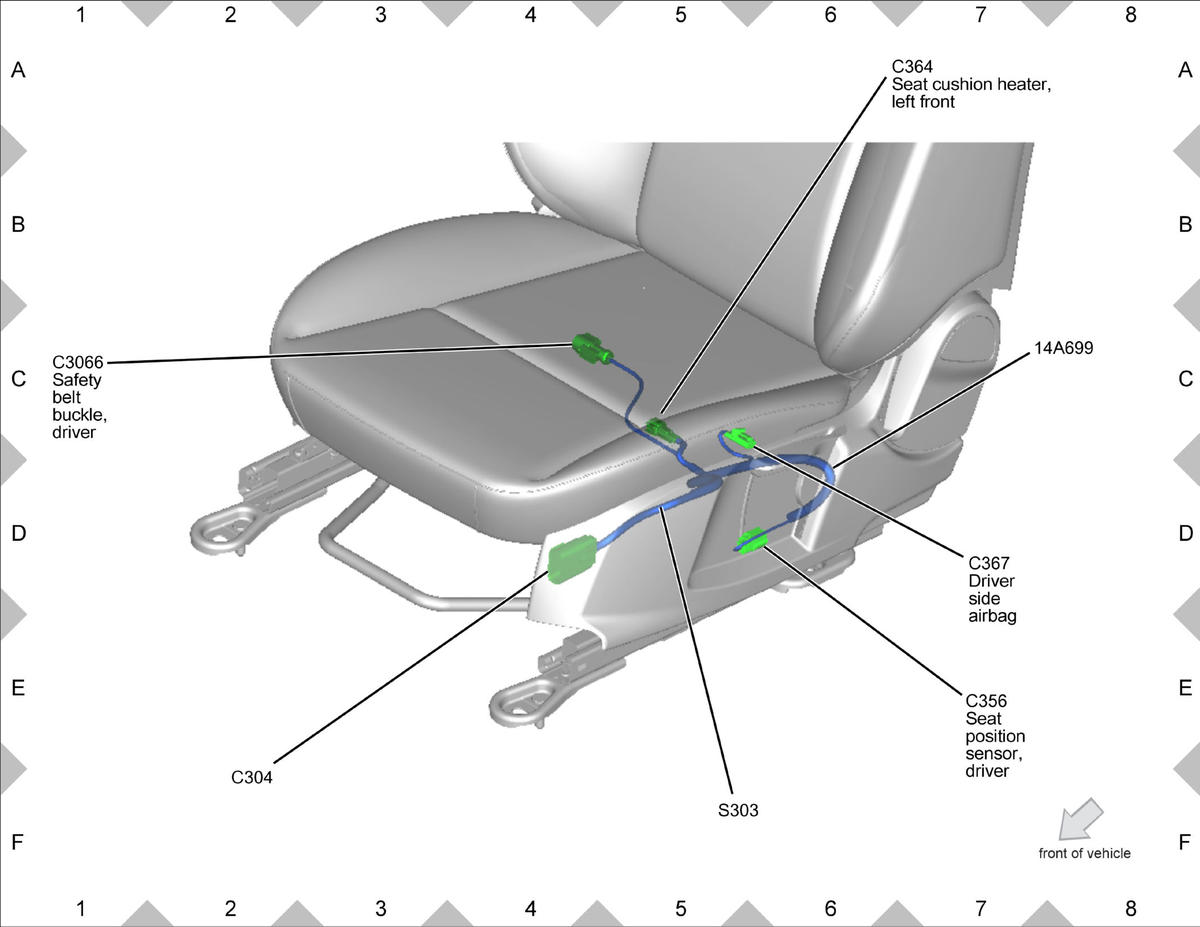

GFDWR17236Courtesy of FORD MOTOR COMPANY

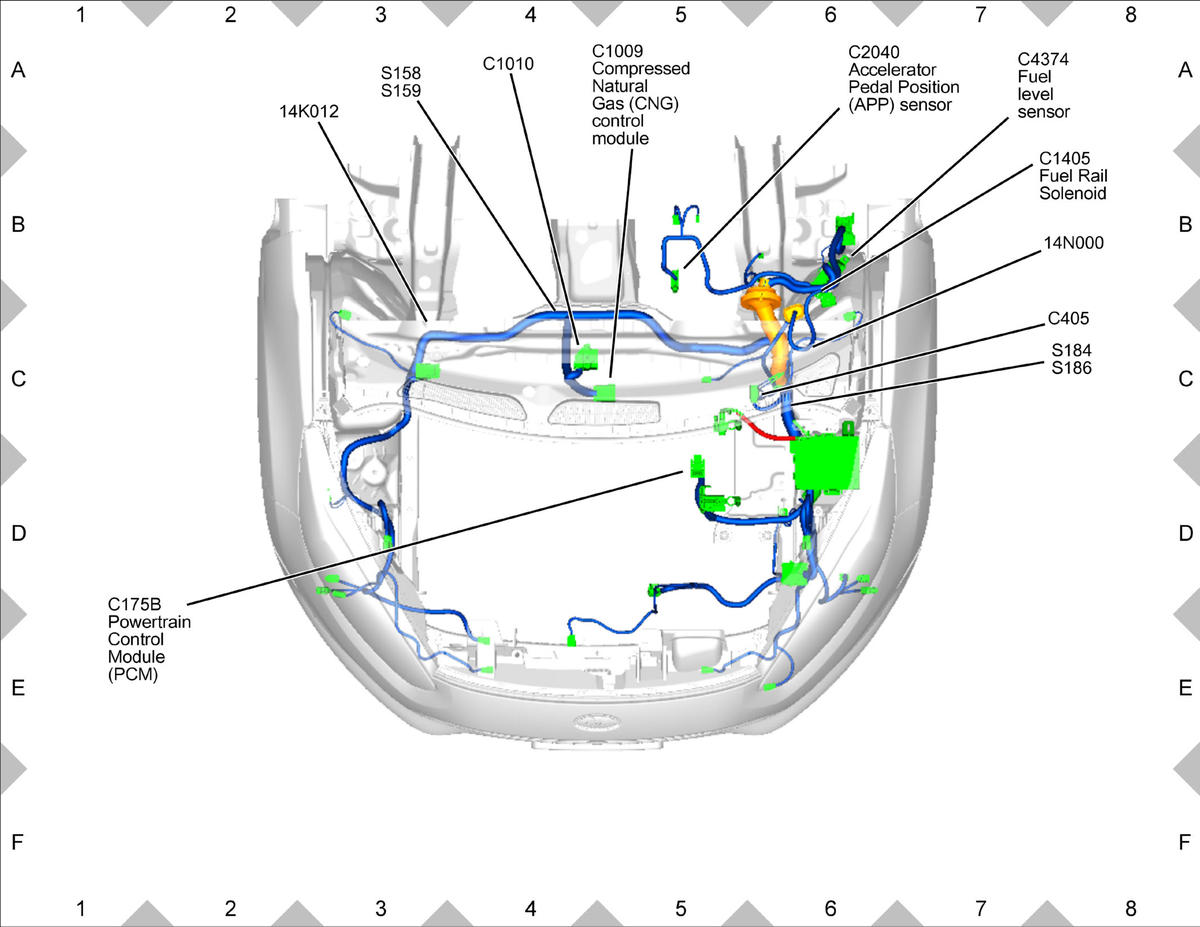

GFDWR17237Courtesy of FORD MOTOR COMPANY

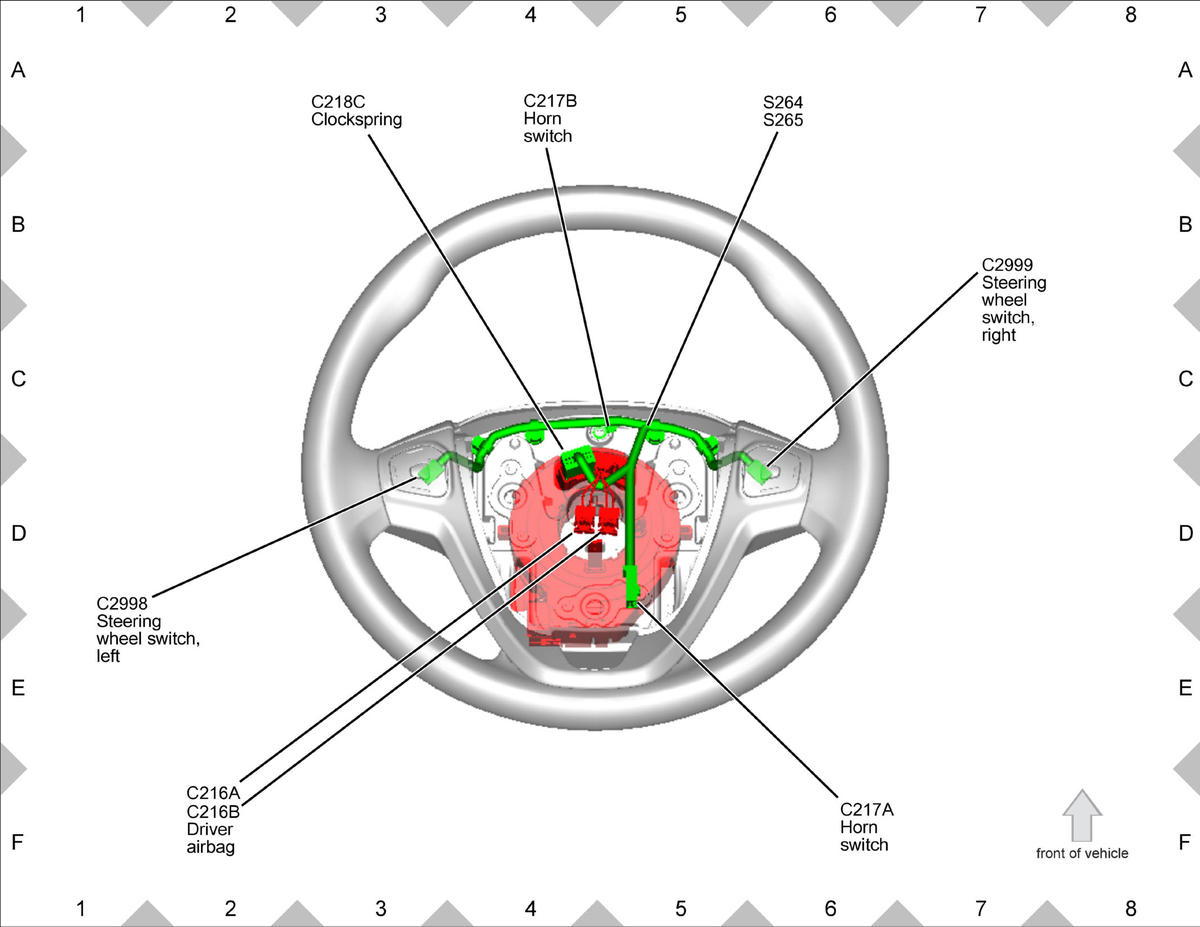

GFDWR17238Courtesy of FORD MOTOR COMPANY

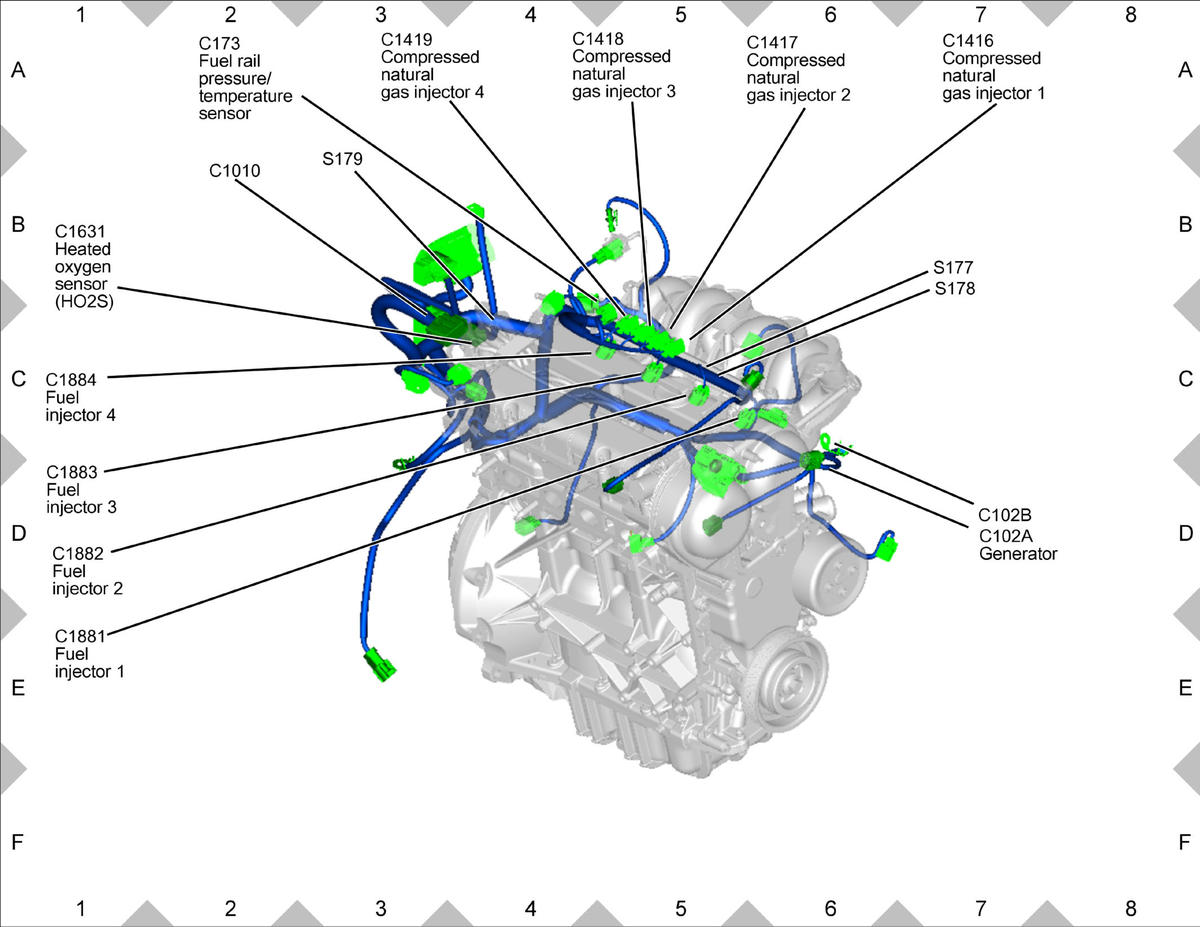

GFDWR17239Courtesy of FORD MOTOR COMPANY

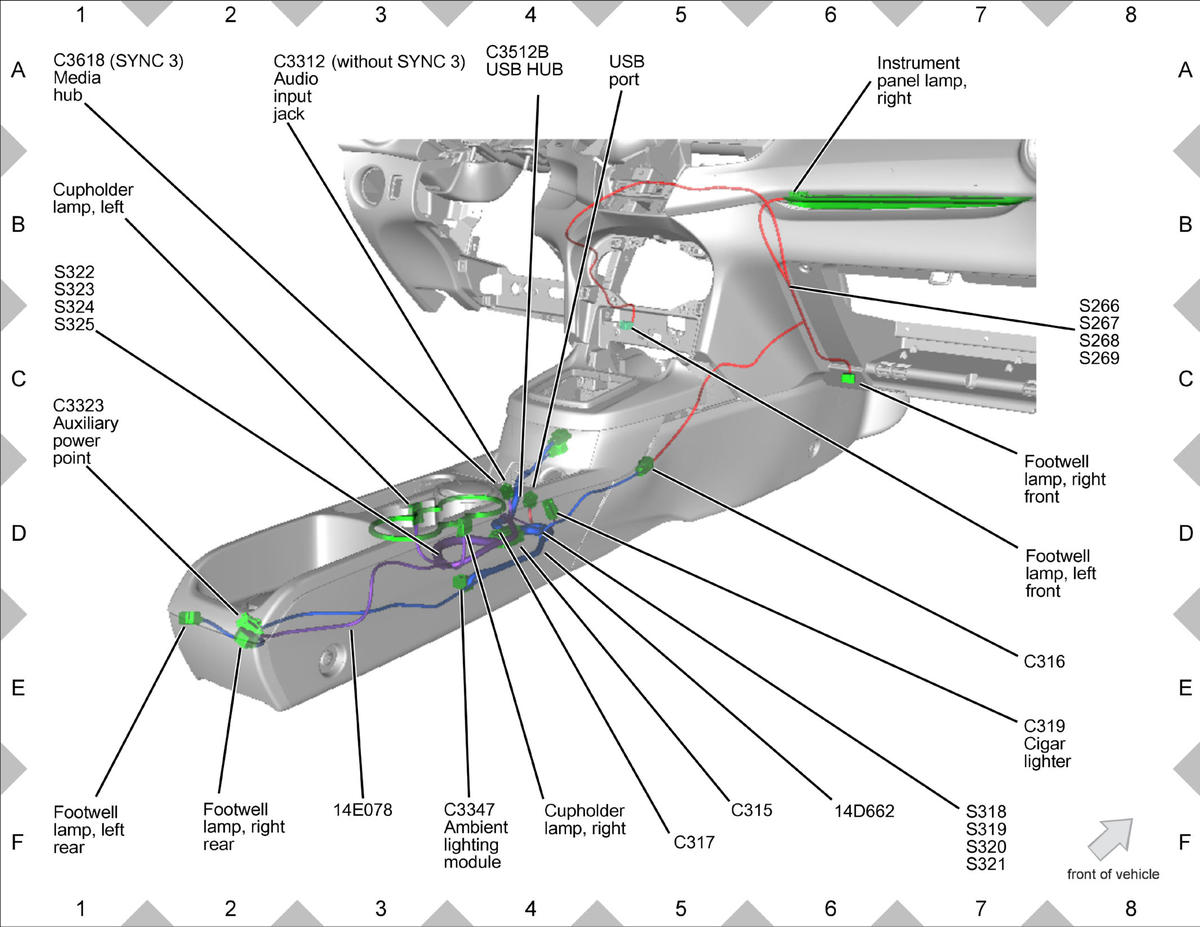

GFDWR17240Courtesy of FORD MOTOR COMPANY

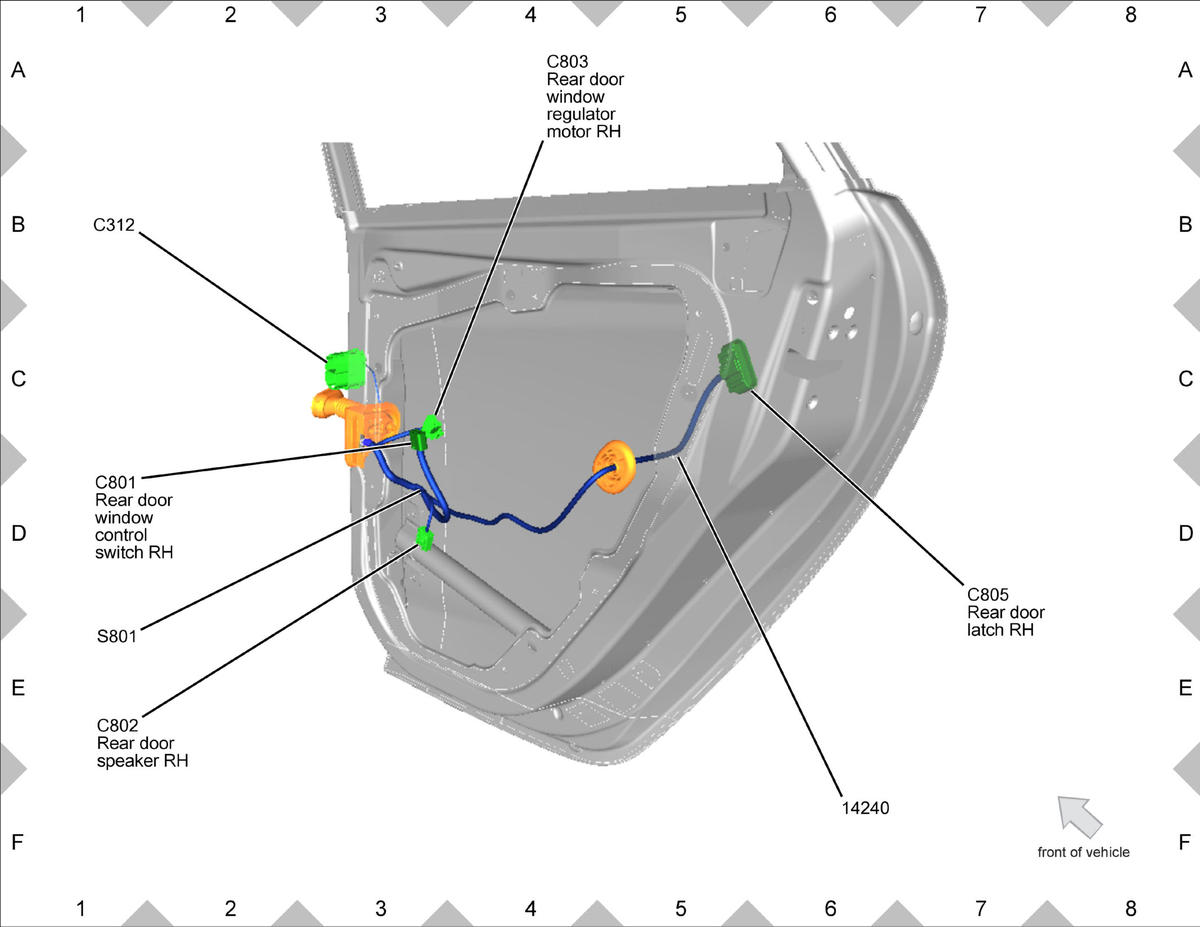

GFDWR17241Courtesy of FORD MOTOR COMPANY

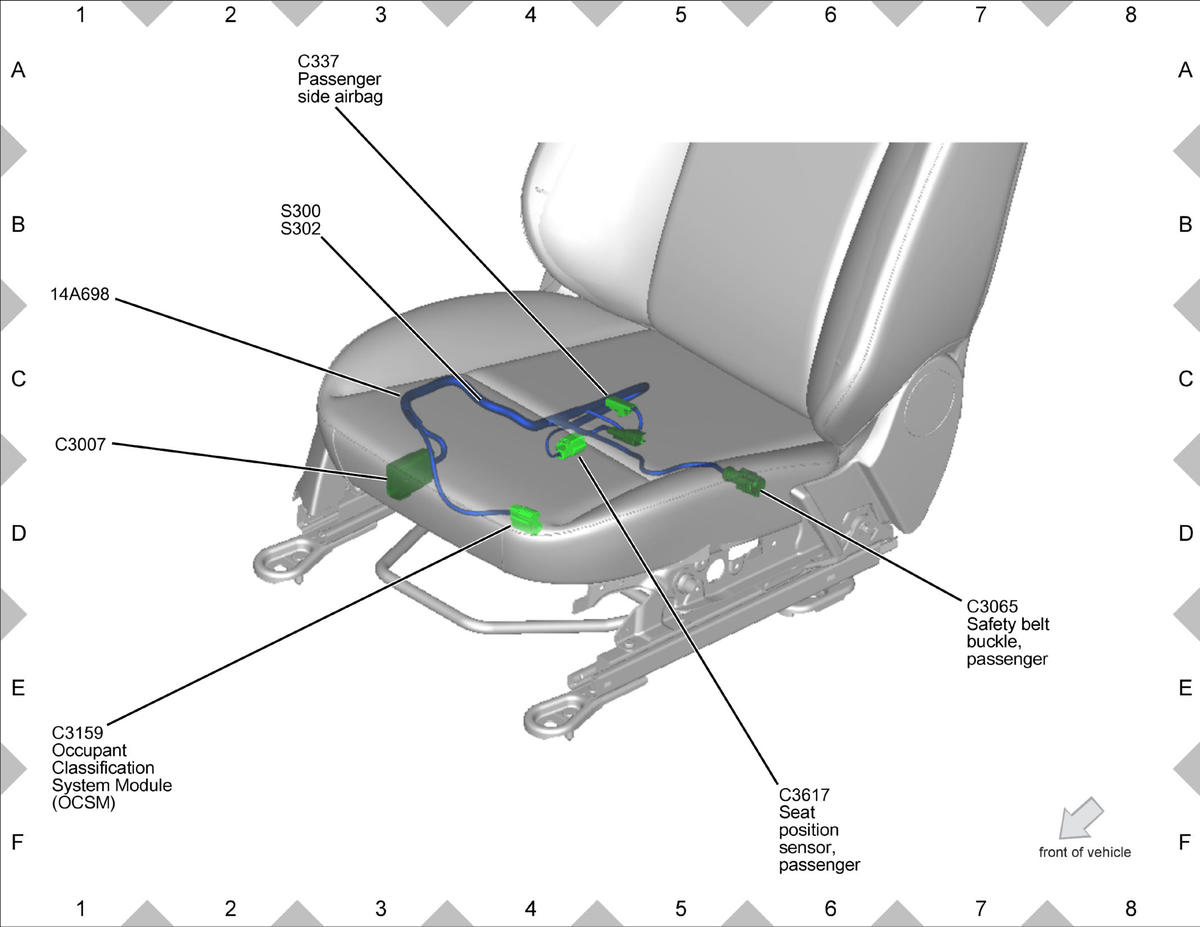

GFDWR17242Courtesy of FORD MOTOR COMPANY

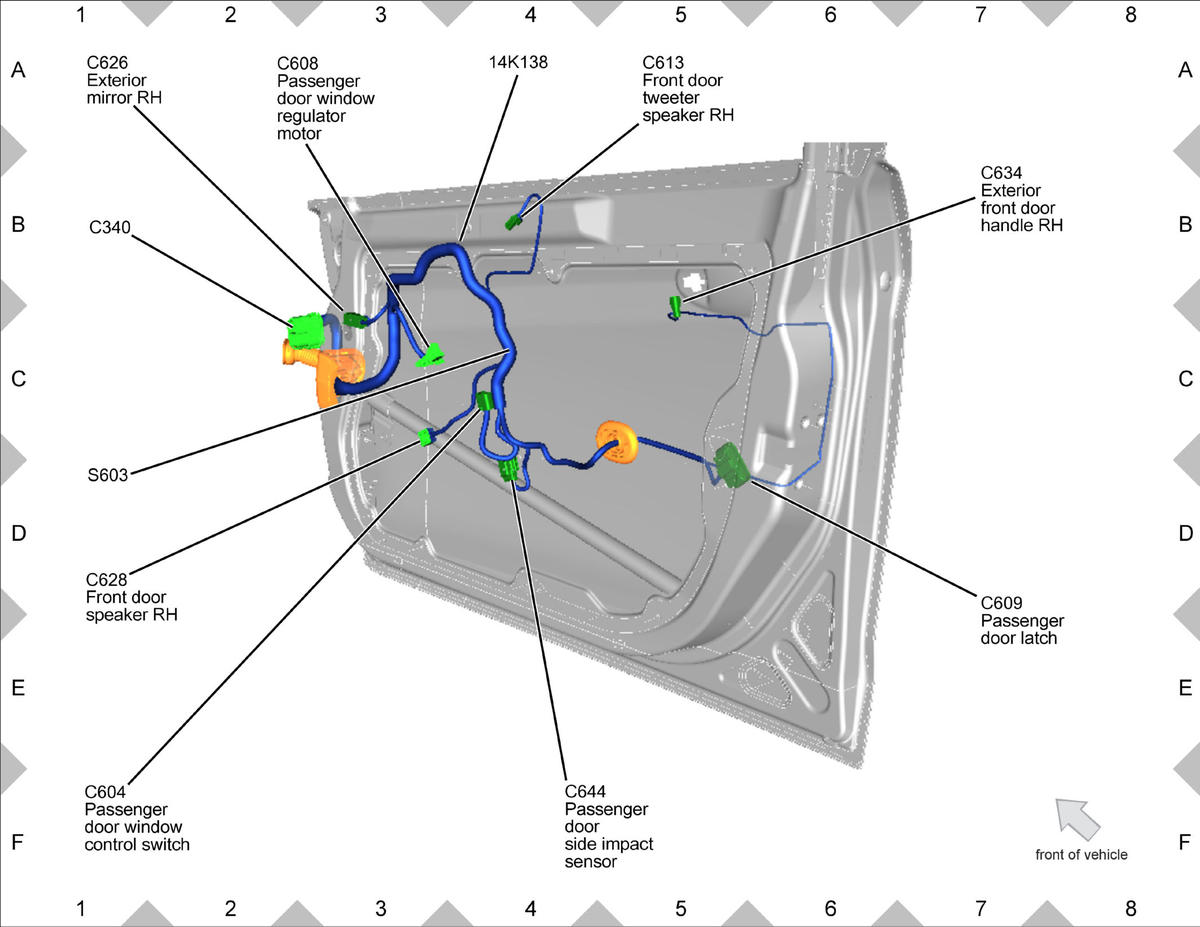

GFDWR17243Courtesy of FORD MOTOR COMPANY

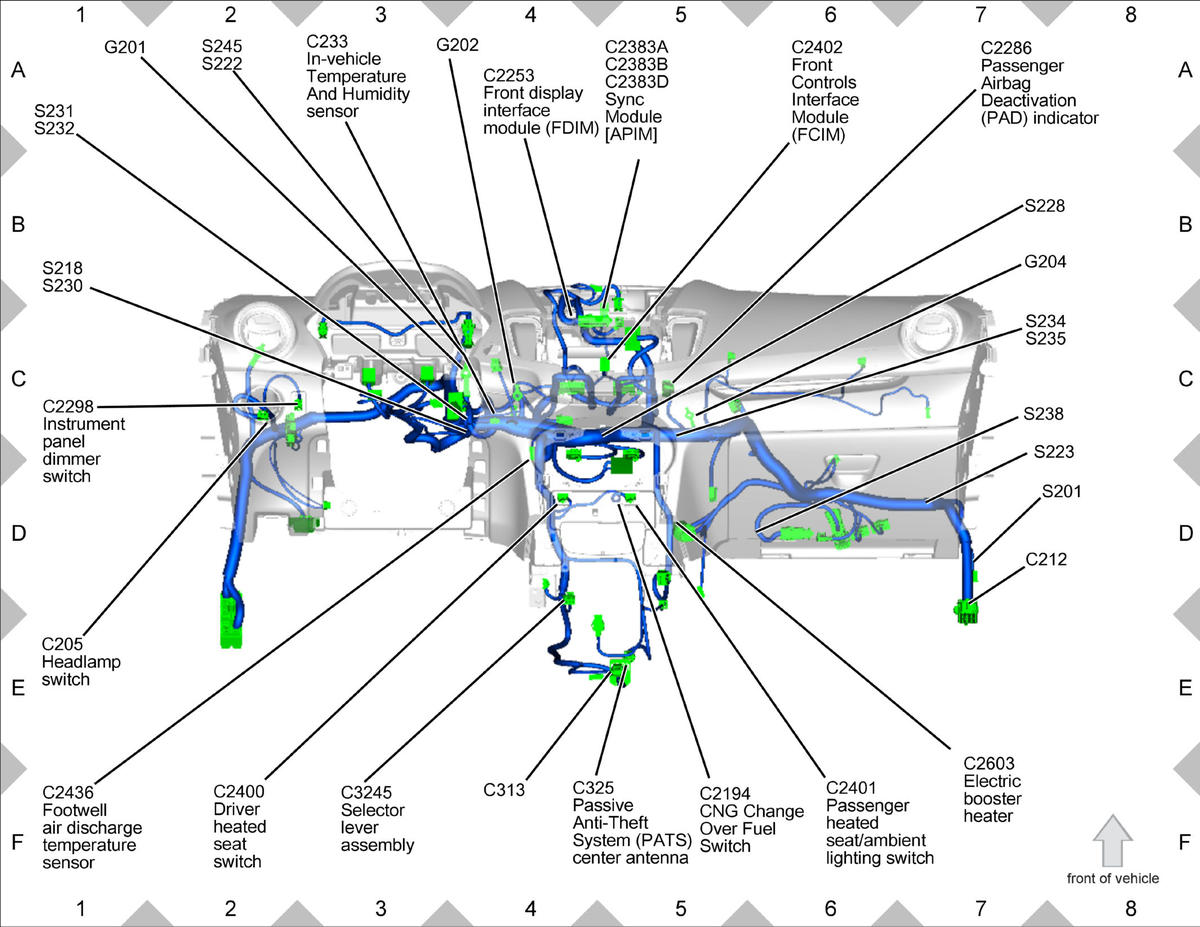

GFDWR17244Courtesy of FORD MOTOR COMPANY

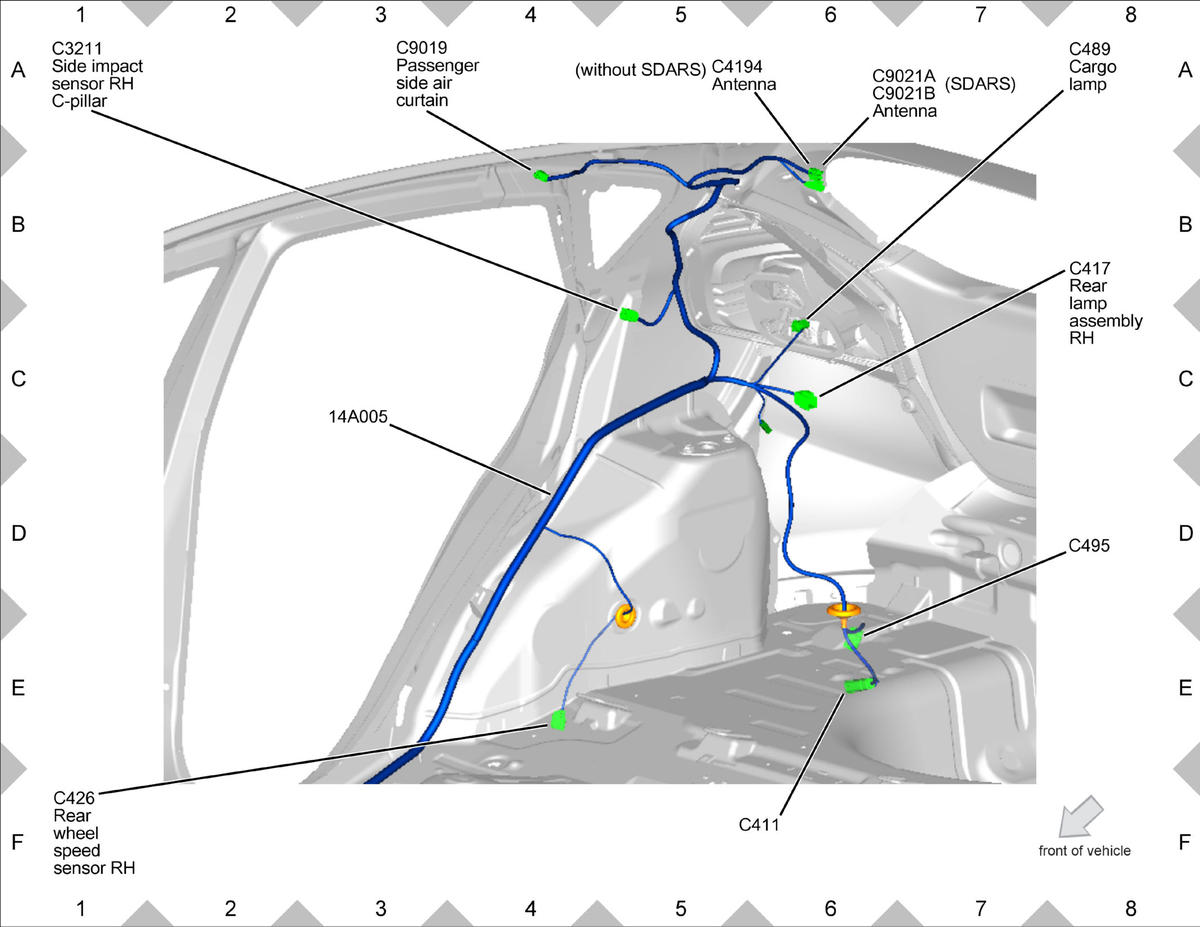

GFDWR17245Courtesy of FORD MOTOR COMPANY

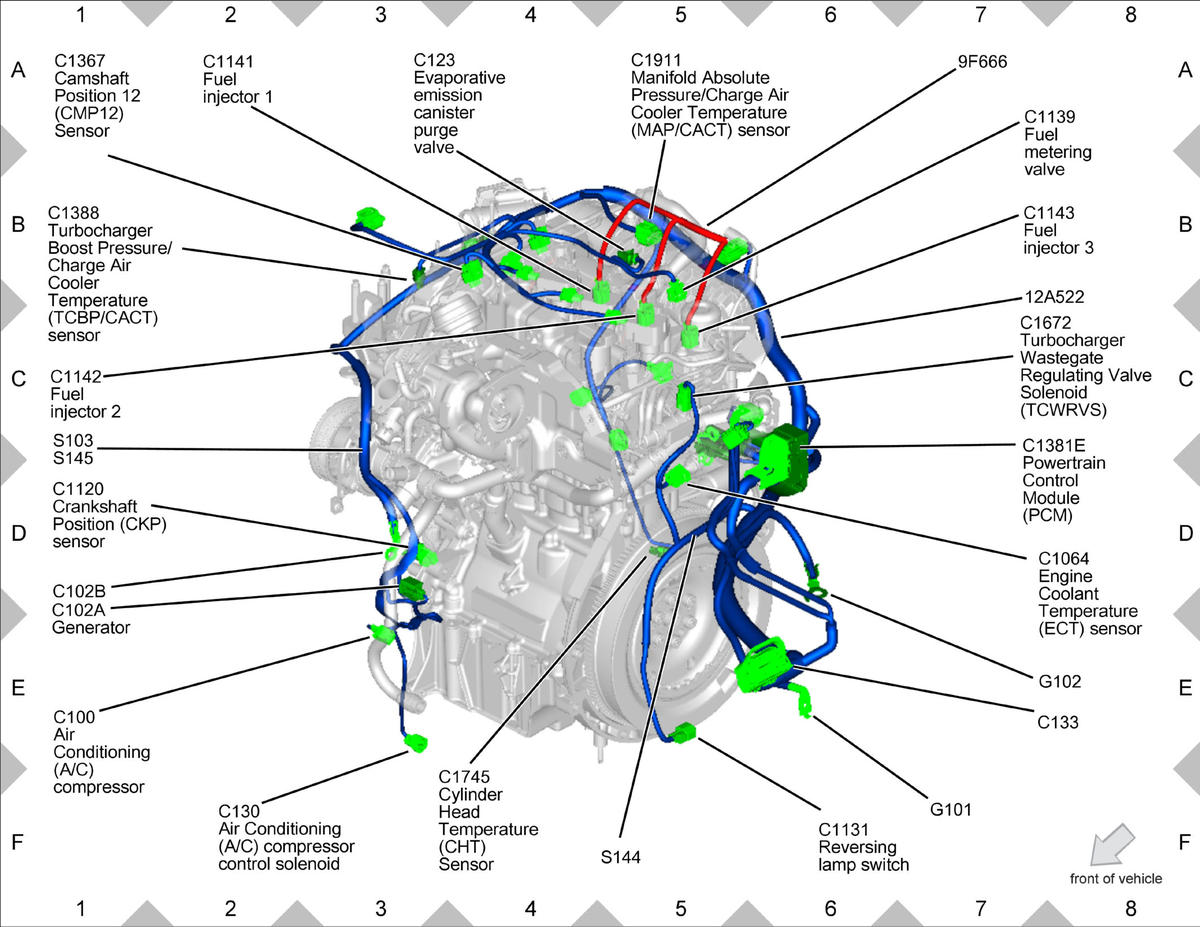

GFDWR17246Courtesy of FORD MOTOR COMPANY

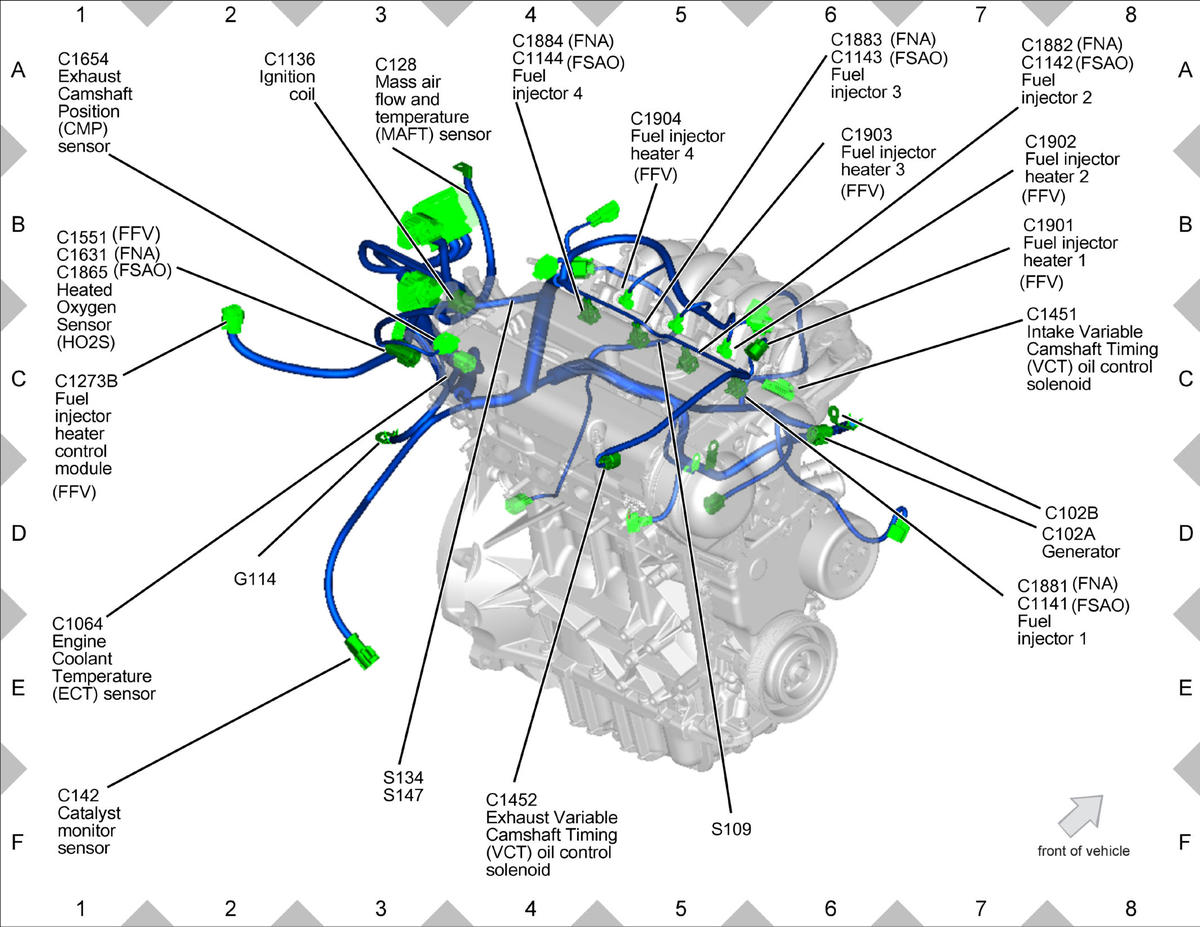

GFDWR17247Courtesy of FORD MOTOR COMPANY
