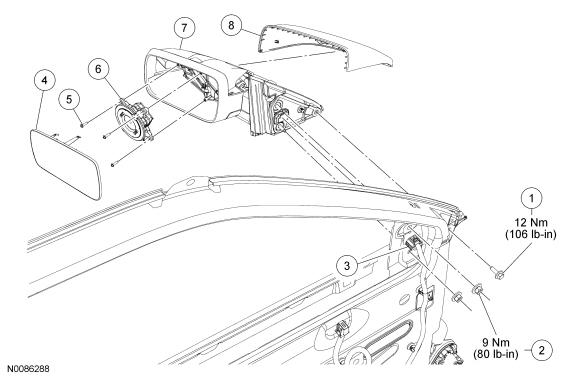

Exterior Mirrors - Exploded View
NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705968 | Exterior mirror bolt |
| 2 | N621906 | Exterior mirror nut (2 required) |
| 3 | 14630 RH/ 14631 LH RH/ 14631 LH | Exterior mirror electrical connector |
| 4 | 17K707 | Exterior mirror glass |
| 5 | -- | Exterior mirror motor screw (part of 17D696) (3 required) |
| 6 | 17D696 | Exterior mirror motor |
| 7 | 17682 RH/ 17683 LH RH/ 17683 LH | Exterior mirror |
| 8 | 17D742 RH/ 17D743 LH RH/ 17D743 LH | Exterior mirror cover |
- For additional information, refer to the procedures in this information.
