Cylinder Head Temperature (CHT) Sensor - 3. 5L GTDI

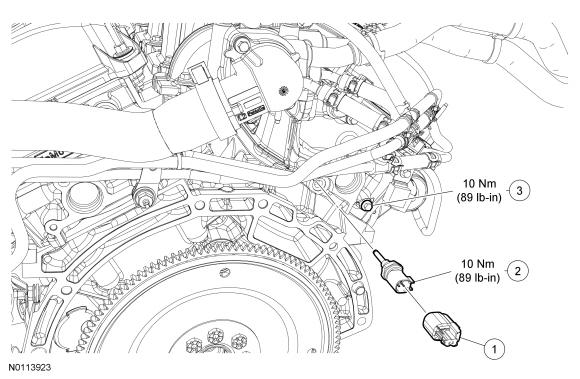

Fig 1: Cylinder Head Temperature (CHT) Sensor Bolt Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	14A464	Cylinder Head Temperature(CHT) sensor electrical connector
2	6G004	CHT sensor
3	W503274	Ground wire-to-engine front cover bolt

1. Remove the Air Cleaner(ACL) outlet pipe and the ACL. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
2. Position the ACL -to-RH turbocharger intake tube aside. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
3. Remove the ground wire-to-engine front cover bolt.
4. Disconnect the Cylinder Head Temperature(CHT) sensor electrical connector.
5. Remove and discard the CHT sensor.
   • To install, tighten to 10 Nm (89 lb-in).

6. To install, reverse the removal procedure.
   • Do not reuse the CHT sensor. Install a new sensor.
