System Operation

3.5L Ti-VCT

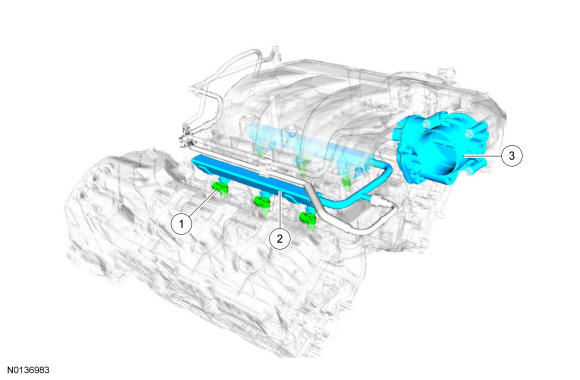

GFD320834Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 Fuel injector -
2 Fuel rail -
3 TB -

FPCM

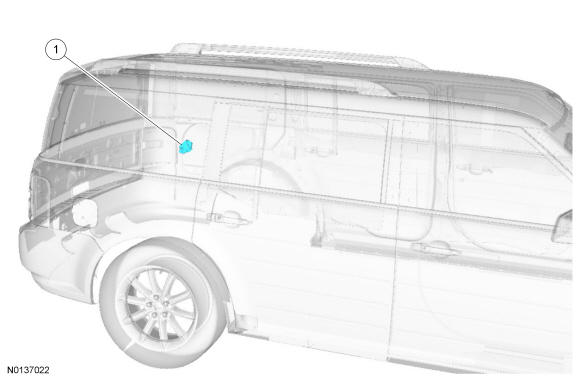

GFD320835Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 FPCM -
