Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the clockspring. Refer to: Driver Airbag .

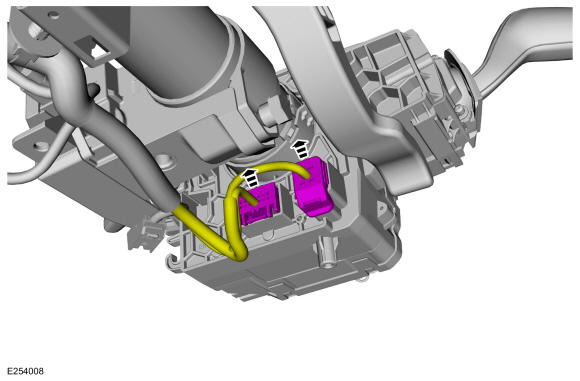

Disconnect the SCCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

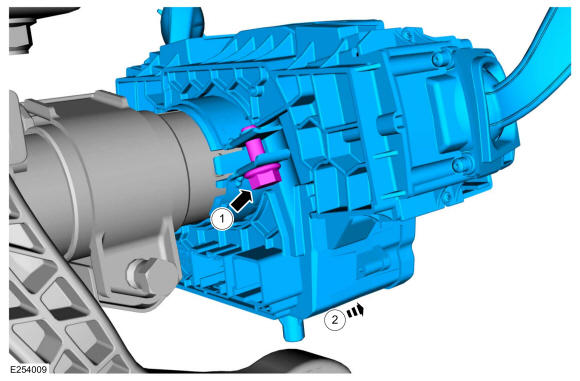

1. Remove the SCCM retainer.
  Torque

  62 lb.in (7 Nm)
2. Remove the SCCM.

Courtesy of FORD MOTOR COMPANY
