Steering Column Lock Module: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering column shrouds. Refer to: Steering Column Shrouds .

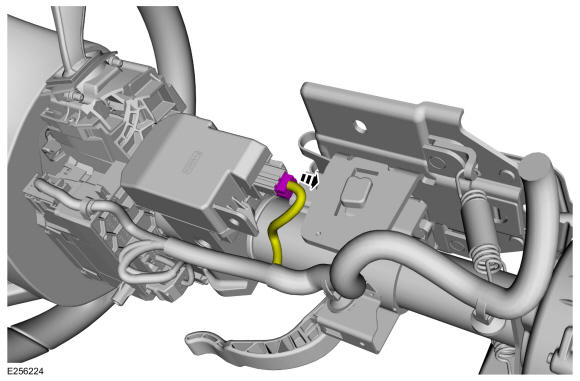

Disconnect the steering column lock module electrical connector.

Courtesy of FORD MOTOR COMPANY

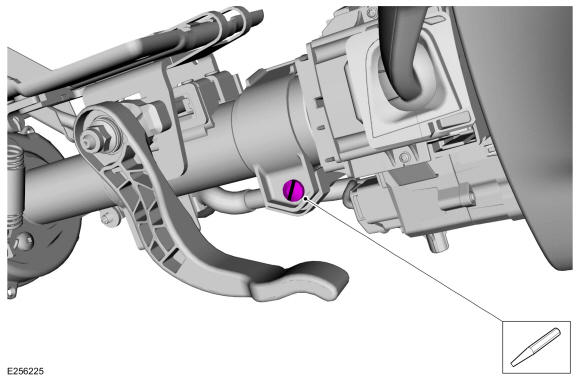

Use a chisel and hammer to cut a slot in the steering column lock module bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: The steering column lock and ignition switch housing is secured with a break-away head bolt. Tighten the bolt until the hex head portion of the bolt breaks away.

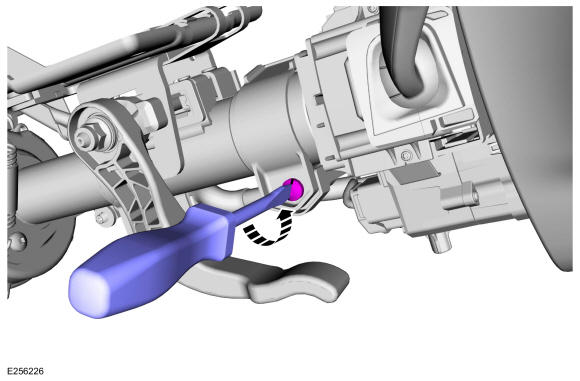

Remove the steering column lock module bolt. Use the General Equipment: Flat-Bladed Screwdriver

Torque

18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the component before removal.

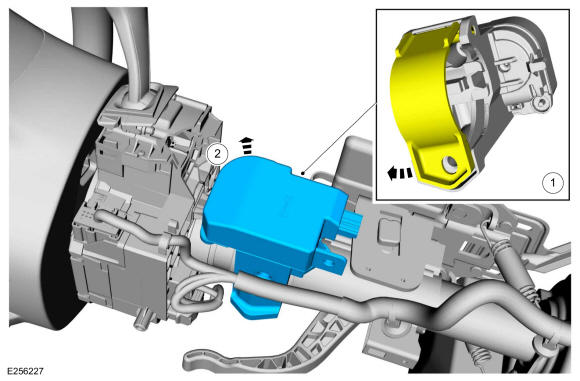

1. Position the steering column lock module mounting strap up out of the way.
2. Remove the steering column lock module.

Courtesy of FORD MOTOR COMPANY
