OEM Ground Distribution: Grounds

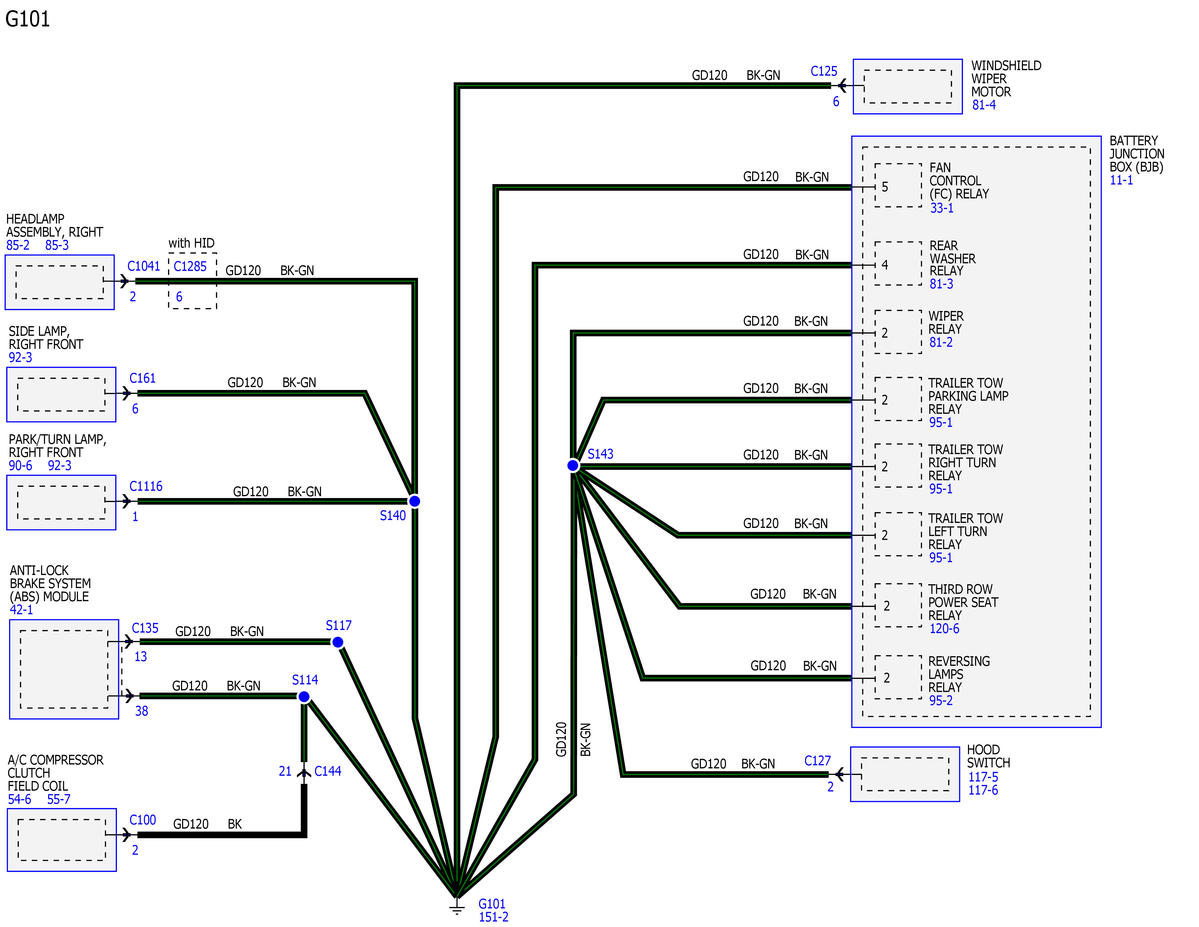

GFDWR25596Courtesy of FORD MOTOR COMPANY

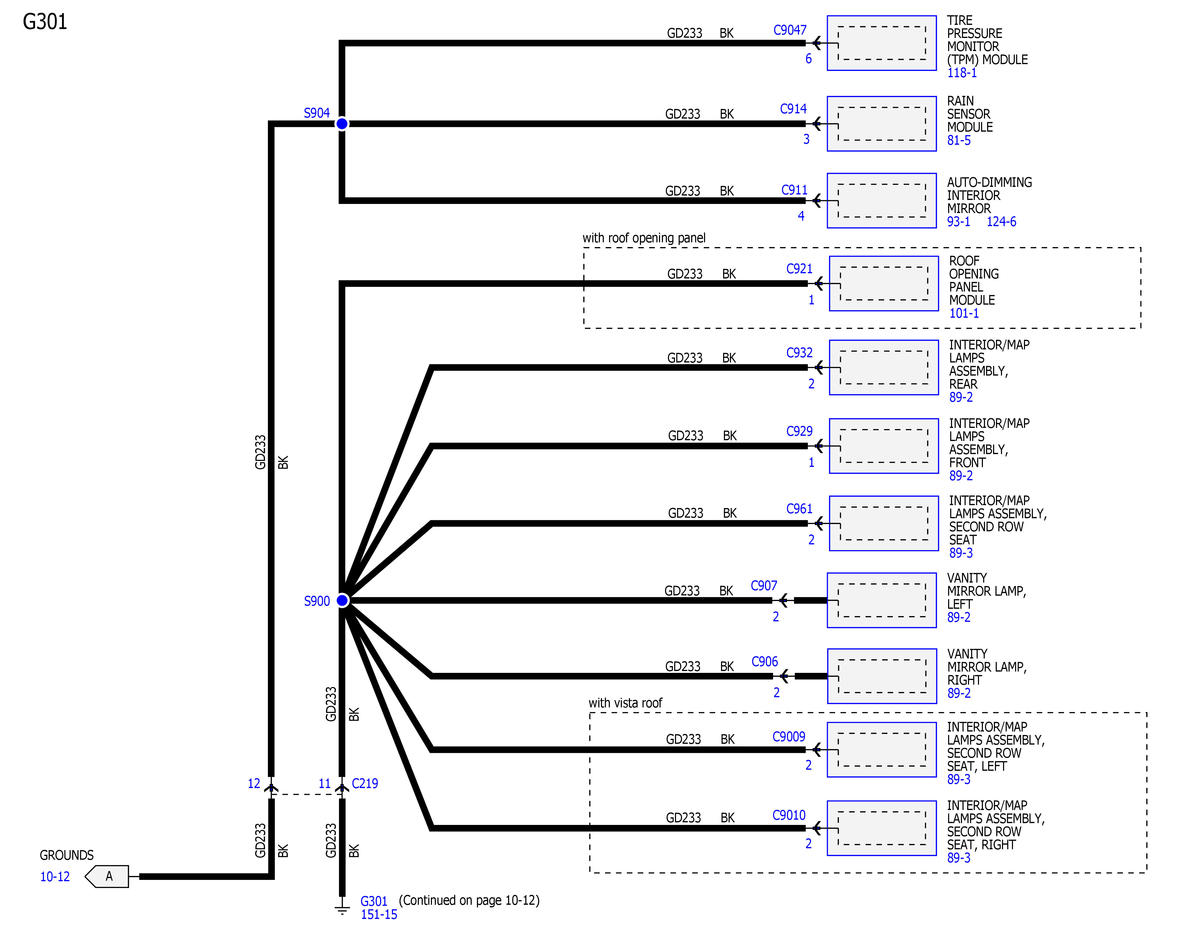

GFDWR25597Courtesy of FORD MOTOR COMPANY

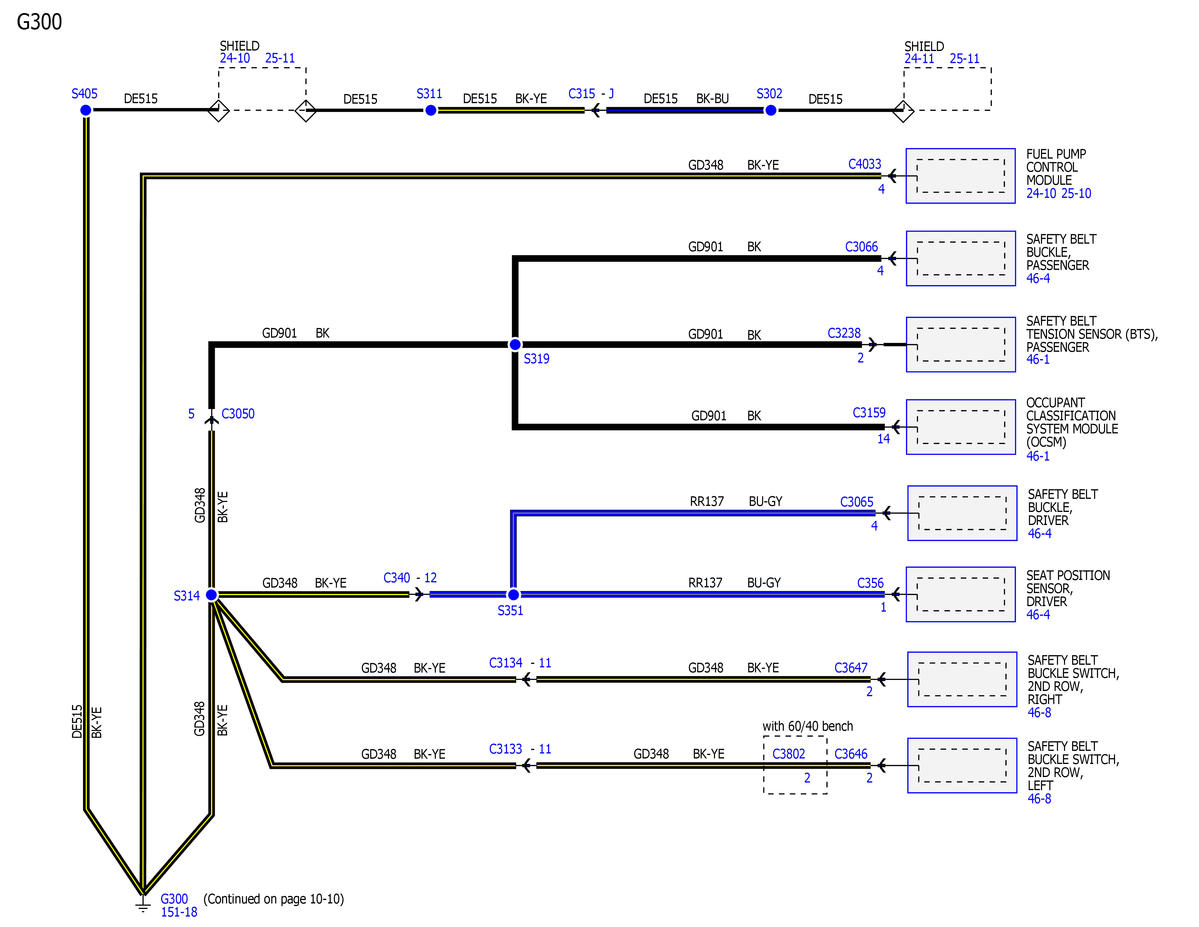

GFDWR25598Courtesy of FORD MOTOR COMPANY

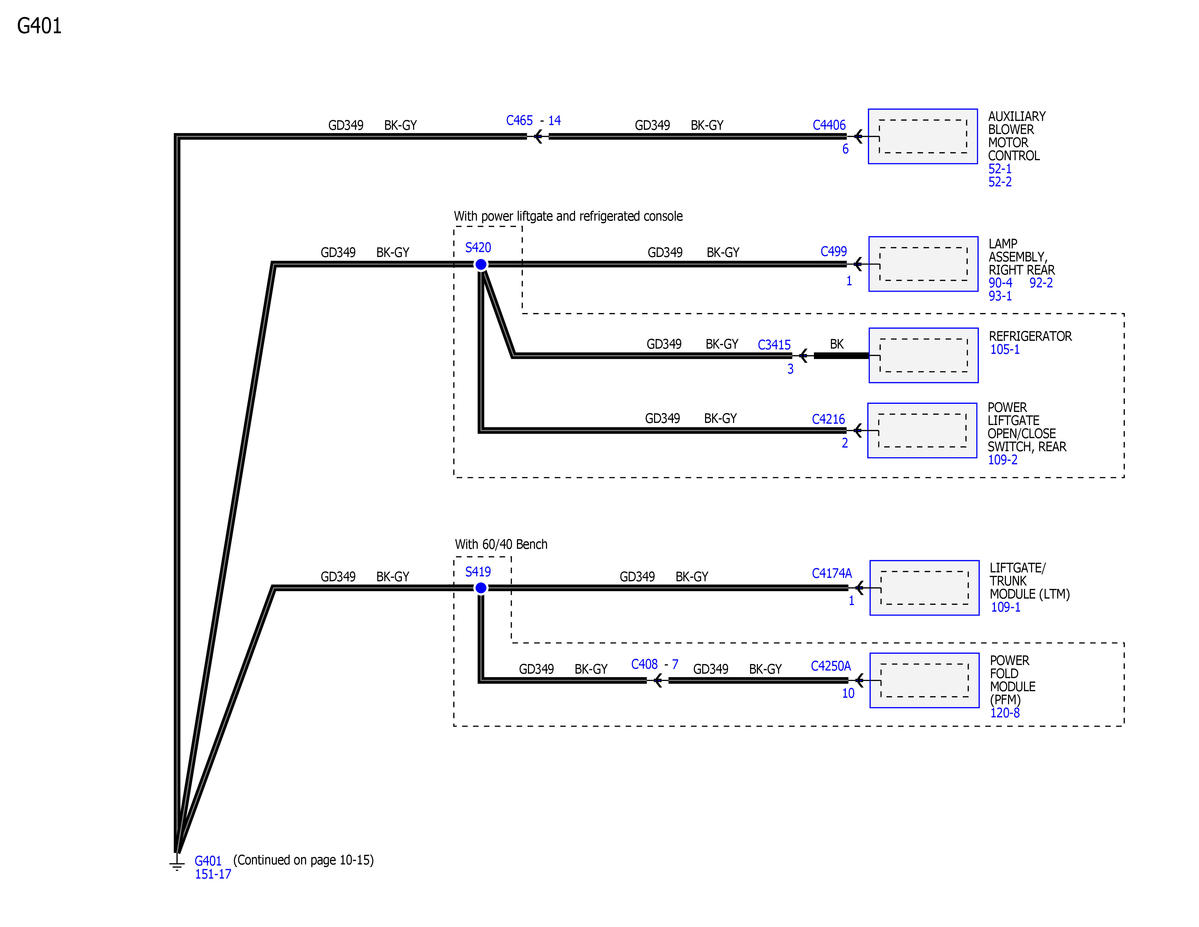

GFDWR25599Courtesy of FORD MOTOR COMPANY

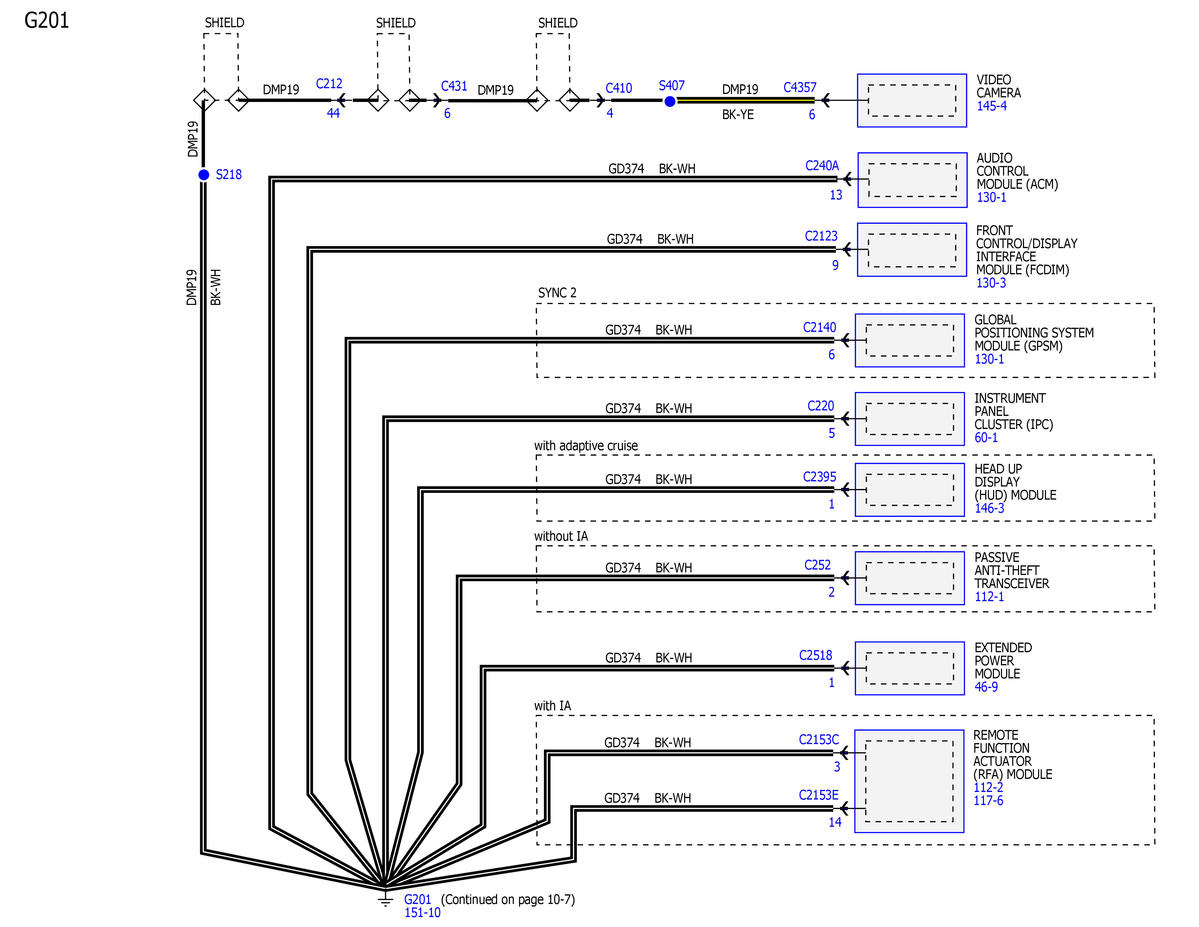

GFDWR25600Courtesy of FORD MOTOR COMPANY

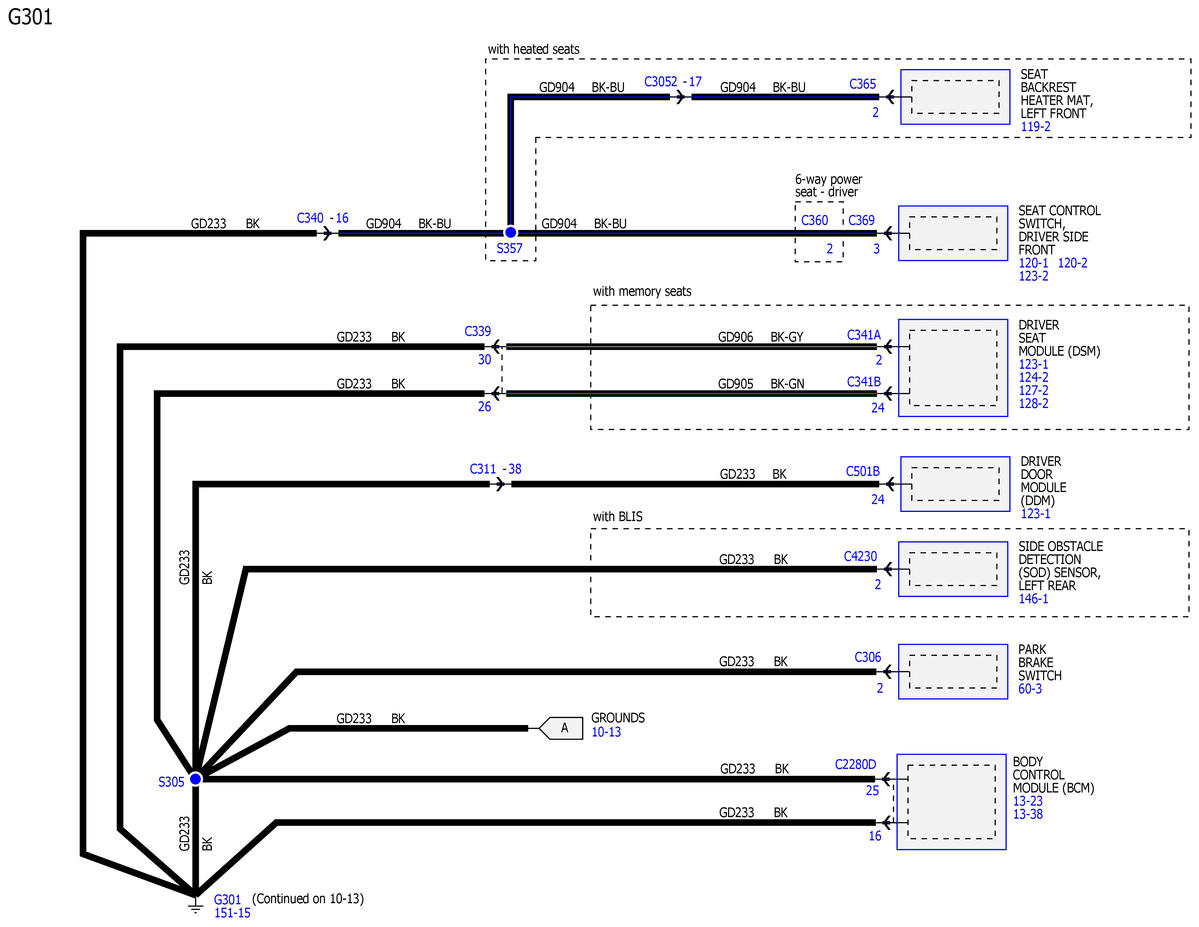

GFDWR25601Courtesy of FORD MOTOR COMPANY

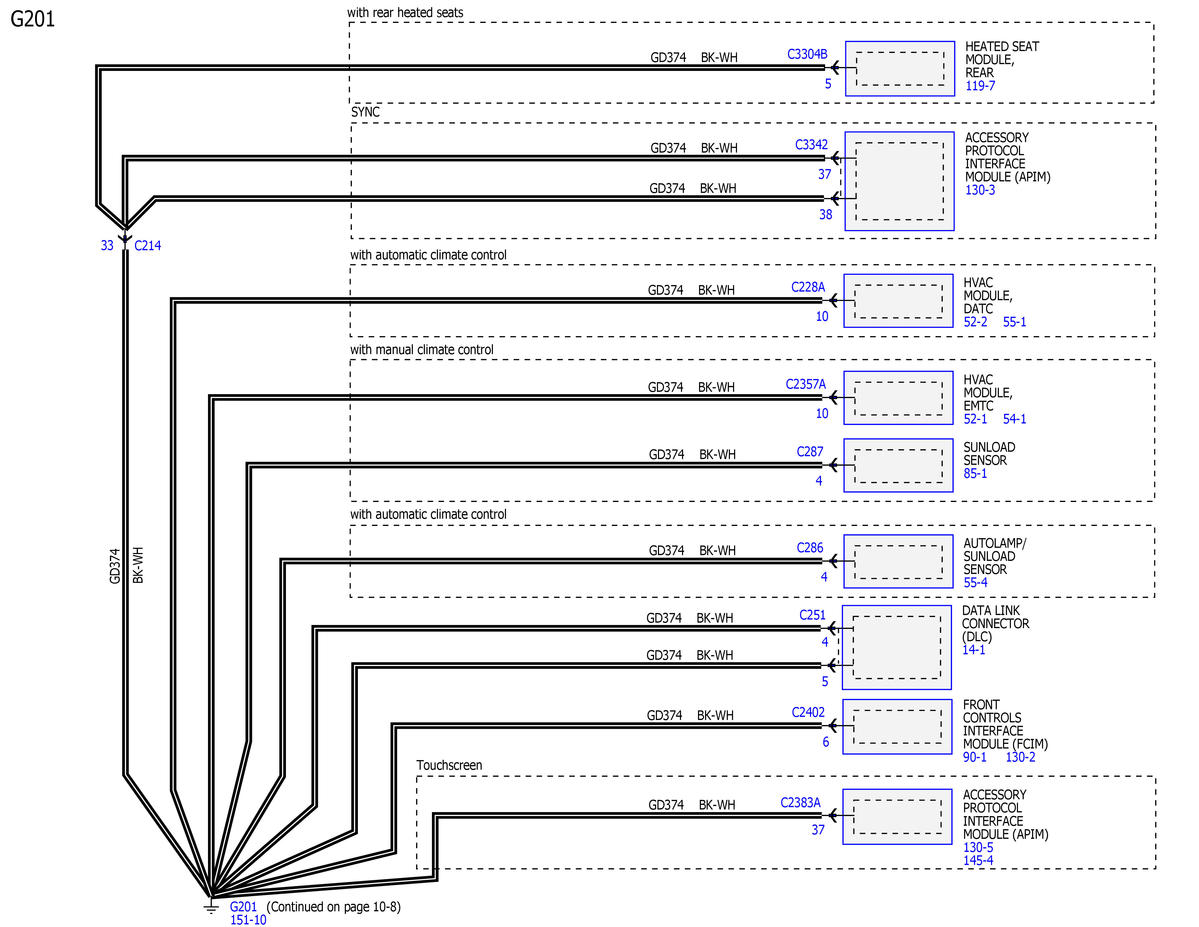

GFDWR25602Courtesy of FORD MOTOR COMPANY

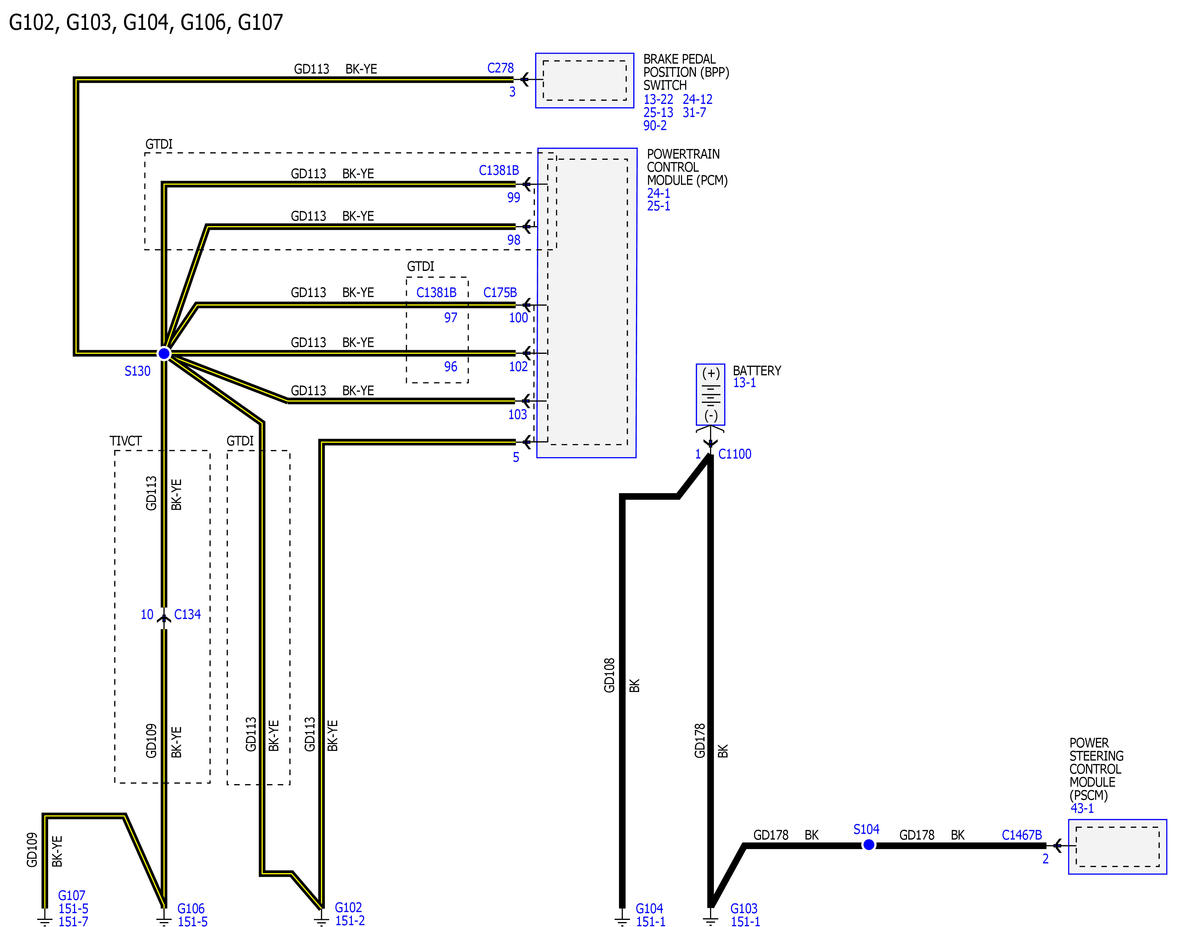

GFDWR25603Courtesy of FORD MOTOR COMPANY

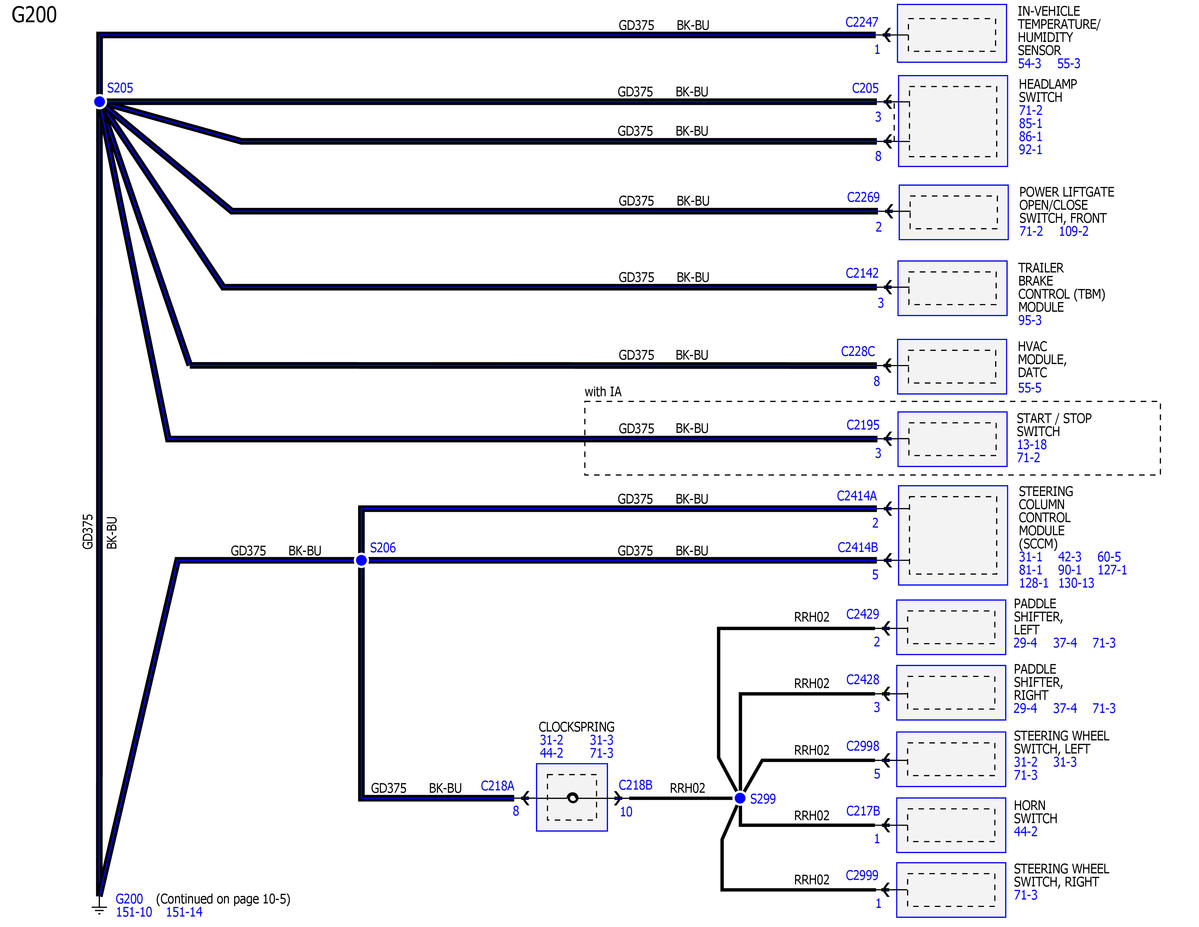

GFDWR25604Courtesy of FORD MOTOR COMPANY

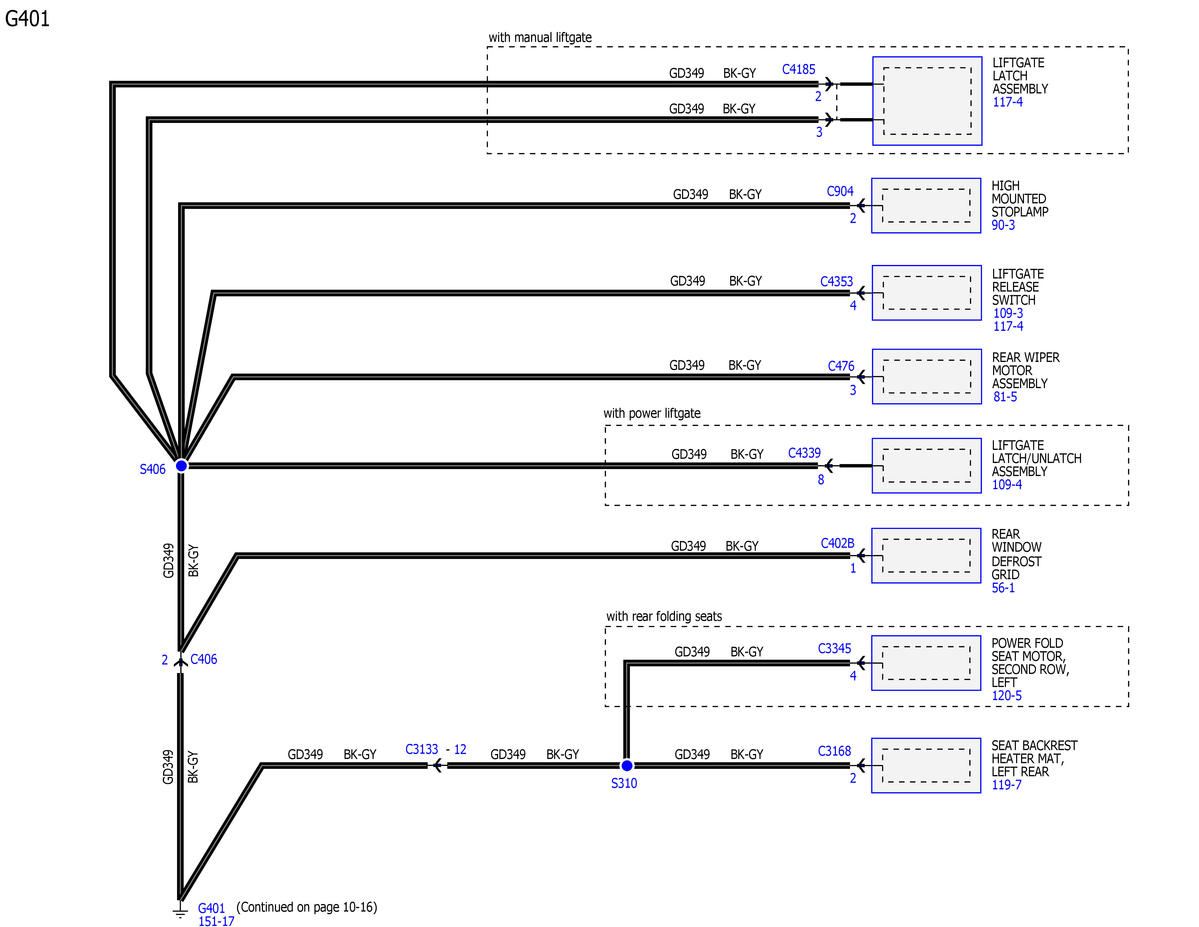

GFDWR25605Courtesy of FORD MOTOR COMPANY

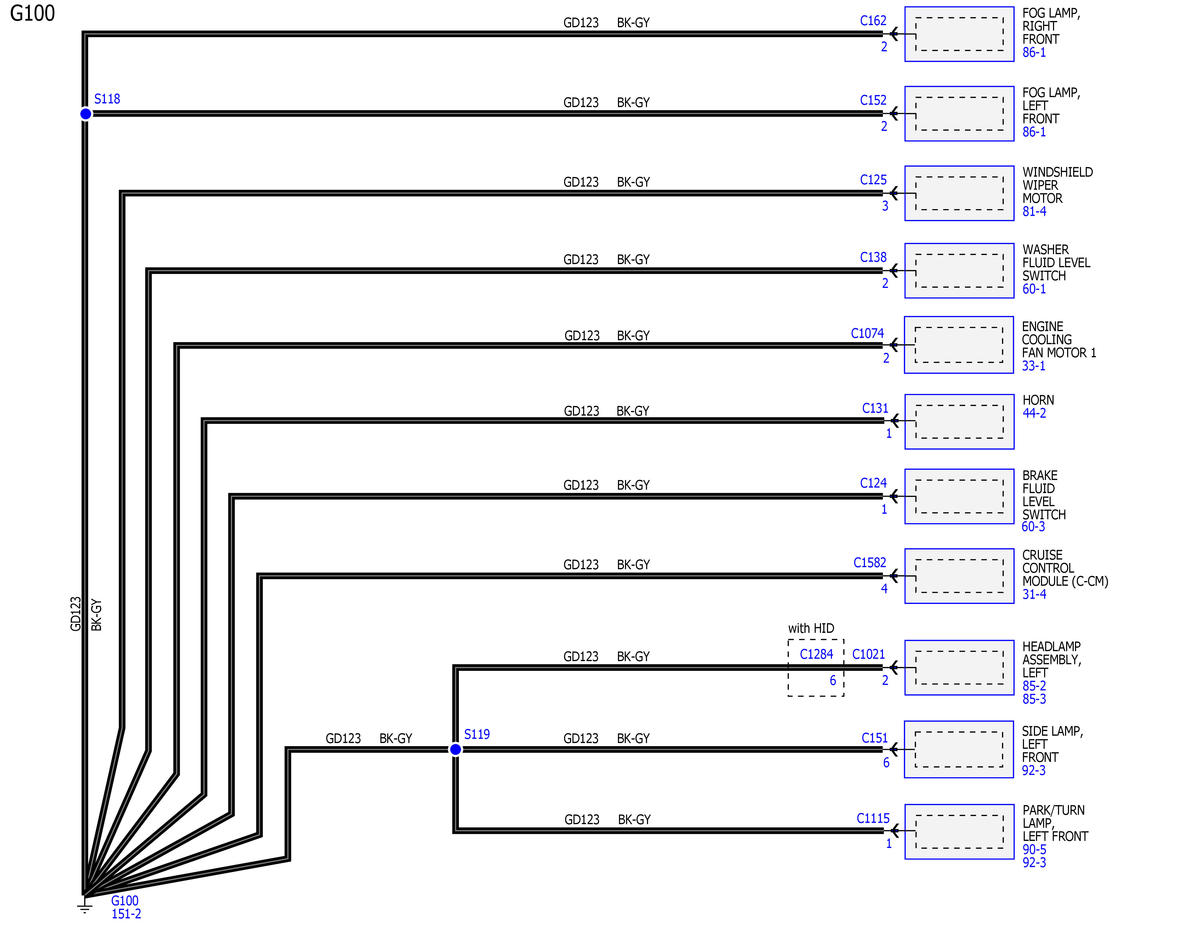

GFDWR25606Courtesy of FORD MOTOR COMPANY

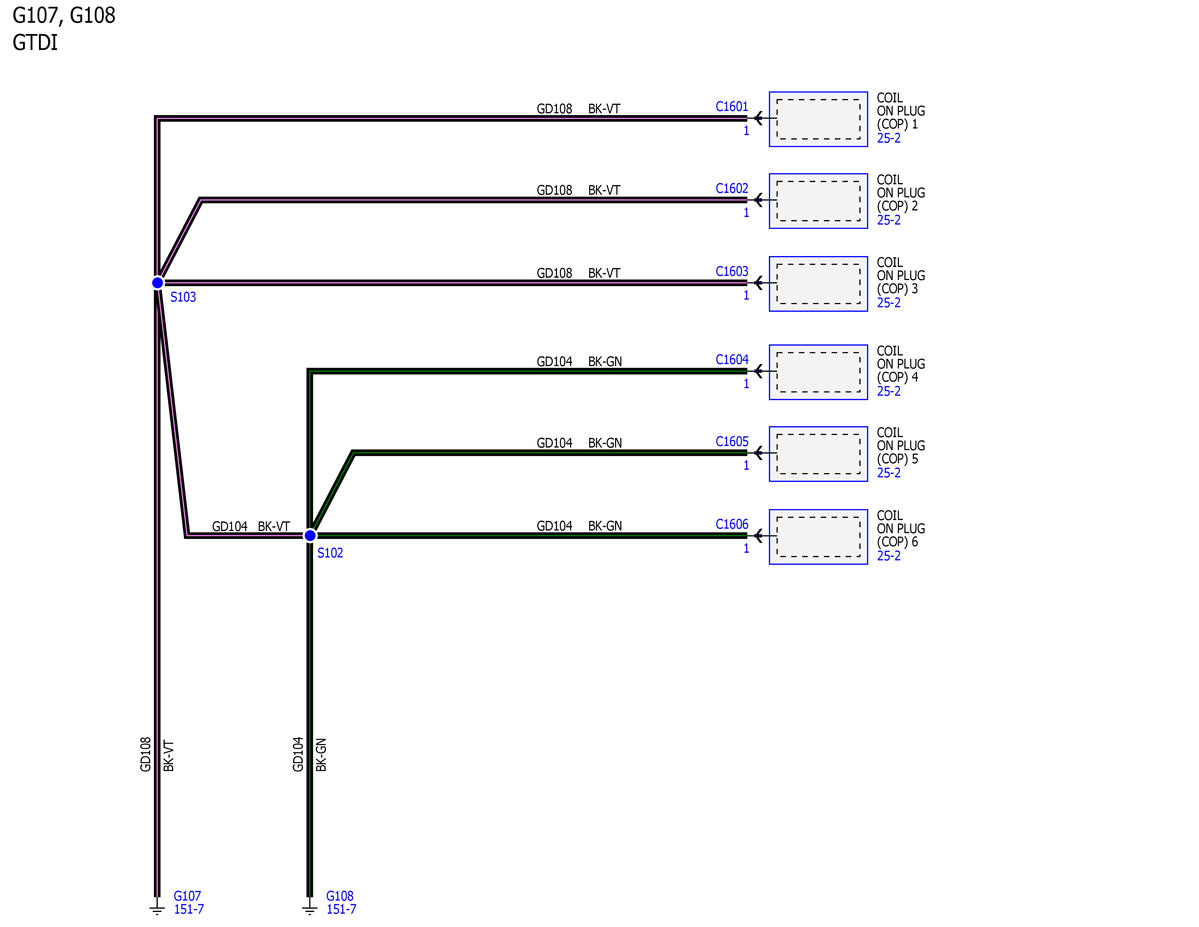

GFDWR25607Courtesy of FORD MOTOR COMPANY

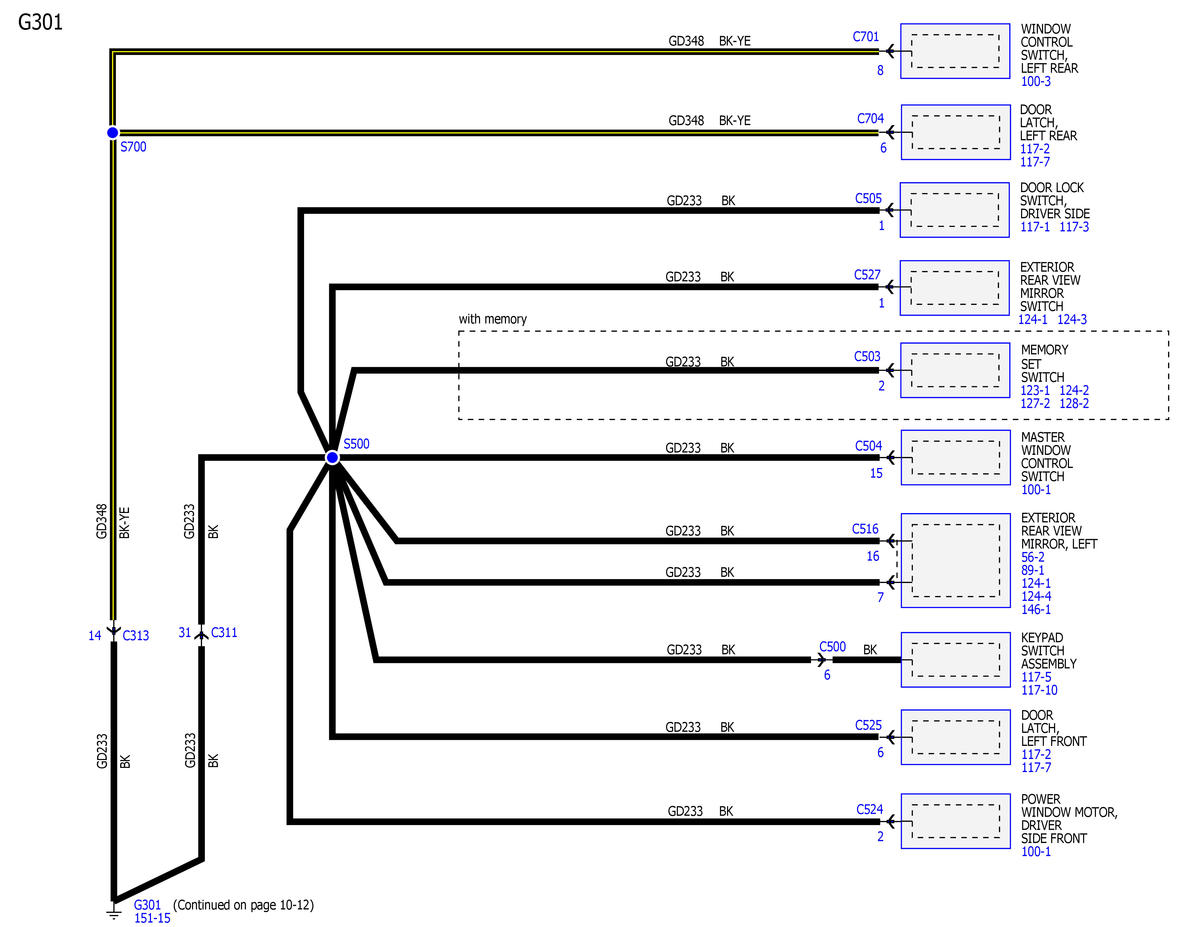

GFDWR25608Courtesy of FORD MOTOR COMPANY

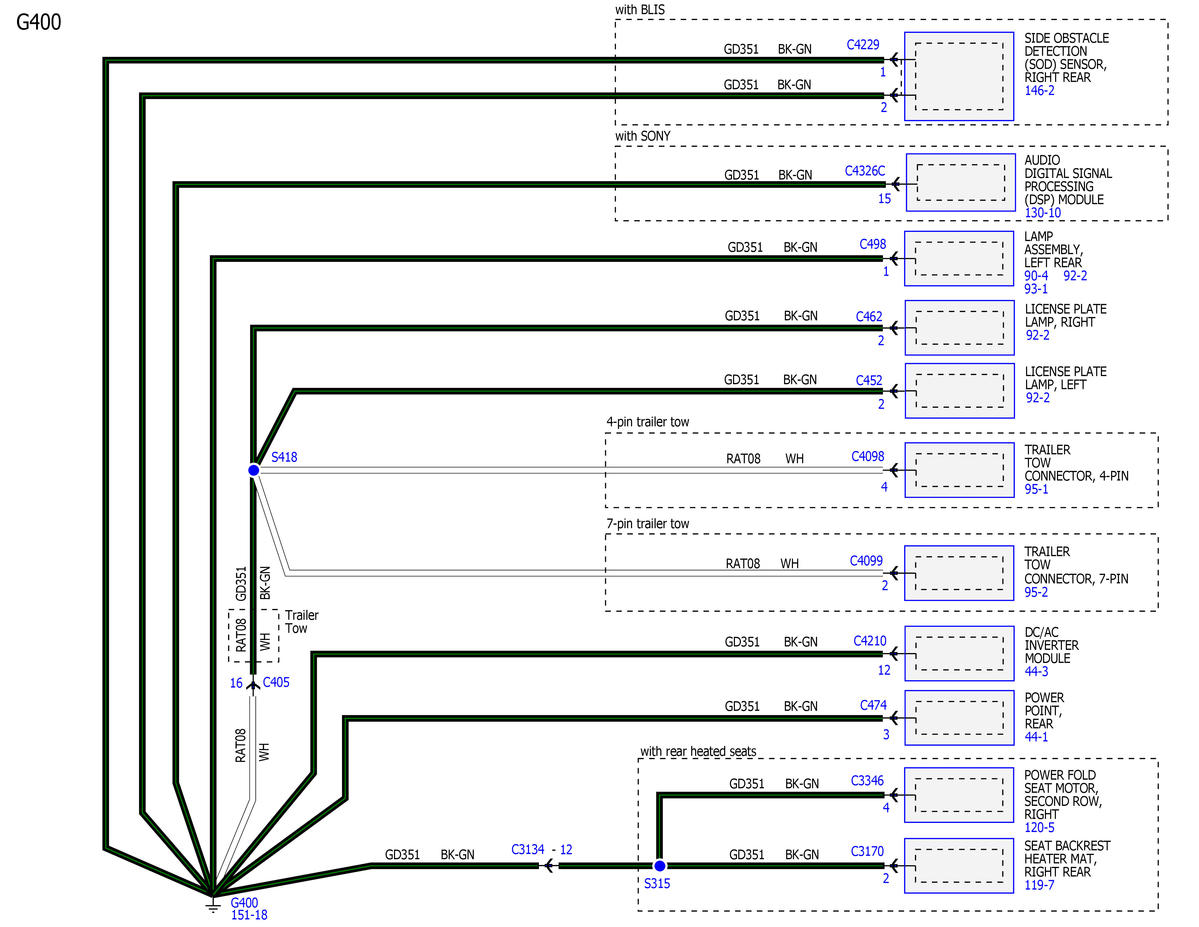

GFDWR25609Courtesy of FORD MOTOR COMPANY

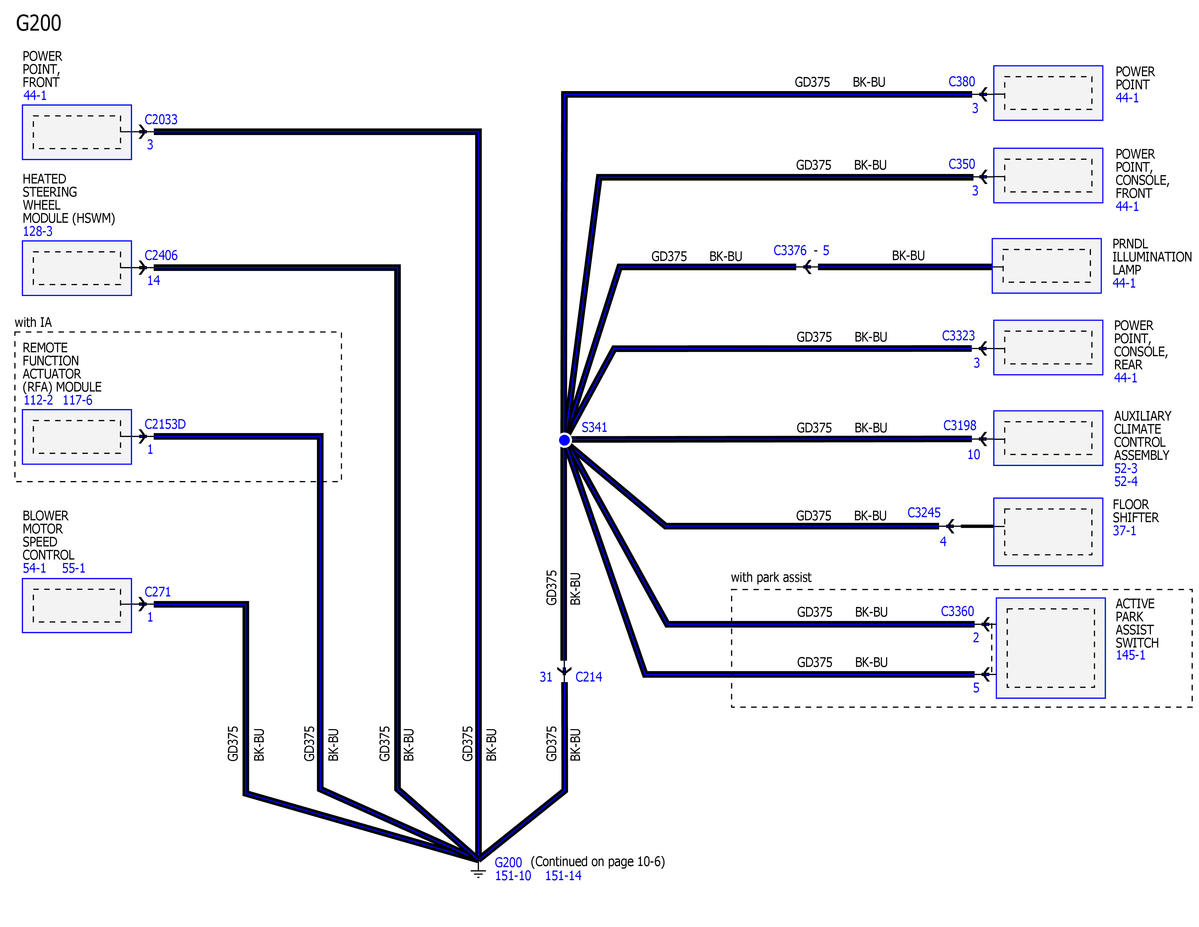

GFDWR25610Courtesy of FORD MOTOR COMPANY

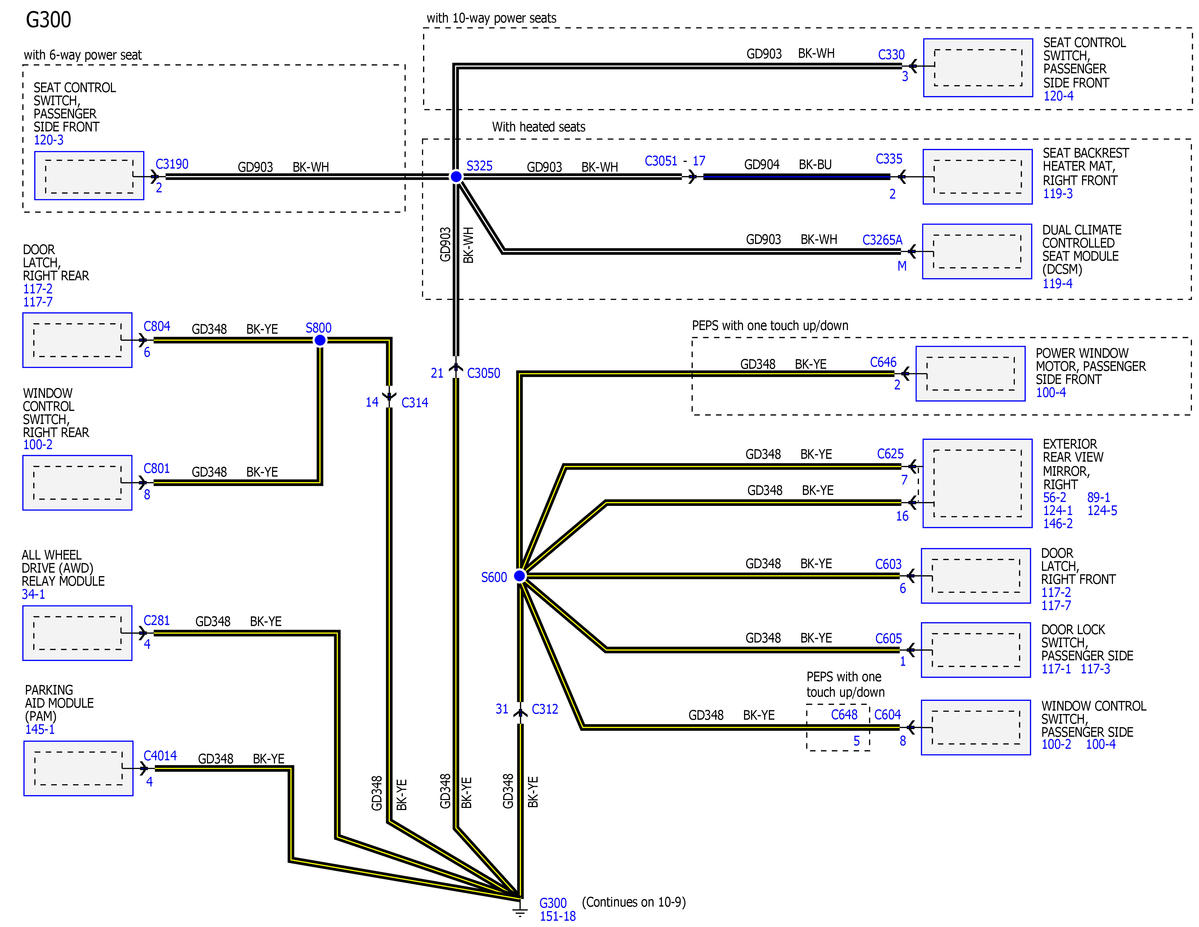

GFDWR25611Courtesy of FORD MOTOR COMPANY
