Power Transfer Unit Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Activation

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

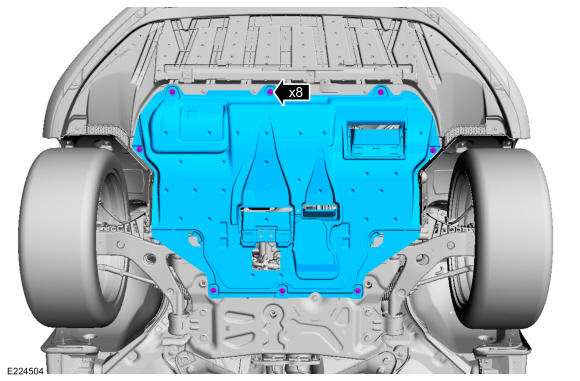

2. Remove the underbody shield.

   Courtesy of FORD MOTOR COMPANY

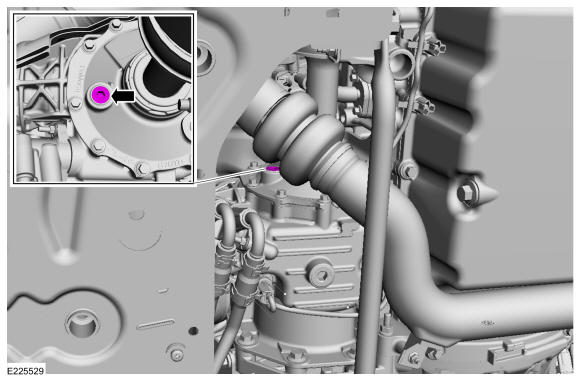

3. Remove the PTU (Power Transfer Unit) fill plug.

   Courtesy of FORD MOTOR COMPANY

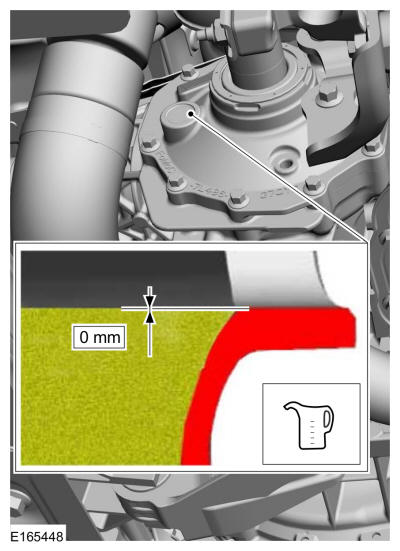

4. Fill the PTU with clean fluid, level with the fill plug opening.

   Material

   : Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

   Courtesy of FORD MOTOR COMPANY

5. Install the PTU fill plug.

   Torque

   : 33 lb.ft (45 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
