Front Strut and Spring Assembly: Installation
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
NOTE: Always install a new clip on the new strut due to different design.

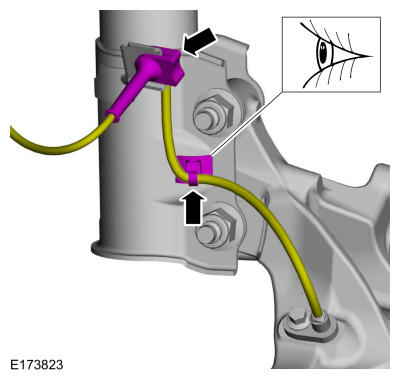

Install the clip and connect the wheel speed sensor harness.
- Check and if necessary align the front end. Refer to: Front Toe Adjustment .
