Front Door Alignment

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

Check the body to the front door dimensions. Refer to: Body and Frame .

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

All alignments

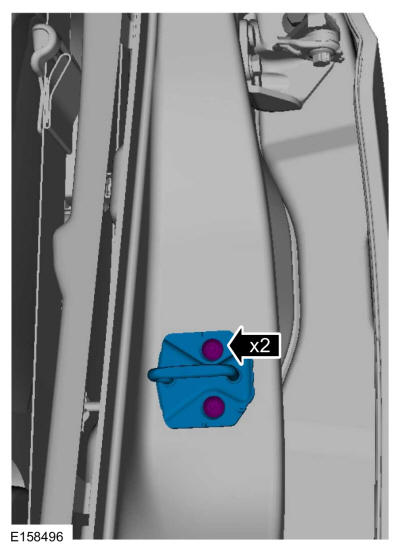

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

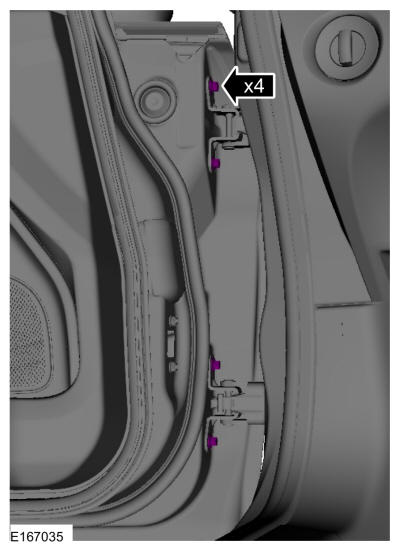

Loosen the bolts to permit movement of the door. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

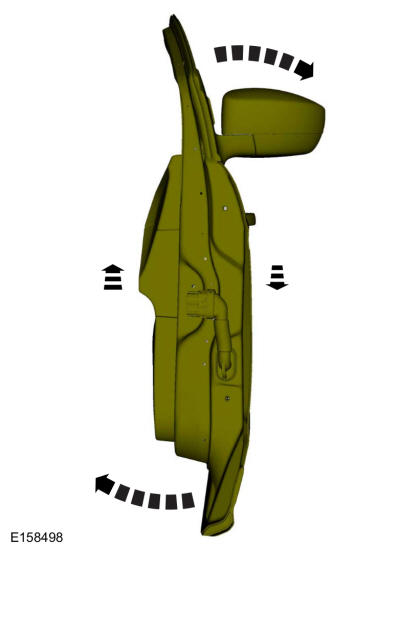

Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

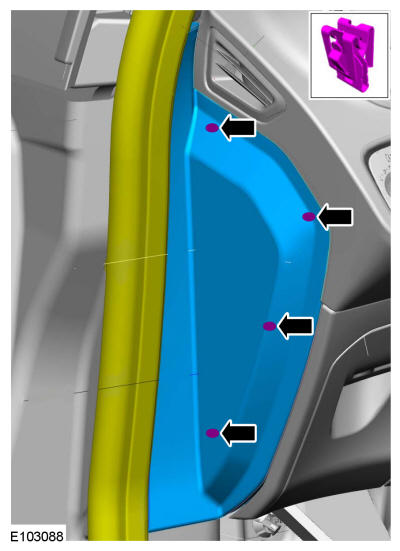

Position the front door weatherstrip aside, release the clips and remove the instrument finish panel.

Courtesy of FORD MOTOR COMPANY

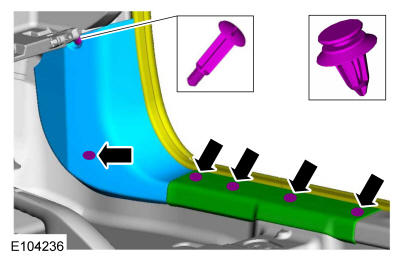

On passenger side: Position the front door weatherstrip aside, remove the push-pins, the scuff plate and the lower cowl trim panel.

Courtesy of FORD MOTOR COMPANY

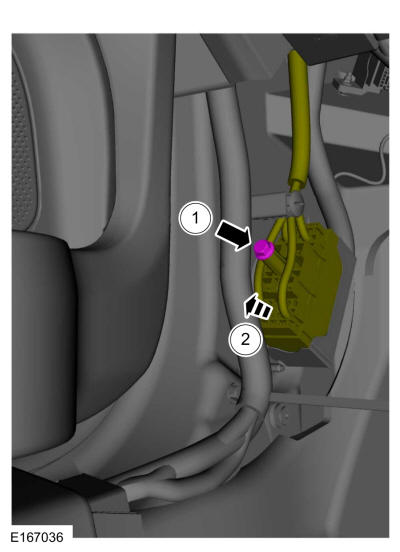

On driver side:
1. Remove the bolt.
2. Disconnect and position the electrical connector aside.
Courtesy of FORD MOTOR COMPANY
Remove the driver knee airbag. Refer to: Driver Knee Airbag .

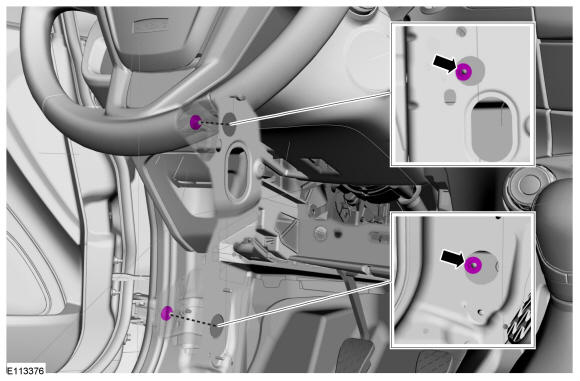

On driver side: Loosen the nuts. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

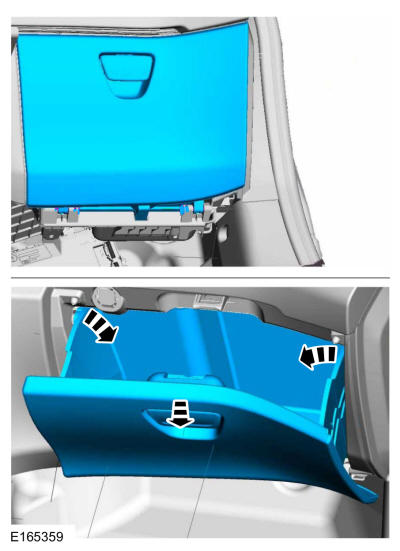

On passenger side: Release the retaining tabs and remove the glove compartment.

Courtesy of FORD MOTOR COMPANY

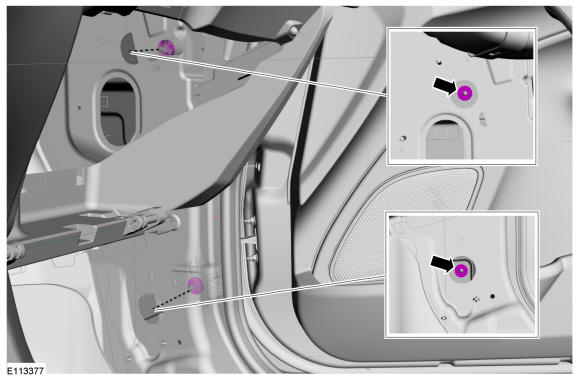

On passenger side: Loosen the nuts. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

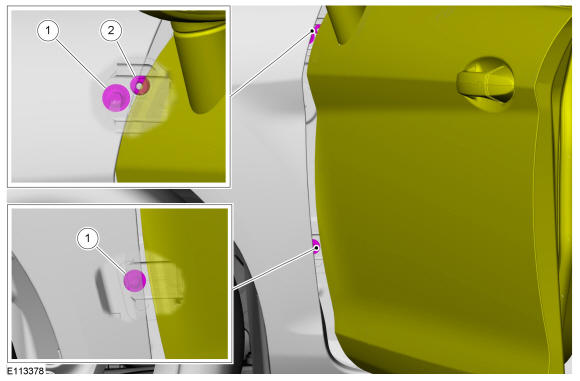

1. Loosen the bolts. Loosen: 2 turn(s)
2. If equipped. Loosen the nut. Loosen: 2 turn(s)
Courtesy of FORD MOTOR COMPANY

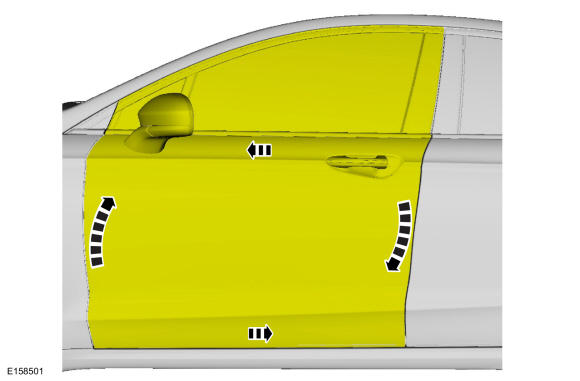

Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
1. Tighten the bolts.
  Torque: 18 lb.ft (25 Nm)
2. If equipped. Tighten the nut.
  Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
On driver side: Tighten the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
On passenger side: Tighten the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments

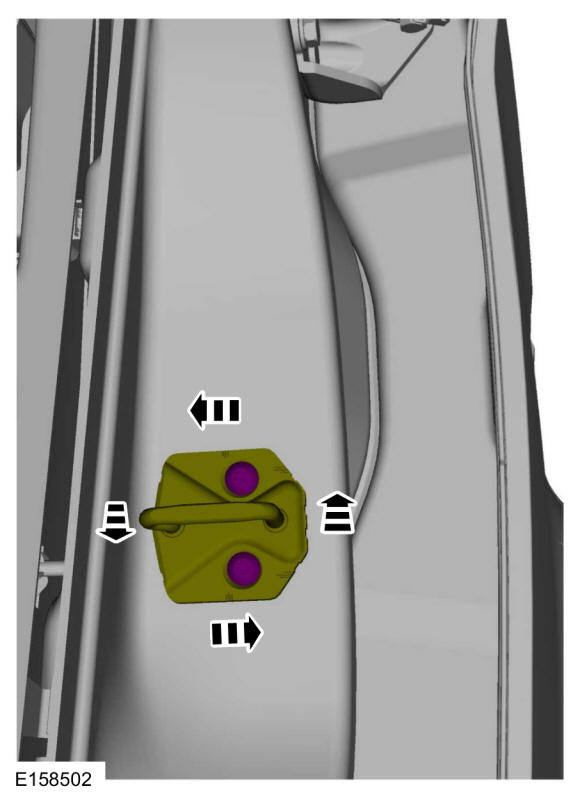

Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Check the body to the front door dimensions. Refer to: Body and Frame .
Install the removed components.
