Hood Alignment
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
- Check the body to the hood dimensions. Refer to: Body and Frame .
Adjustment
Right/Left and Fore/Aft

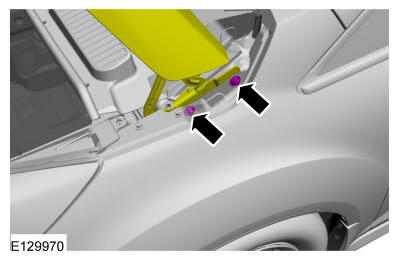

- Loosen the nuts to permit movement of the hood. Loosen: 2 turn(s)

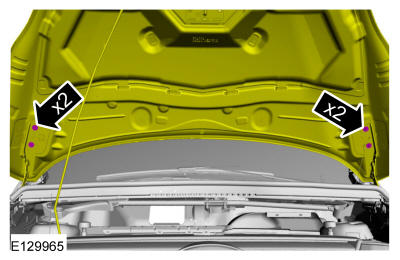

- Loosen the bolts. Loosen: 2 turn(s)

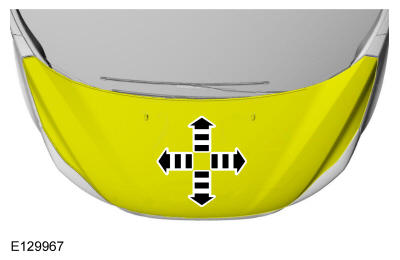

- Adjust the hood to specification. Refer to: Body and Frame
.
- Tighten the nuts.
Torque: 106 lb.in (12 Nm)

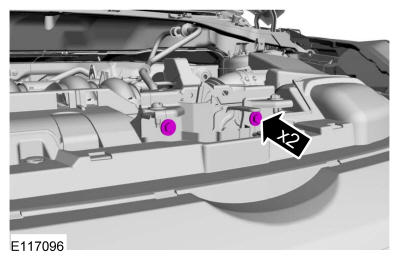

- Tighten the bolts.
Torque: 80 lb.in (9 Nm)
- Check the body to the hood dimensions. Refer to: Body and Frame
.
Up/Down
- Check the body to the hood dimensions. Refer to: Body and Frame .
- On both sides. Loosen the bolts to permit movement of the hood. Loosen: 2 turn(s)
- Loosen the bolts. Loosen: 2 turn(s)
- Adjust the hood to specification. Refer to: Body and Frame
.
- On both sides. Tighten the bolts.
Torque: 18 lb.ft (25 Nm)
- Tighten the bolts.
Torque: 80 lb.in (9 Nm)
- Check the body to the hood dimensions. Refer to: Body and Frame .
