Liftgate Alignment
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
- Check the liftgate to the body dimensions. Refer to: Body and Frame .
Adjustment

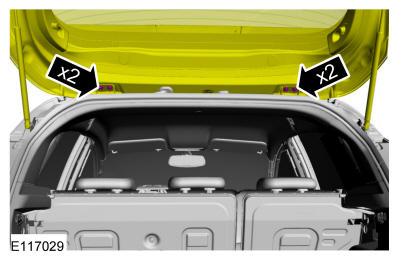

- Loosen the bolts to permit movement of the liftgate. Loosen: 2 turn(s)

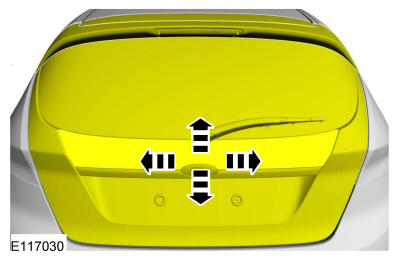

- Adjust the liftgate to specification. Refer to: Body and Frame
.
- Tighten the bolts.
Torque: 97 lb.in (11 Nm)
