LH Engine Sensor Locations

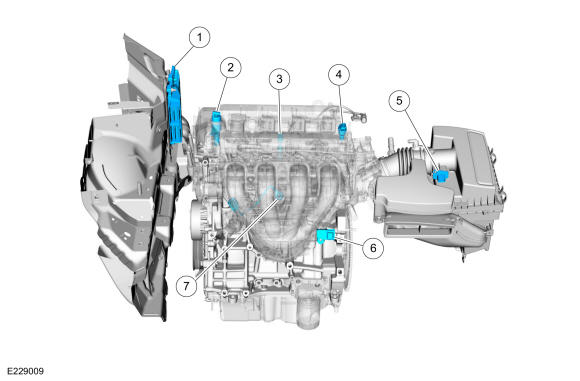

GFD193919Courtesy of FORD MOTOR COMPANY
Item Description
1 PCM
2 VVT oil control solenoid
3 CHT sensor
4 CMP sensor
5 Mass Air Flow (MAF) and Intake Air Temperature (IAT) sensor
6 MAP sensor
7 KS

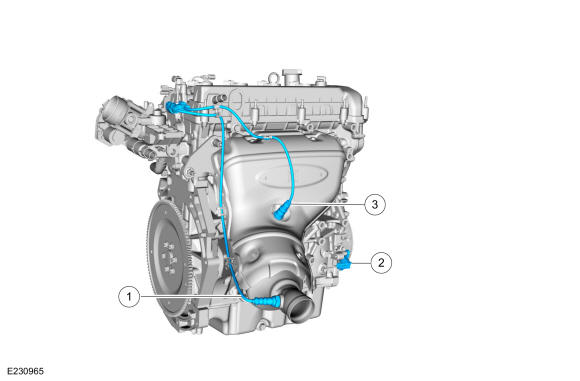

GFD193920Courtesy of FORD MOTOR COMPANY
Item Description
1 Catalyst monitor sensor
2 CKP sensor
3 HO2S sensor
