Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wheel and tire. Refer to: Wheel and Tire .

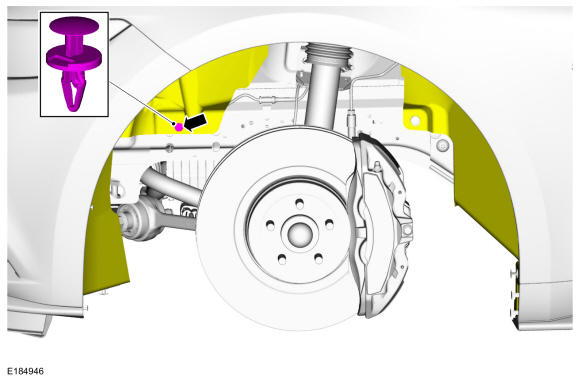

2. Remove the retainer and position aside the fender splash shield.

   Courtesy of FORD MOTOR COMPANY

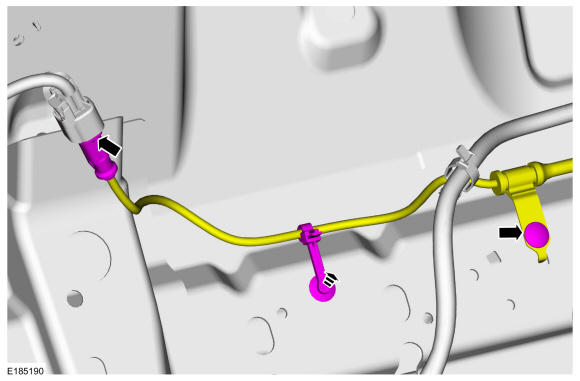

3. Disconnect the front wheel speed sensor electrical connector and detach the 2 harness retainers.

   Courtesy of FORD MOTOR COMPANY

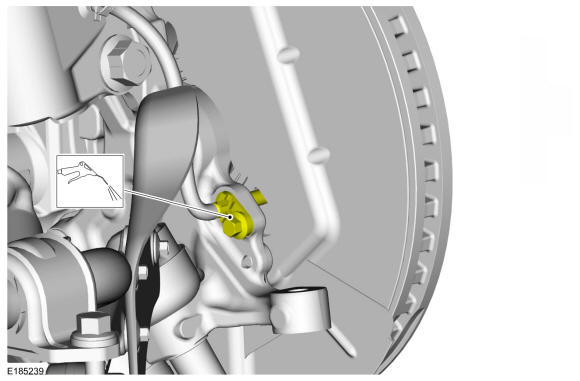

4. Using compressed air, clean the area surrounding the front wheel speed sensor.

   Courtesy of FORD MOTOR COMPANY

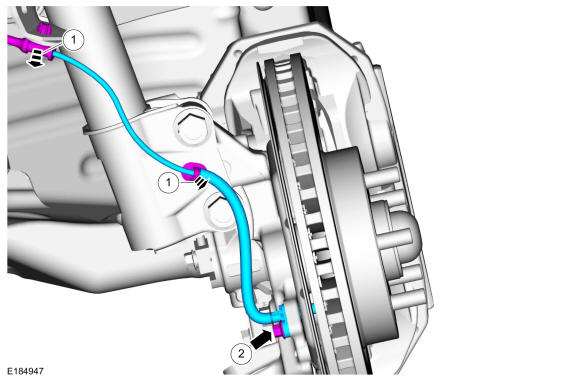

5. 1. Detach the 2 sensor harness retainers.
   2. Remove the bolt and the front wheel speed sensor.

      Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
