Powertrain Control Module (PCM): Installation

    1. Connect the PCM electrical connectors.
    2. Install the PCM and the retainers.

      Torque

      : 62 lb.in (7 Nm)

    GFD287261Courtesy of FORD MOTOR COMPANY

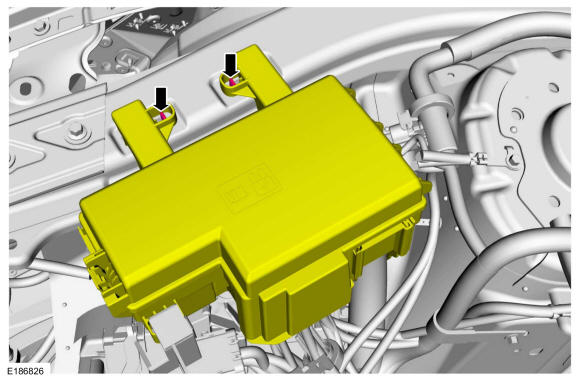

  2. Position back the BJB.
    GFD287262Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only necessary when installing a new component.

    Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .

  4. Carry out the Parameter Reset procedure. Refer to: Anti-Theft Key Programming - Scan Tool .
  5. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
