Powertrain Control Module (PCM): Removal

NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the PMI routine. Refer to: Module Configuration - System Operation and Component Description .

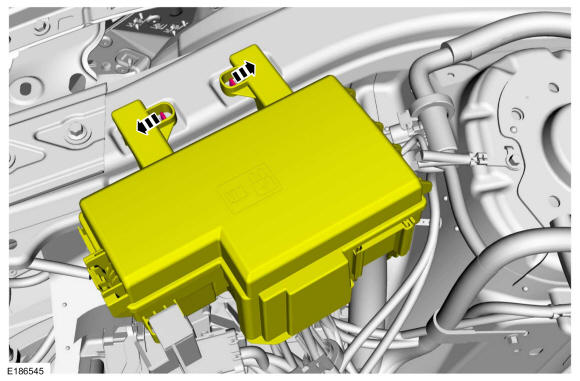

Unclip and position aside the BJB.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the PCM electrical connectors.
2. Remove the retainers and the PCM.

Courtesy of FORD MOTOR COMPANY
