Fuel Pump Driver Module (FPDM): Installation

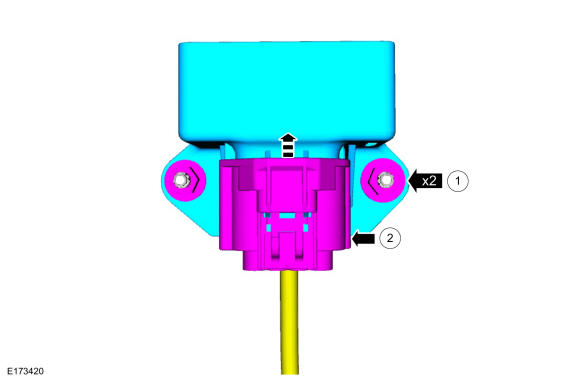

1. Install the FPDM, then install and tighten the FPDM retaining nuts.
  Torque: 44 lb.in (5 Nm)
2. Connect the FPDM electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the rear seat cushion. Refer to: Rear Seat Cushion .
