Fuel Pump Driver Module (FPDM): Removal

NOTE: The FPDM is located beneath the rear seat cushion on the LH side.

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

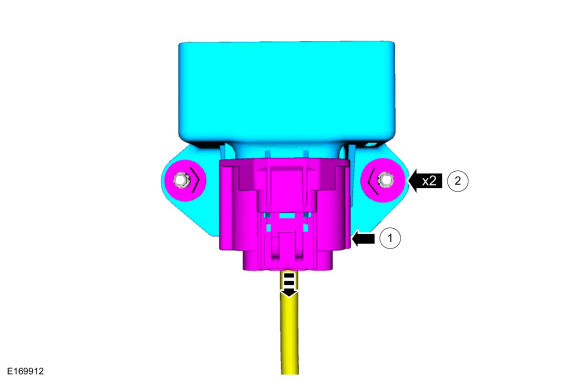

2. 1. Disconnect the FPDM electrical connector.
   2. Remove the FPDM retaining nuts and then remove the FPDM.
