Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the driver air bag. Refer to: Driver Airbag .

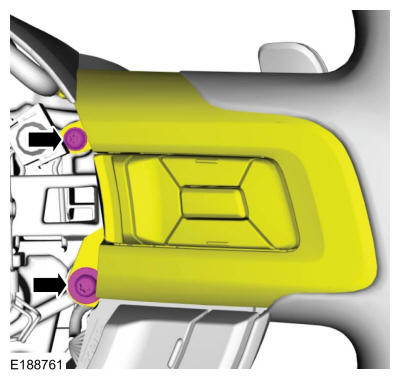

2. Remove the screws and position the RH speed control switch to access the electrical connector.

   Courtesy of FORD MOTOR COMPANY

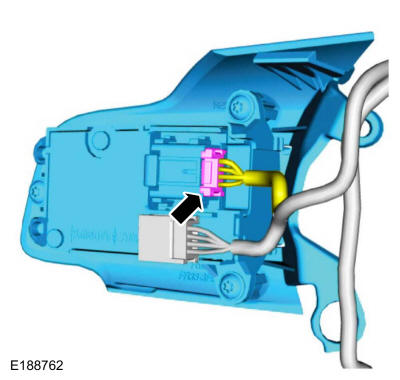

3. Disconnect the RH speed control switch electrical connector and remove the switch.

   Courtesy of FORD MOTOR COMPANY

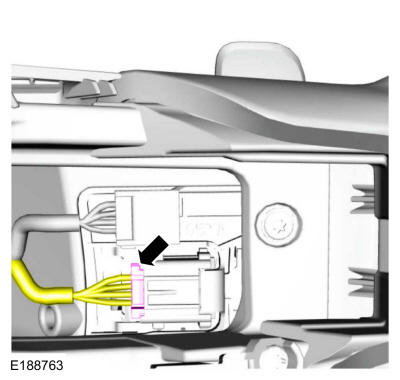

4. Disconnect the upshift paddle switch electrical connector.

   Courtesy of FORD MOTOR COMPANY

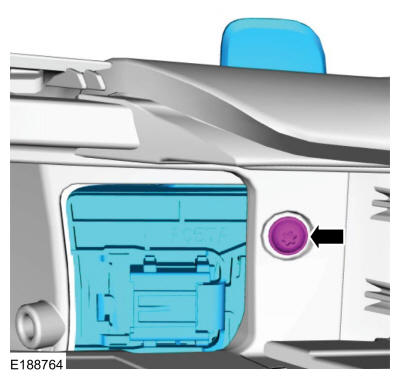

5. Remove the screw and the upshift paddle switch.

Courtesy of FORD MOTOR COMPANY
