Fuel Pump Driver Module (FPDM): Removal

NOTE: The FPDM assembly is located beneath the rear seat cushion on the LH side.

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .
2. Disconnect the FPDM electrical connectors.

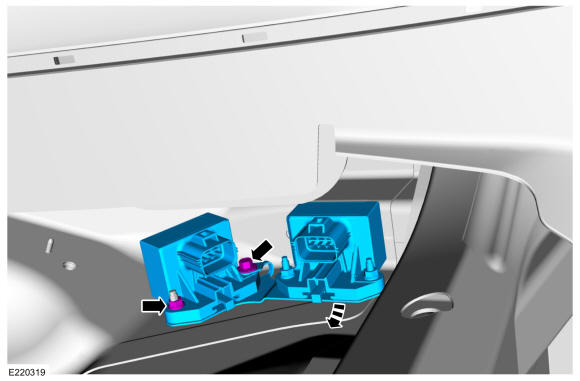

   Courtesy of FORD MOTOR COMPANY

3. Remove the FPDM retainers, swing the FPDM assembly out from under the trim panel and then remove the FPDM assembly.

   Courtesy of FORD MOTOR COMPANY

4. Remove the FPDM retainers and then remove the 2 FPDMs from the FPDM bracket.

Courtesy of FORD MOTOR COMPANY
