Fuel Pump Driver Module (FPDM): Installation

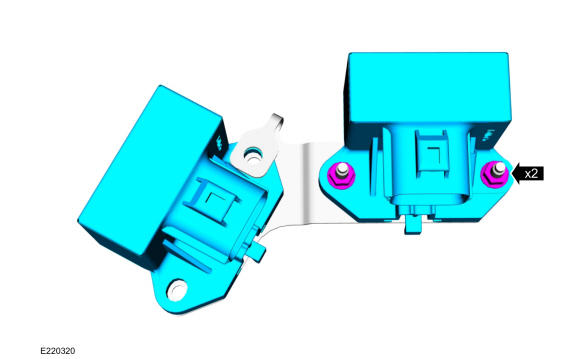

- Install the FPDMs to the FPDM bracket, then install and tighten the FPDM retainers.
Torque: 71 lb.in (8 Nm)

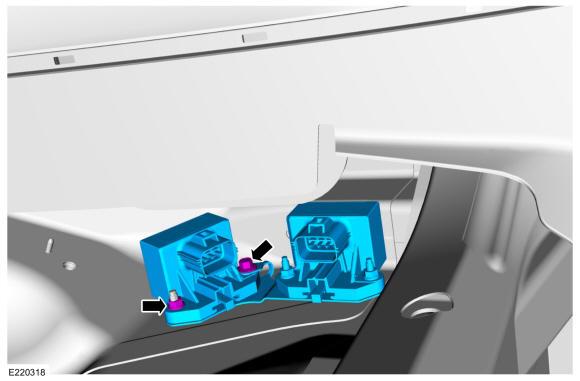

- Install the FPDM assembly, then install and tighten the FPDM retainers.
Torque: 71 lb.in (8 Nm)

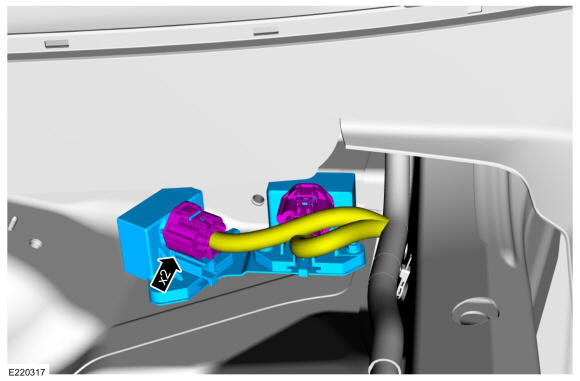

- Connect the FPDM electrical connectors.
- Install the rear seat cushion. Refer to: Rear Seat Cushion .
