VC Codes

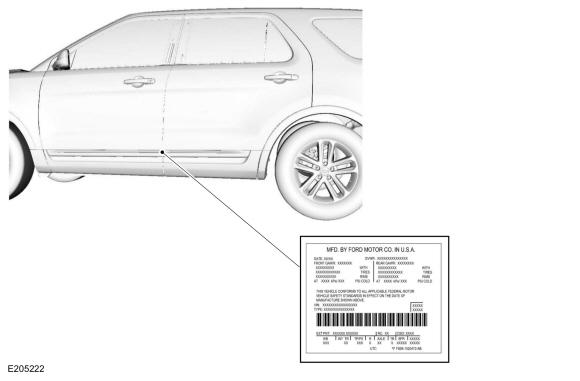

VC Label Locator

Courtesy of FORD MOTOR COMPANY

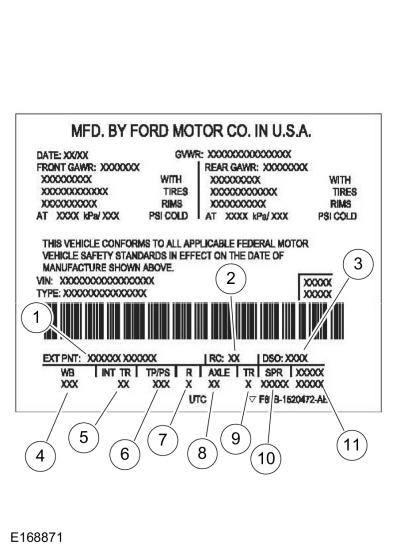

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

Courtesy of FORD MOTOR COMPANY

Paint Code

Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.

Primary Body Color

• BK - Platinum Dune (tri-coat)
• BU - Medium Brown Metallic
• E3 - Arizona Beige (Police package only)
• E4 - Vermillion Red
• EC - Cinnamon Glaze
• FT - Blue Metallic
• G1 - Shadow Black / Absolute Black
• HG - Smokestone
• J1 - Kodiak Brown
• J7 - Magnetic Metallic
• JL - Dark Toreador Red
• KR - Norcea Blue Pearl Metallic
• LK - Dark Blue Solid
• LM - Royal Blue Solid
• LN - Light Blue Metallic
• R3 - Burgundy Velvet (tinted clear coat)
• RR - Ruby Red (tinted clear coat)
• TN - Silver Gray Metallic
• UG - White Platinum metallic (tri-coat)
• UJ - Sterling Gray Metallic
• UX - Ingot Silver Metallic
• YG - Medium Titanium
• YZ - Oxford White Solid

Accent Color

• YZ - Oxford White Solid

Wheelbase

The following identifies the vehicle wheelbase:

• 113 - 113 in (2, 870.2 mm) wheelbase

Interior Trim Codes

Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.

Interior Trim Type

• 7 - Cloth trim A
• 8 - Cloth trim B
• 9 - Cloth trim C with vinyl, Police package
• A - Leather trim with MIKO suede (2-tone)
• B - Leather A with 10-way driver/6-way passenger power seats
• C - Leather B with 10-way driver/10-way passenger power seats
• D - Leather C with 8-way driver/8-way passenger power seats
• F - Cloth trim D (Police package)

Interior Trim Color Codes

• H - All Black Ebony
• L - Medium Light Stone
• R - Stone
• T - Medium Soft Ceramic
• W - Ebony Black

Tape/Paint Stripe Codes

Tape and paint stripe codes do not apply.

Radio Codes

The following lists available radio codes:

• 1 - Premium AM/ FM stereo, CD player, mp3 capable with 6 speakers
• 3 - AM/ FM stereo, CD player
• 4 - AM/ FM stereo, CD player
• 5 - AM/ FM stereo, CD player with 12 speakers
• 6 - AM/ FM stereo, CD player, SDARS (Satellite Digital Audio Receiver System) with 12 speakers
• 7 - AM/ FM stereo, CD player, mp3 capable
• 8 - Sony® AM/ FM stereo, CD player, mp3 capable with 12 speakers
• A - AM/ FM stereo, CD player with 6 speakers
• E - AM/ FM stereo, SDARS (Satellite Digital Audio Receiver System)
• J - Sony® AM/ FM stereo, CD player, mp3 capable with 12 speakers
• U - Sony® premium AM/ FM stereo, CD player, 500 watt sound

Axle Type

The following lists the available axle ratios and associated codes:

• 3E - 3.16 ratio
• 3F - 3.39 ratio
• 3G - 3.36 ratio
• 3H - 3.51 ratio
• 3J - 3.65 ratio

Transmission Codes

Available transmissions are as follows:

• 6 - 6-speed automatic (6F35) mid-range
• C - 6-speed automatic (6F55)
• J - 6-speed automatic (6F50)

Spring Codes

Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.

Front Springs

• Base part number - 5310

Rear Springs

• Base part number - 5560
