Windshield Glass: Notes
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Special Tool(s)
| Deluxe Windshield Removal Tool164-R2450 or equivalent | |
| The Pumper164-R2459 or equivalent |
Material
| Item | Specification |
| Urethane Adhesive: Sika® SikaTack® MACH 60 or Sika® SikaTack® MACH 30 or Dow® BETASEAL™ Express-- | -- |
| Dow Urethane One Step Glass PrimerBetaprime™ 5500 / 5500A / 5500SA | -- |
| Sika Urethane AdhesiveSika Tack ASAP | -- |
| Sika Urethane Metal and Glass PrimerSika 206 G+P | -- |
| Motorcraft® Ultra-Clear Spray Glass CleanerZC-23 | ESR-M14P5-A |

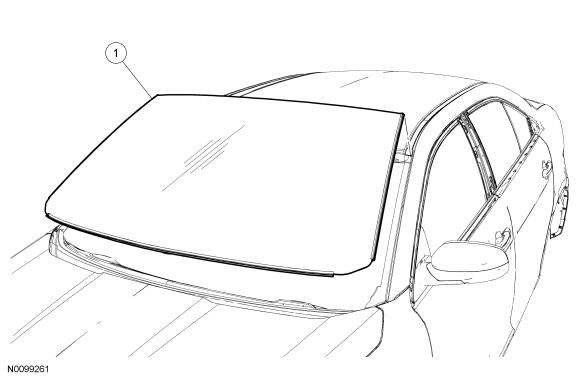

| Item | Part Number | Description |
|---|---|---|
| 1 | 03100 | Windshield glass |
