Component Testing

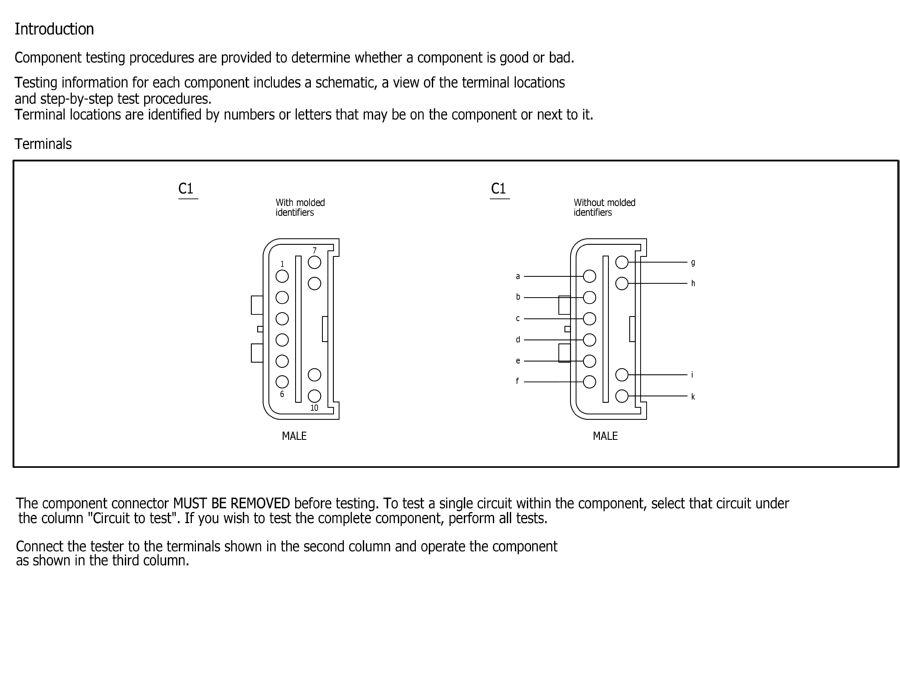

Fig 1: Component Testing Introduction

GFDWR31287

Courtesy of FORD MOTOR COMPANY

Fig 2: Headlamp Switch, Exterior Lamp Component Testing

GFDWR31274

Courtesy of FORD MOTOR COMPANY

Fig 3: Relay - Mini ISO Component Testing

GFDWR31283

Courtesy of FORD MOTOR COMPANY

Fig 4: Relay - Micro ISO Component Testing

GFDWR31275

Courtesy of FORD MOTOR COMPANY

Fig 5: Relay - Ultra Micro ISO Component Testing

GFDWR31288

Courtesy of FORD MOTOR COMPANY

Fig 6: Seat Control Switch, Driver Side (14 - Way) Component Testing (1 Of 2)

GFDWR31276

Courtesy of FORD MOTOR COMPANY

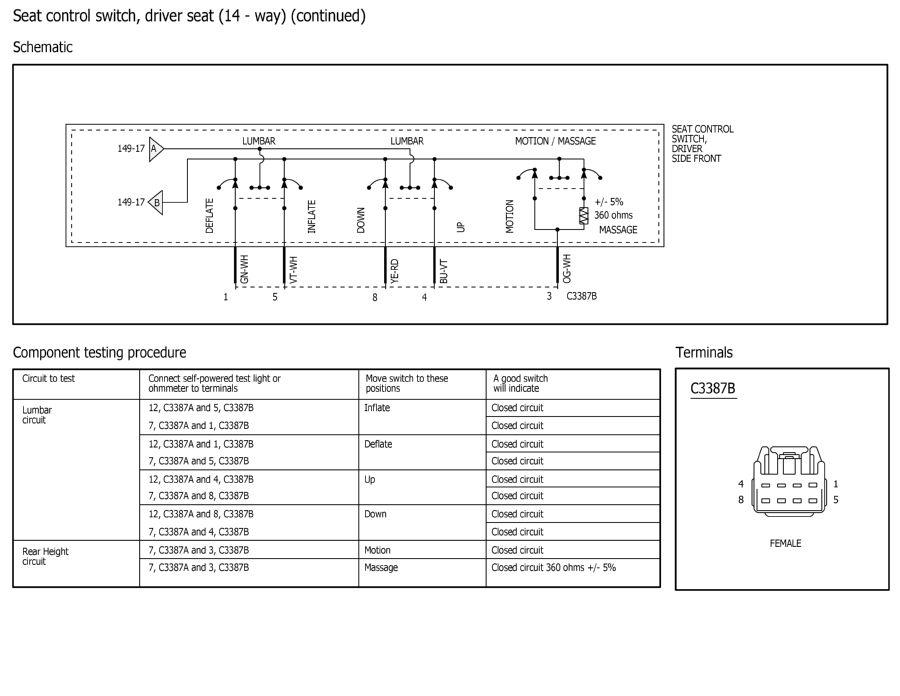

Fig 7: Seat Control Switch, Driver Seat (14 - Way) Component Testing (2 Of 2)

GFDWR31293

Courtesy of FORD MOTOR COMPANY

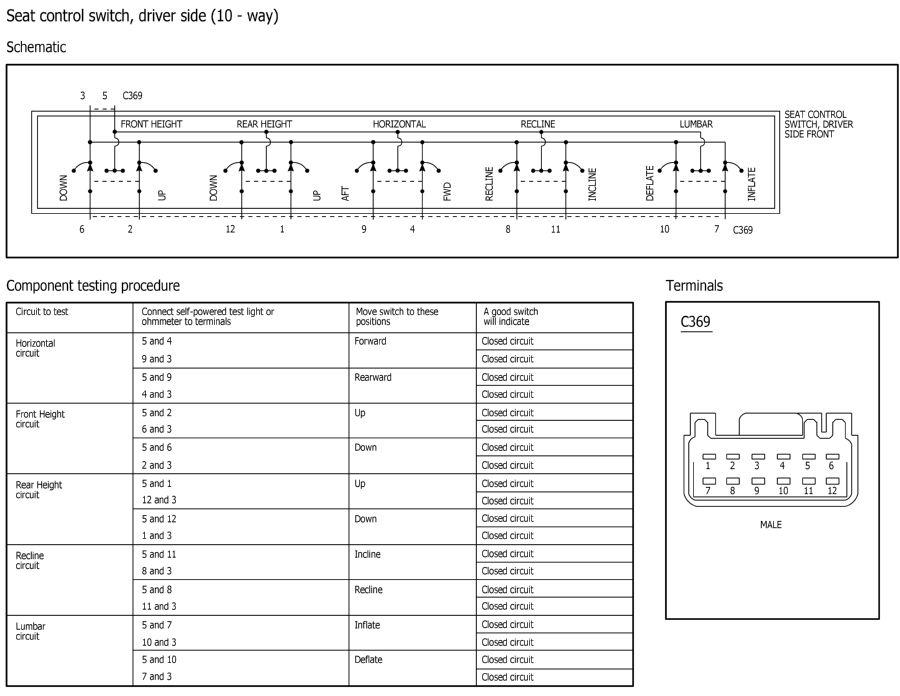

Fig 8: Seat Control Switch, Driver Side (10 - Way) Component Testing

GFDWR31291

Courtesy of FORD MOTOR COMPANY

Fig 9: Seat Control Switch, Driver Side (6 - Way) Component Testing

GFDWR31277

Courtesy of FORD MOTOR COMPANY

Fig 10: Seat Control Switch, Passenger Side (14 - Way) Component Testing (1 Of 2)

GFDWR31286

Courtesy of FORD MOTOR COMPANY

Fig 11: Seat Control Switch, Passenger Seat (14 - Way) Component Testing (2 Of 2)

GFDWR31278

Courtesy of FORD MOTOR COMPANY

Fig 12: Seat Control Switch, Passenger Side (10 - Way) Component Testing

GFDWR31280

Courtesy of FORD MOTOR COMPANY

Fig 13: Seat Control Switch, Passenger Side (6 - Way) Component Testing

GFDWR31295

Courtesy of FORD MOTOR COMPANY

Fig 14: Roof Opening Panel Switch Component Testing

GFDWR31279

Courtesy of FORD MOTOR COMPANY

Fig 15: Rear Sunshade Switch Component Testing

GFDWR31281

Courtesy of FORD MOTOR COMPANY

Fig 16: Window Adjust Switches, Left And Right Rear Component Testing

GFDWR31282

Courtesy of FORD MOTOR COMPANY

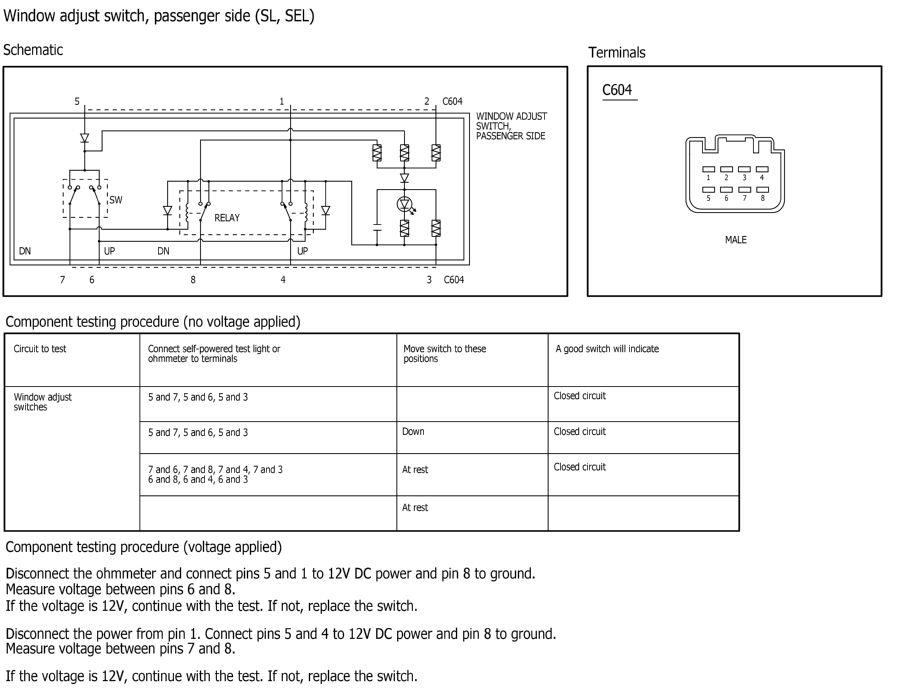

Fig 17: Window Adjust Switch, Passenger Side (SL, SEL) Component Testing

GFDWR31285

Courtesy of FORD MOTOR COMPANY

Fig 18: Window Adjust Switch, Passenger Side (SHO, Limited) Component Testing

GFDWR31294

Courtesy of FORD MOTOR COMPANY

Fig 19: Ignition Switch Component Testing

GFDWR31284

Courtesy of FORD MOTOR COMPANY

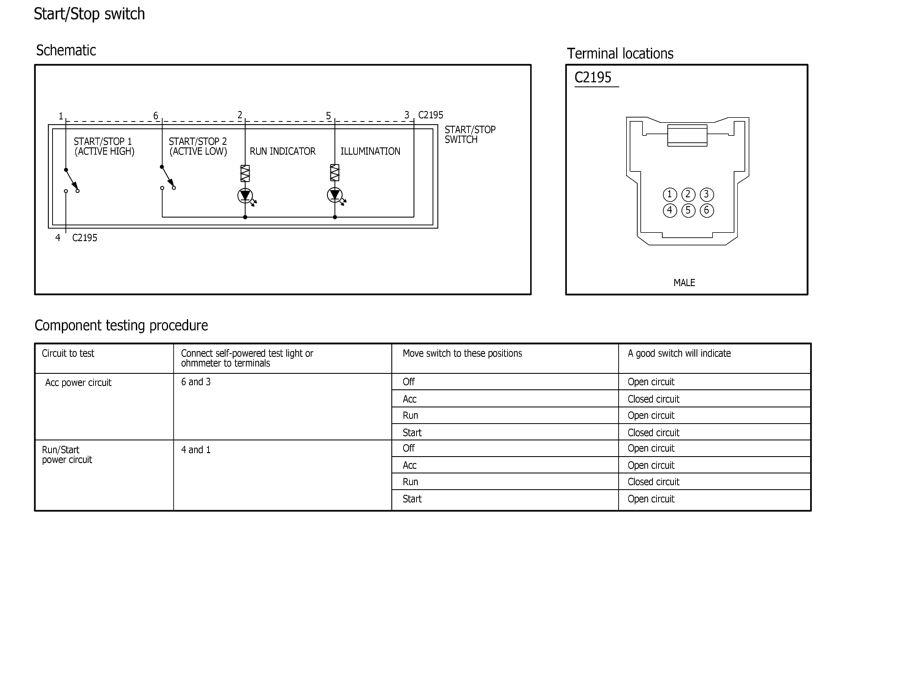

Fig 20: Start/Stop Switch Component Testing

GFDWR31289

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Door Lock Switch Component Testing

GFDWR31290

Courtesy of FORD MOTOR COMPANY

Fig 22: Instrument Panel Dimmer Switch Component Testing

GFDWR31292

Courtesy of FORD MOTOR COMPANY
