Front Door Alignment

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Inspection

NOTE: LH side shown, RH side similar.
  1. Check the body-to-front door dimensions. Refer to: Body and Frame .

Adjustment

All alignments

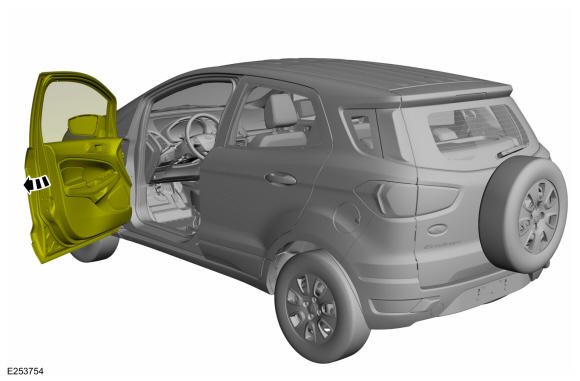

  1. Open the front door.
    GFD328629Courtesy of FORD MOTOR COMPANY

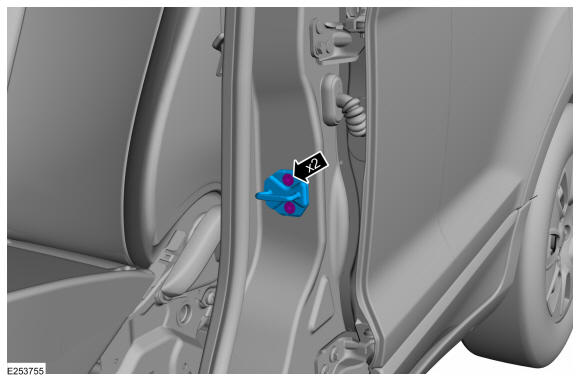

  2. Remove the bolts and the striker assembly.
    GFD328630Courtesy of FORD MOTOR COMPANY

    Front door in and out, up and down alignment

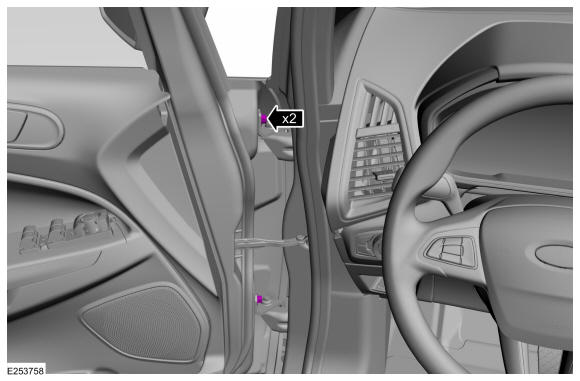

  3. Loosen the bolts enough to permit movement of the door.
    GFD328631Courtesy of FORD MOTOR COMPANY

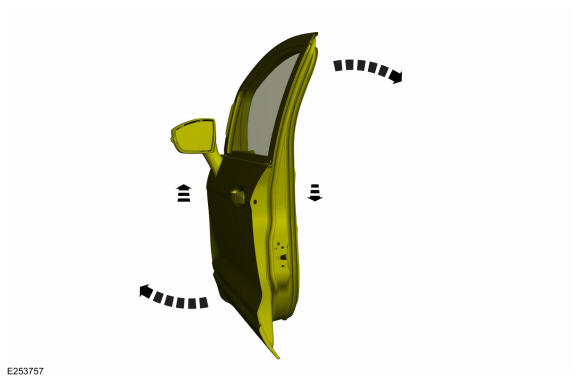

  4. Adjust the door to specification. Refer to: Body and Frame .
    GFD328632Courtesy of FORD MOTOR COMPANY
  5. Tighten the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD328631Courtesy of FORD MOTOR COMPANY

    Front door fore, aft and tilt alignment

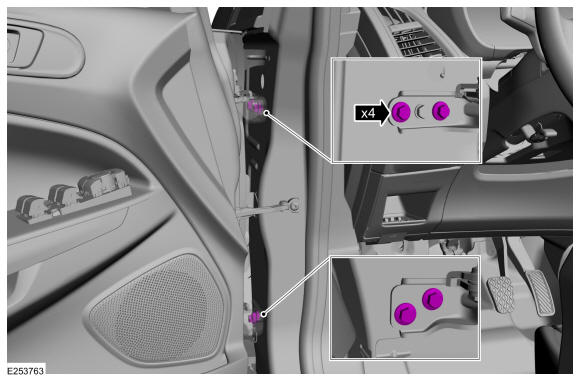

  6. Loosen the bolts enough to permit movement of the door.
    GFD328633Courtesy of FORD MOTOR COMPANY

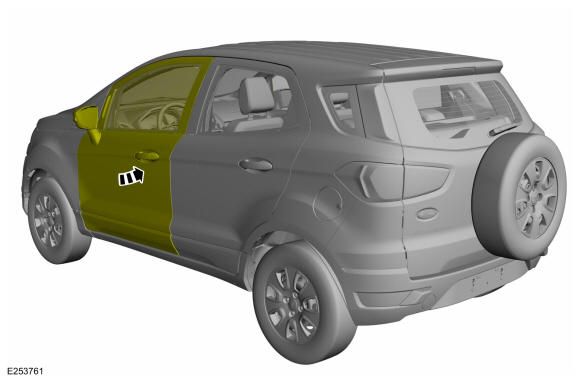

  7. Carefully close the door.
    GFD328634Courtesy of FORD MOTOR COMPANY

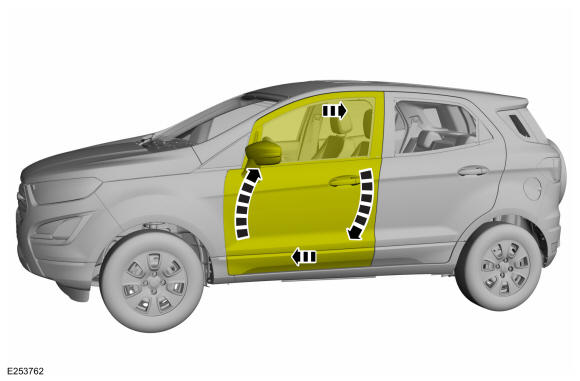

  8. Adjust the door to specification. Refer to: Body and Frame .
    GFD328635Courtesy of FORD MOTOR COMPANY
  9. Carefully open the door.
    GFD328629Courtesy of FORD MOTOR COMPANY
  10. Tighten the bolts.

    Torque: 26 lb.ft (35 Nm)

    GFD328633Courtesy of FORD MOTOR COMPANY

    All alignments

  11. Install the striker assembly and the bolts.

    Torque: 177 lb.in (20 Nm)

    GFD328630Courtesy of FORD MOTOR COMPANY

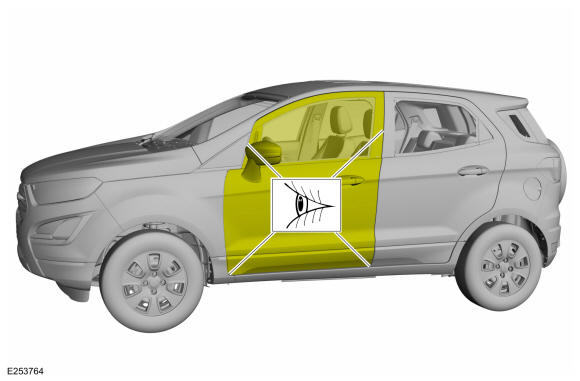

  12. Check the body-to-front door dimensions. Refer to: Body and Frame .
GFD328636Courtesy of FORD MOTOR COMPANY
