Hood Alignment
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Inspection

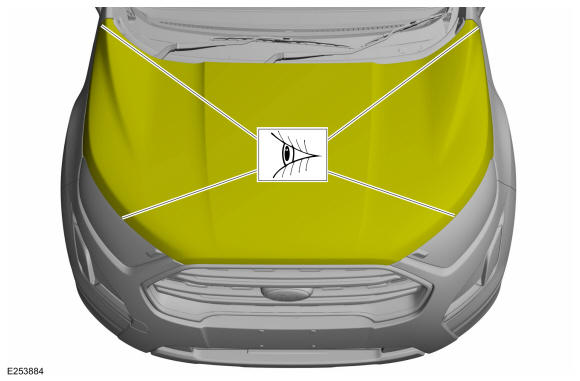

- Inspect the hood-to-body dimensions. Refer to: Body and Frame .
Adjustment
All alignments
- Remove the hood latch. Refer to: Hood Latch
.
Hood fore and aft, left and right alignments

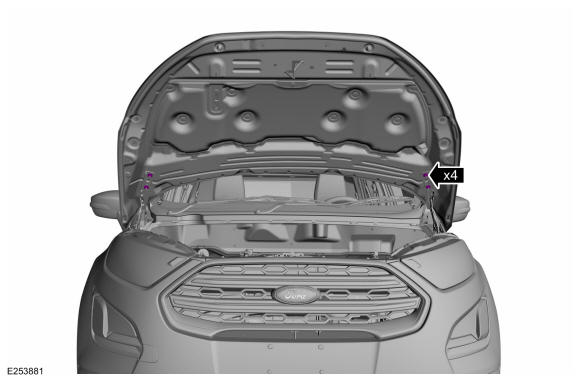

- Loosen the nuts enough to permit movement of the hood.

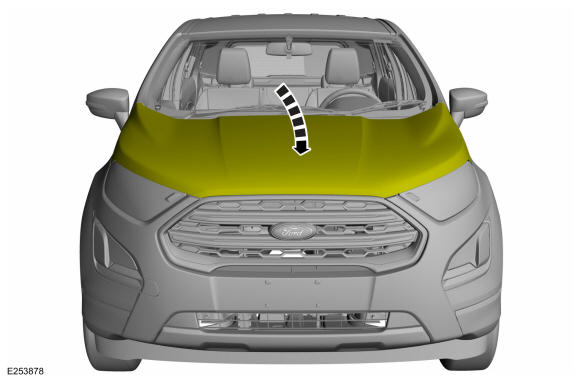

- Carefully close the hood.

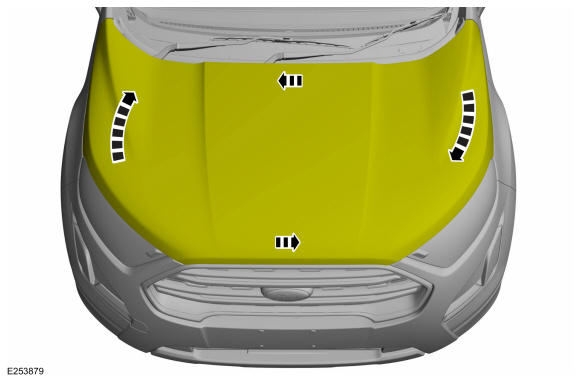

- Adjust the hood to specification. Refer to: Body and Frame
.

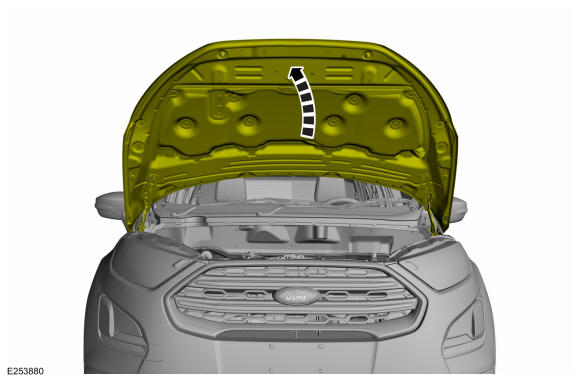

- Carefully open the hood.
- Tighten the nuts.
Torque: 71 lb.in (8 Nm)
Hood front up and down alignments

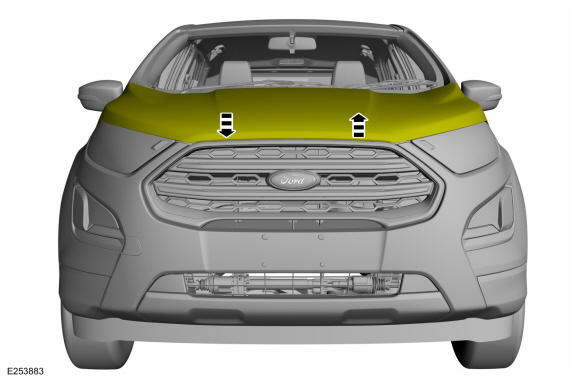

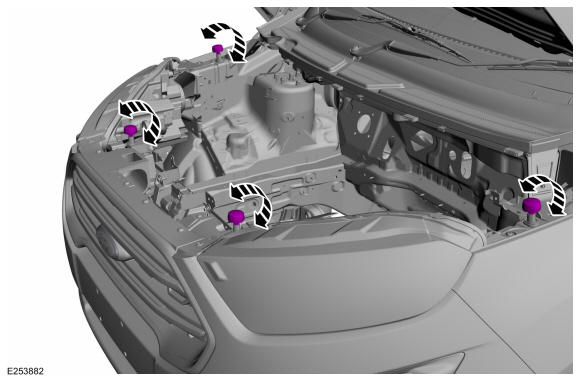

- Adjust the bump stop rubbers.
- Close the hood.
- Adjust the hood to specification. Refer to: Body and Frame
.
All alignments
- Install the hood latch. Refer to: Hood Latch .
- Inspect the body-to-hood dimensions. Refer to: Body and Frame .
