Liftgate Alignment

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Inspection

Check liftgate-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

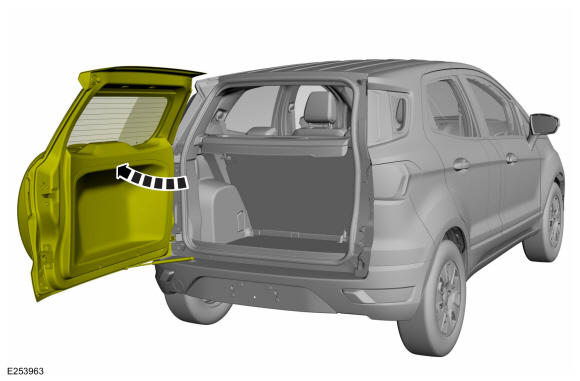

Open the liftgate.

Courtesy of FORD MOTOR COMPANY

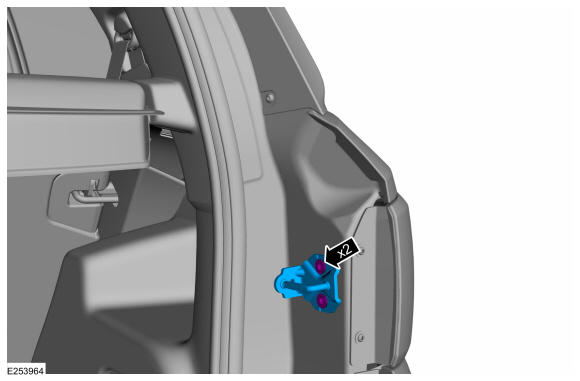

Remove the bolts and liftgate striker.

Courtesy of FORD MOTOR COMPANY

Liftgate left and right, up and down alignment

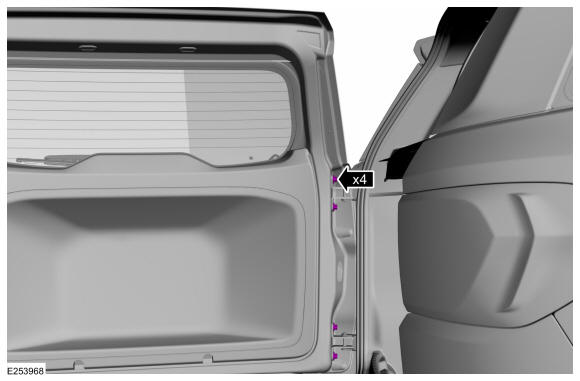

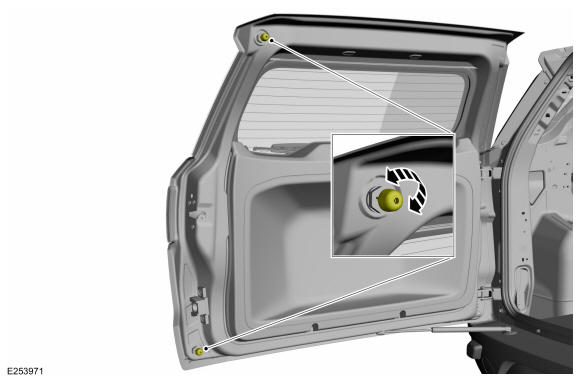

Loosen the bolts enough to permit the movement of the liftgate.

Courtesy of FORD MOTOR COMPANY

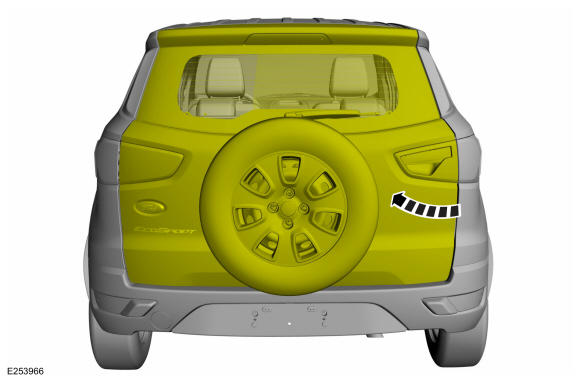

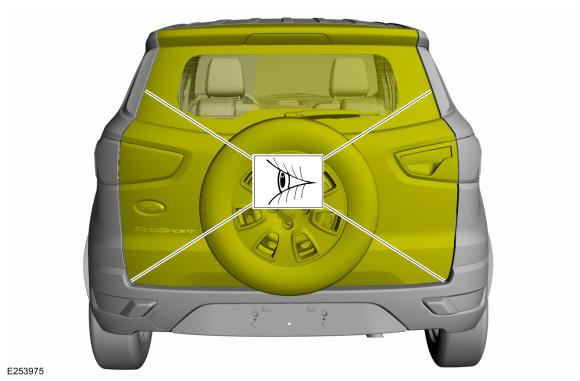

Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY
Adjust the liftgate to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment
Remove the LH loadspace trim panel. Refer to: Loadspace Trim Panel .

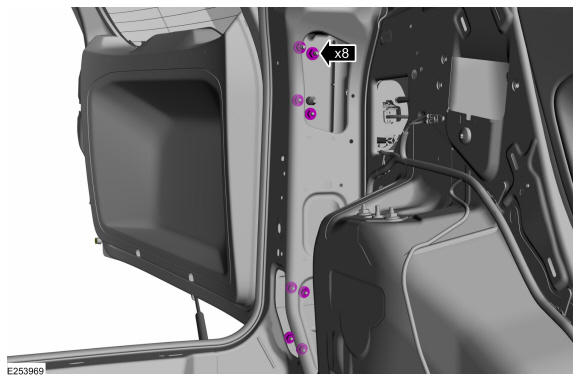

Loosen the nuts enough to permit the movement of the liftgate.

Courtesy of FORD MOTOR COMPANY
NOTE: Multiple adjustments may be required to ensure flushness with the body side.

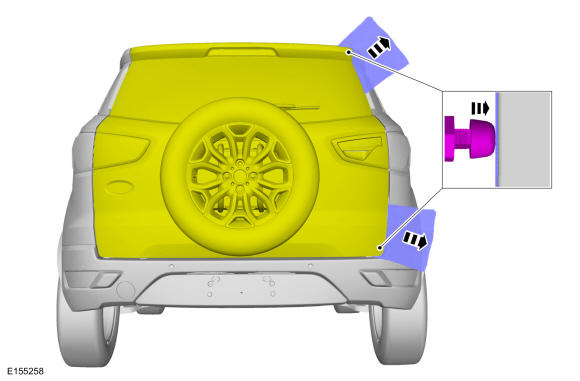

Adjust the nominal overslam bumpers.

Courtesy of FORD MOTOR COMPANY
NOTE: Multiple adjustments may be required to ensure flushness with the body side.

Using plain A4 paper (or similar), place the paper over the swing gate bump stops in the door closure area and close the swing gate. Pull the paper outward to check if the paper can be removed from the closed swing gate. Repeat the adjustment procedure if the paper can be removed.

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY

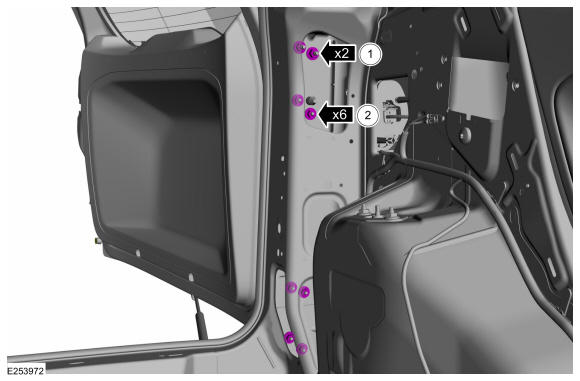

Tighten the nuts.
Torque: 1: 18 lb.ft (25 Nm) 2: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

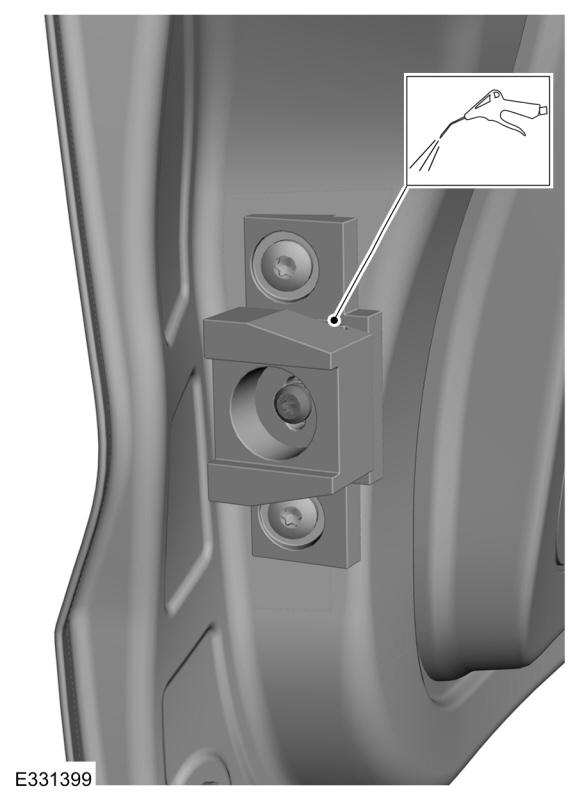

Thoroughly clean any dirt or debris from the bracket.

Courtesy of FORD MOTOR COMPANY

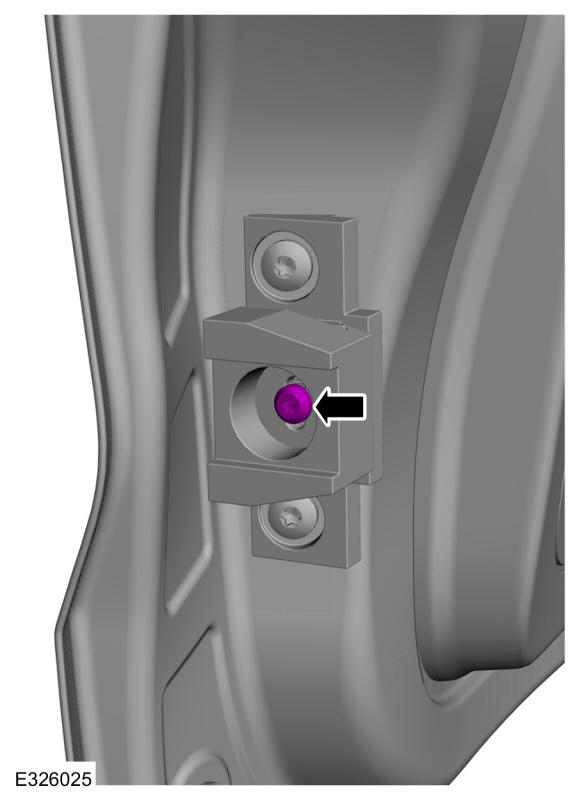

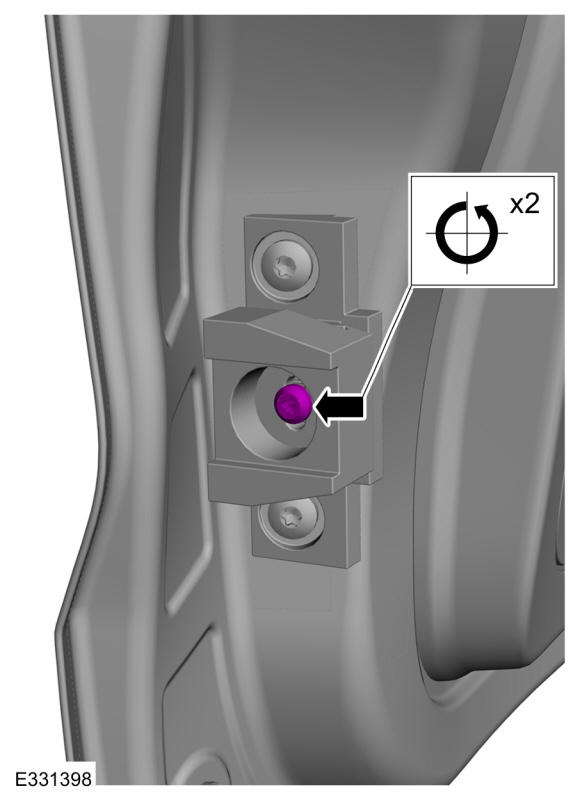

Loosen the swing gate mounted bumper bracket fastener. Loosen: 2 turn(s) deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Multiple adjustments may be required to ensure flushness with the body side.

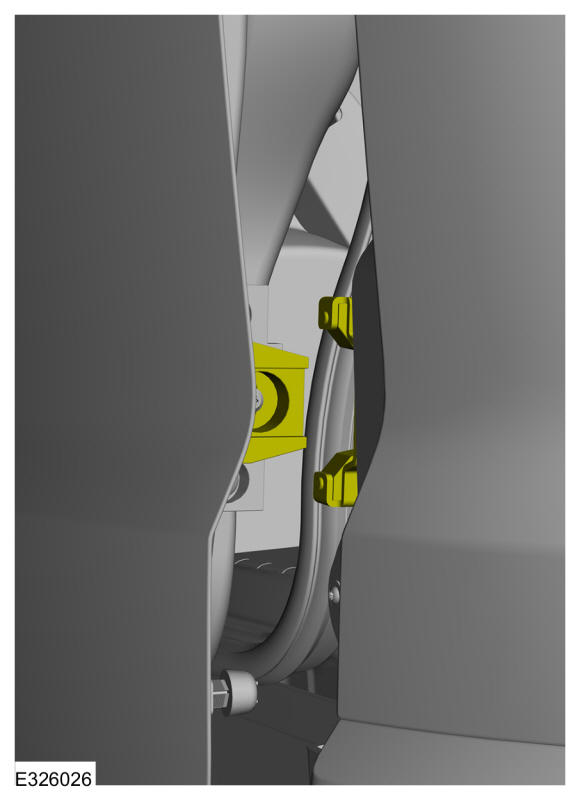

Align the body side mounted bumper bracket with the swing gate mounted bumper bracket.

Courtesy of FORD MOTOR COMPANY
Tighten the swing gate mounted bumper bracket fastener.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH loadspace trim panel. Refer to: Loadspace Trim Panel .
All alignments
Install the liftgate striker and the bolts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-liftgate door dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
