Front Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

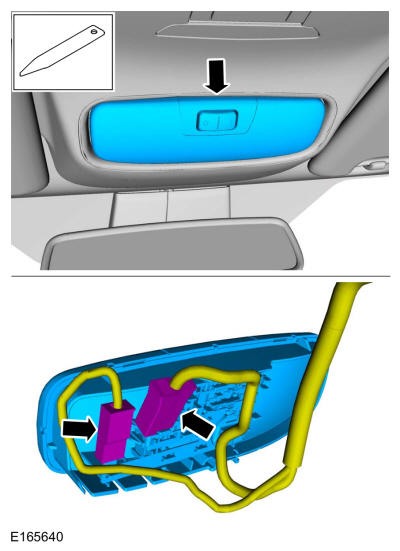

  1. Remove the dome lamp and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
    GFD305629Courtesy of FORD MOTOR COMPANY

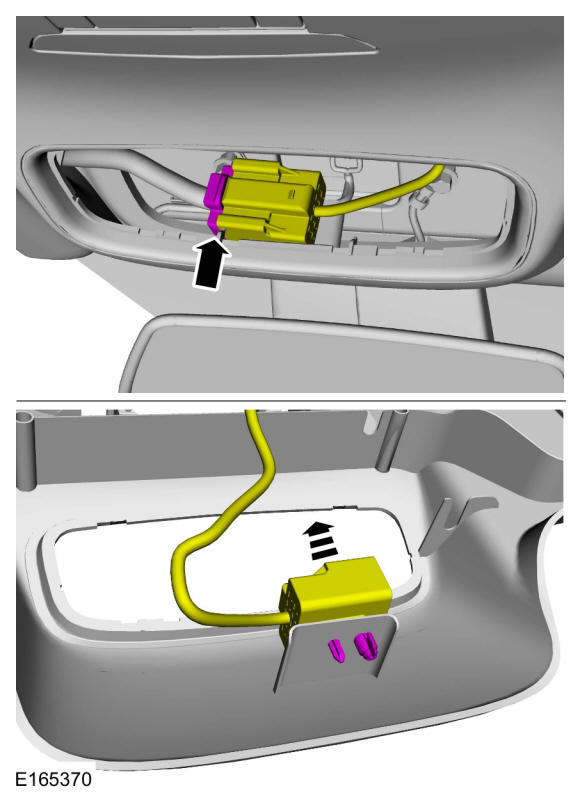

  2. Disconnect the electrical connector and then disengage the connector clips.
    GFD306378Courtesy of FORD MOTOR COMPANY

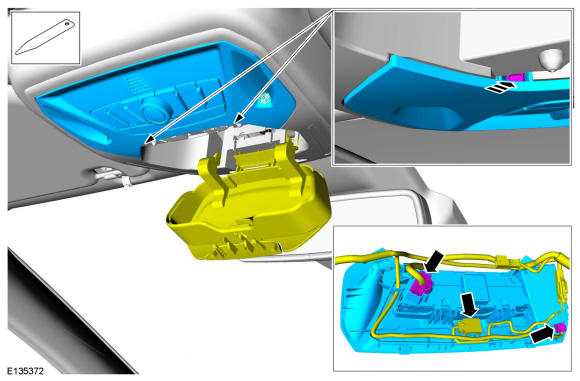

    • Disengage the retaining tabs and remove the roof bezel cover.

    • Disconnect the roof bezel cover electrical connectors.

    GFD305656Courtesy of FORD MOTOR COMPANY

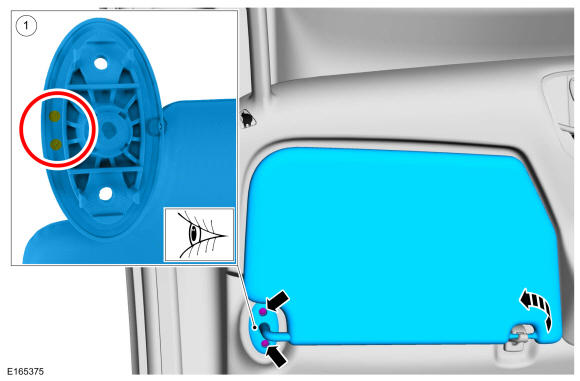

  4. GFD306083Courtesy of FORD MOTOR COMPANY

    1. NOTE: Note the position of the component before removal.

      Remove the retainers and the LH side sun visor.

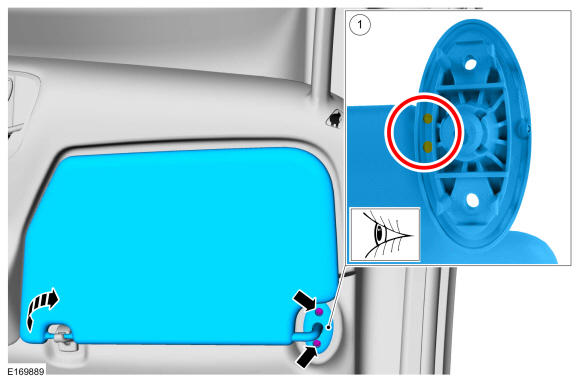

  5. GFD306084Courtesy of FORD MOTOR COMPANY

    1. NOTE: Note the position of the component before removal.

      Remove the retainers and the RH side sun visor.

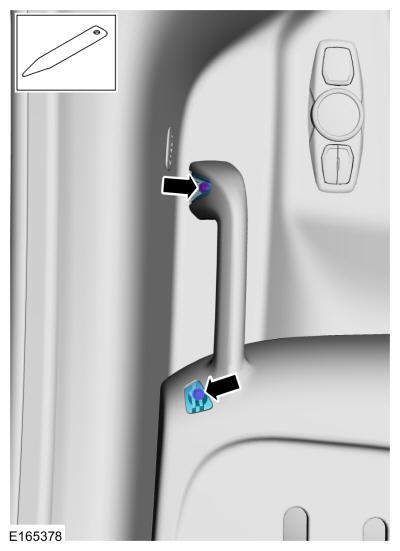

  6. On both sides, remove the grab handle covers and retainers. Use the General Equipment: Interior Trim Remover
    GFD306088Courtesy of FORD MOTOR COMPANY

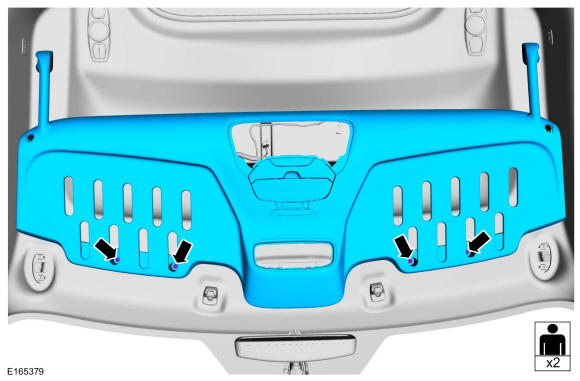

  7. Remove the retainers and the front seat overhead storage compartment assembly.
GFD306089Courtesy of FORD MOTOR COMPANY
