Audio System/Navigation

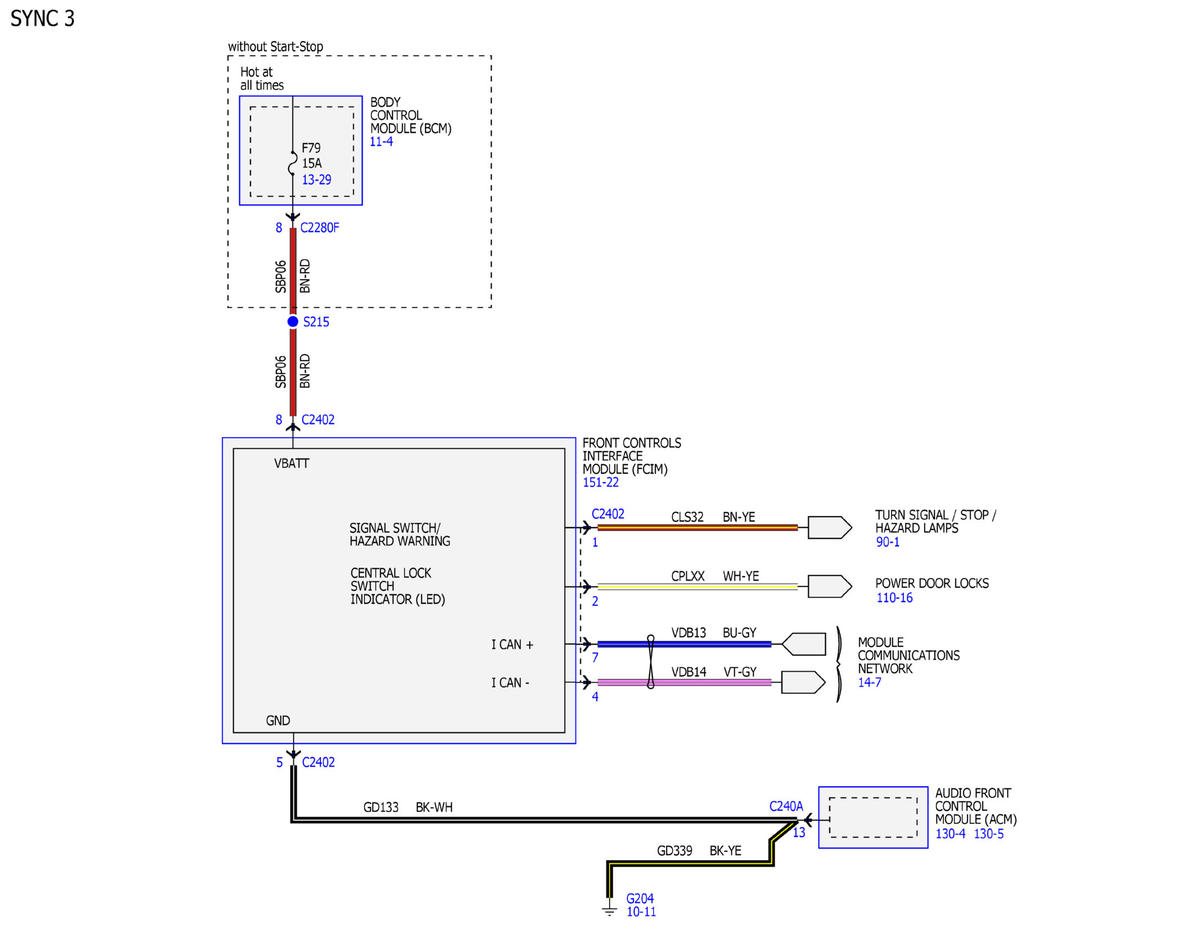

Fig 1: Audio System/Navigation Wiring Diagram (1 of 21)

GFDWR19580

Courtesy of FORD MOTOR COMPANY

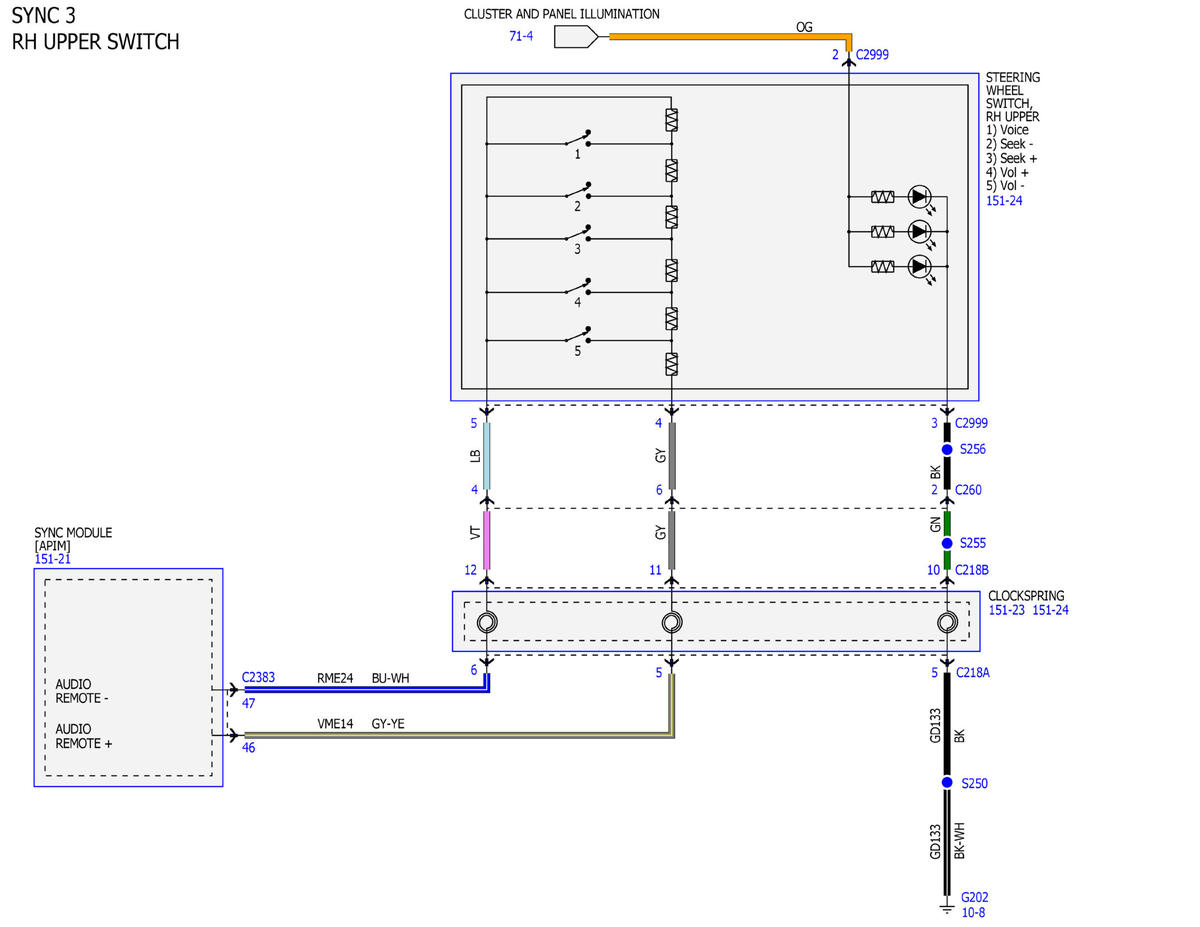

Fig 2: Audio System/Navigation Wiring Diagram (2 of 21)

GFDWR19581

Courtesy of FORD MOTOR COMPANY

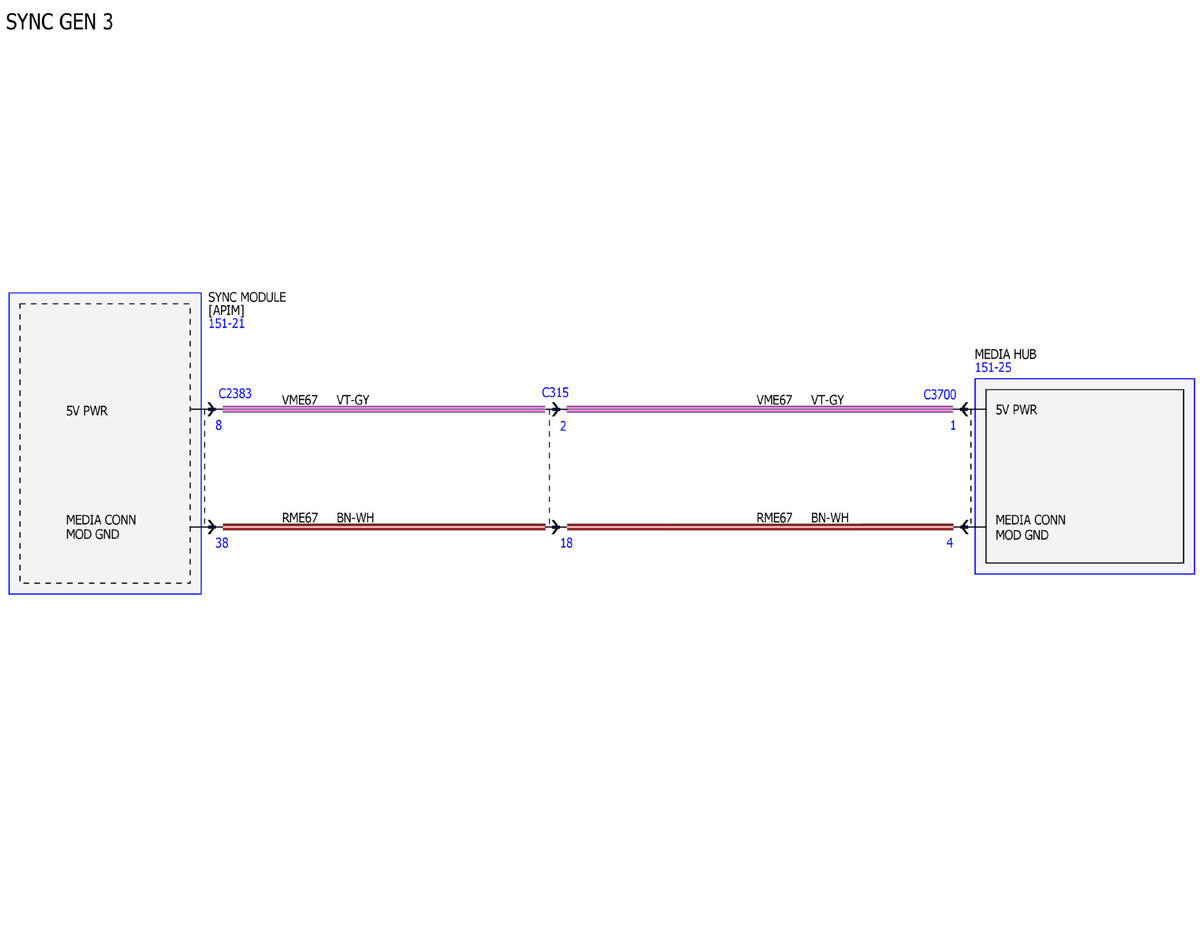

Fig 3: Audio System/Navigation Wiring Diagram (3 of 21)

GFDWR19582

Courtesy of FORD MOTOR COMPANY

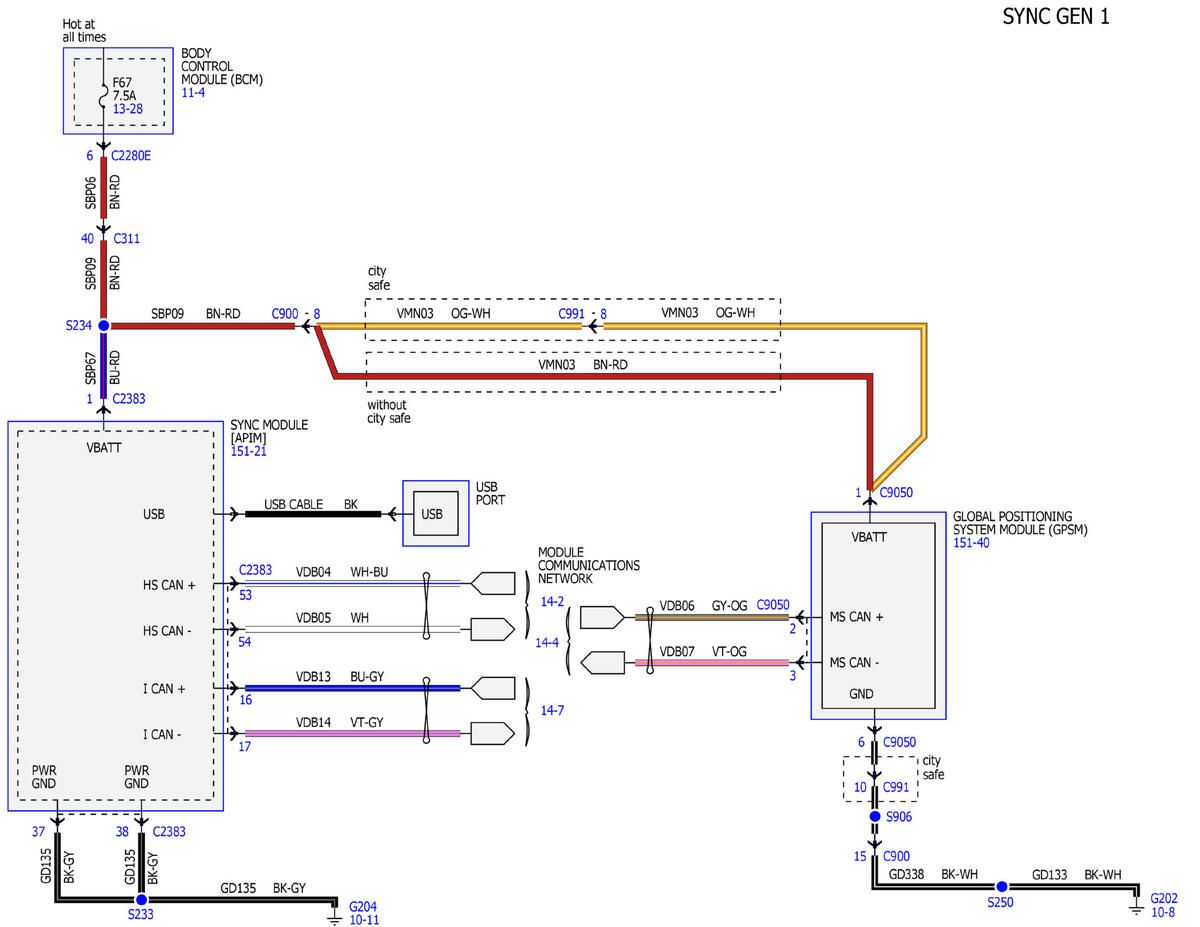

Fig 4: Audio System/Navigation Wiring Diagram (4 of 21)

GFDWR19583

Courtesy of FORD MOTOR COMPANY

Fig 5: Audio System/Navigation Wiring Diagram (5 of 21)

GFDWR19584

Courtesy of FORD MOTOR COMPANY

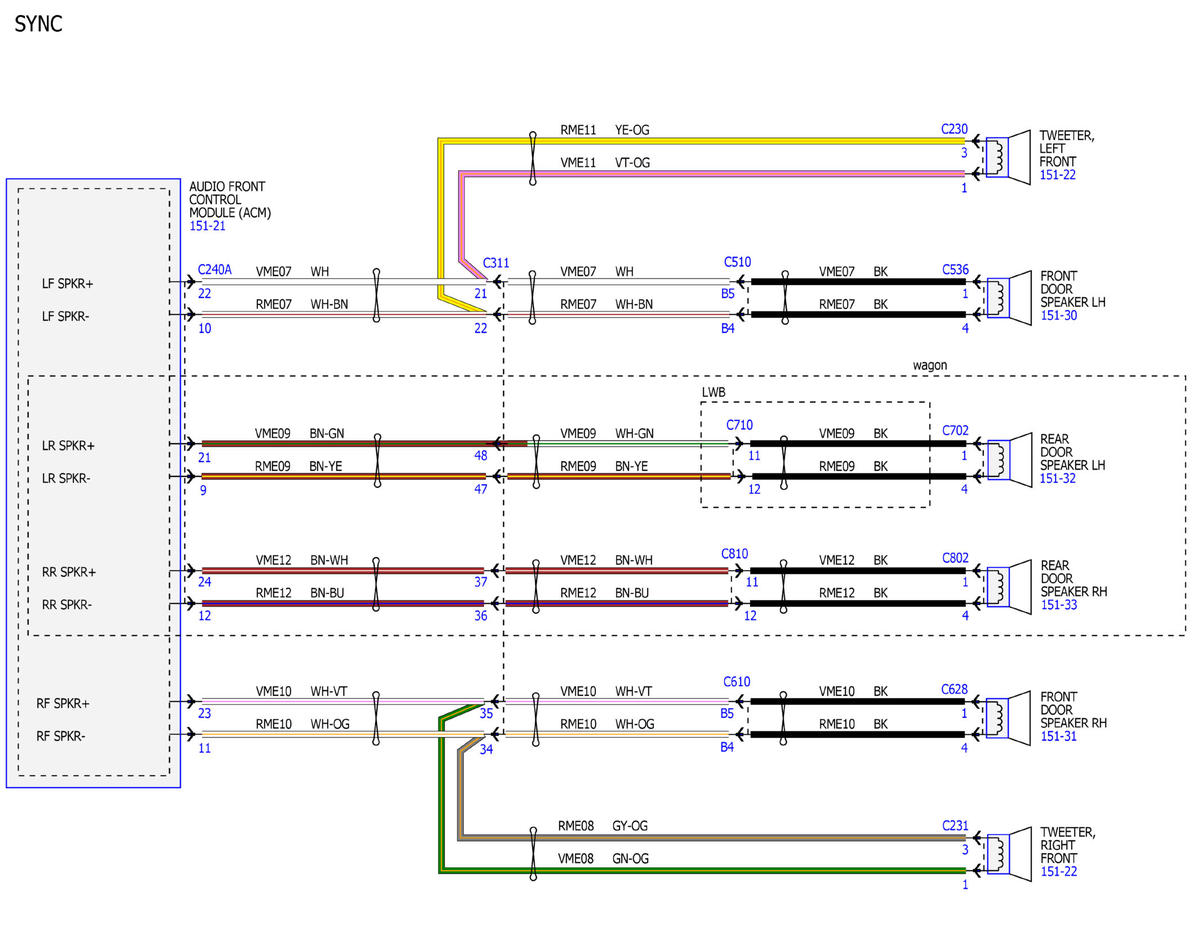

Fig 6: Audio System/Navigation Wiring Diagram (6 of 21)

GFDWR19585

Courtesy of FORD MOTOR COMPANY

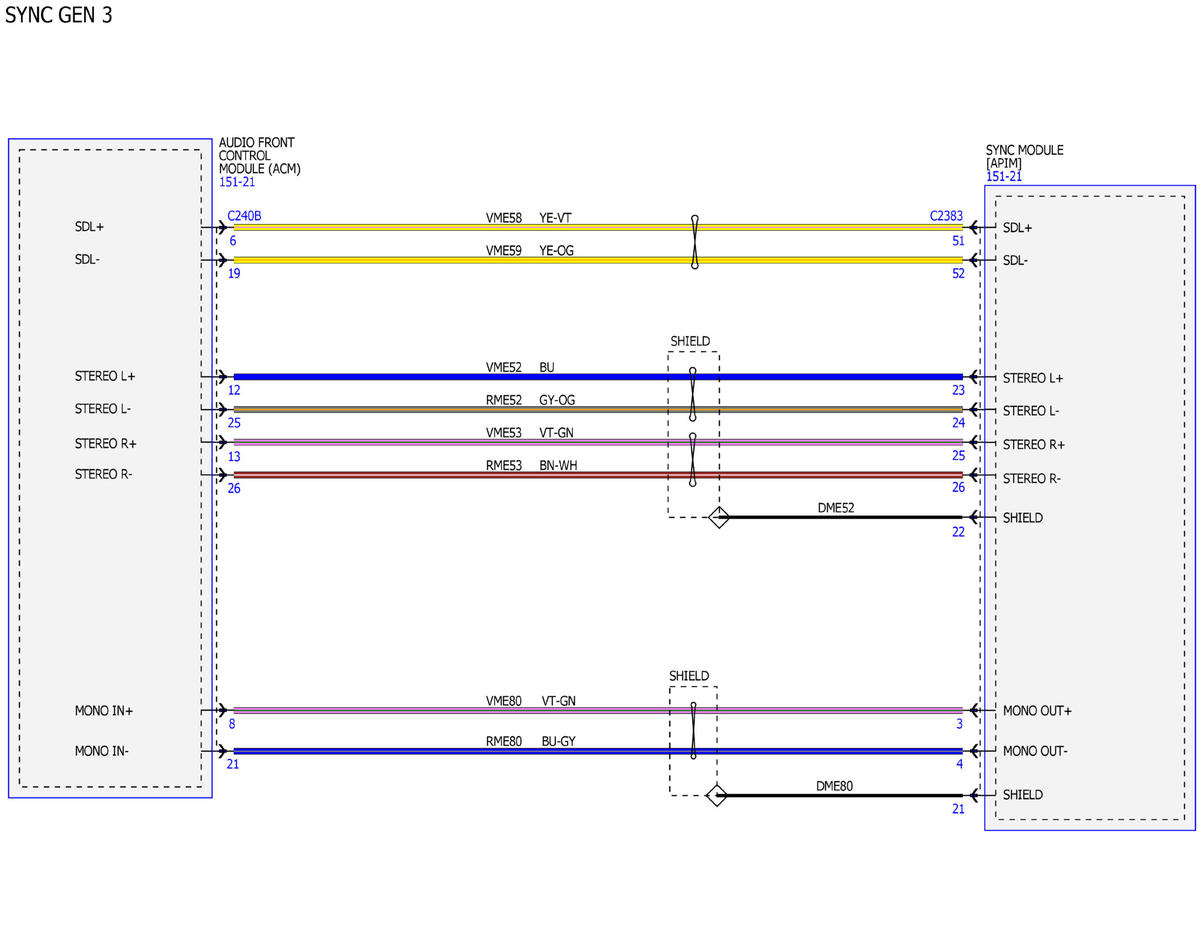

Fig 7: Audio System/Navigation Wiring Diagram (7 of 21)

GFDWR19586

Courtesy of FORD MOTOR COMPANY

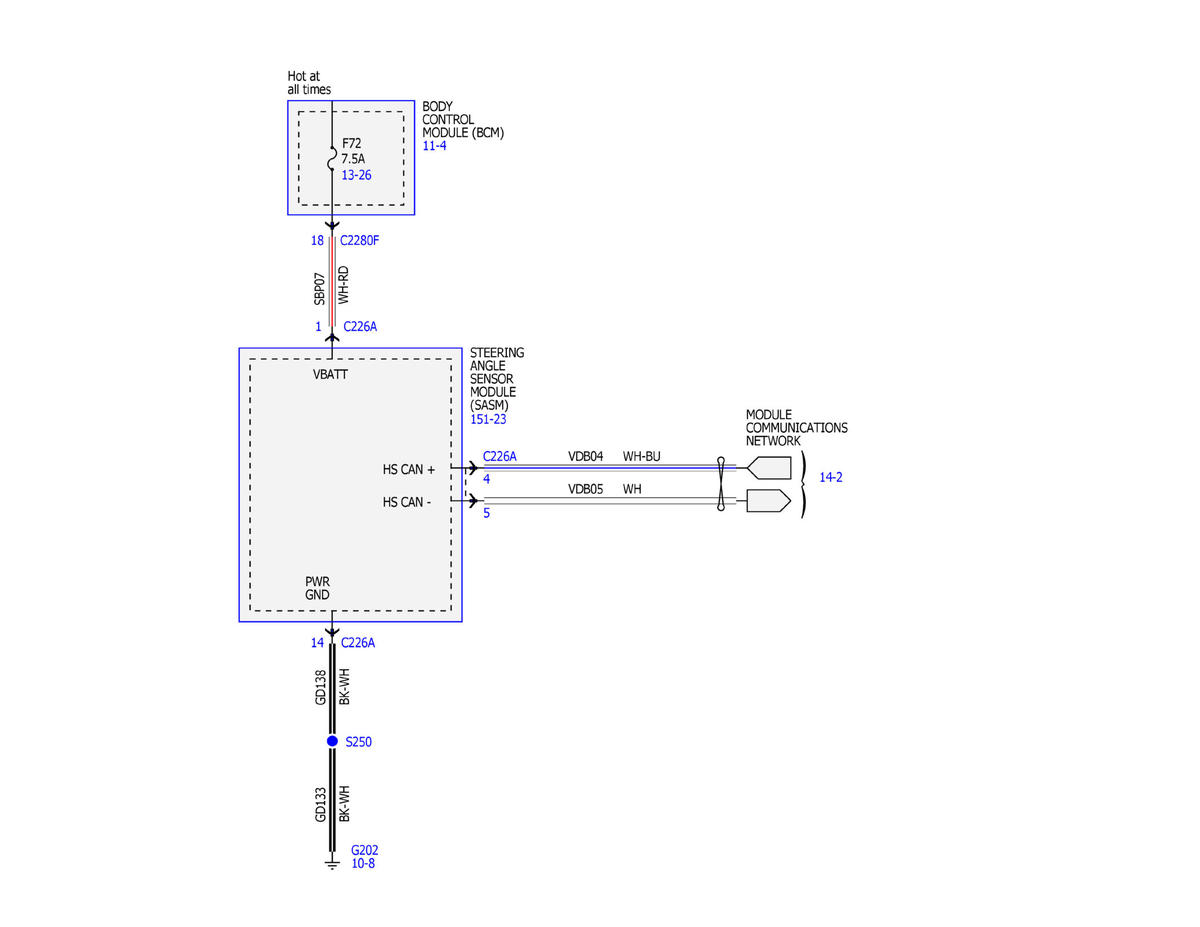

Fig 8: Audio System/Navigation Wiring Diagram (8 of 21)

GFDWR19587

Courtesy of FORD MOTOR COMPANY

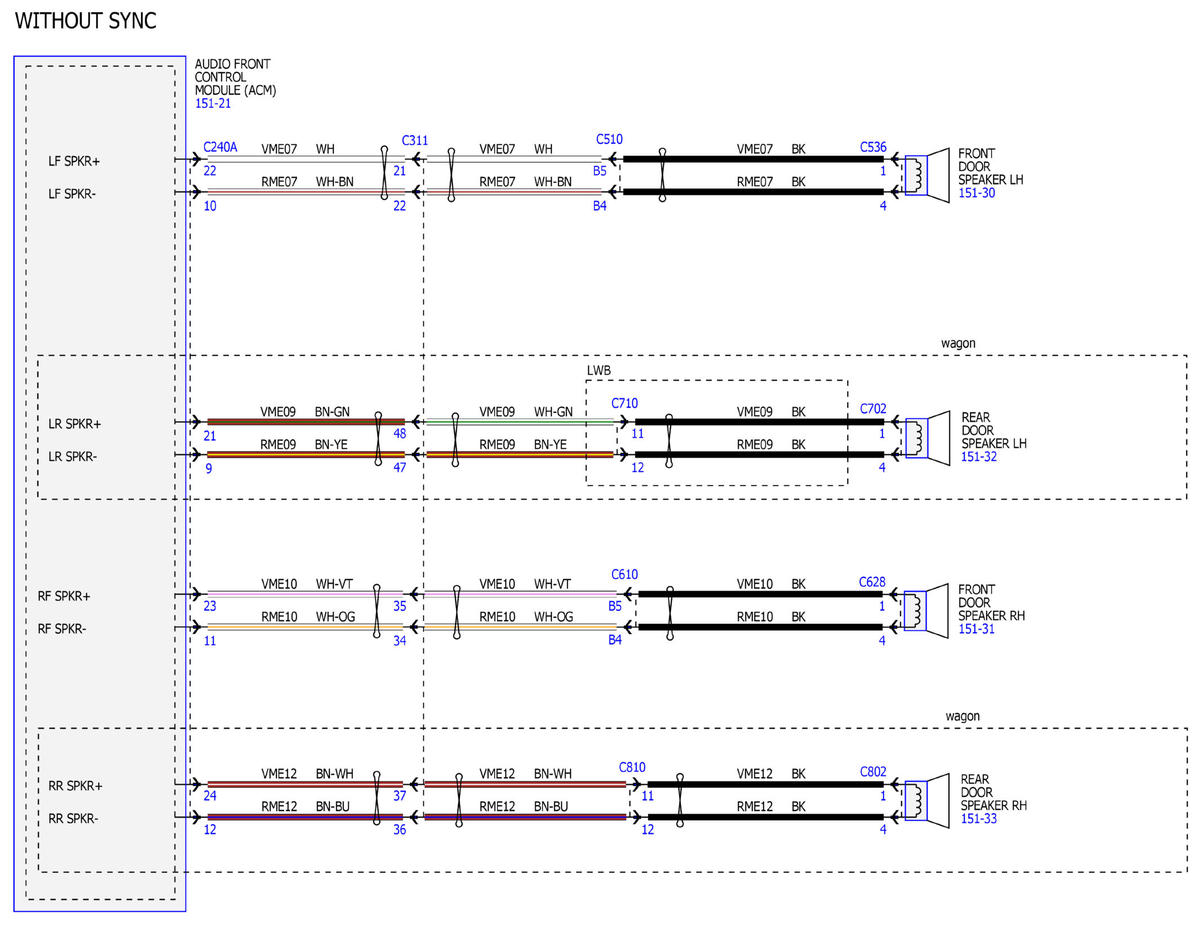

Fig 9: Audio System/Navigation Wiring Diagram (9 of 21)

GFDWR19588

Courtesy of FORD MOTOR COMPANY

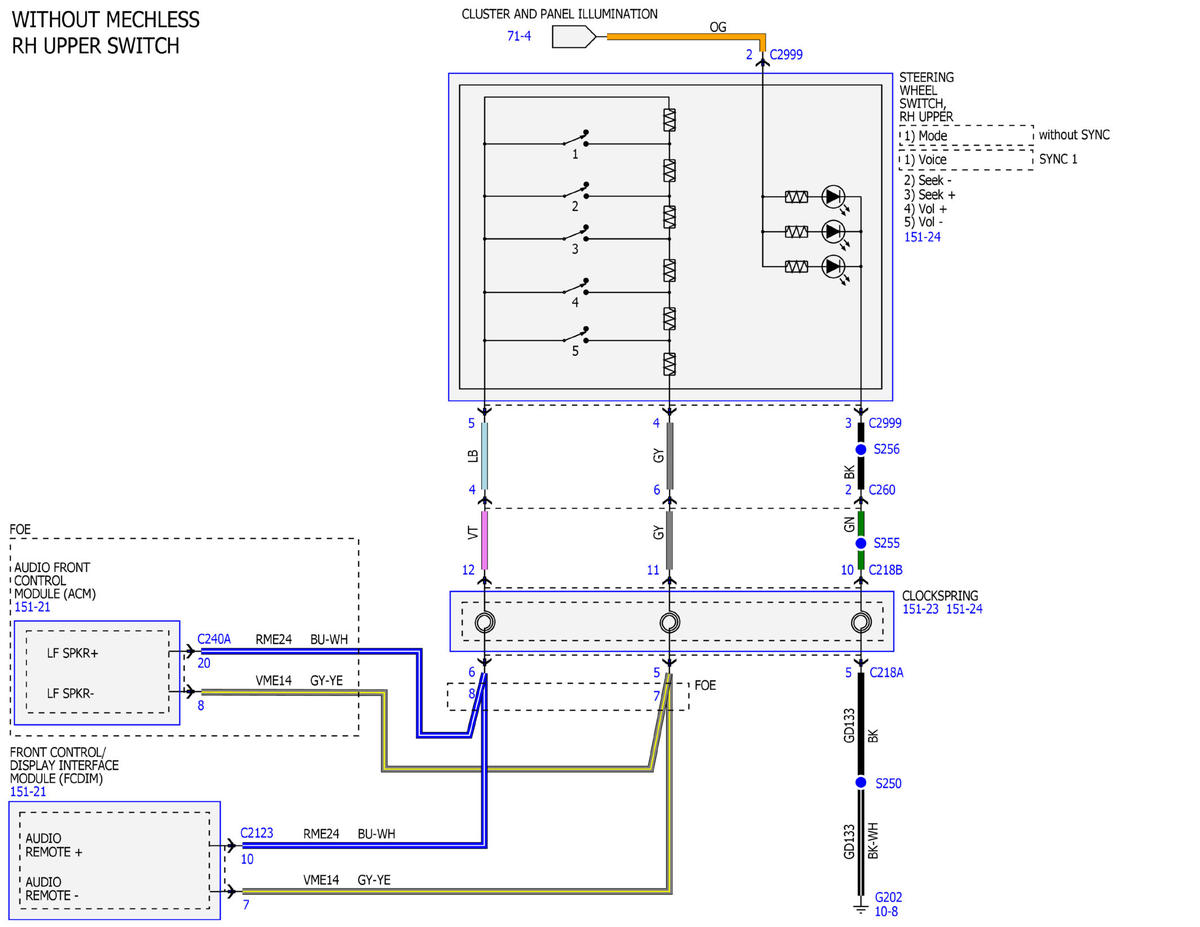

Fig 10: Audio System/Navigation Wiring Diagram (10 of 21)

GFDWR19589

Courtesy of FORD MOTOR COMPANY

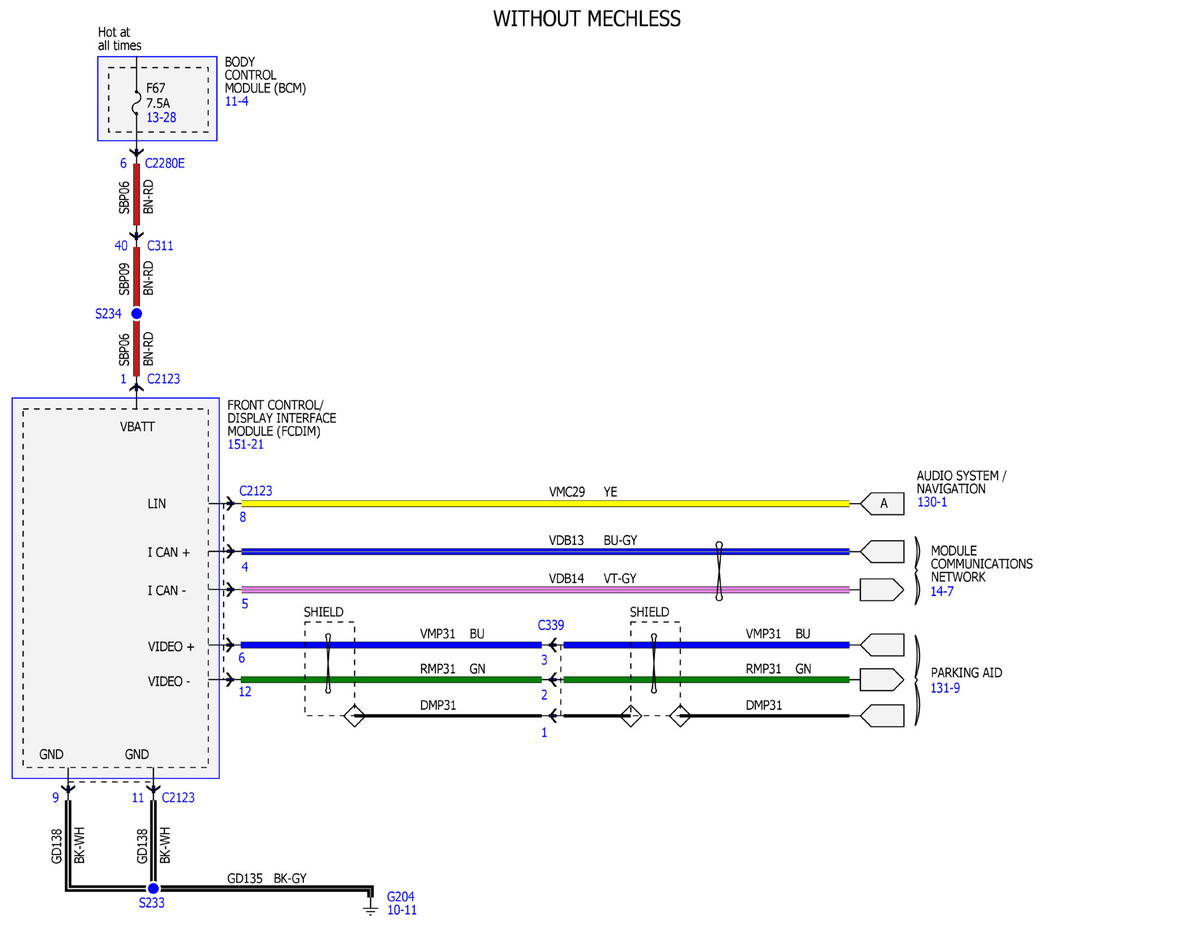

Fig 11: Audio System/Navigation Wiring Diagram (11 of 21)

GFDWR19590

Courtesy of FORD MOTOR COMPANY

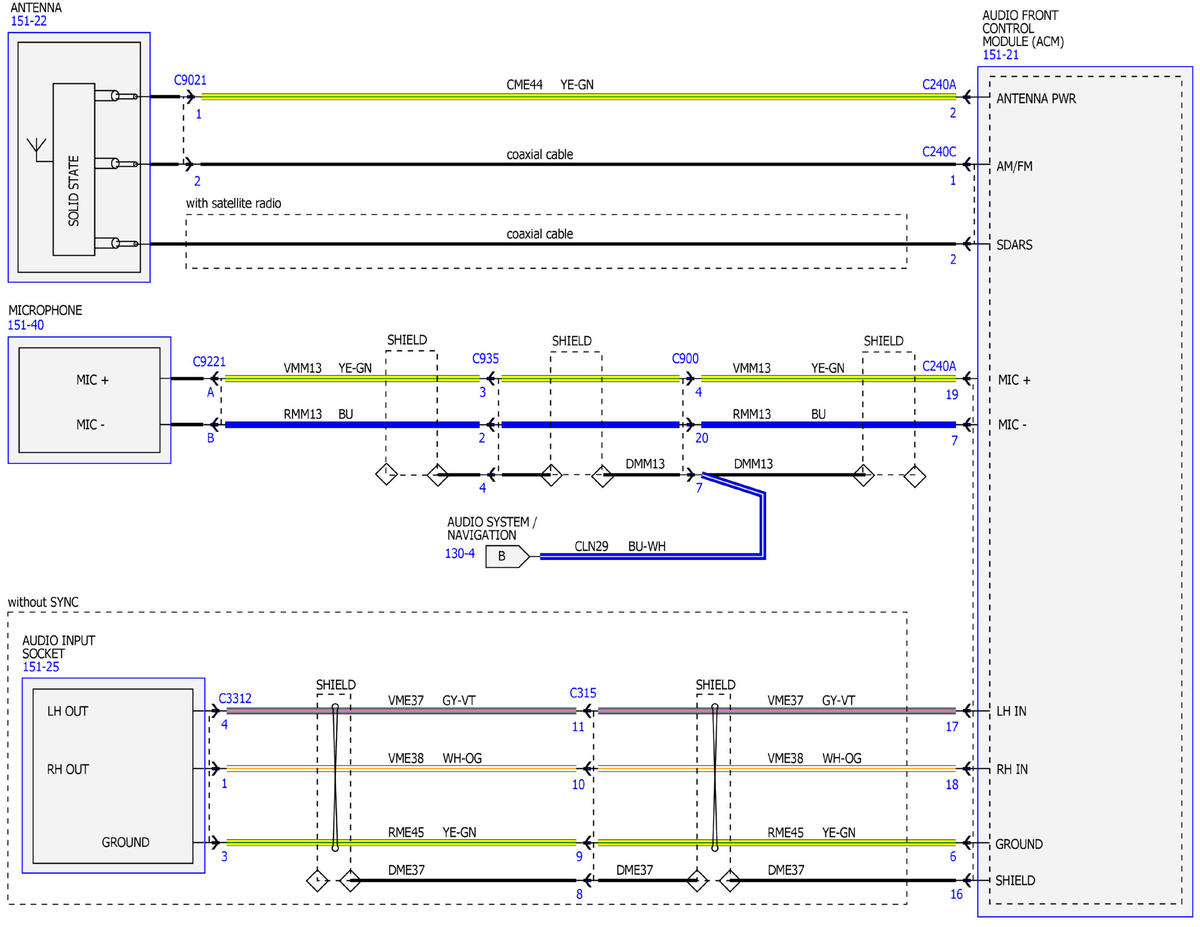

Fig 12: Audio System/Navigation Wiring Diagram (12 of 21)

GFDWR19591

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation Wiring Diagram (13 of 21)

GFDWR19592

Courtesy of FORD MOTOR COMPANY

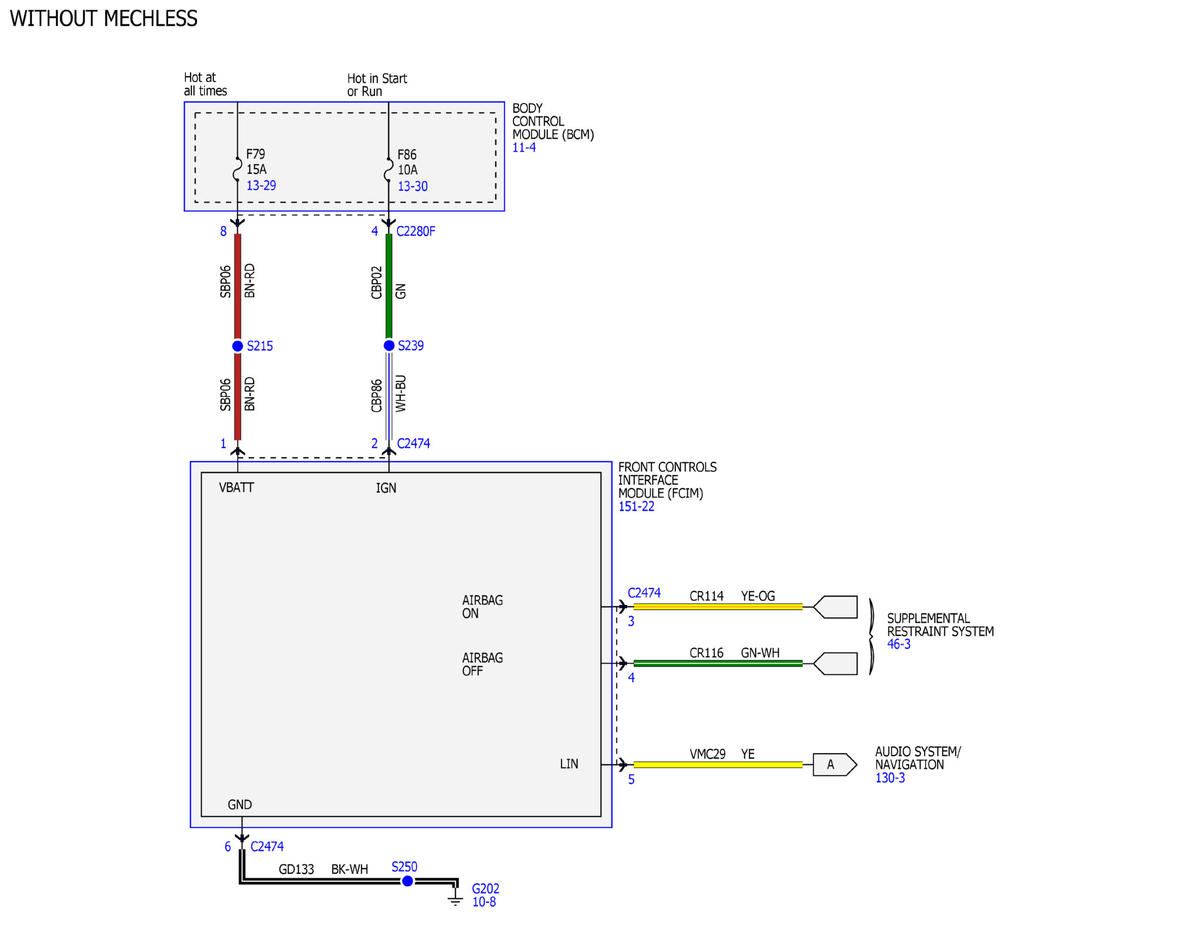

Fig 14: Audio System/Navigation Wiring Diagram (14 of 21)

GFDWR19593

Courtesy of FORD MOTOR COMPANY

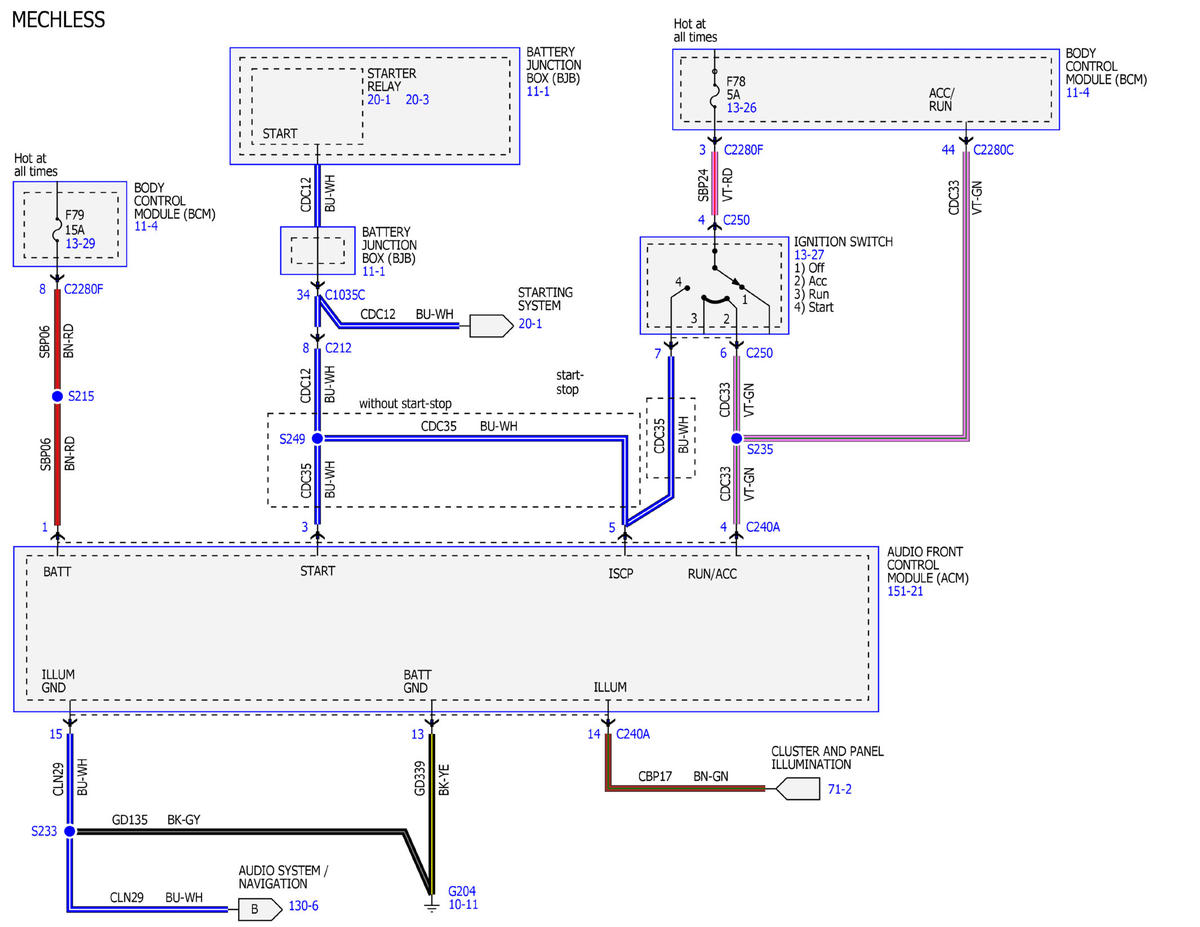

Fig 15: Audio System/Navigation Wiring Diagram (15 of 21)

GFDWR19594

Courtesy of FORD MOTOR COMPANY

Fig 16: Audio System/Navigation Wiring Diagram (16 of 21)

GFDWR19595

Courtesy of FORD MOTOR COMPANY

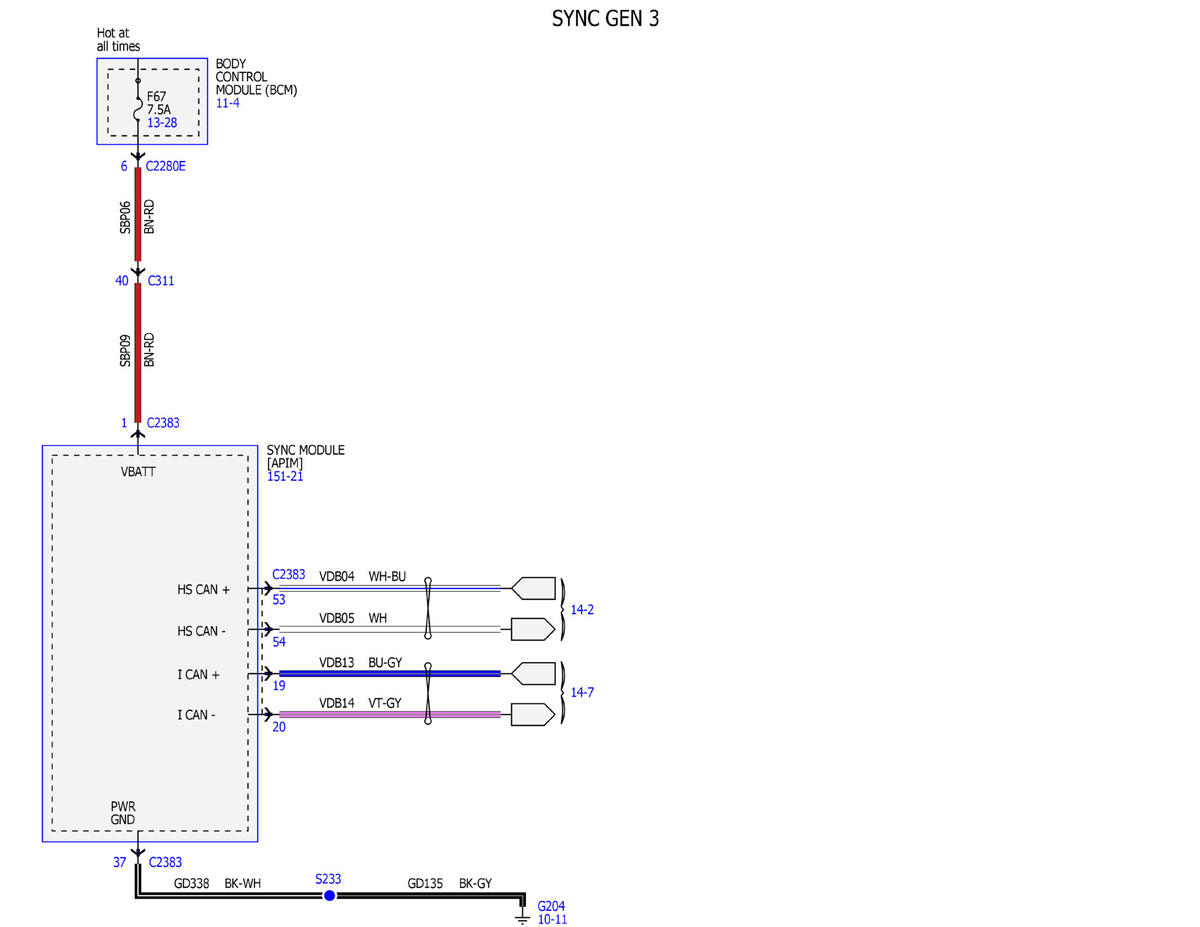

Fig 17: Audio System/Navigation Wiring Diagram (17 of 21)

GFDWR19596

Courtesy of FORD MOTOR COMPANY

Fig 18: Audio System/Navigation Wiring Diagram (18 of 21)

GFDWR19597

Courtesy of FORD MOTOR COMPANY

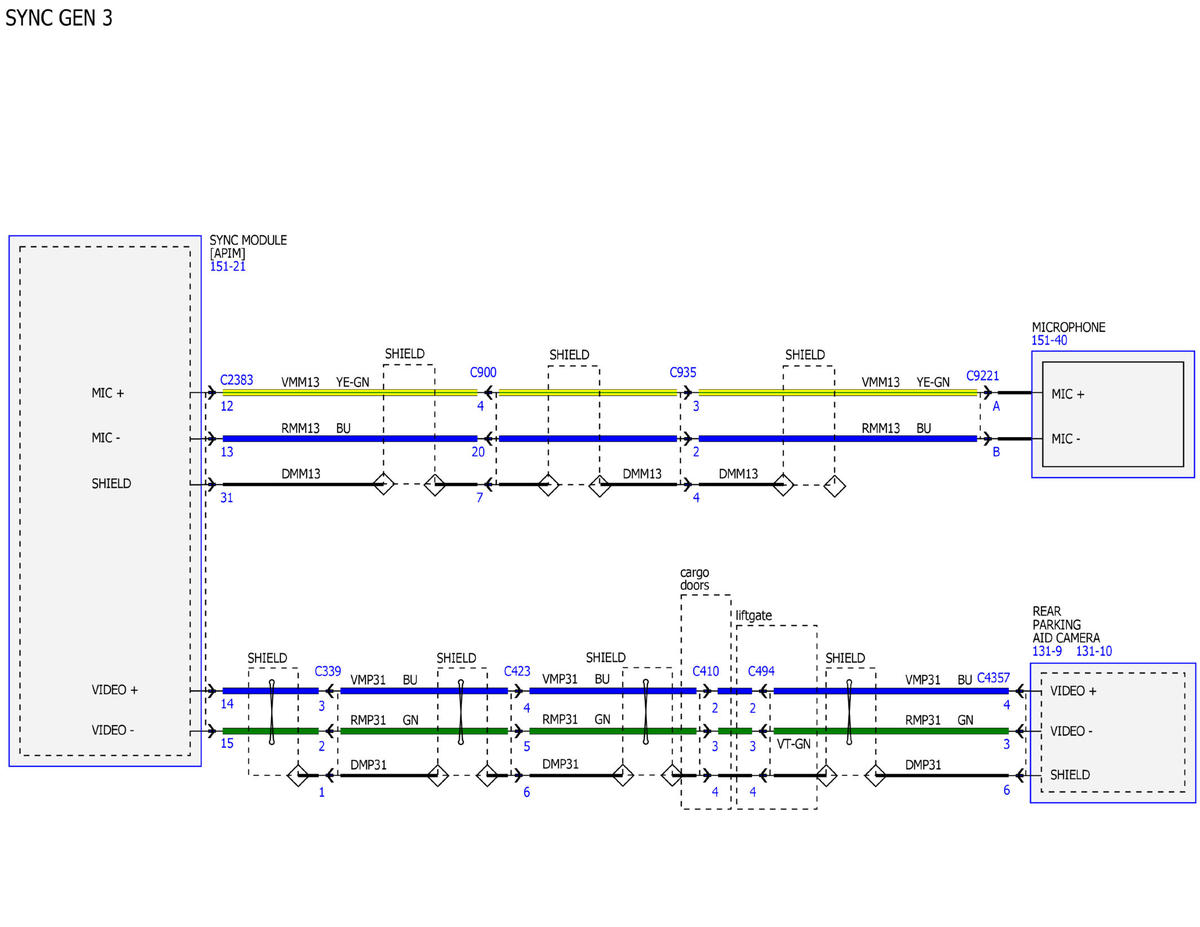

Fig 19: Audio System/Navigation Wiring Diagram (19 of 21)

GFDWR19598

Courtesy of FORD MOTOR COMPANY

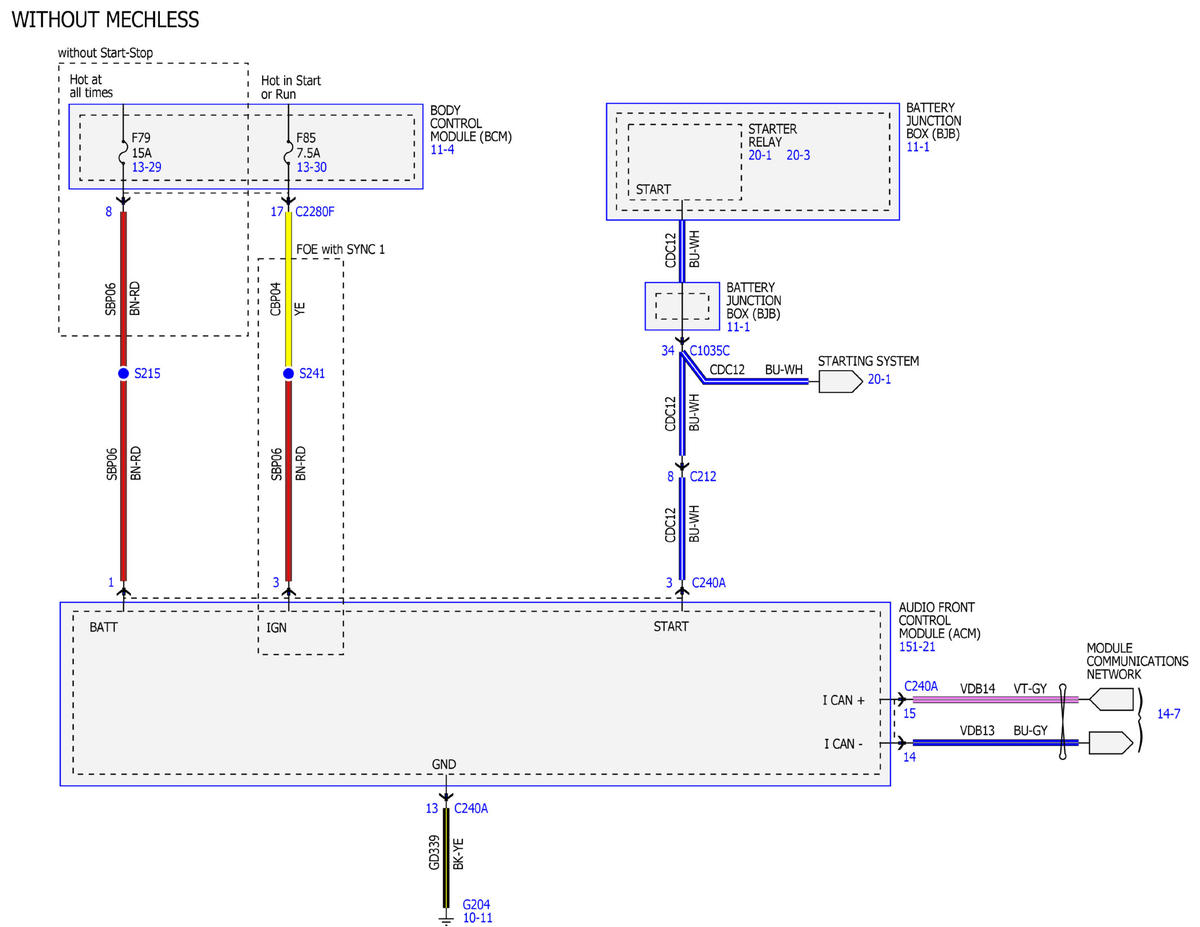

Fig 20: Audio System/Navigation Wiring Diagram (20 of 21)

GFDWR19599

Courtesy of FORD MOTOR COMPANY

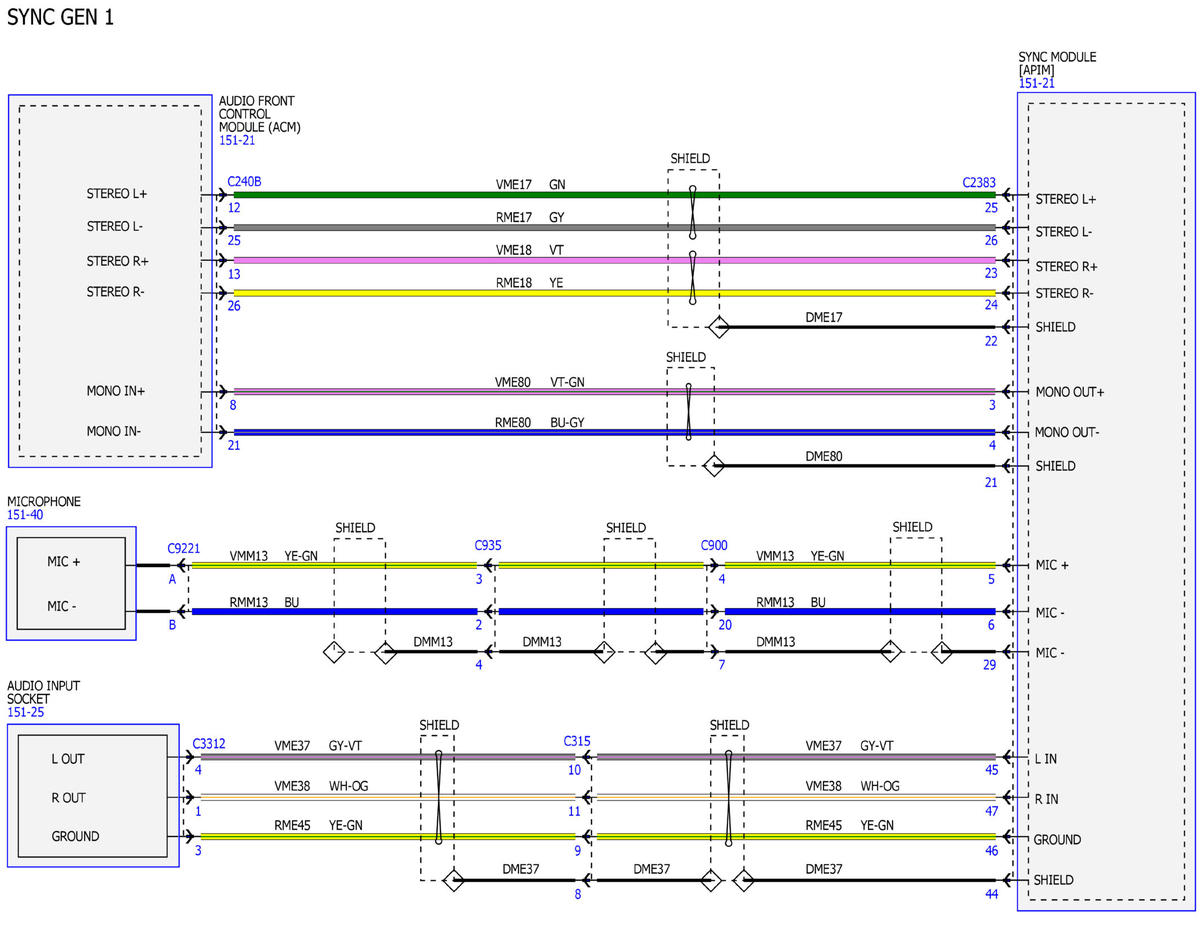

Fig 21: Audio System/Navigation Wiring Diagram (21 of 21)

GFDWR19600

Courtesy of FORD MOTOR COMPANY
