Auxiliary Climate Control

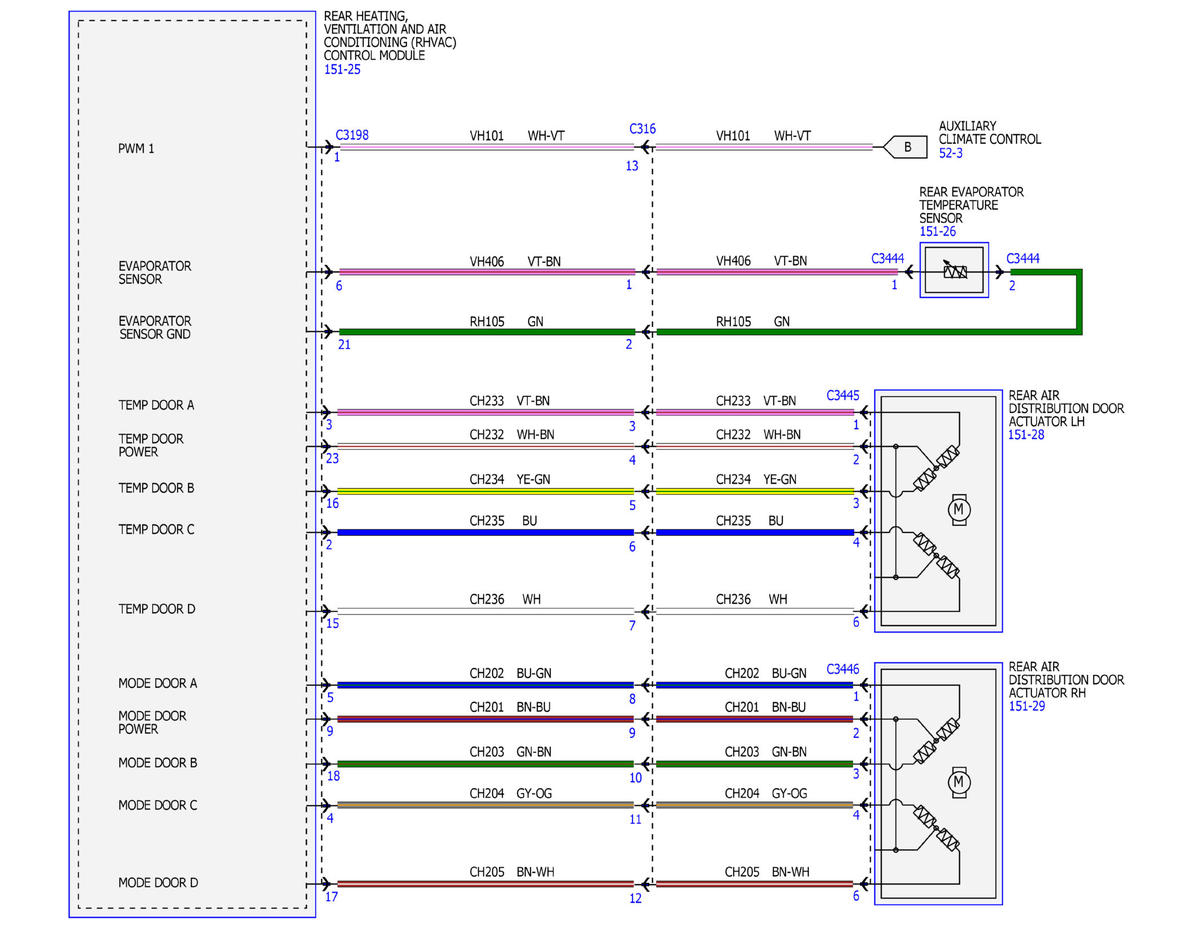

Fig 1: Auxiliary Climate Control Wiring Diagram (1 of 5)
GFDWR19613Courtesy of FORD MOTOR COMPANY

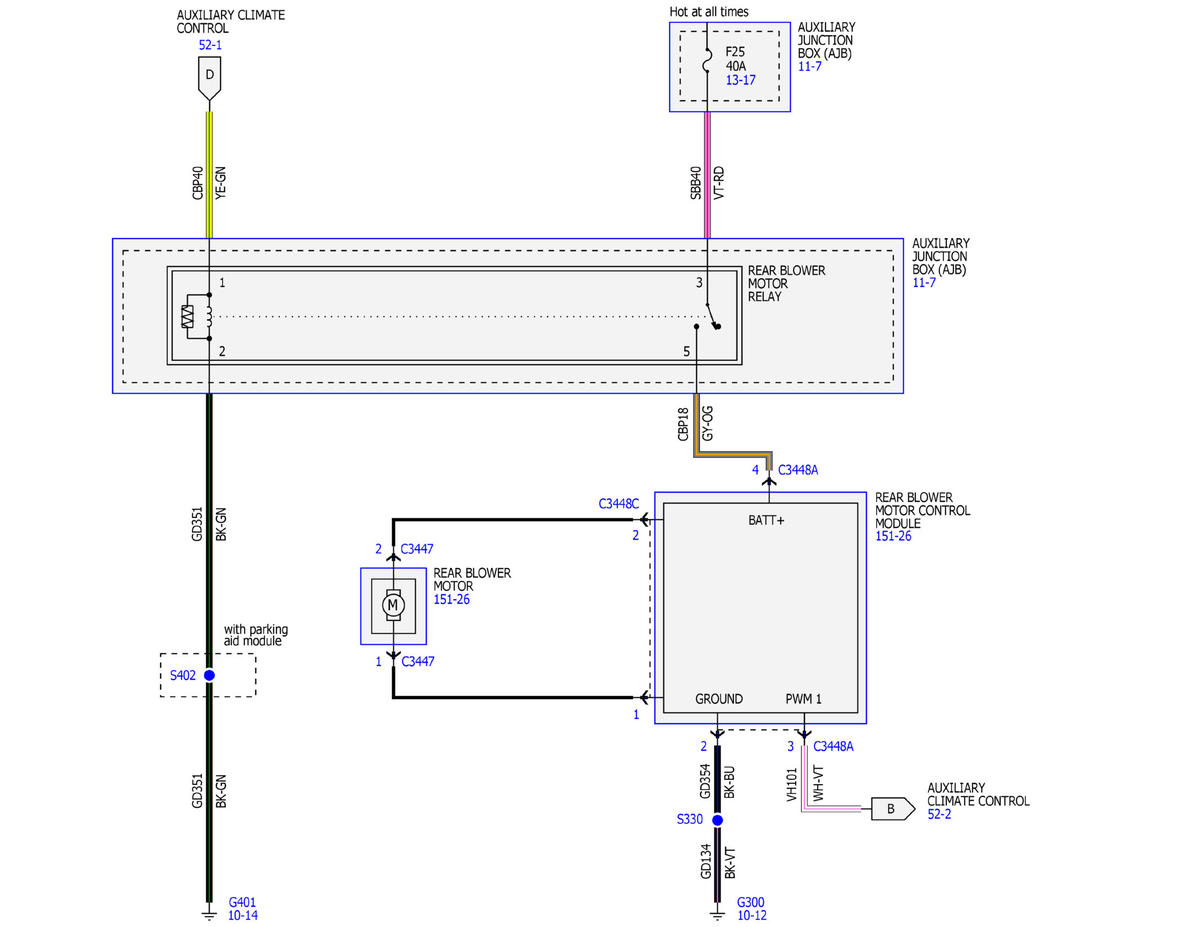

Fig 2: Auxiliary Climate Control Wiring Diagram (2 of 5)
GFDWR19614Courtesy of FORD MOTOR COMPANY

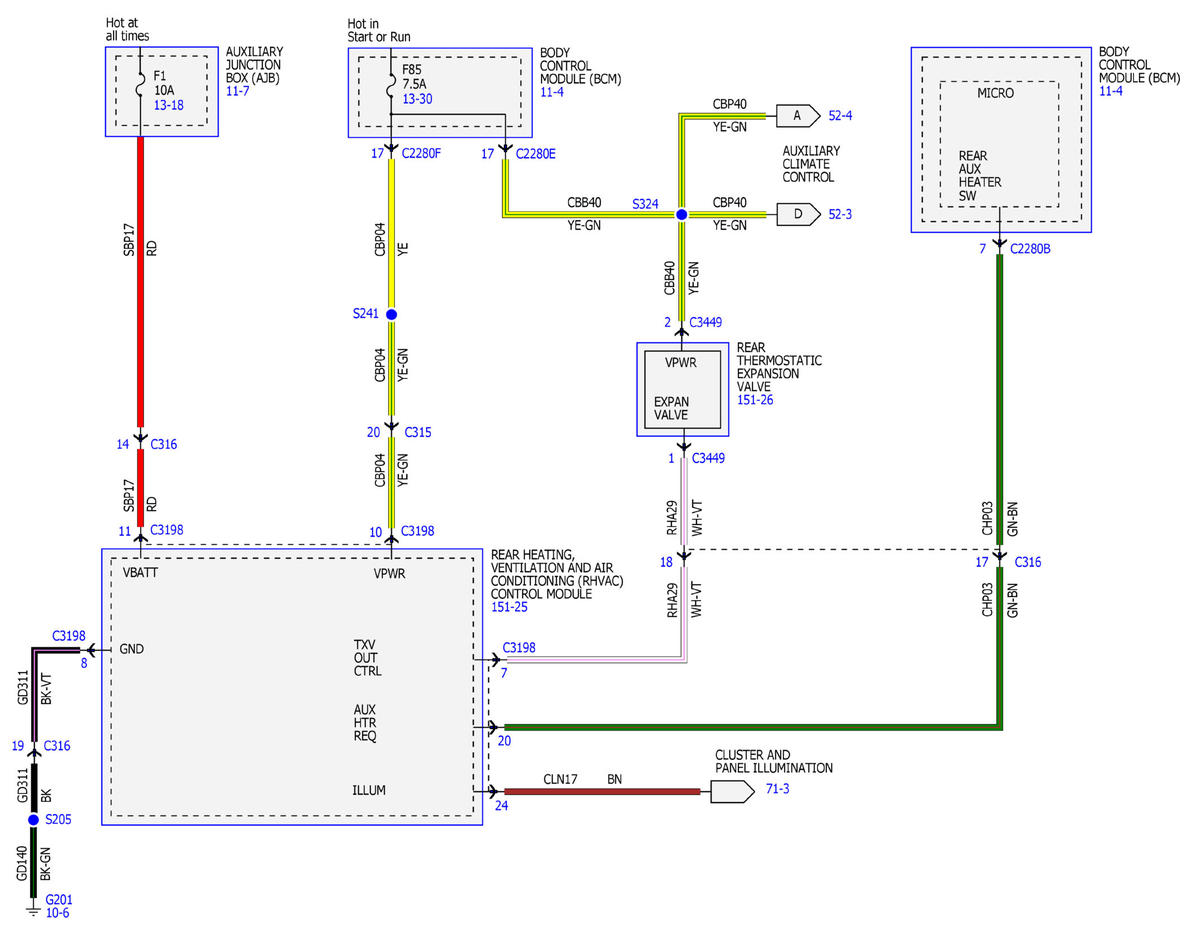

Fig 3: Auxiliary Climate Control Wiring Diagram (3 of 5)
GFDWR19615Courtesy of FORD MOTOR COMPANY

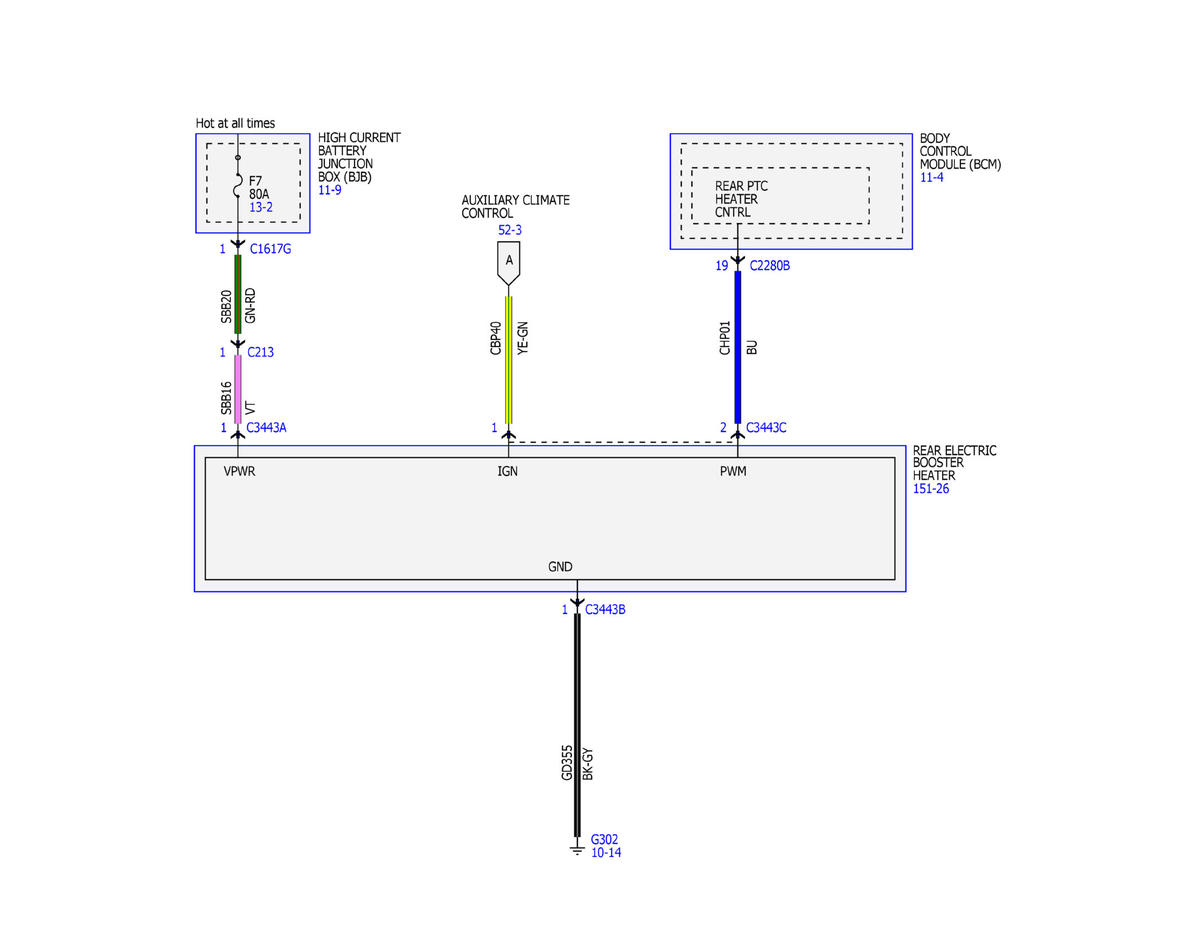

Fig 4: Auxiliary Climate Control Wiring Diagram (4 of 5)
GFDWR19616Courtesy of FORD MOTOR COMPANY

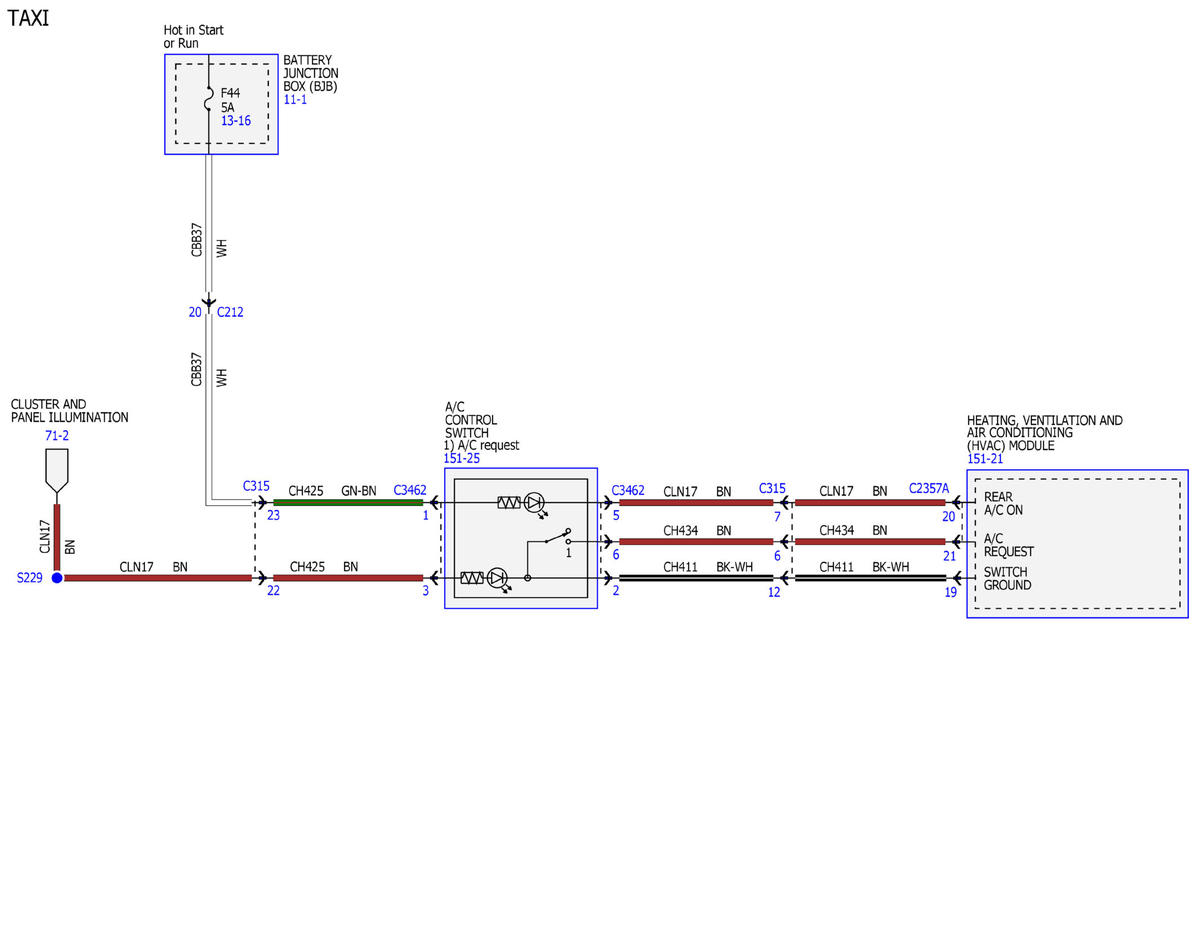

Fig 5: Auxiliary Climate Control Wiring Diagram (5 of 5)
GFDWR19617Courtesy of FORD MOTOR COMPANY
