Charging System
Charging System

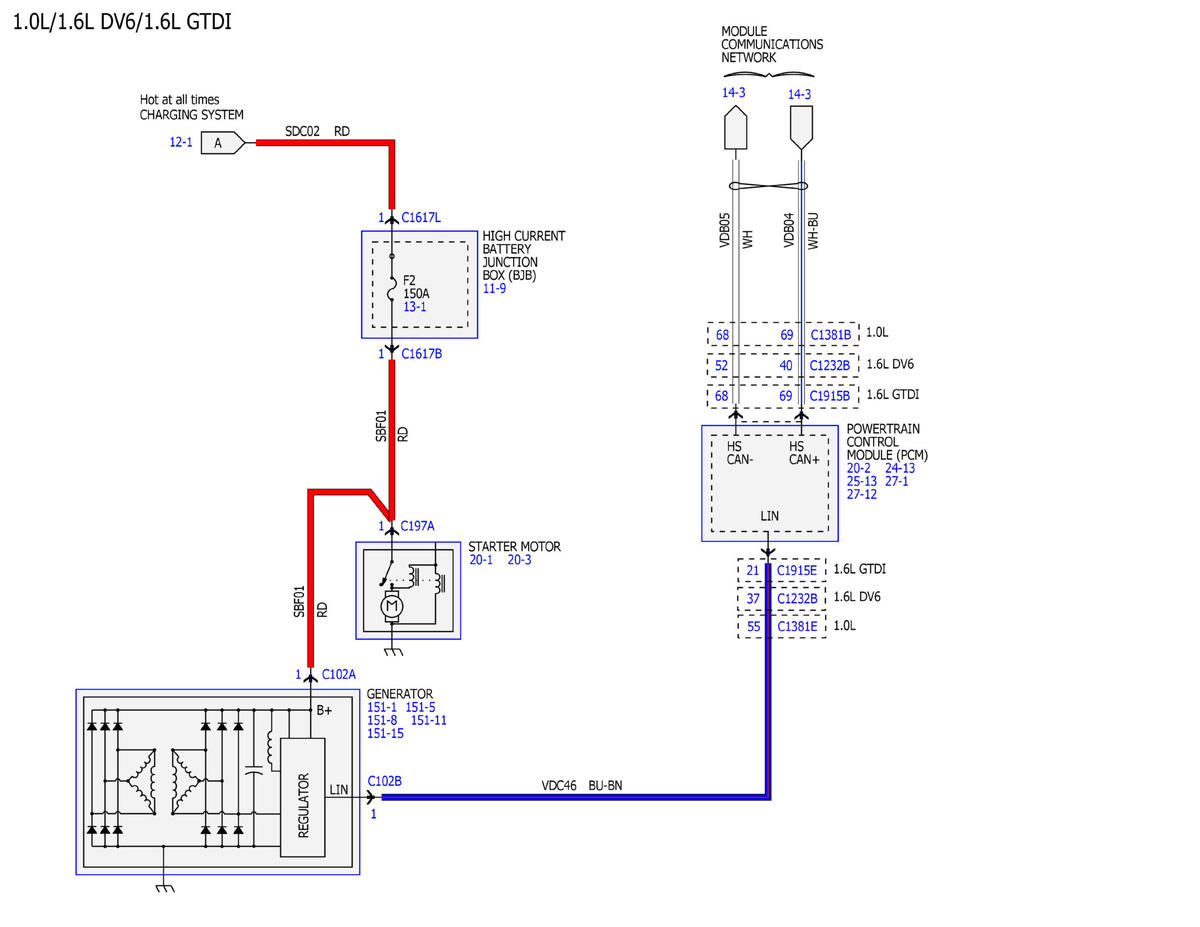

Fig 1: Charging System Wiring Diagram (1 of 4)
Courtesy of FORD MOTOR COMPANY

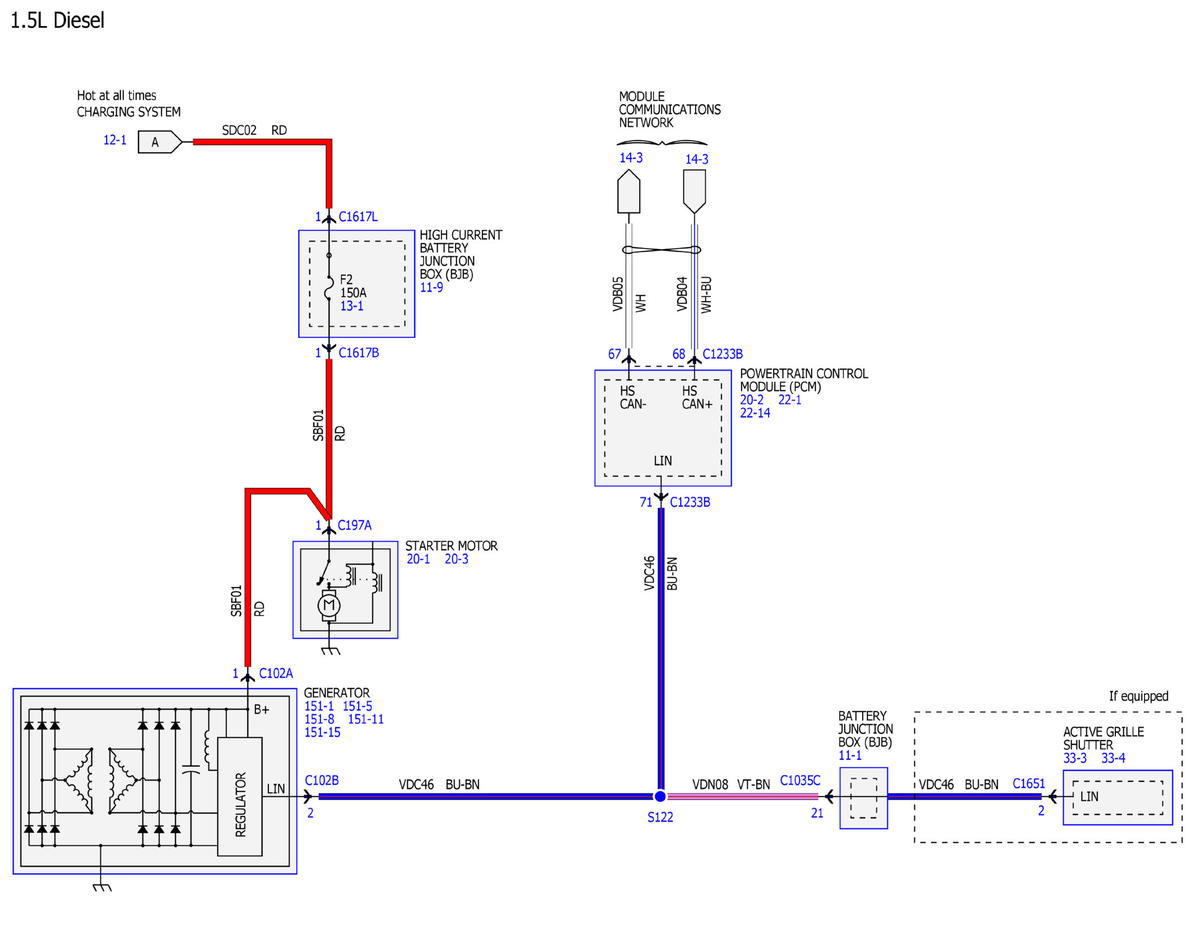

Fig 2: Charging System Wiring Diagram (2 of 4)
Courtesy of FORD MOTOR COMPANY

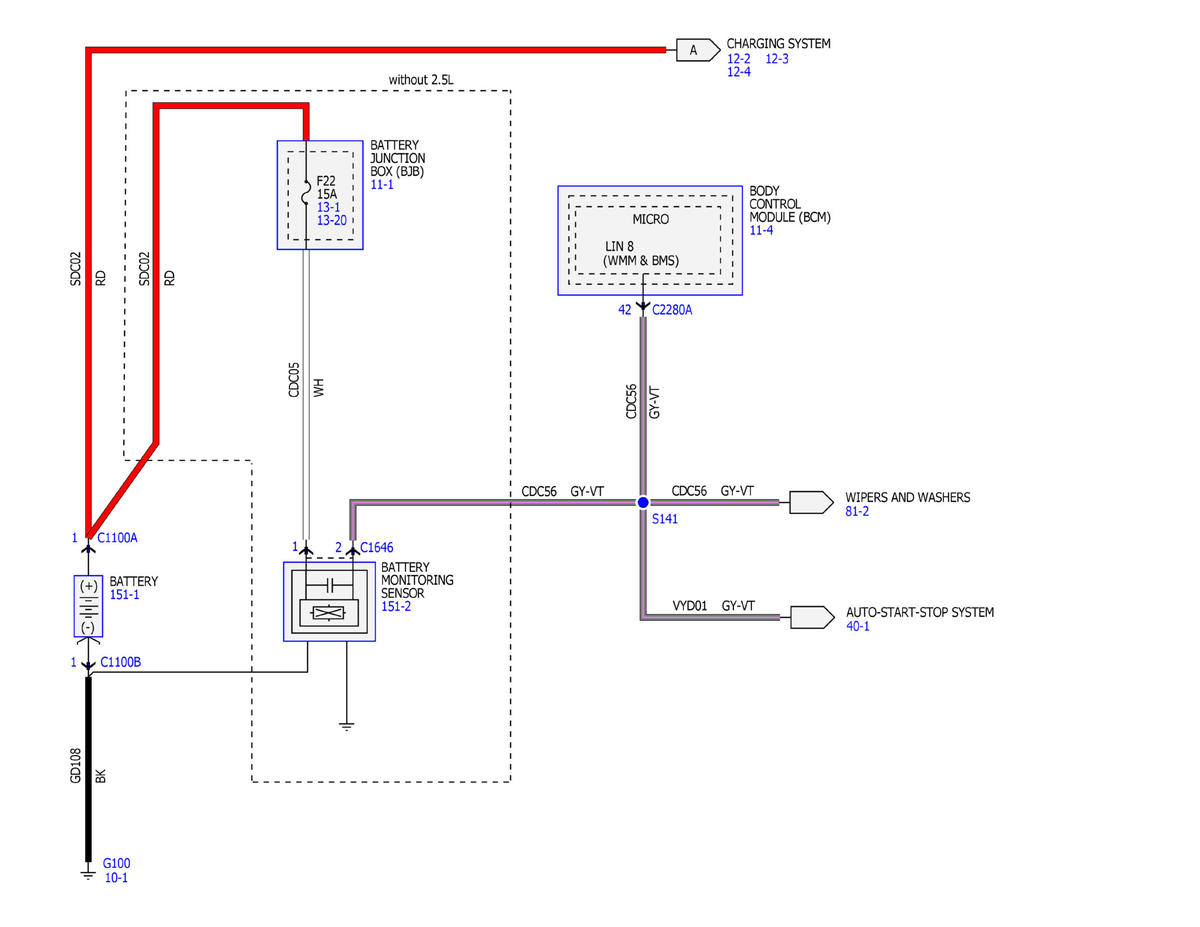

Fig 3: Charging System Wiring Diagram (3 of 4)
Courtesy of FORD MOTOR COMPANY

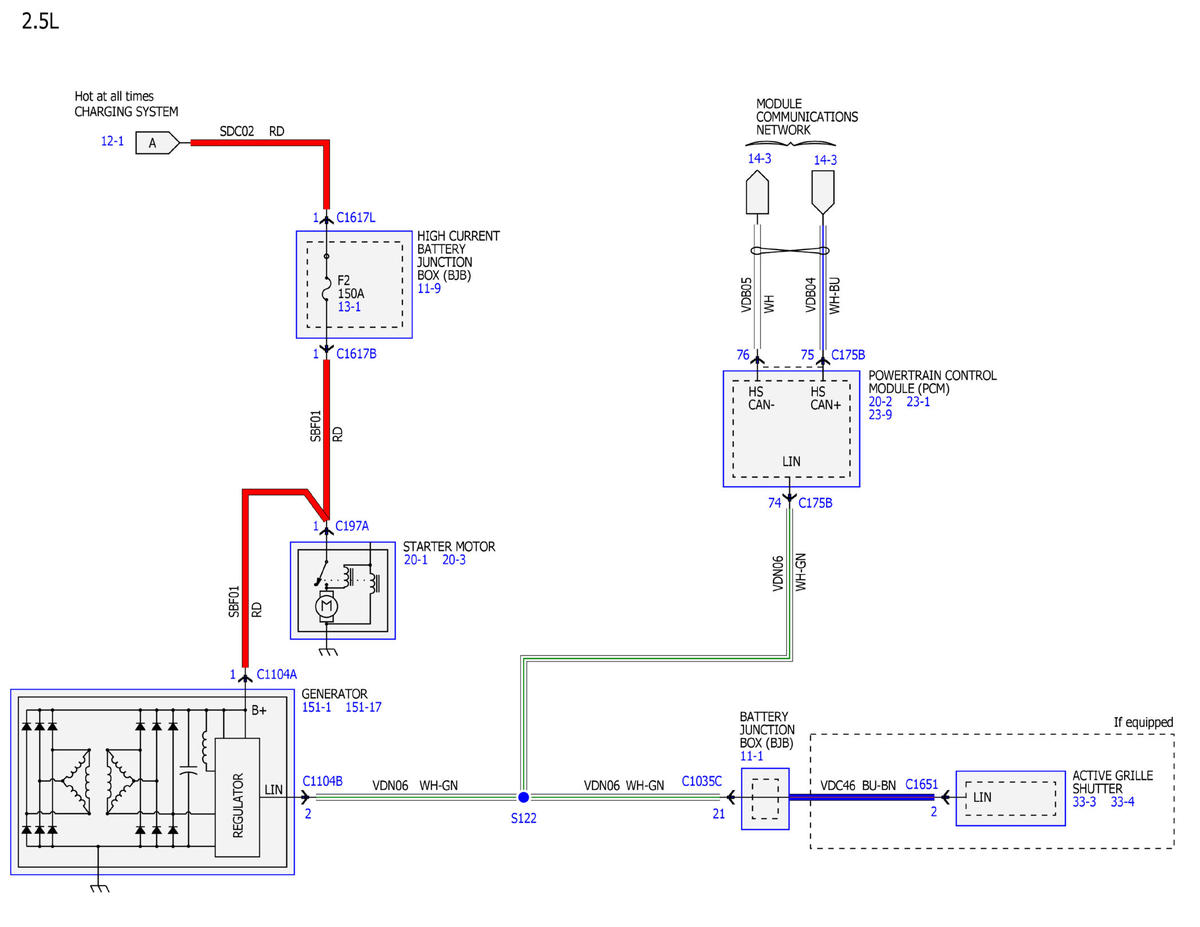

Fig 4: Charging System Wiring Diagram (4 of 4)
Courtesy of FORD MOTOR COMPANY
