Power Windows

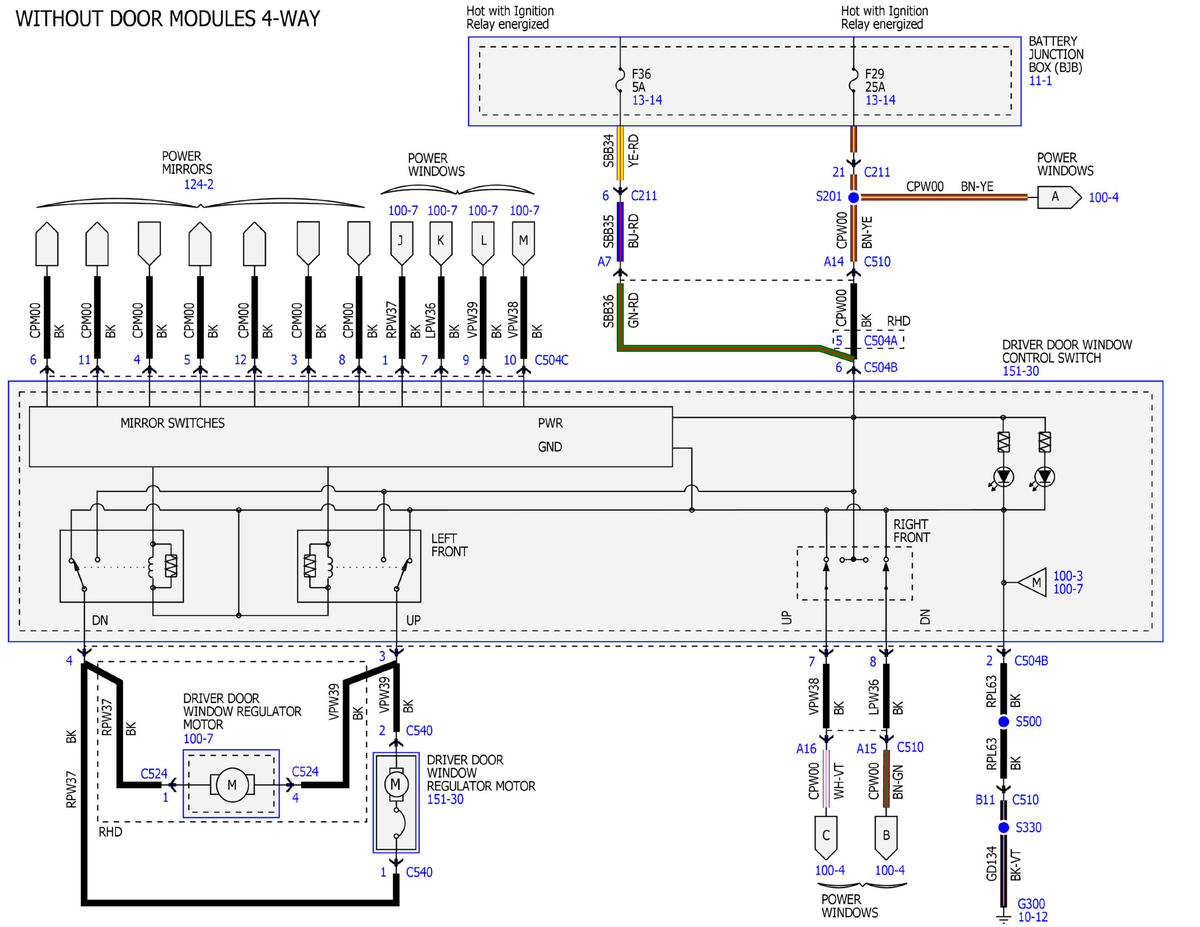

Fig 1: Power Windows Wiring Diagram (1 of 15)

GFDWR19817

Courtesy of FORD MOTOR COMPANY

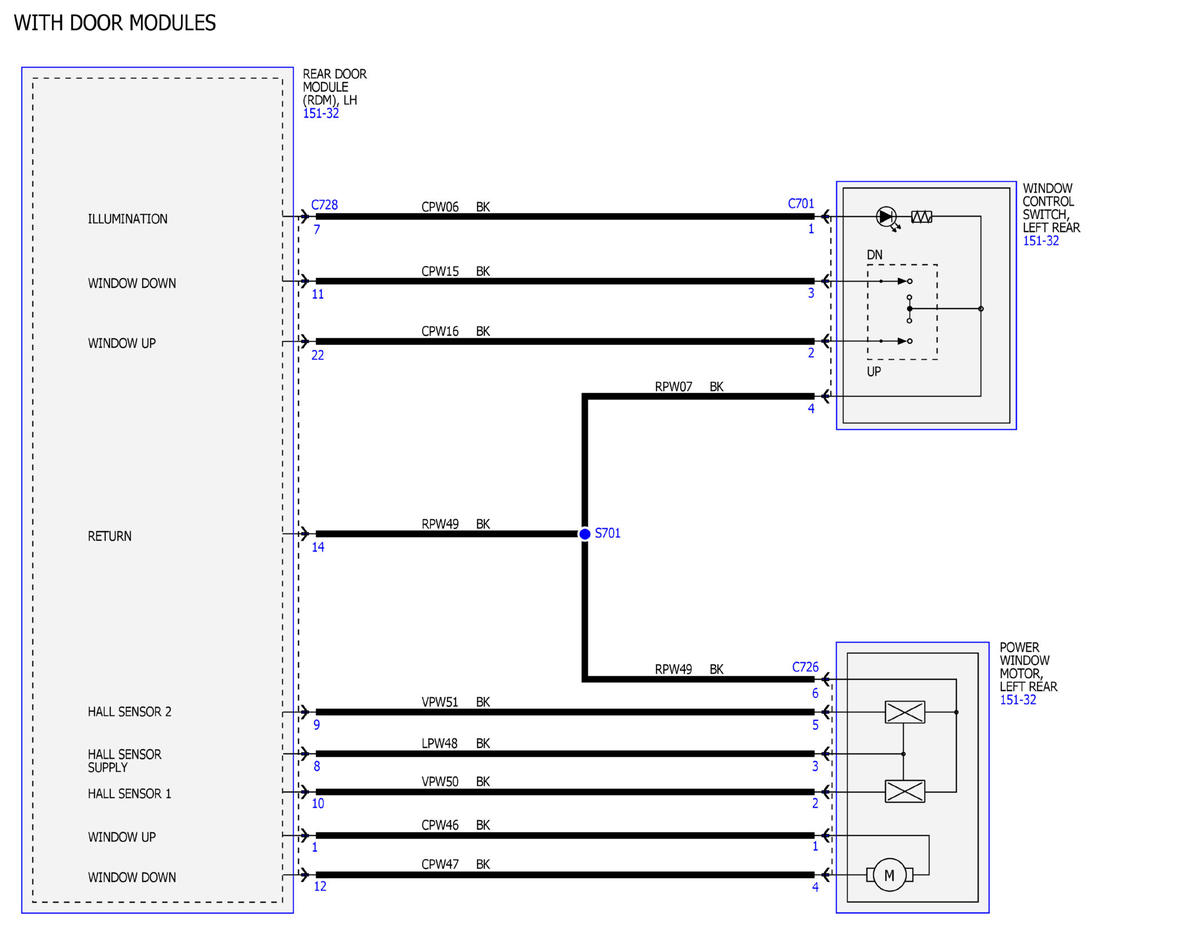

Fig 2: Power Windows Wiring Diagram (2 of 15)

GFDWR19818

Courtesy of FORD MOTOR COMPANY

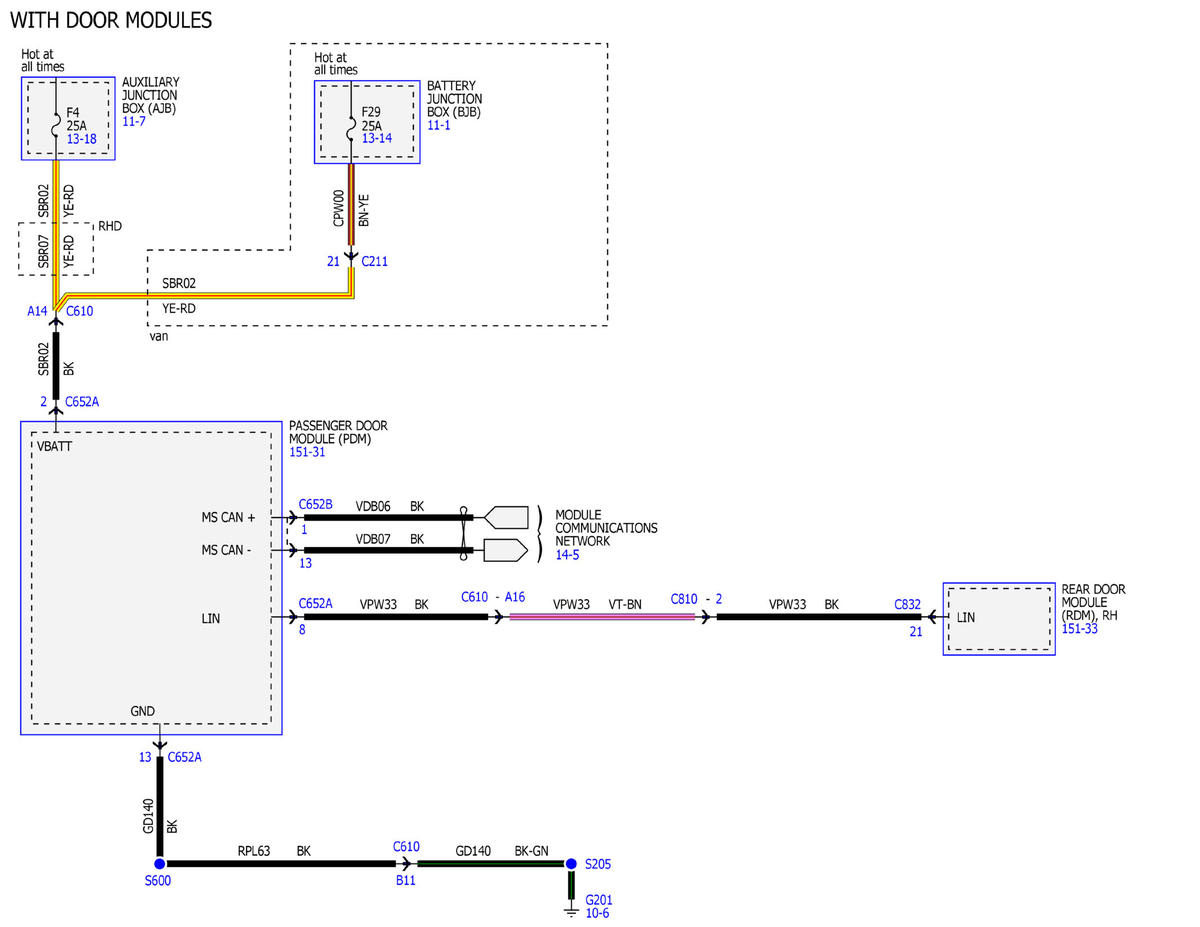

Fig 3: Power Windows Wiring Diagram (3 of 15)

GFDWR19819

Courtesy of FORD MOTOR COMPANY

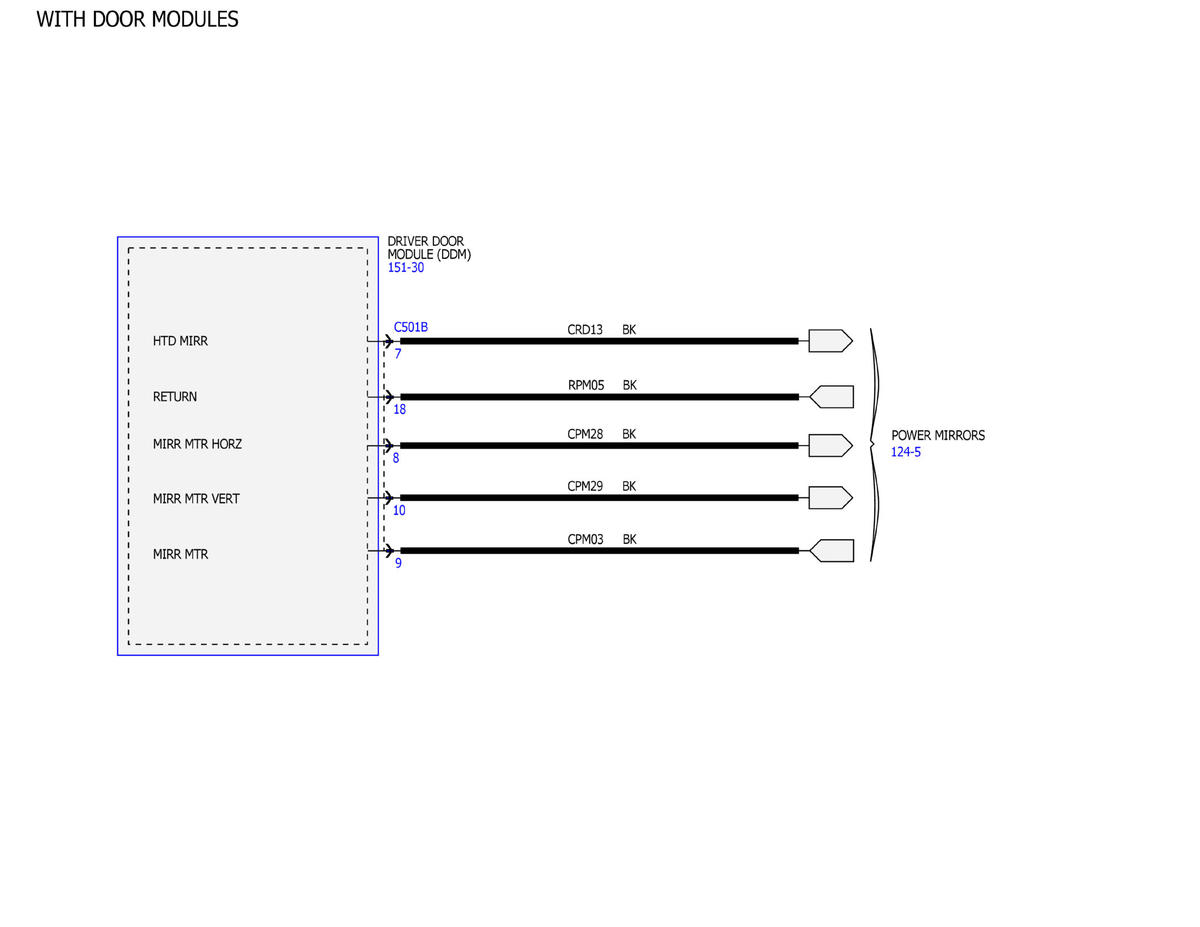

Fig 4: Power Windows Wiring Diagram (4 of 15)

GFDWR19820

Courtesy of FORD MOTOR COMPANY

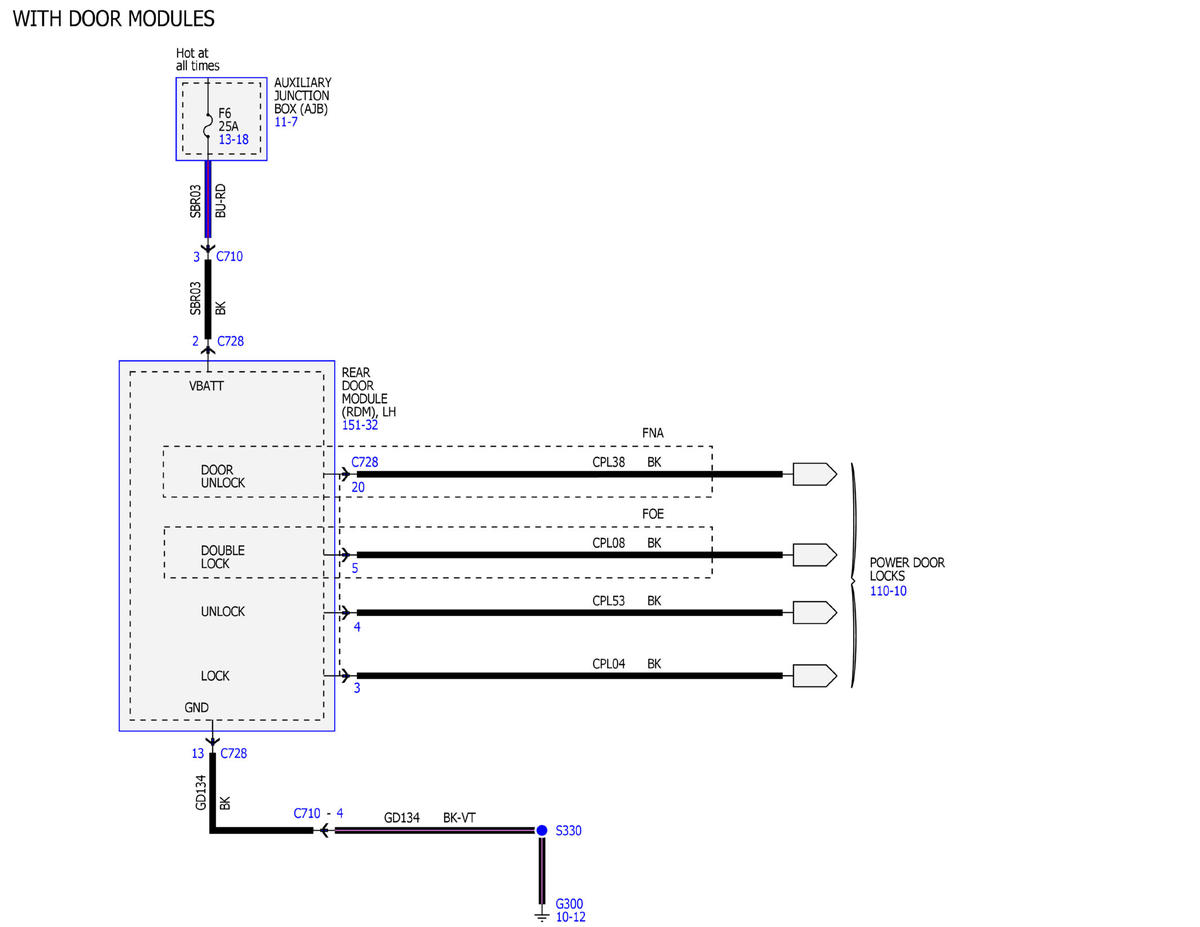

Fig 5: Power Windows Wiring Diagram (5 of 15)

GFDWR19821

Courtesy of FORD MOTOR COMPANY

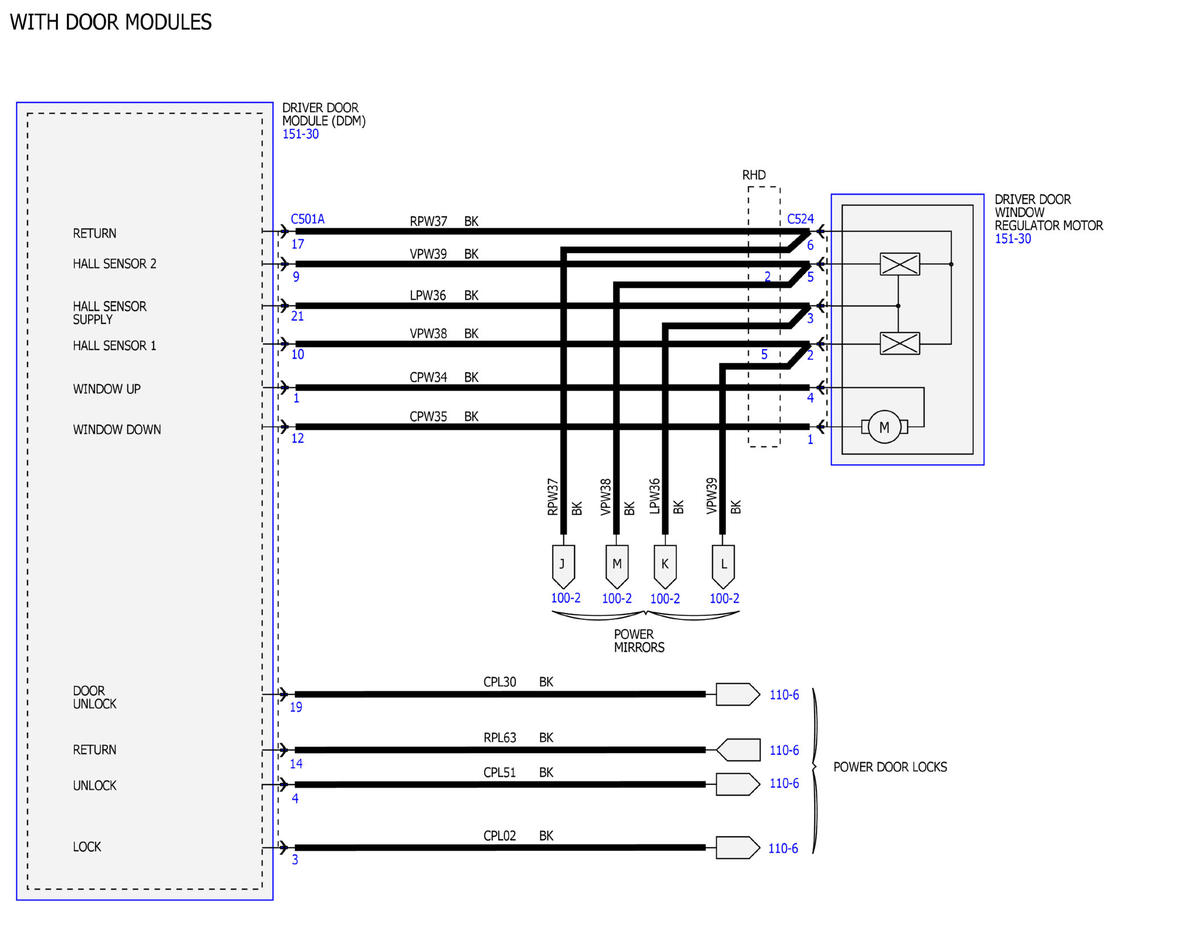

Fig 6: Power Windows Wiring Diagram (6 of 15)

GFDWR19822

Courtesy of FORD MOTOR COMPANY

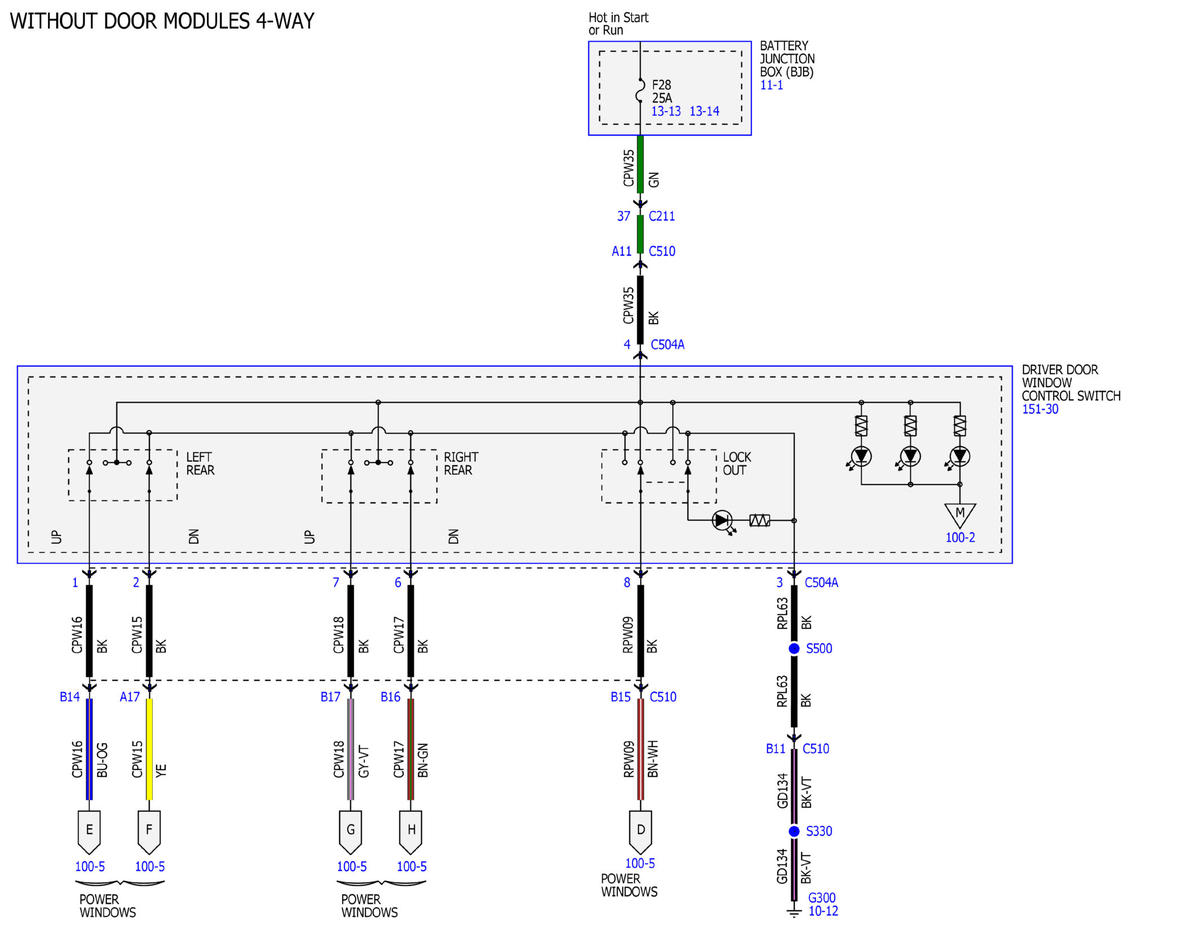

Fig 7: Power Windows Wiring Diagram (7 of 15)

GFDWR19823

Courtesy of FORD MOTOR COMPANY

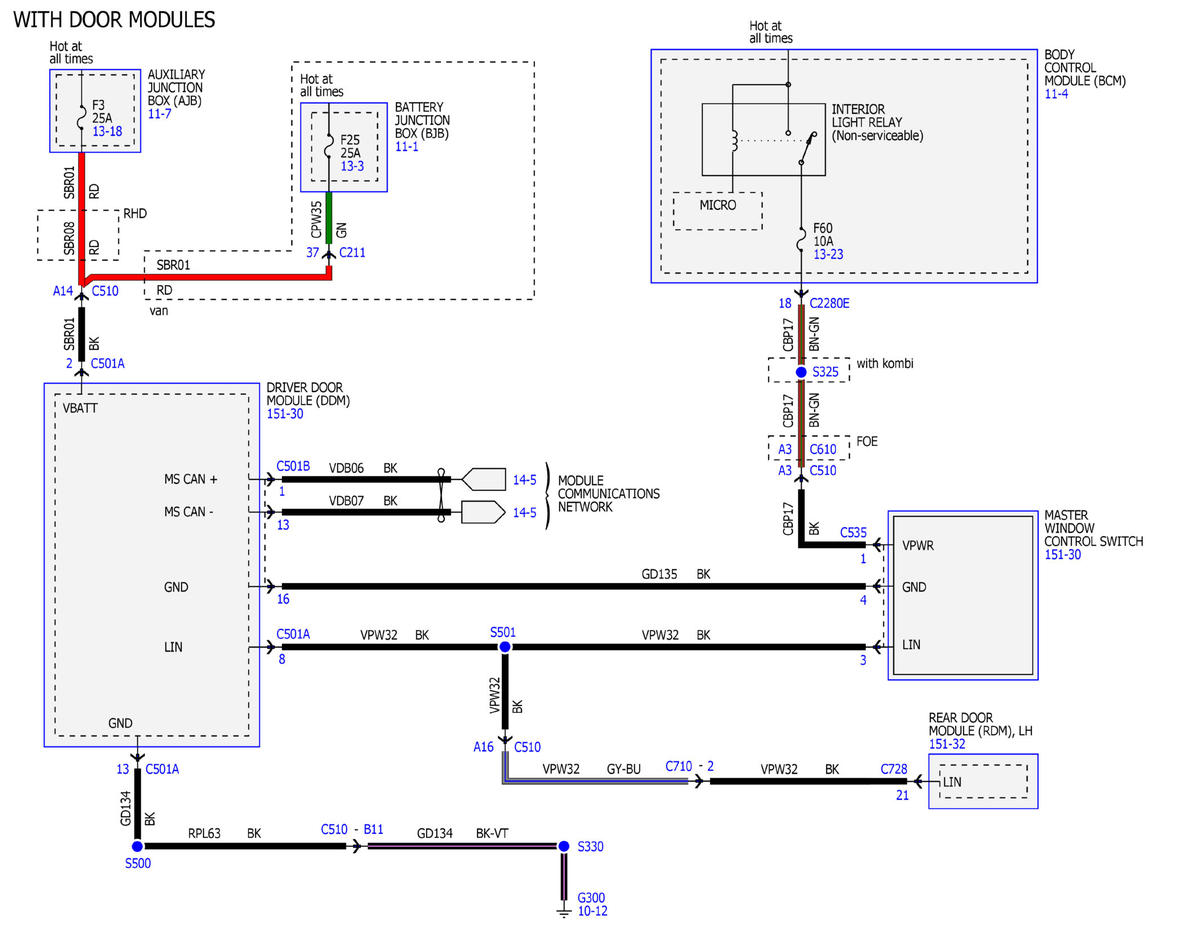

Fig 8: Power Windows Wiring Diagram (8 of 15)

GFDWR19824

Courtesy of FORD MOTOR COMPANY

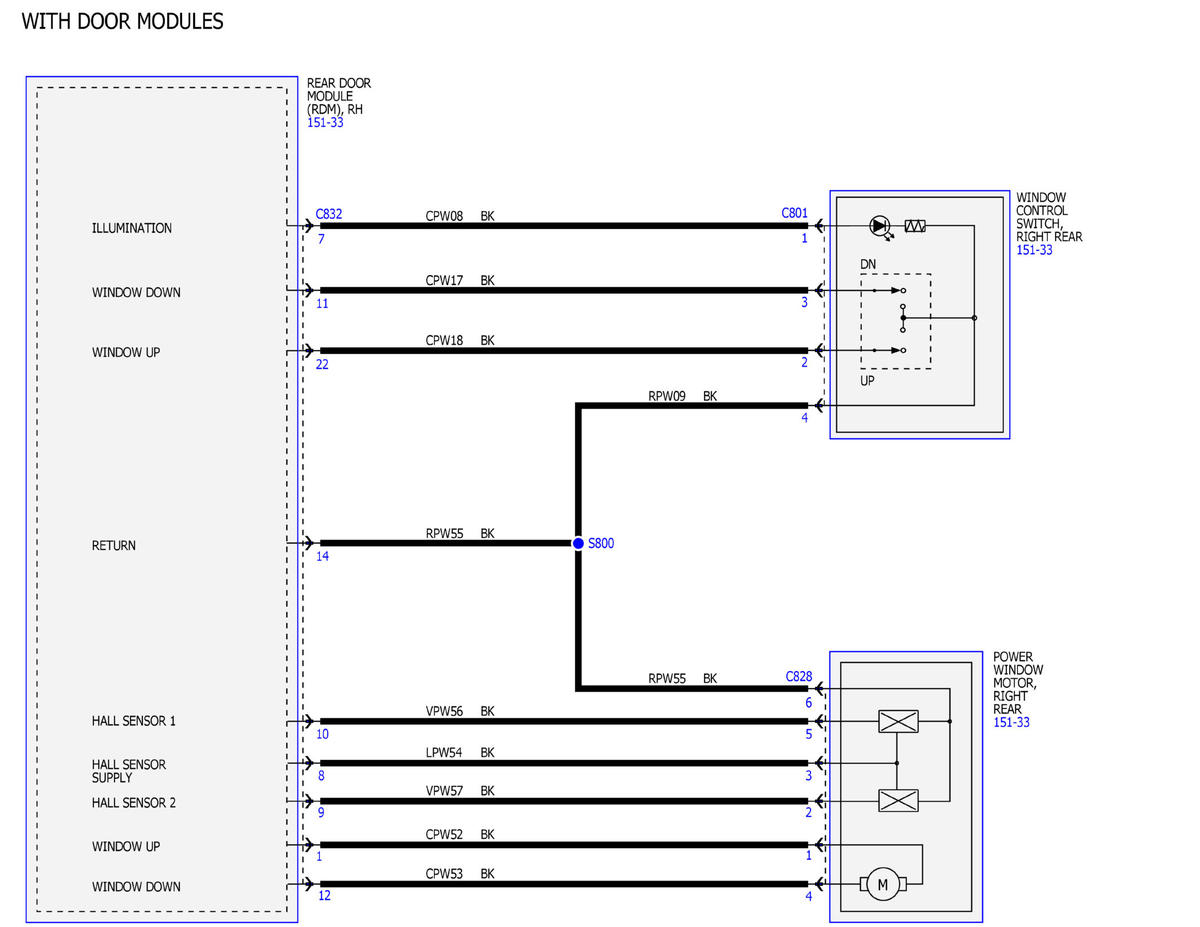

Fig 9: Power Windows Wiring Diagram (9 of 15)

GFDWR19825

Courtesy of FORD MOTOR COMPANY

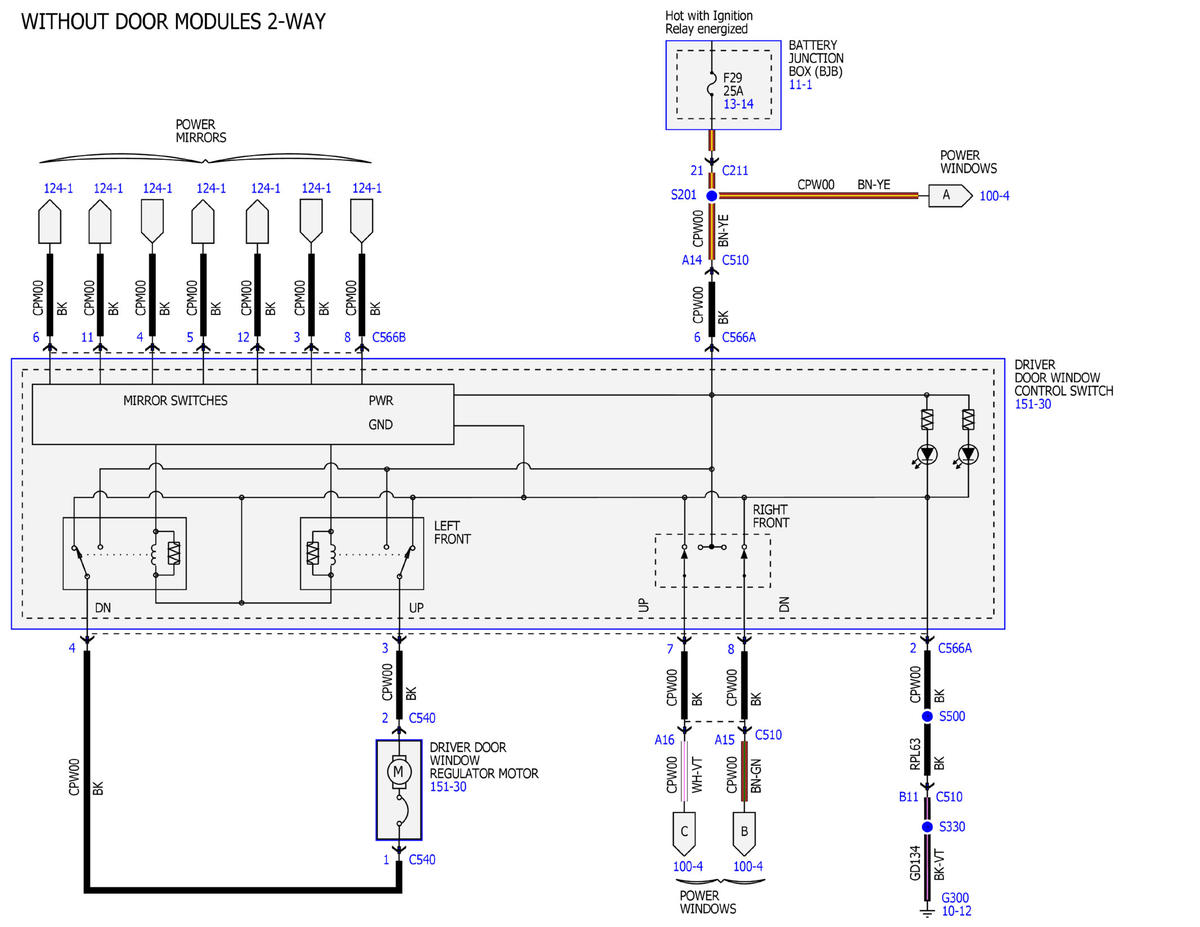

Fig 10: Power Windows Wiring Diagram (10 of 15)

GFDWR19826

Courtesy of FORD MOTOR COMPANY

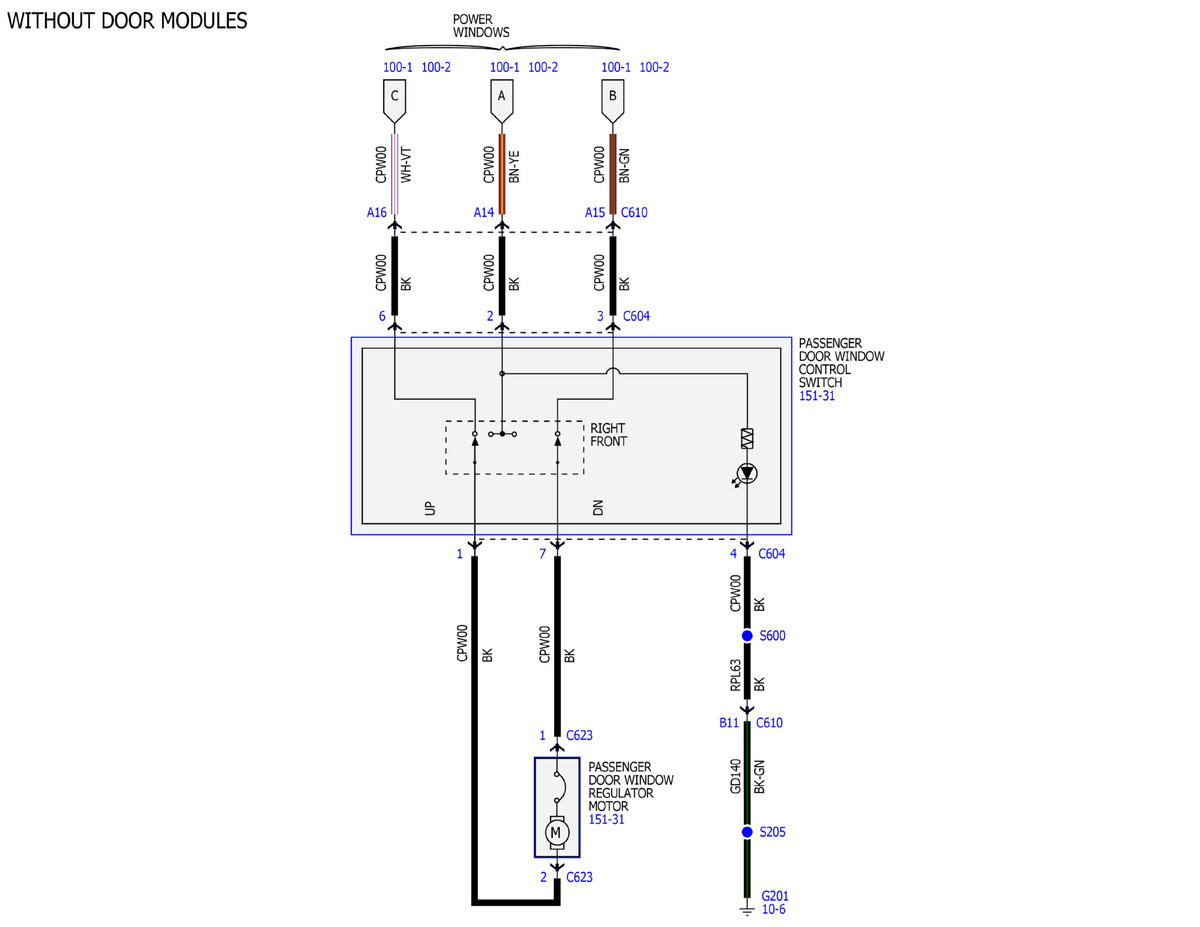

Fig 11: Power Windows Wiring Diagram (11 of 15)

GFDWR19827

Courtesy of FORD MOTOR COMPANY

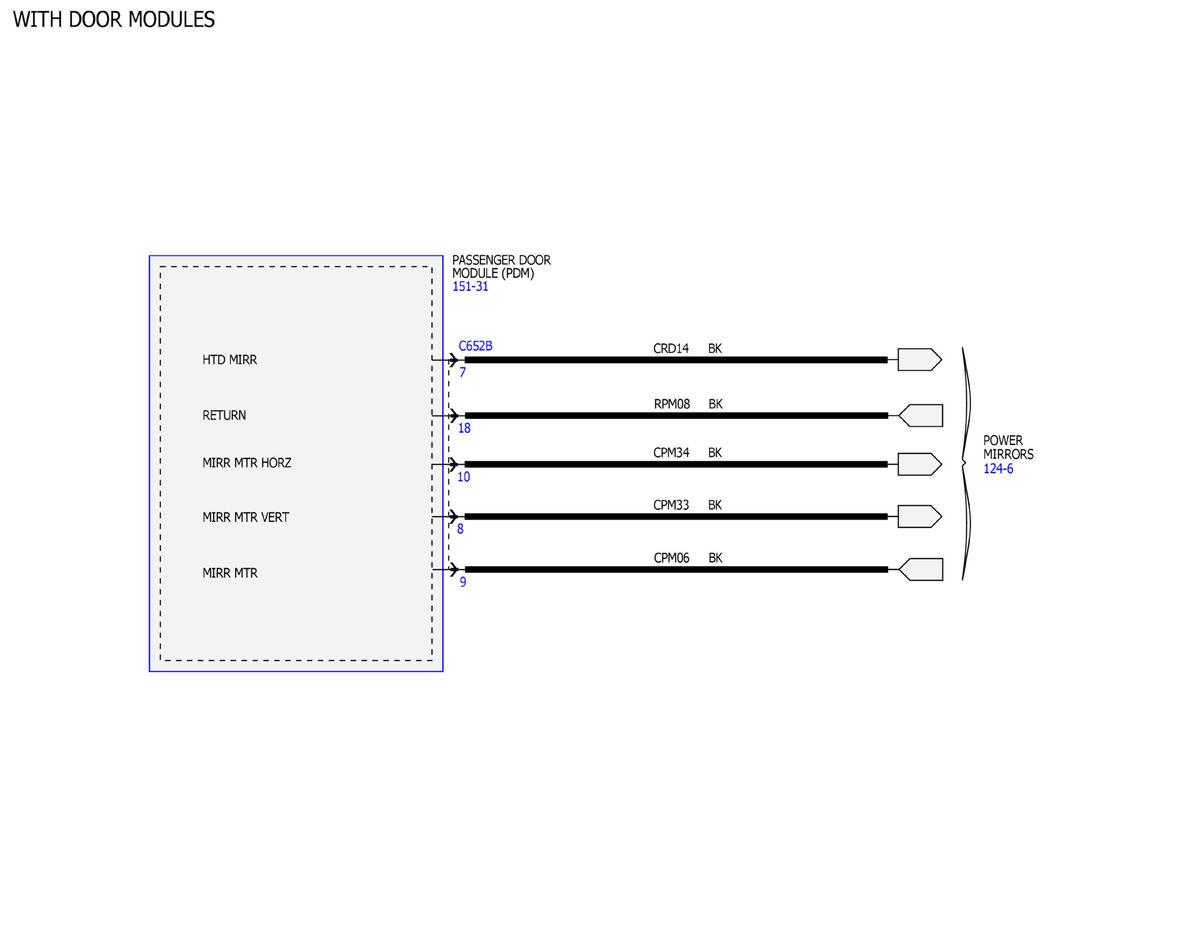

Fig 12: Power Windows Wiring Diagram (12 of 15)

GFDWR19828

Courtesy of FORD MOTOR COMPANY

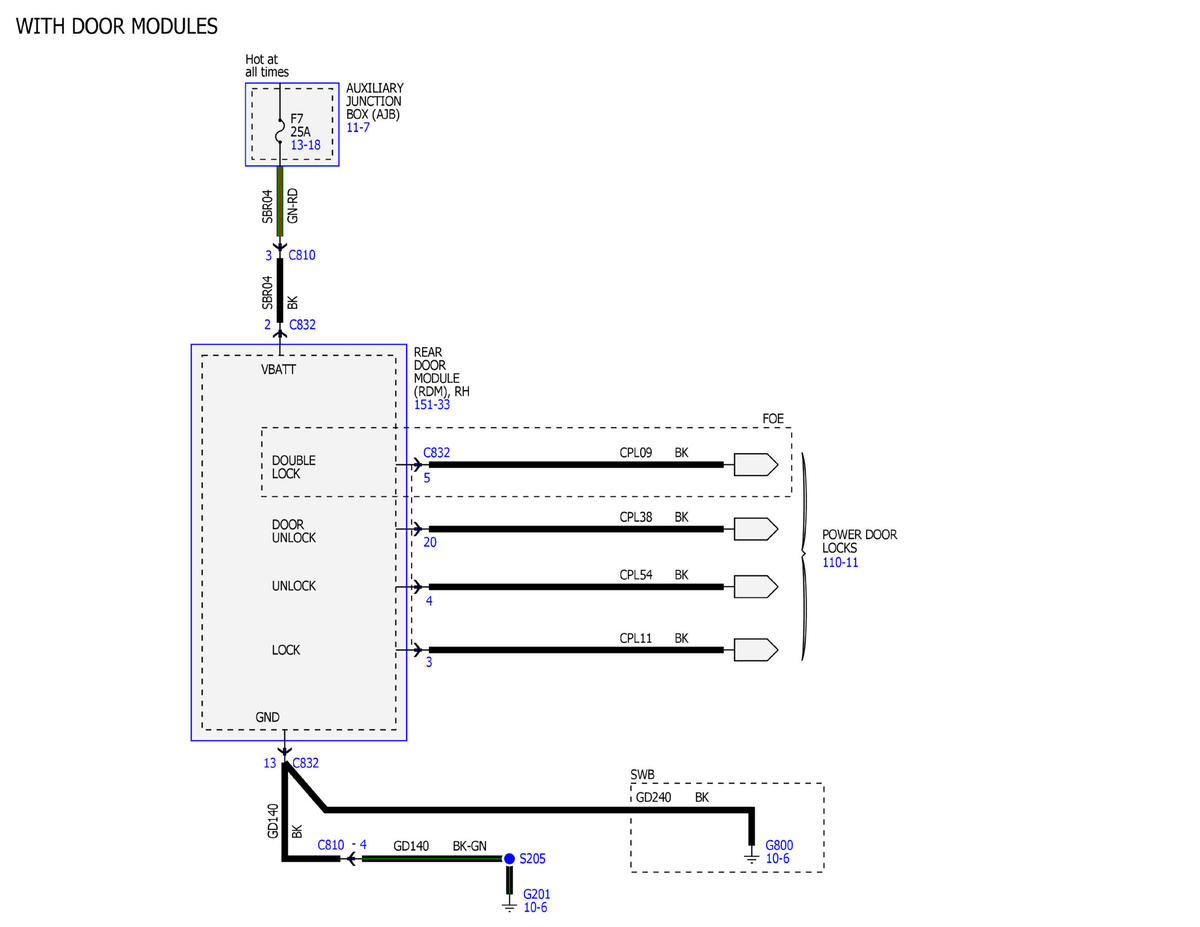

Fig 13: Power Windows Wiring Diagram (13 of 15)

GFDWR19829

Courtesy of FORD MOTOR COMPANY

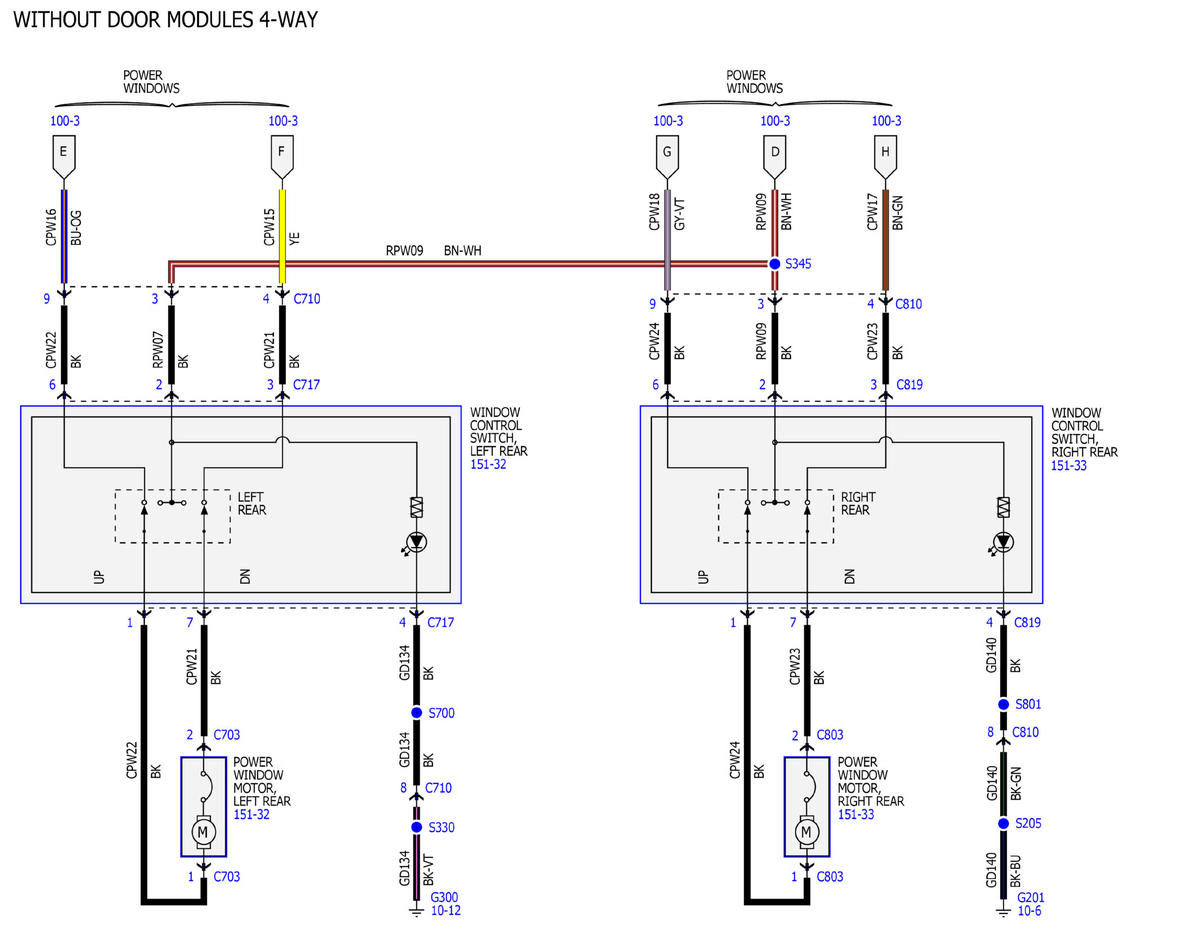

Fig 14: Power Windows Wiring Diagram (14 of 15)

GFDWR19830

Courtesy of FORD MOTOR COMPANY

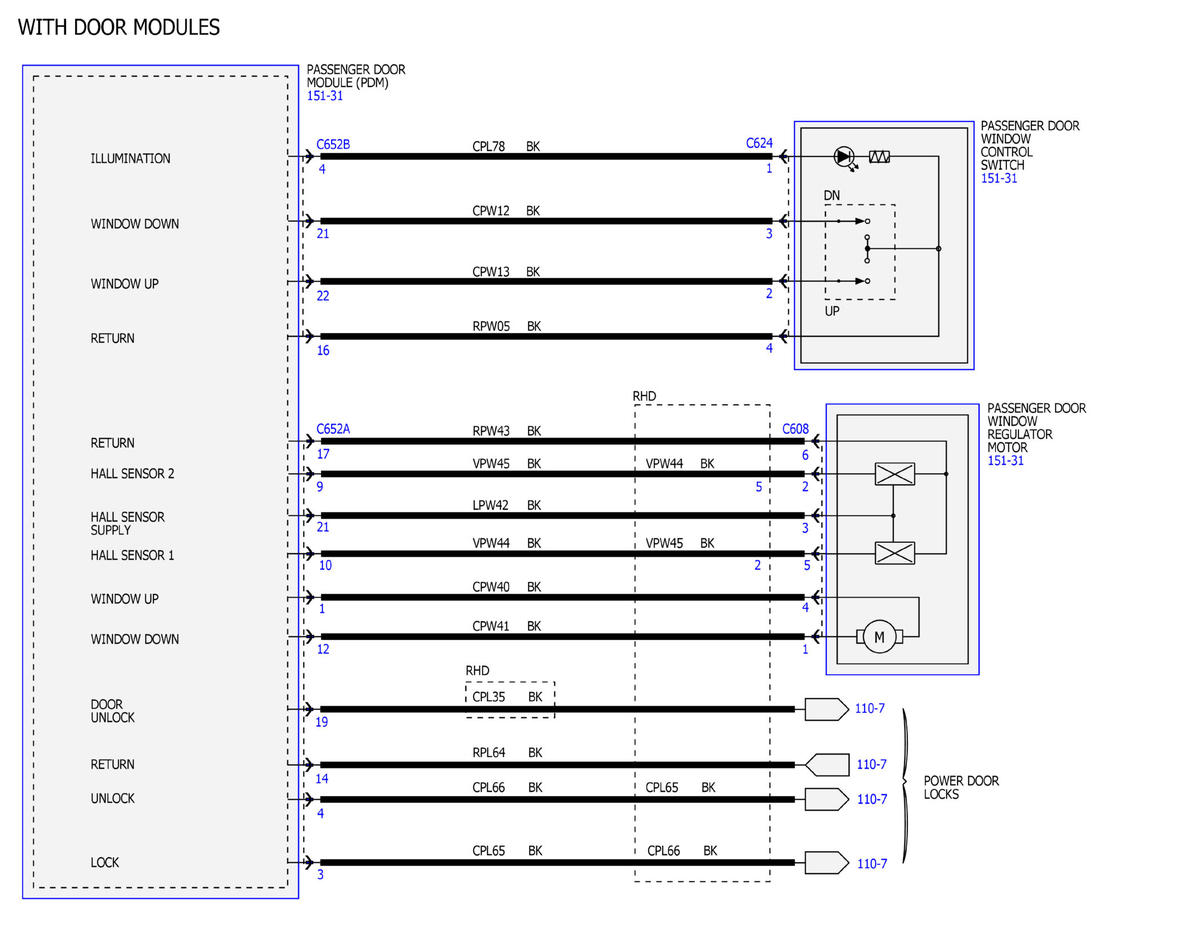

Fig 15: Power Windows Wiring Diagram (15 of 15)

GFDWR19831

Courtesy of FORD MOTOR COMPANY
