Transmission Fluid Cooler: Removal

  1. Remove the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .
  2. NOTE: Use suitable paper to absorb any escaping fluid.

    Release the clamps and detach the coolant hoses. Use the General Equipment: Hose Clamp(s)

    GFD305185Courtesy of FORD MOTOR COMPANY

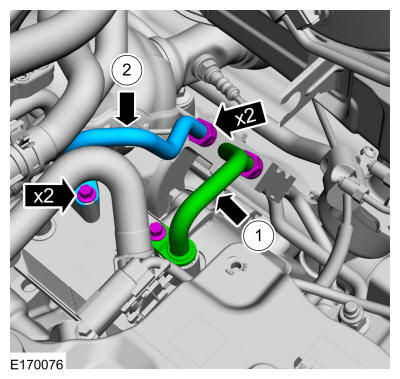

  3. NOTE: Use suitable paper to absorb any escaping fluid.

    1. Remove the bolt, tube nut and the transmission fluid cooler oil outlet tube.
    2. Remove the bolt, tube nut and the transmission fluid cooler oil inlet tube.

    GFD305186Courtesy of FORD MOTOR COMPANY

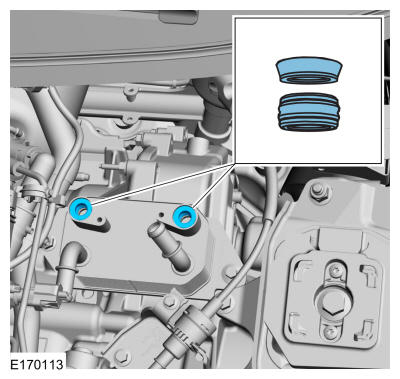

  4. NOTE: Make sure that no component falls off during removal.

    Remove the band seals and backing rings from the transmission fluid cooler.

    GFD305187Courtesy of FORD MOTOR COMPANY
  5. Remove the nut and position aside the coolant hose and the bracket.
    GFD305188Courtesy of FORD MOTOR COMPANY
  6. NOTE: Be prepared to collect escaping fluids.

    Remove the bolt and the transmission fluid cooler.

GFD305189Courtesy of FORD MOTOR COMPANY
