Connector Repair Procedures

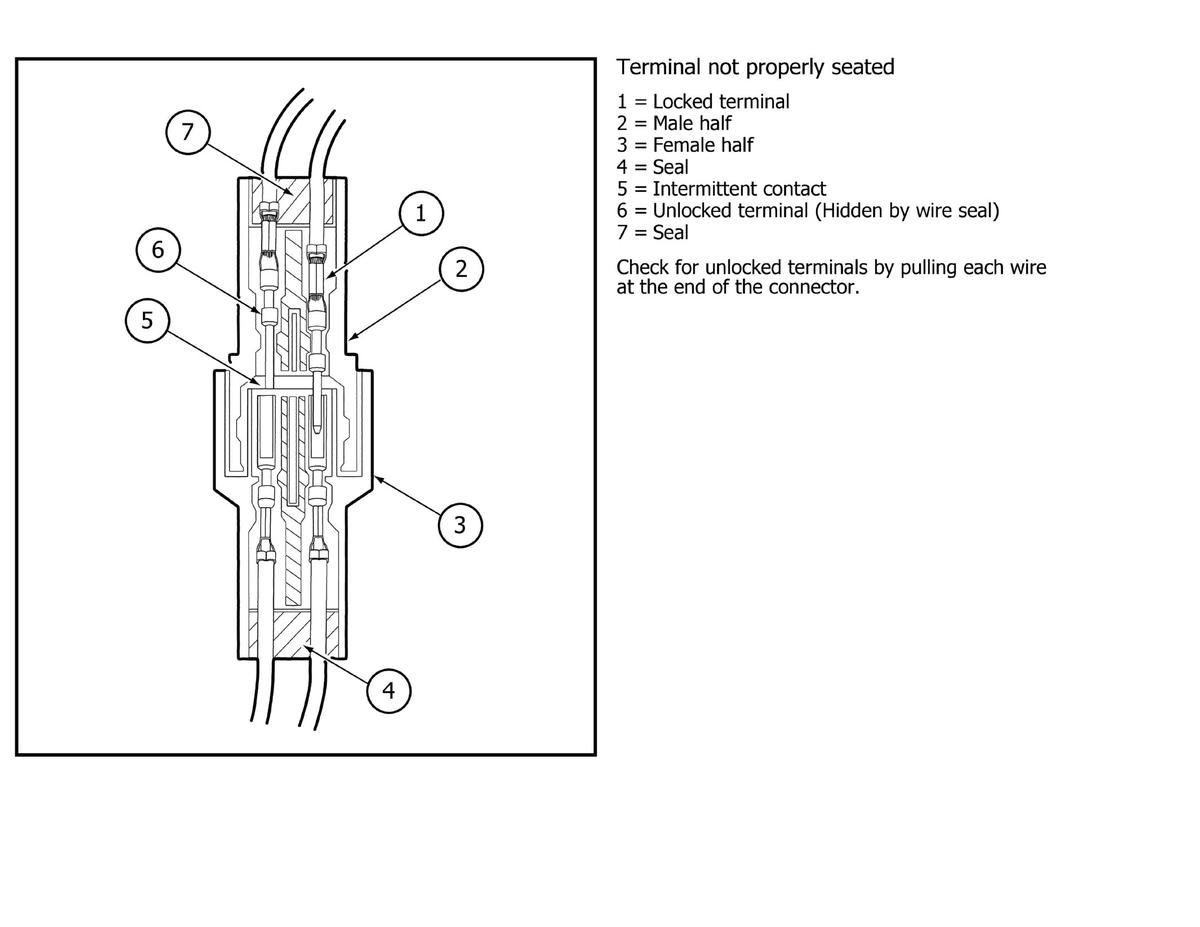

GFDWR21595Courtesy of FORD MOTOR COMPANY

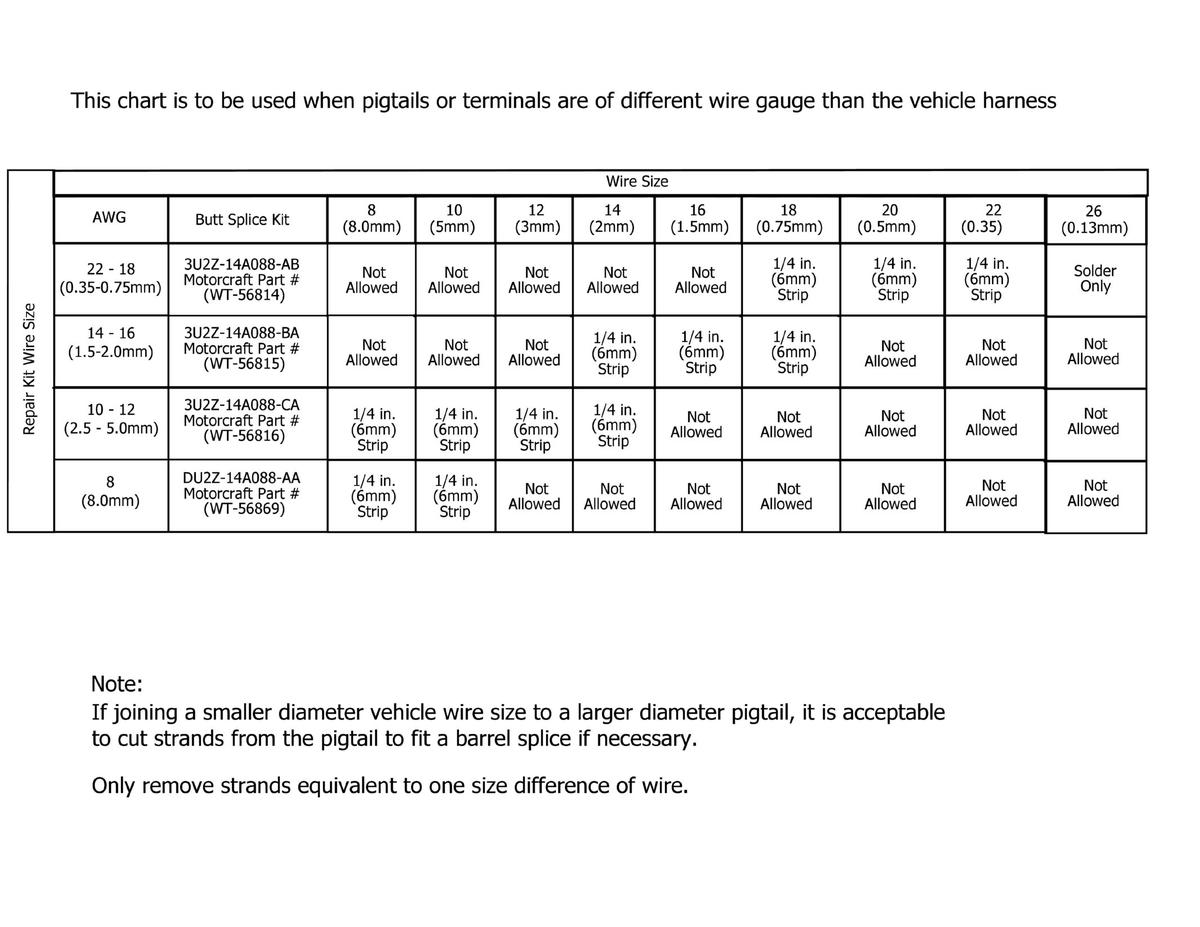

GFDWR21596Courtesy of FORD MOTOR COMPANY

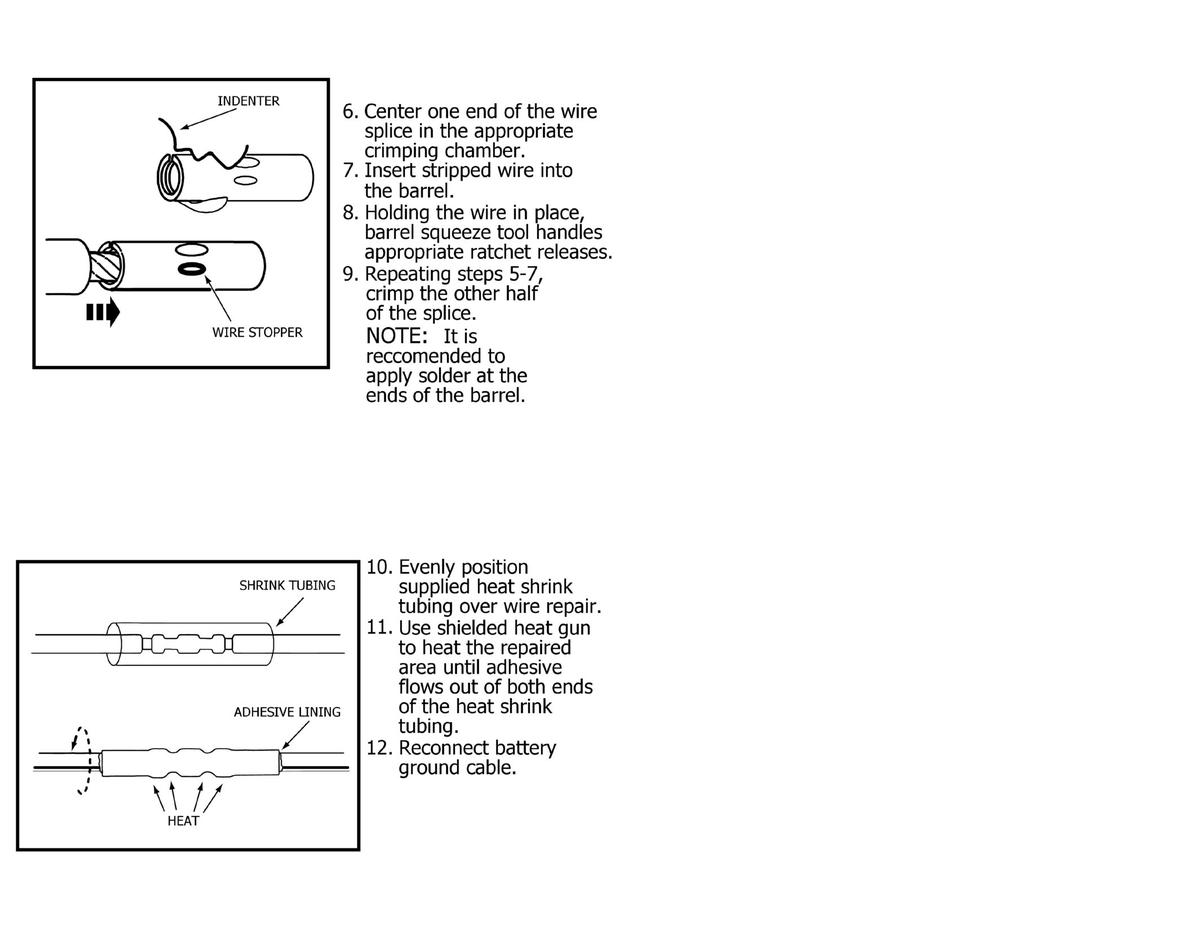

GFDWR21597Courtesy of FORD MOTOR COMPANY

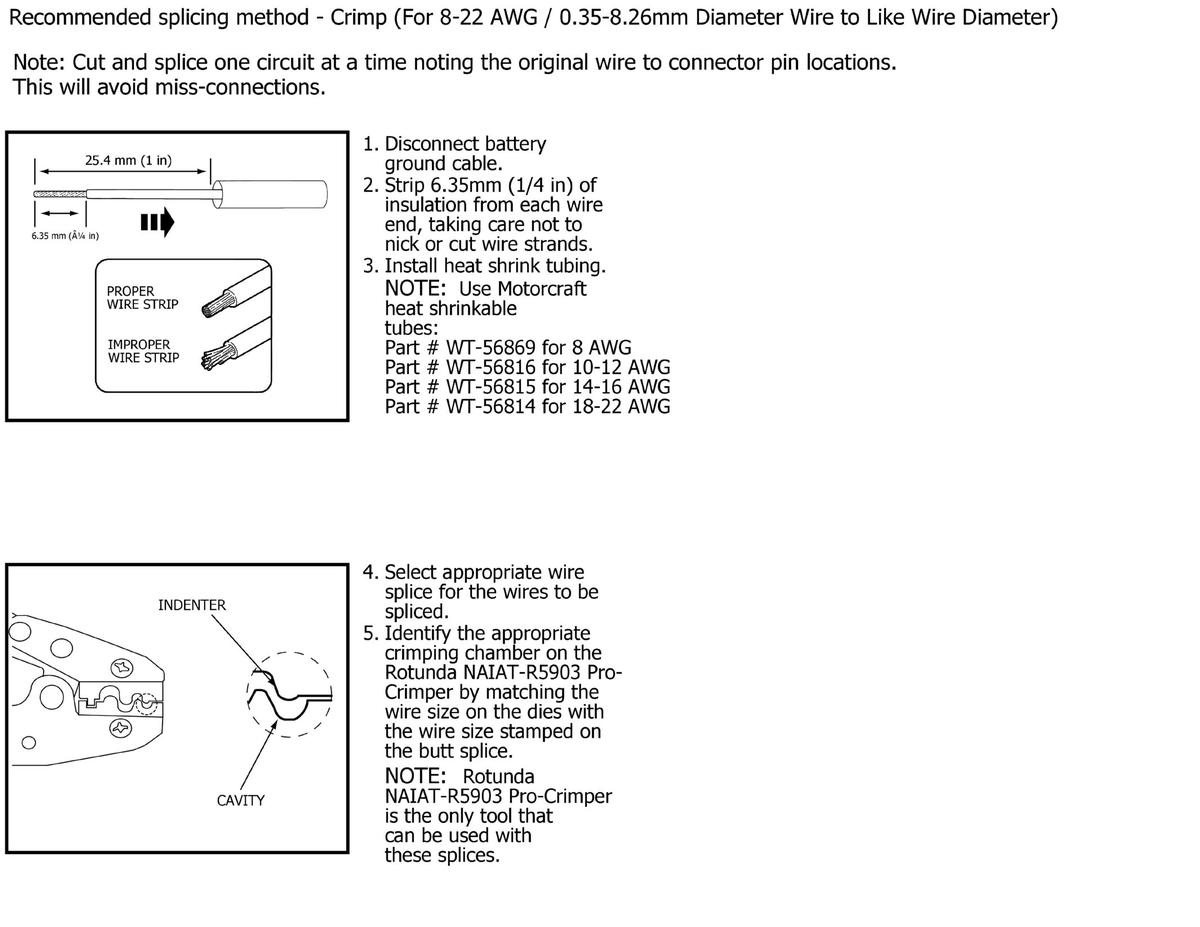

GFDWR21598Courtesy of FORD MOTOR COMPANY

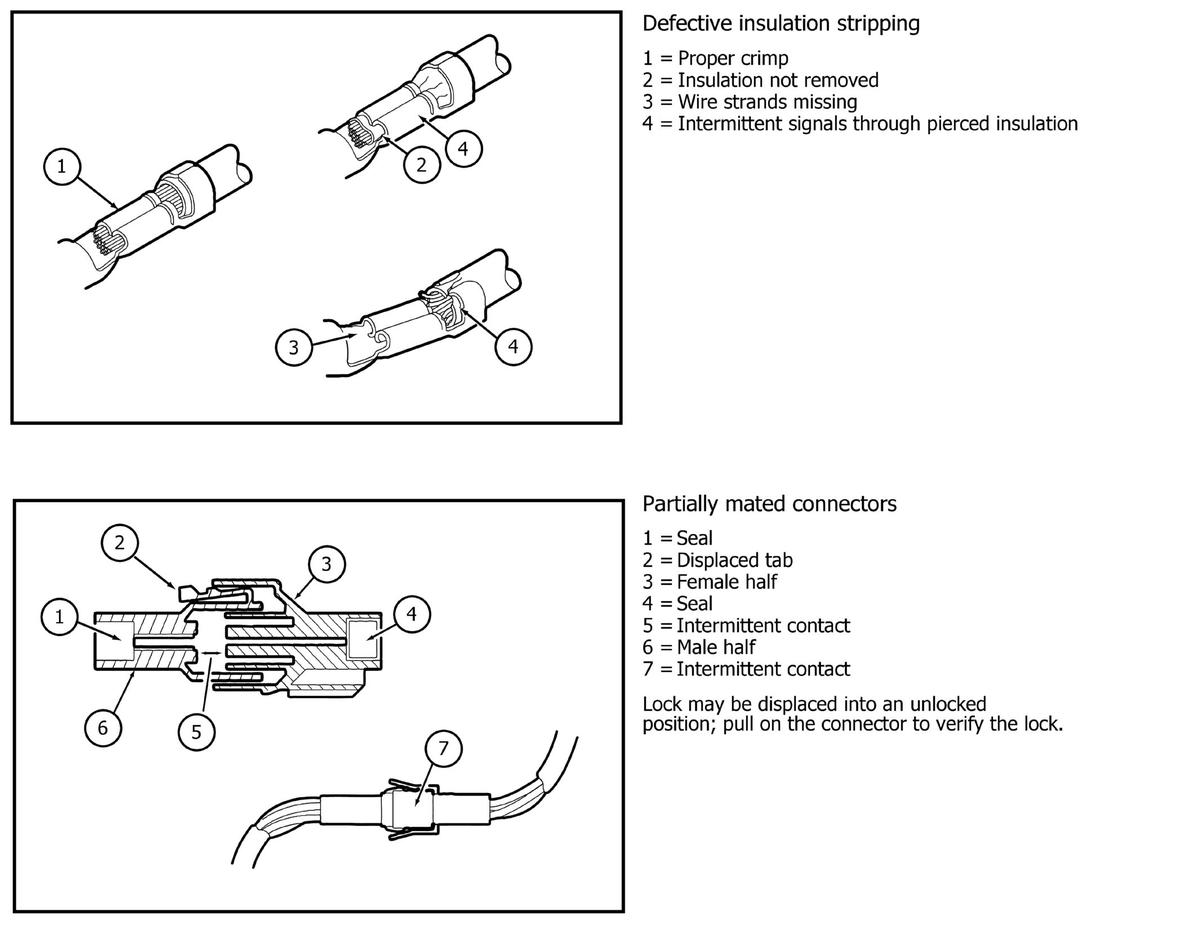

GFDWR21599Courtesy of FORD MOTOR COMPANY

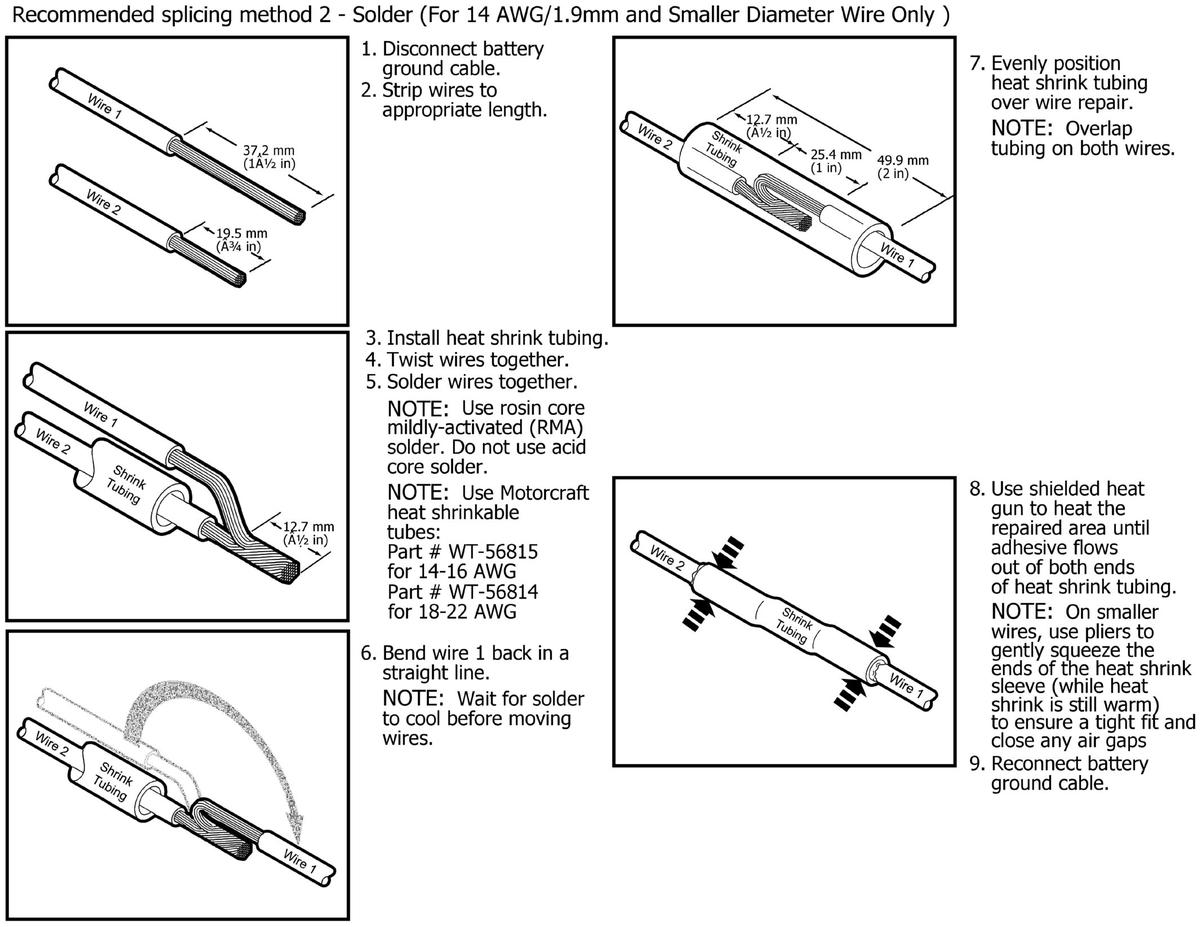

GFDWR21600Courtesy of FORD MOTOR COMPANY

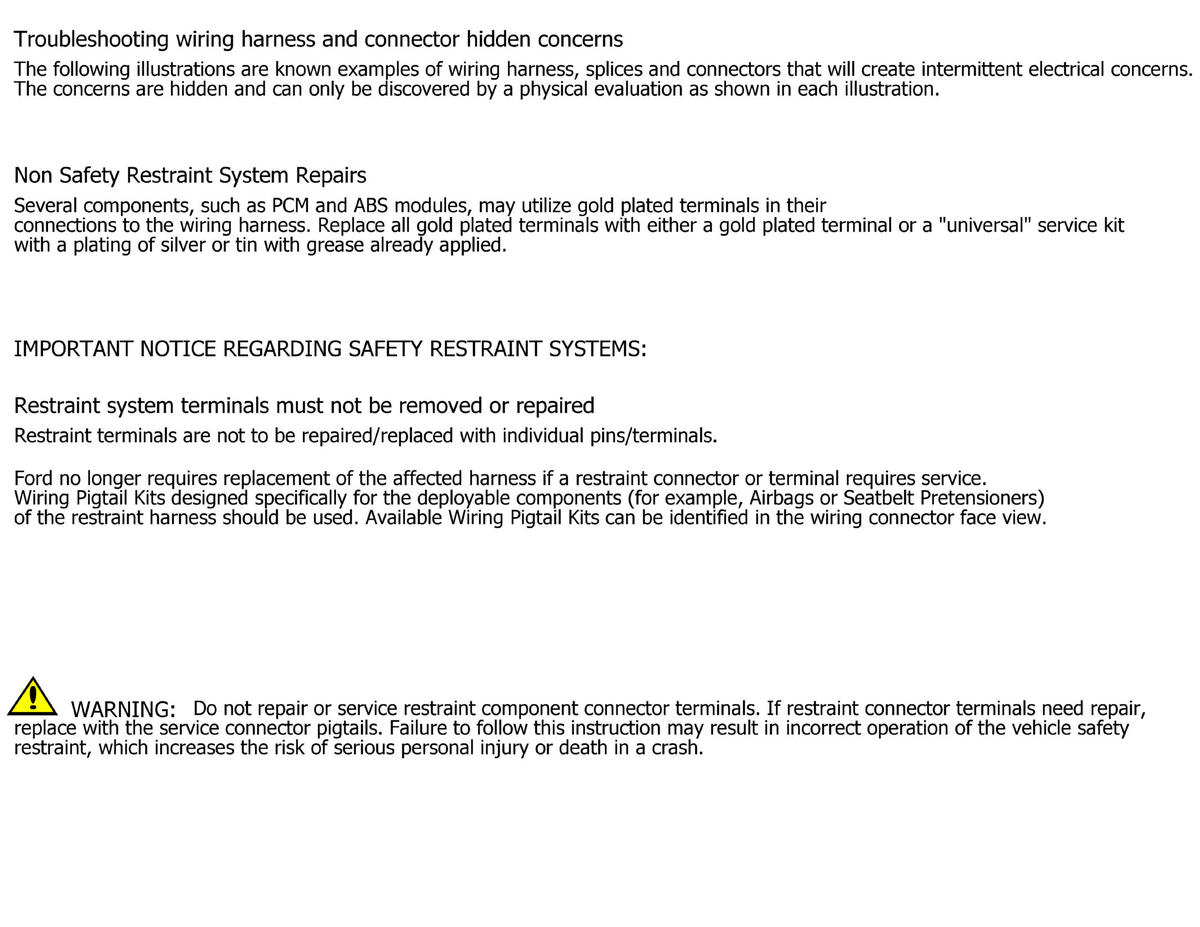

GFDWR21601Courtesy of FORD MOTOR COMPANY

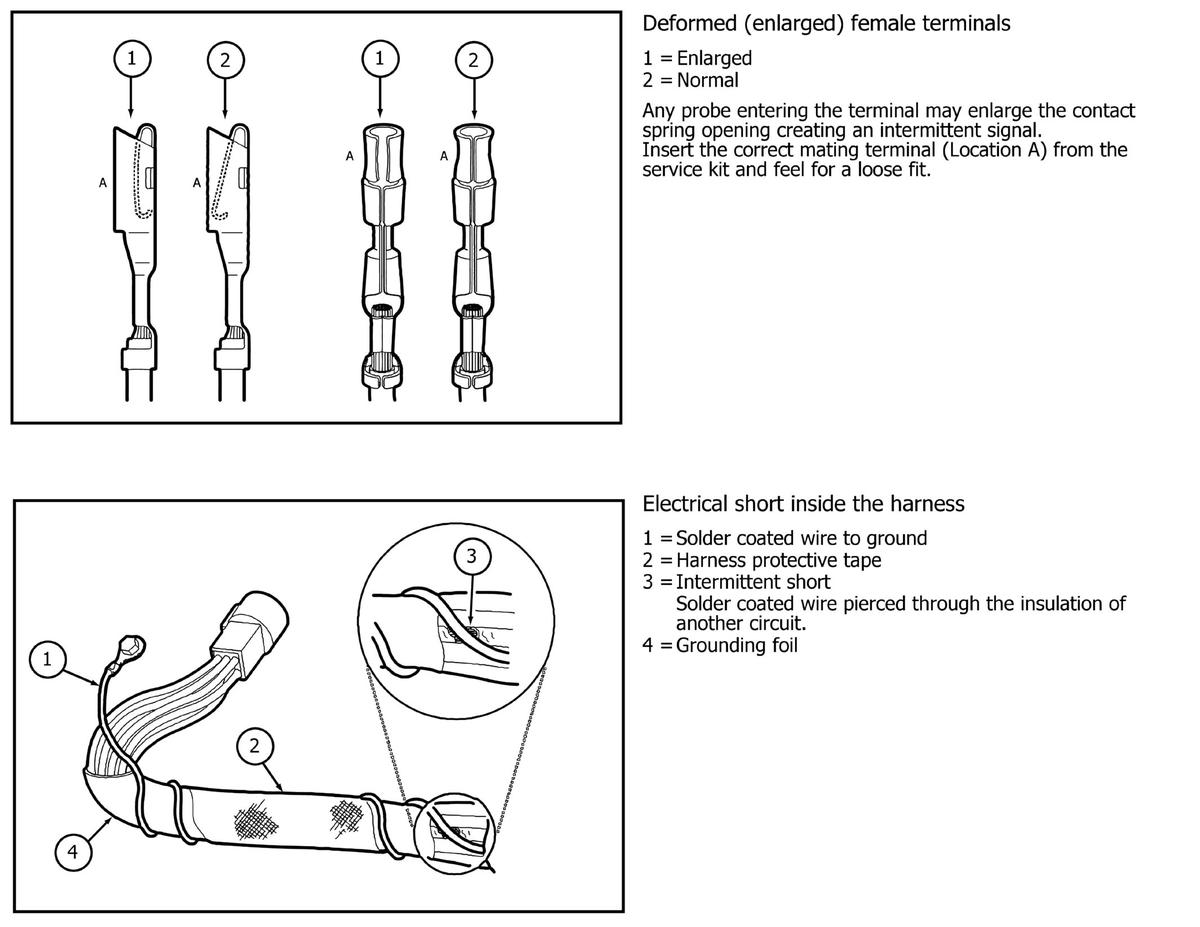

GFDWR21602Courtesy of FORD MOTOR COMPANY

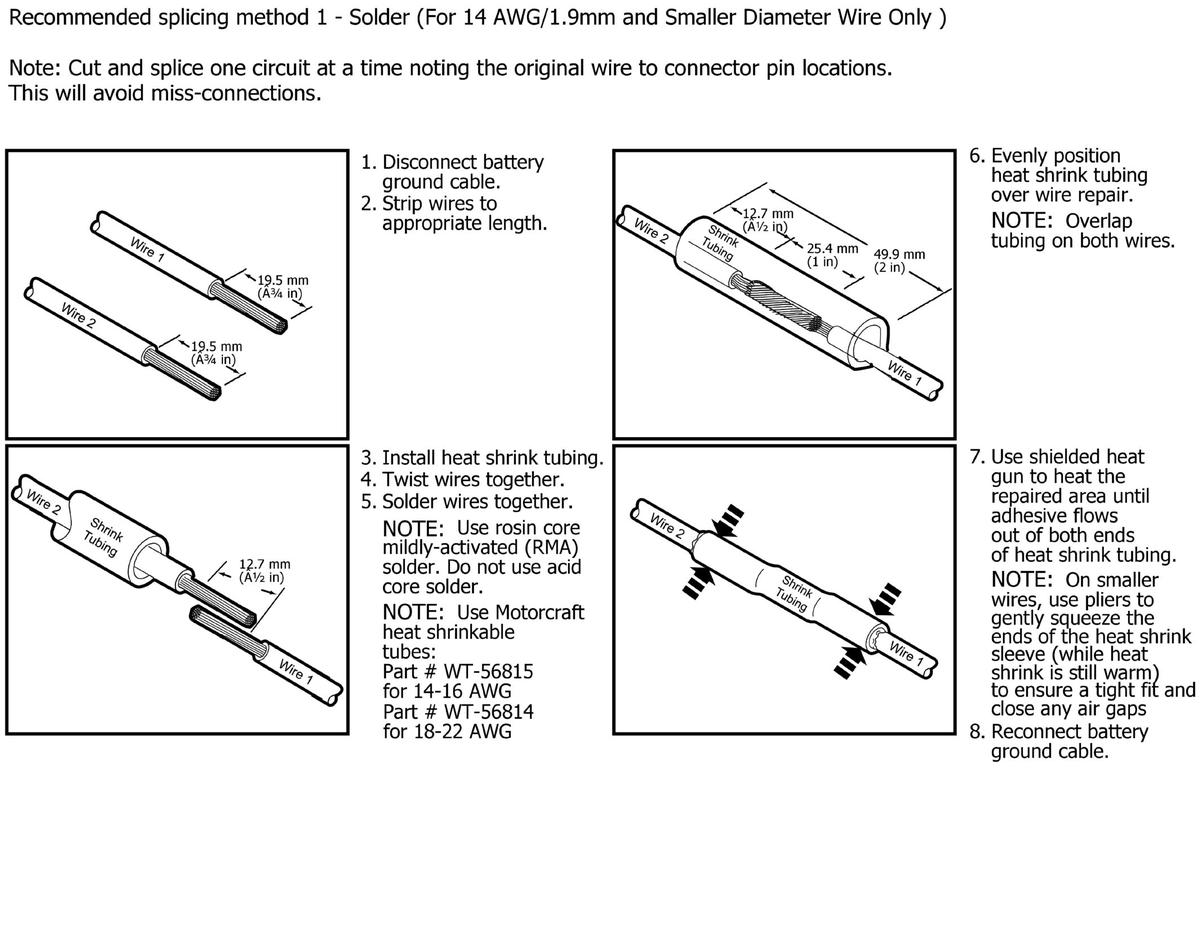

GFDWR21603Courtesy of FORD MOTOR COMPANY
