Fuel Charging and Controls - Component Location

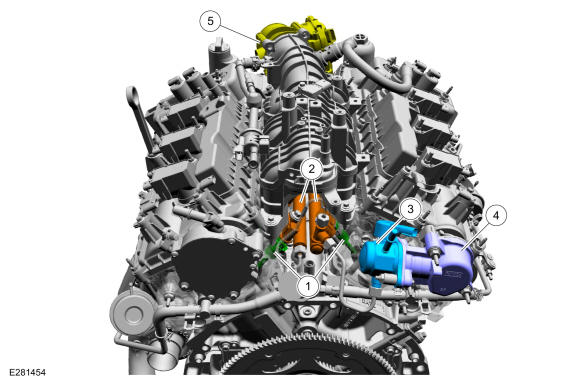

2.7L EcoBoost
| Item | Description |
|---|---|
| 1 | Fuel injectors Refer to: Fuel Injectors . |
| 2 | Fuel rails Refer to: Fuel Rail . |
| 3 | High-pressure fuel pump Refer to: High-Pressure Fuel Pump . |
| 4 | High-pressure fuel pump drive unit Refer to: High-Pressure Fuel Pump Drive Unit . |
| 5 | Throttle body Refer to: Throttle Body . |

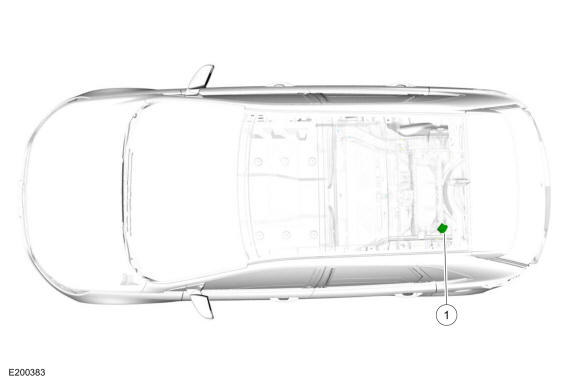

Fuel Pump Driver Module
| Item | Description |
|---|---|
| 1 | Fuel pump driver module Refer to: Fuel Pump Driver Module (FPDM) . Comments: The fuel pump driver module is attached to the underside of the rear floor above the rear subframe on the left side. |
